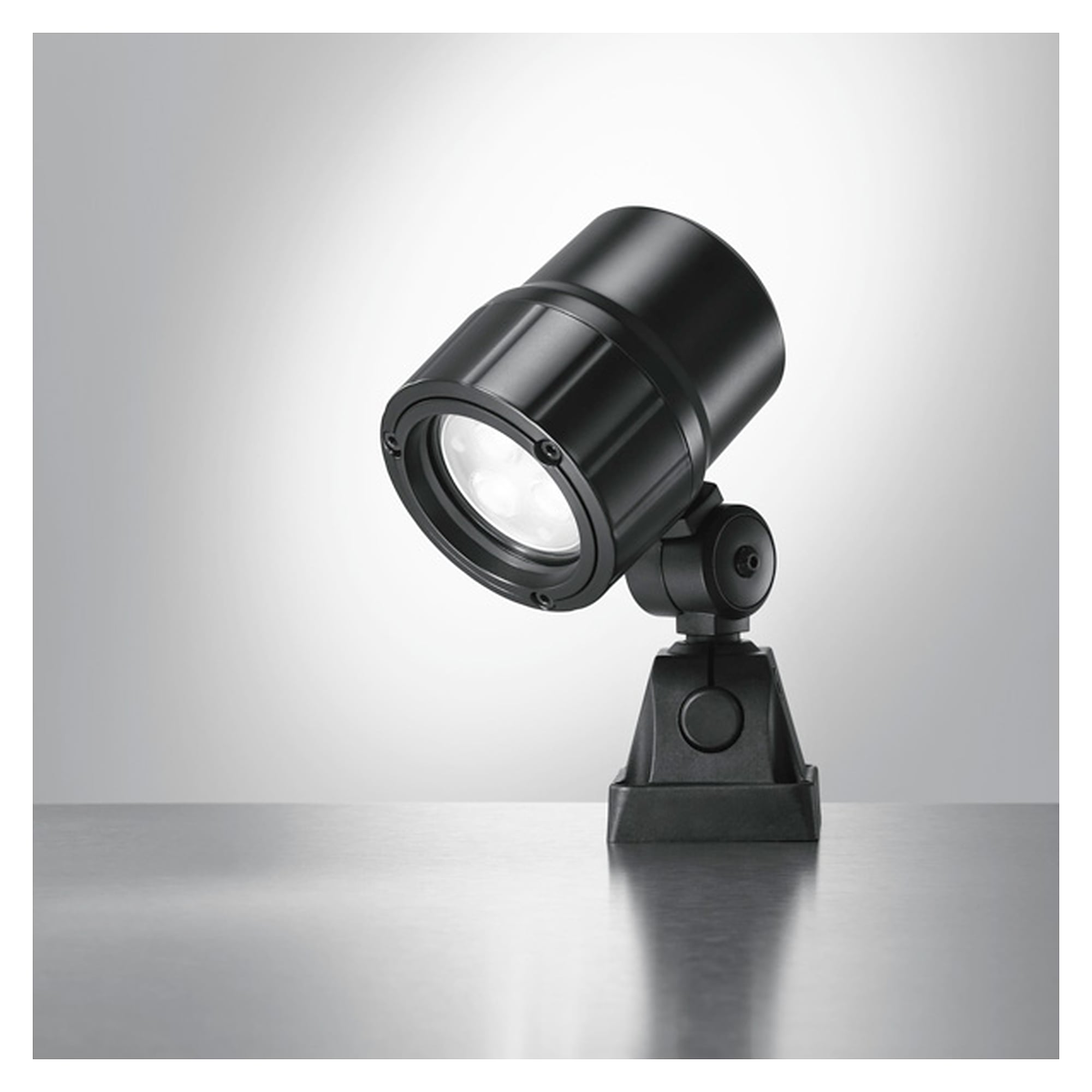

LED pivoting-head luminaire SL SLJ 500/750/S, Flood 30°, 460 lm, 24 V DC - Waldmann 113259000-00641174

When a larger part of the working area needs even lighting, such as a clamping field or workpiece rest, a wide beam is required. The SL SLJ with 30° flood spreads 460 lm at 5 W over a wide area and, with IP67 and borosilicate glass, is designed for use inside the machine. The pivoting head sits on a screw-down flange and can be aligned after installation.

Benefits

• Flood 30°, wide beam: 460 lm at approx. 5 W, 92 lm/W.
• Compact pivoting head on screw-down flange, adjustable, only approx. 0.9 kg.
• IP67 protection, black painted aluminium housing, borosilicate glass cover.
• Neutral white 5000 K, CRI ≥ 70, risk group RG0/1.
• Designed for ambient temperatures up to 40 °C.
• Protection class III for 24 V DC, approx. 3 m cable with free stranded wires.

Applications

• Machine tools with larger working areas
• Clamping fields, workpiece rests and operating areas
• Woodworking machines and assembly stations

Installation and accessories

• Mounting via screw-down flange on the machine wall or housing
• Connection to 24 V DC (22-26 V) via approx. 3 m cable with free stranded wires
• Further fastenings available as accessories

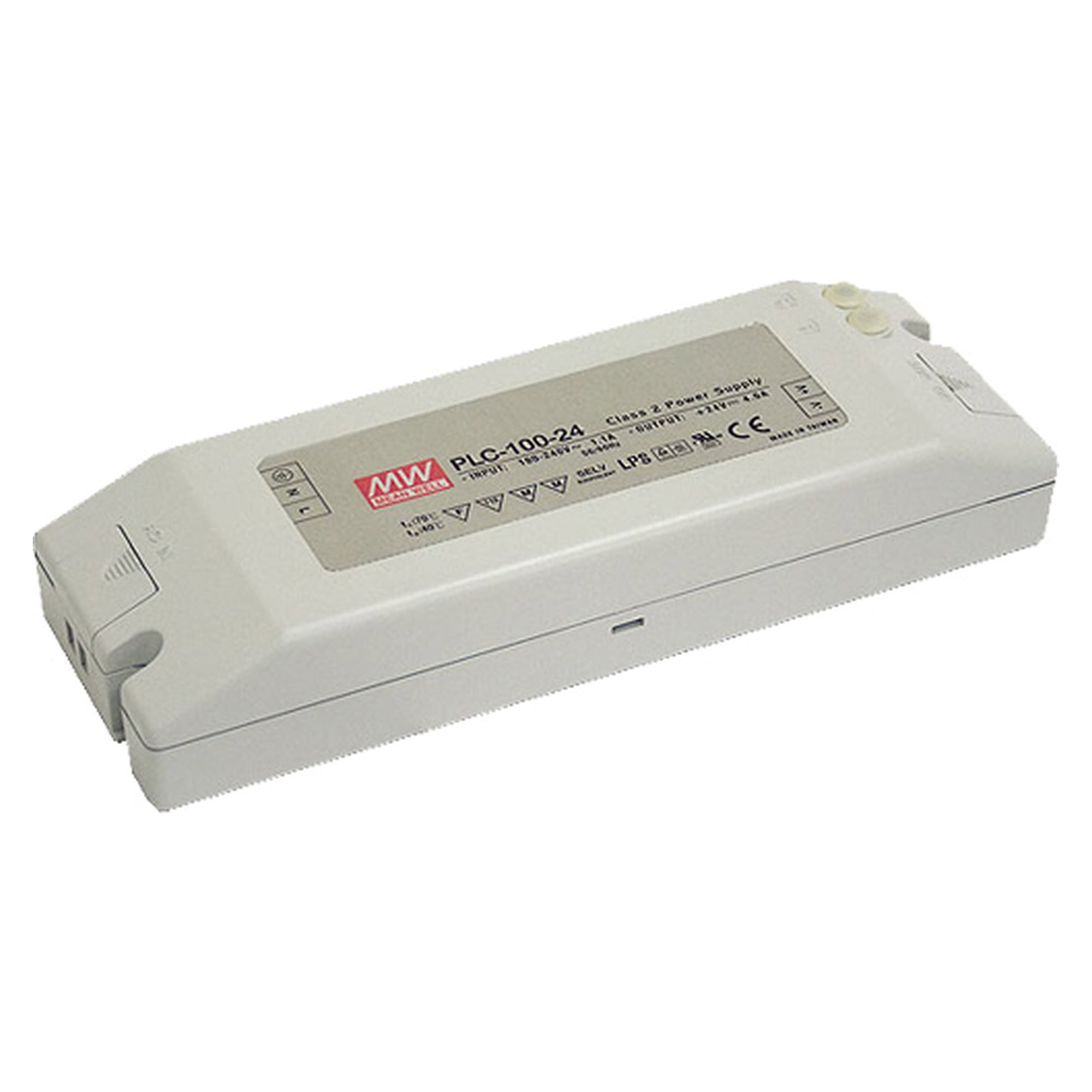

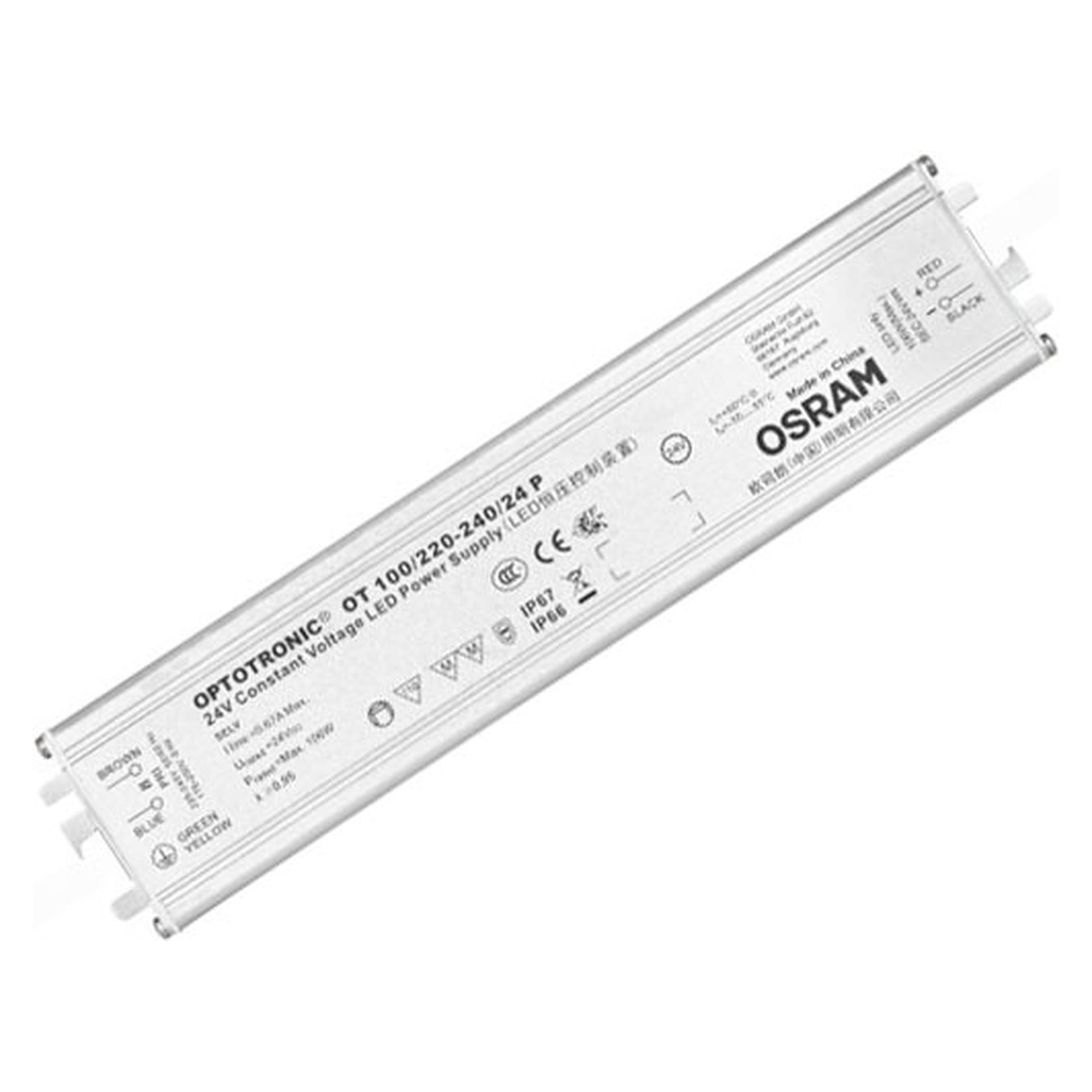

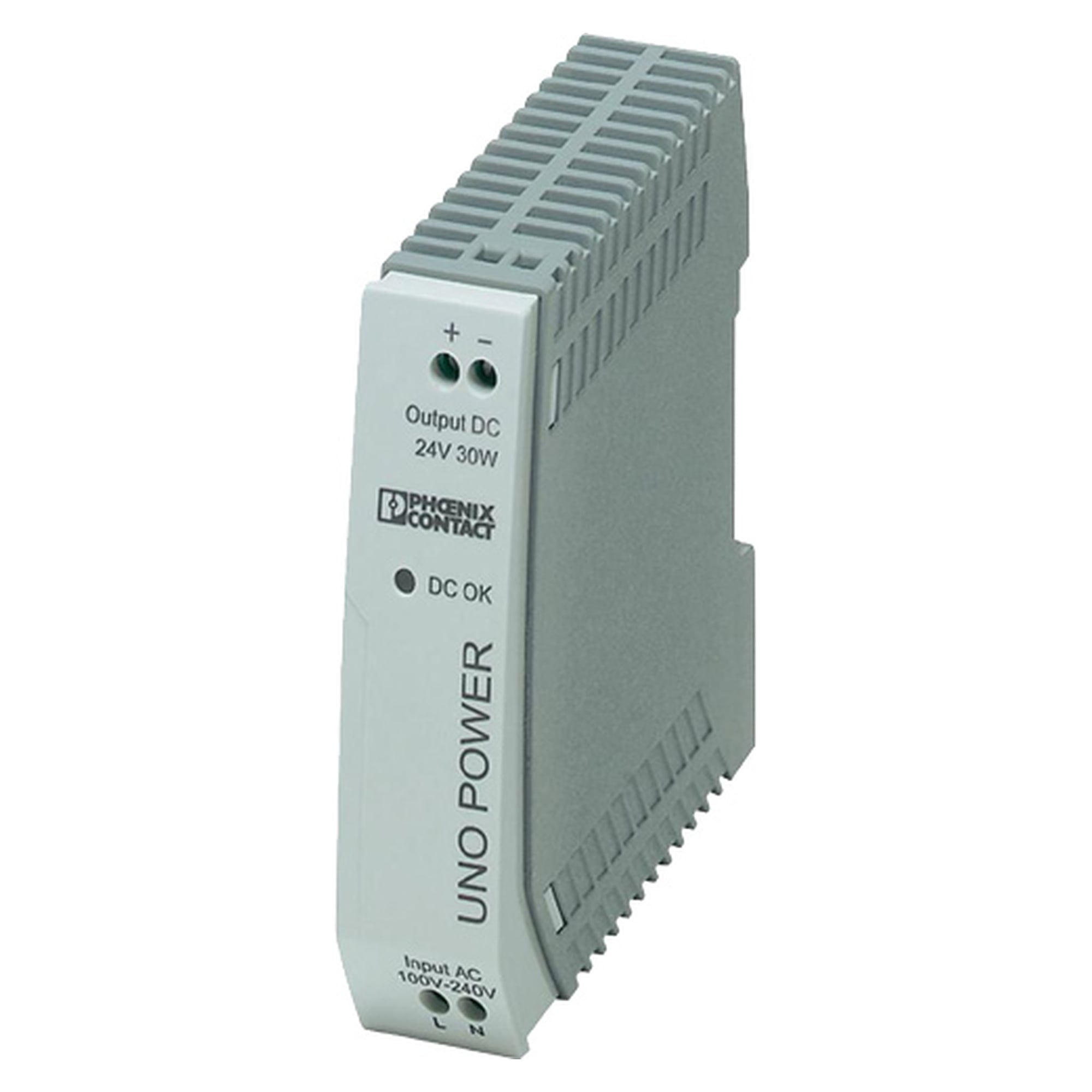

• Operating devices 100-240 V to 24 V DC (30 W or 100 W) or 220-240 V to 24 V DC constant voltage available as accessories
