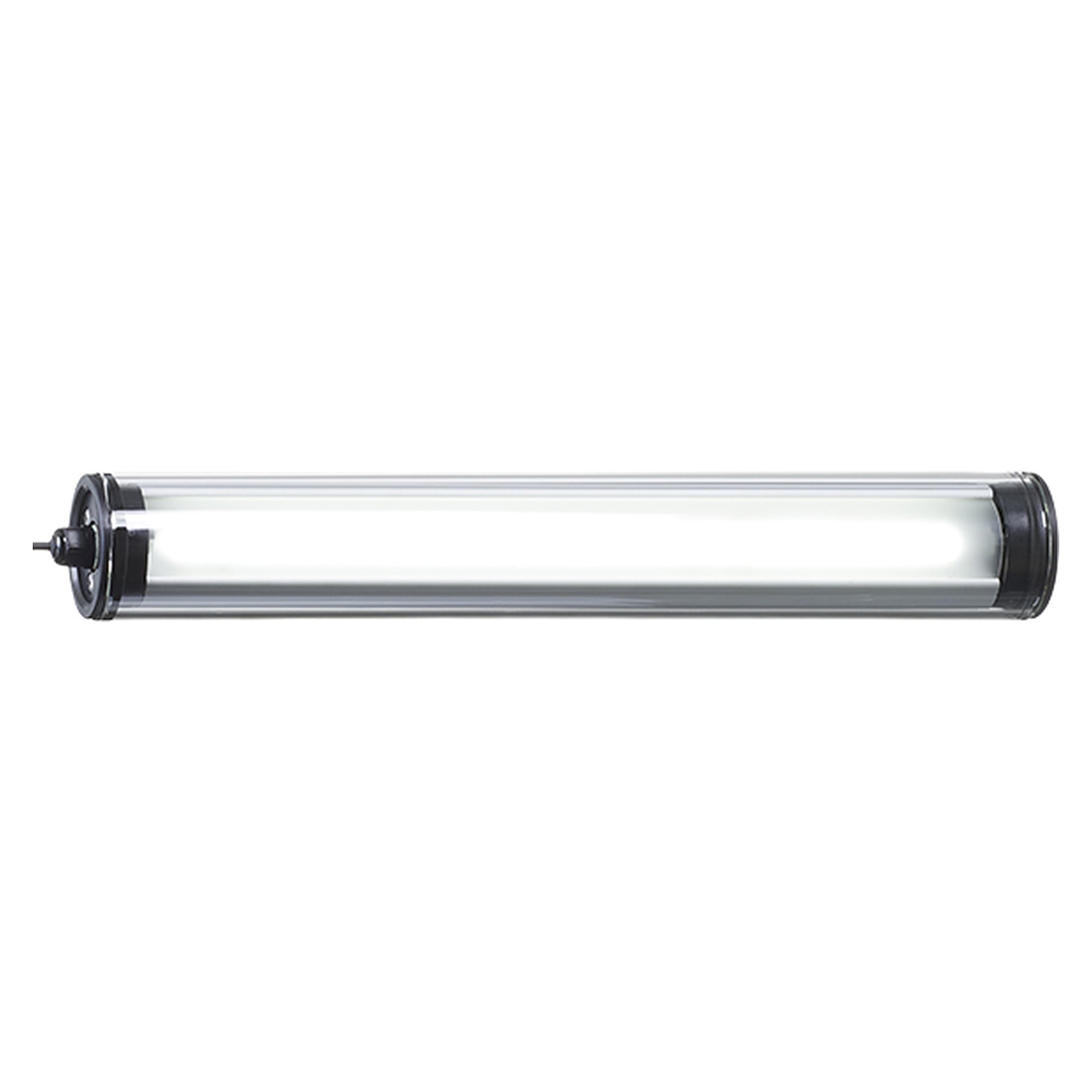

LED tube luminaire RL 70 LE RL70LE-36 N, 22-26 V DC, borosilicate glass, 1400 lm, 510 mm - Waldmann 113280000-00641389

For machines with a wet and oily atmosphere, the RL 70 LE RL70LE-36 N comes with a borosilicate glass tube. It produces 1400 lm at 73 lm/W, and its 510 mm length suits the installation space of the machine.

Benefits

• Runs on the 22-26 V DC machine supply in protection class III, with no control gear inside the luminaire.
• Borosilicate glass tube for wet and oily environments such as the work area of machine tools.
• 1400 lm at 19 W and 73 lm/W, spread over a 456 mm light output length with a 100° beam angle.
• IP67 protection against dust and water jets, operating at ambient temperatures up to 40 °C.
• Light forming technology with diffuser for homogeneous, low-glare light with smooth transitions.
• LEDs for continuous operation without lamp replacement, length grid for 1:1 replacement of conventional Waldmann tube luminaires.

Applications

• Machine tools with a wet and oily work area
• Woodworking machines
• Integrated manufacturing and test systems
• Textile and printing machines

Installation and accessories

• Mounted with pipe clamp (accessory), e.g. luminaire bracket with rubber profile or stainless steel luminaire bracket for 70 mm diameter
• Mains connection: connector, ST16/2 BS, side part A with screwed cable gland
• For mains operation: operating device 100-240 V to 24 V DC (30 W or 100 W) or 220-240 V to 24 V DC constant voltage (accessory)
