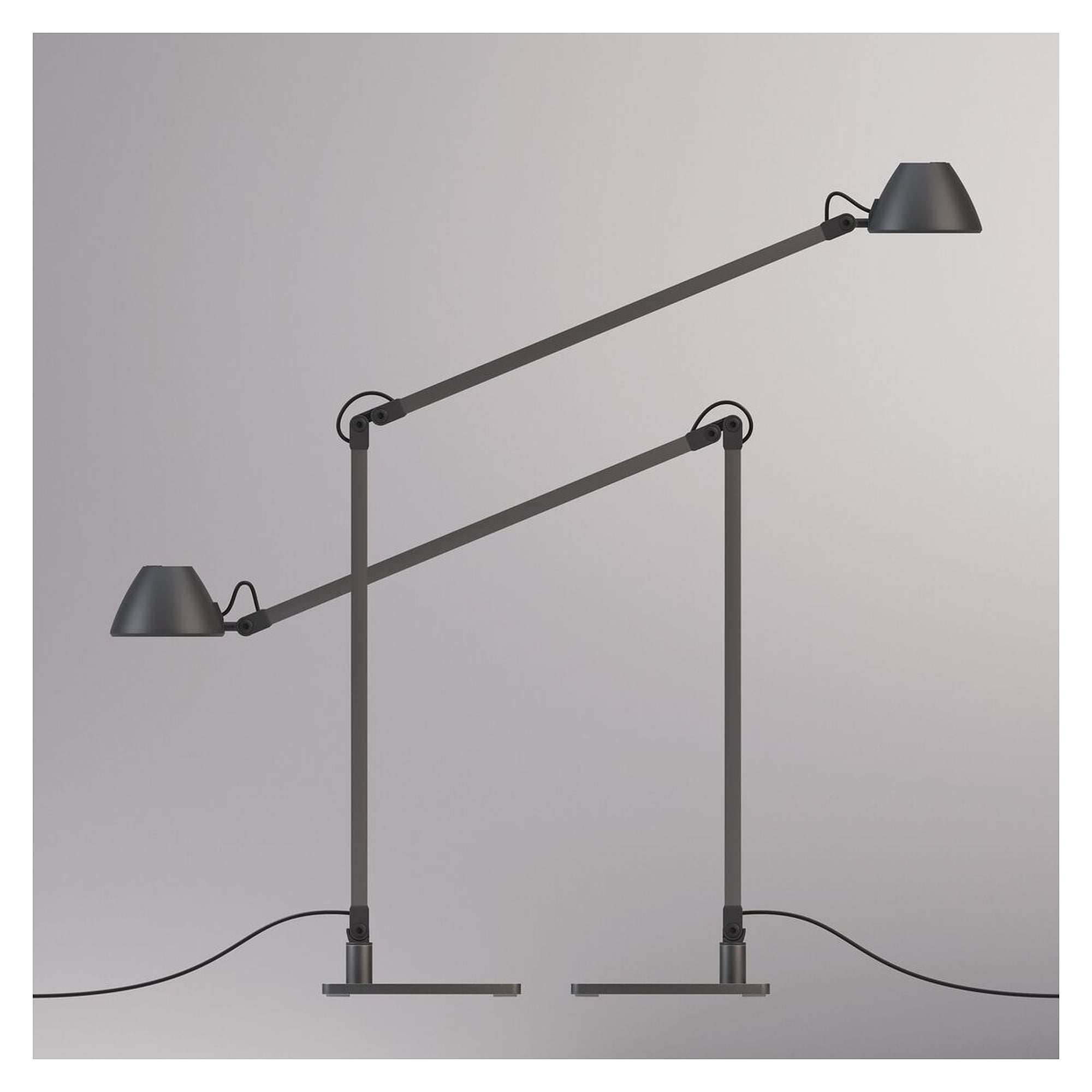

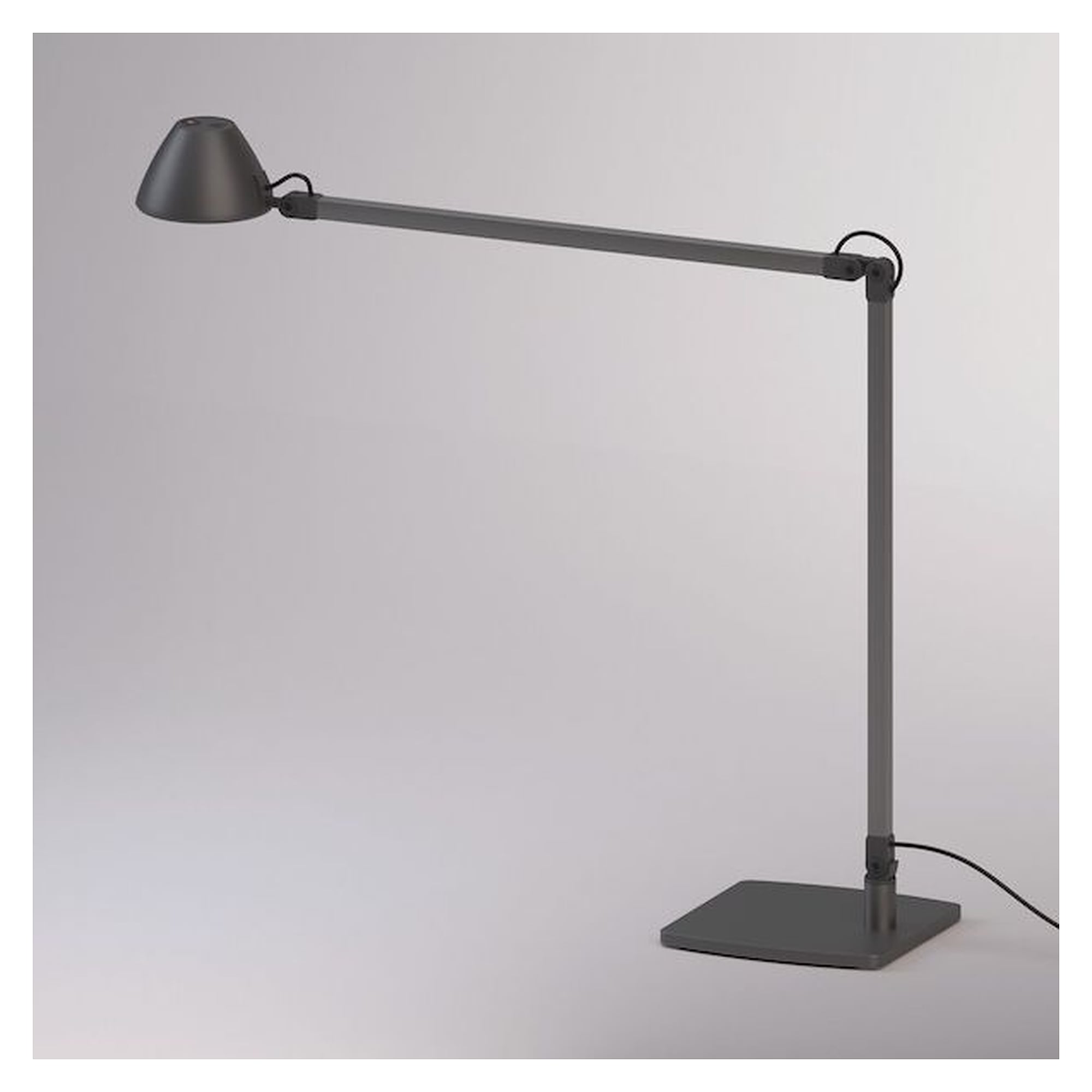

LED task luminaire LUCIO LUD 500/830/D, 265 lm, 3000 K, 73°, dimmable

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LED task luminaire LUCIO LUD 500/830/D, 265 lm, 3000 K, 73°, dimmable - Waldmann 113998000-00810808

Name: LED task luminaire LUCIO LUD 500/830/D, 265 lm, 3000 K, 73°, dimmable - Waldmann 113998000-00810808
Brand: Waldmann
SKU: WAL-113998000-00810808
Price: 239.40 EUR
Availability: InStock

Waldmann ✓ Original product Brand new Made in Germany

Warm white LED task luminaire in the LUD version with 3000 K, approx. 265 lm and a 73° beam angle. Continuously dimmable at the luminaire head. For practices, care settings and meeting desks that call for focused, warm light.

Net

€239.40

excl. VAT

Item WAL-113998000-00810808

Manufacturer no. 113998000-00810808

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Warm white light at 3000 K, concentrated in a 73° beam angle: the LUCIO LUD 500/830/D places approx. 265 lm precisely on a desk or documentation station and keeps the surroundings calm, for example on an evening shift in care or during a consultation. Power consumption is approx. 4 W.

Benefits

Warm white 3000 K with 73° beam angle, light stays on the work area
Continuously dimmable, also for subdued light on late and night shifts

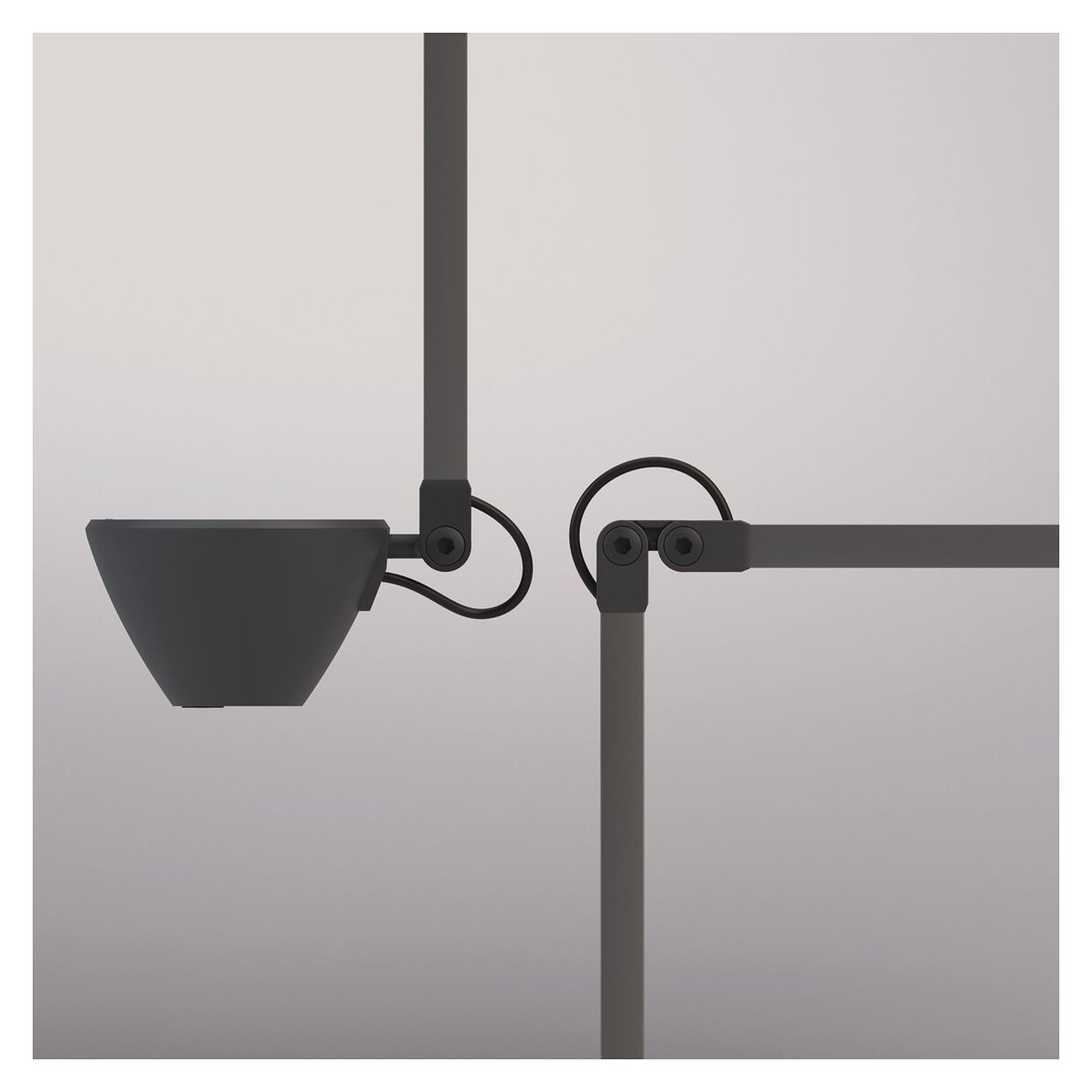

Push button directly in the luminaire head
Colour rendering CRI ≥ 80 and chromaticity tolerance < 3 SDCM
Plug-in transformer 100-240 V, protection class II with plug-in power supply, power factor approx. 0.97

Applications

Documentation stations in nursing and wards
Medical and therapy practices
Consulting and meeting desks
Reception counters with paperwork

Installation and accessories

Supplied with table base, table clamp and adaptor available as accessories
Mains lead approx. 1.5 m with CEE 7/XVI plug

Technical data

Manufacturer part no.	113998000-00810808
Order no.	00810808
EAN	4013330143510
Connected load	100-240 V, AC, 50 Hz, 60 Hz
Control gear	Electronic plug-in transformer
Secondary voltage	5 V
Power consumption	approx. 4 W
Sec. power consumption	approx. 3.5 W
Standby	approx. 0.3 W
Luminous flux	approx. 265 lm
Luminous efficiency	approx. 85 lm/W
Light type/-color	Warm white
Colour temperature	approx. 3000 K
Color rendering index	CRI ≥ 80
Light distribution	Direct, approx. 100 %
Beam angle	73°
Glare control	Optics
Light source	LED module
Energy efficiency class	F
Chromaticity tolerance LED	< 3 SDCM
At-risk group	RG0/1
System of protection/Class	IP 20, II with plug-in power supply, III without plug-in power supply
Technology	Continuously dimmable, DC control signal
Operation	Push button
Housing	Plastic, Untreated, Umbra grey
Light source cover	Polycarbonate (PC), Satine
Arm	Tubular aluminium section, Anodized, Tubular section upright, Titanium
Balance of articulation joints	Friction
Mains lead	approx. 1.5 m, Mains plug, CEE 7/XVI
Fastening	Adaptor (accessory), Table clamp (accessory), Table base
Weight without/incl. packaging	1.85 kg / approx. 2.8 kg
Packaging dimensions	990 mm, approx. 190 mm, 130 mm
Power factor	approx. 0.97
Special features	Push button in luminaire head
Weight	2.8 kg
Manufacturer	Waldmann
Manufacturer Nr.	113998000-00810808
HS-Code	94052140
GPSR manufacturer information	WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Sales unit	1 Stück
Colour	Grey
Farbe	Umbragrau
Control and dimming	Dimmable
Luminous flux (lumen)	265 lm
Power (W)	4 W
Colour rendering (Ra)	Ra 80
Mounting type	Table clamp
Operating voltage	100-240 V
Series	LUCIO
Protection class (IP)	IP20
