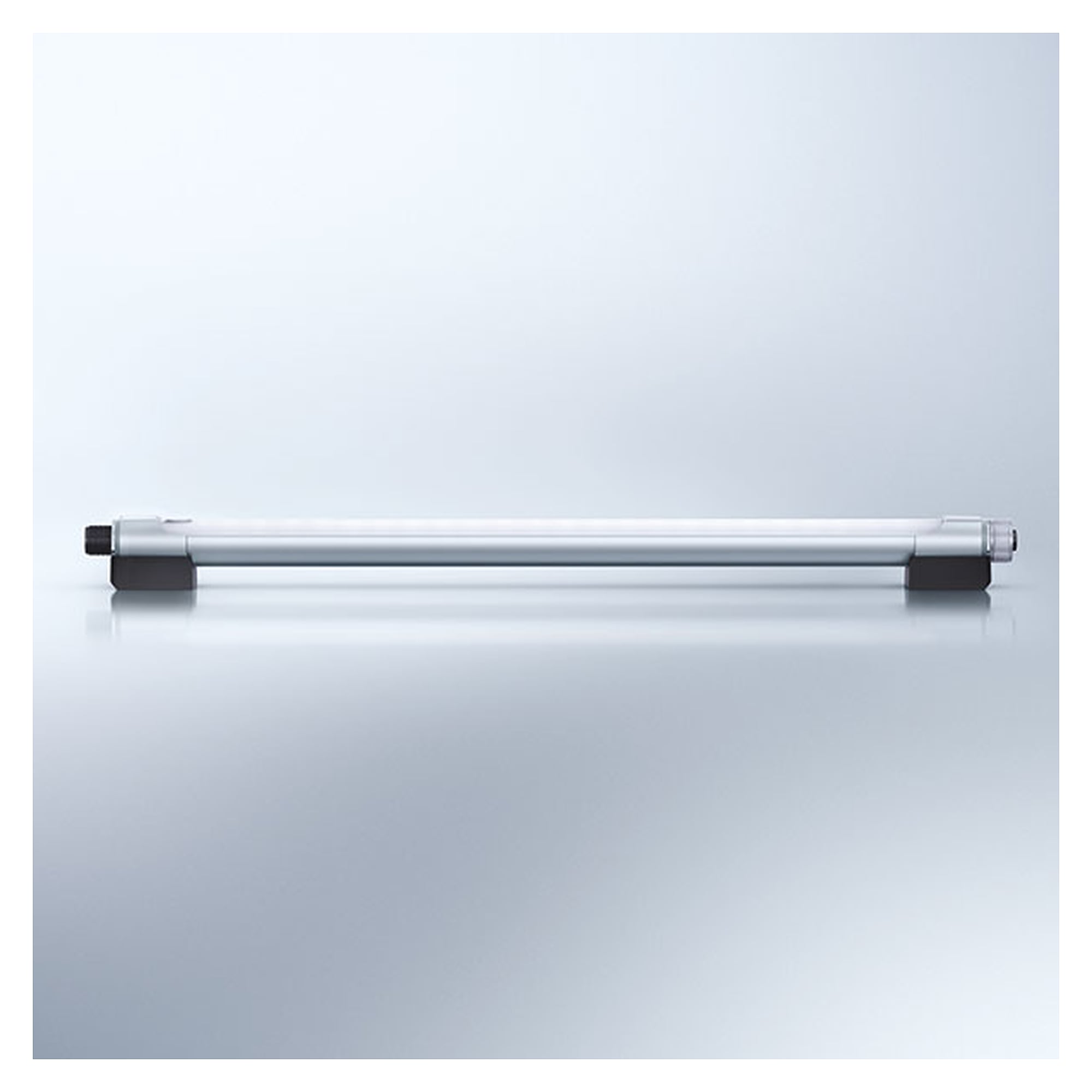

LED surface-mounted luminaire LINURA.edge LEA 600/850/ST, 6 W, 630 lm, 335 mm, through-wired - Waldmann 114034000-00801344

For tool changers, fixtures and tight machine compartments, the LINURA.edge LEA 600/850/ST provides approx. 630 lm of neutral white light at 5000 K along its 335 mm length, with a power consumption of approx. 6 W. As the through-wired ST version, it feeds further luminaires in the same line, so several light points share a single supply cable from the control cabinet.

Benefits

• Simple on/off control via an external switch, no dimming logic required in the machine control
• Approx. 105 lm/W at 6 W, delivering 630 lm of direct light
• Through-wired: further luminaires connect to the luminaire itself, saving cable runs and terminals
• IP54 and protection class III: protected against dust and splashing water, powered by 22-26 V DC safety extra-low voltage
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Working area of compact machines
• Tool changers and clamping fixtures
• Control cabinet doors

Installation and accessories

• Supplied brackets, adjustable by +/- 60°, for aluminium system and control cabinet profiles
• Mains connection via integrated M12 plug connector, A-coded, 5-pin, for 22-26 V DC
• Accessories: M12 connection cables 3 m and 7 m, M12 sockets and plugs, screw-on or magnetic brackets, LDS/ST distance sensor, capacitive contact sensor
