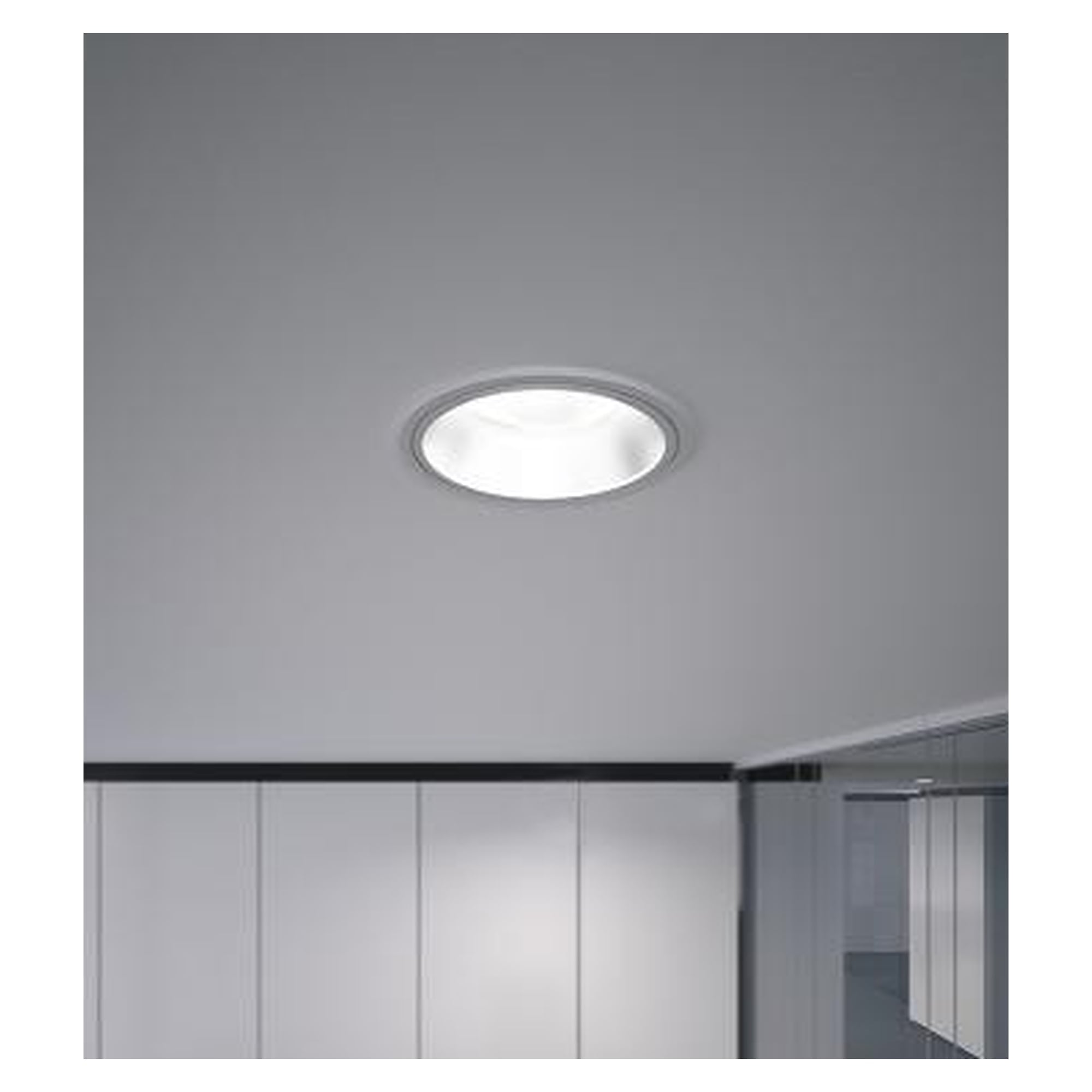

LED recessed downlight DOTOO.Spot DSE 1000/830/D, 1400 lm, 3000 K, warm white, DALI - Waldmann 114270000-00806082

Floor-standing and pendant luminaires light the desk, while room depths and walkways often stay darker. The DOTOO.Spot DSE 1000/830/D fills that gap: approx. 1400 lm at 14 W (around 100 lm/W), warm white at 3000 K and a prismatic screen with UGR ≤ 19. With 1400 lm and 64°, it fits well into tighter grids and smaller rooms.

Benefits

• Approx. 1400 lm at 14 W, around 100 lm/W, standby ≤ 0.2 W
• Prismatic screen, UGR ≤ 19 and max. luminance ≤ 2100 cd/m²: low glare even in the field of view of screen workstations
• Integration into DALI lighting management or dimming via standard push button (TouchDIM), flicker-free
• Suitable for emergency lighting, so the luminaire can be part of the building safety concept
• Low installation depth thanks to the external ballast, tool-free mounting with tension springs

Applications

• Meeting and conference rooms
• Reception and waiting areas
• Corridors and hallways
• Practices and administration

Installation and accessories

• Tool-free ceiling installation with tension springs, according to the manufacturer for ceiling thicknesses of 1 to 42 mm
• External electronic ballast, connection via approx. 0.35 m lead with connector, strain relief with through-wiring option
