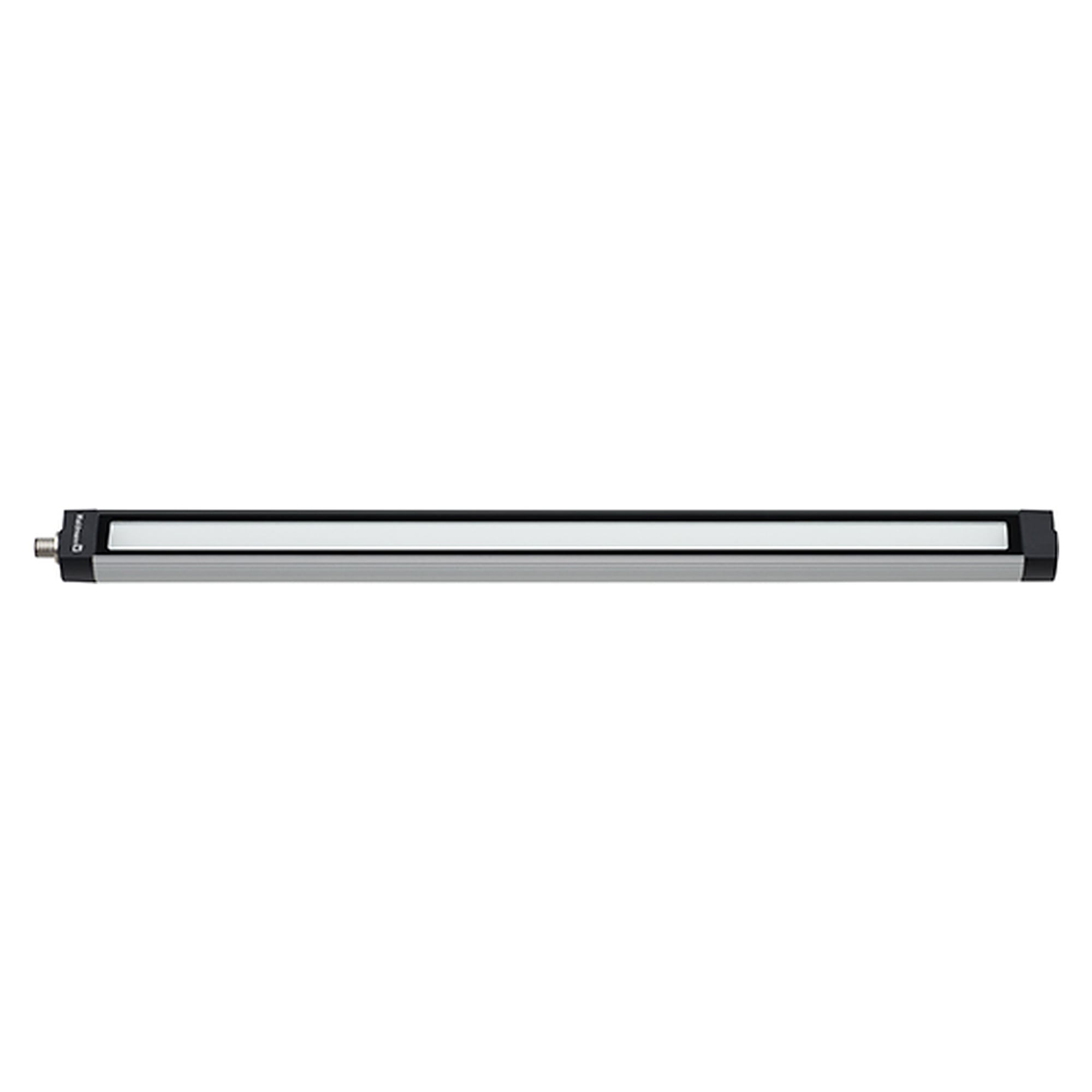

LED machine luminaire MACH LED PLUS.forty MLAL 49 S, High Output, 29 W, 3100 lm, 540 mm

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LED machine luminaire MACH LED PLUS.forty MLAL 49 S, High Output, 29 W, 3100 lm, 540 mm - Waldmann 114548000-00815423

Name: LED machine luminaire MACH LED PLUS.forty MLAL 49 S, High Output, 29 W, 3100 lm, 540 mm - Waldmann 114548000-00815423
Brand: Waldmann
SKU: WAL-114548000-00815423
Price: 207.40 EUR
Availability: InStock

Waldmann ✓ Original product Brand new Made in Germany

High Output variant of the MACH LED PLUS.forty: MLAL 49 S with approx. 3100 lm at approx. 29 W over just 540 mm, 24 V DC. For machine tools that need a high lighting level in limited installation space. Waldmann grants a 20-year manufacturer's warranty on this luminaire.

Net

€207.40

excl. VAT

Item WAL-114548000-00815423

Manufacturer no. 114548000-00815423

Question about this item

Datasheet (PDF) User manual 7 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

If the working area needs more light but there is no room for a longer luminaire, the High Output variant MLAL 49 S is the answer: over 540 mm it delivers approx. 3100 lm at approx. 29 W and approx. 106 lm/W.

Benefits

Approx. 3100 lm over 540 mm, clearly more than the standard version MLAL 42 S of the same length (approx. 1680 lm)
Approx. 106 lm/W luminous efficiency
90° wide beam to light the entire working area
IP67 and protection class III: sealed against dust, coolant and temporary immersion
20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

Machine tools with high lighting demand and little space for luminaires
Medium-sized lathes and milling machines
Grinding machines and machining centres

Installation and accessories

Mounted with L-angle or clamp, matching luminaire bracket +/-20° and luminaire bracket set +/-90°
Connection via built-in plug RSFM 4/0,05 P25-1 (M12, A-coded), accessories: M12 connection cables 3 m and 7 m, sockets, plugs, protective cap
Mains operation via operating device 100-240 V / 24 V DC, 30 W or 100 W

Technical data

Manufacturer part no.	114548000-00815423
Order number	00815423
EAN	4013330188832
Connected load	24 V DC
Control gear	Without
Power consumption	approx. 29 W
Luminous flux	approx. 3100 lm
Luminous efficiency	approx. 106 lm/W
Light colour	Neutral white
Colour temperature	approx. 5000 K
Colour rendering index	CRI ≥ 80
Light distribution	Wide beam, Direct, approx. 100 %
Beam angle	90 °
Glare control	without
Light source	LED
Chromaticity tolerance LED	< 4 SDCM
At-risk group	RG1, low risk
Luminance (L65)	≤ 87,000 cd/m²
UGR class (4H 8H, EN 12464-1)	> 28
System of protection/Class	IP67, class III
Technology	Switchable
Operation	External
Housing	Aluminium, Anodised, Aluminium coloured anodised
Light source cover	Borosilicate, Clear
Mains lead	Built-in plug RSFM 4/0,05 P25-1
Design	Surface-mounted version
Fastening	L-angle, Clamp
Ambient temperature min./max	0 °C / 50 °C
Weight without/incl. packaging	0.9 kg net, approx. 1.1 kg packed
Dimensions (dimensional drawing)	A = 540 mm
Packaging dimensions	590 x 77 x 75 mm
Special features	High Output
Manufacturer's warranty	20 years (Waldmann general warranty terms)
Weight	1.1 kg
Manufacturer	Waldmann
Manufacturer Nr.	114548000-00815423
HS-Code	94054239
GPSR manufacturer information	WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Sales unit	1 Stück
Colour	Silver
Farbe	Aluminiumfarben
Luminous flux (lumen)	3100 lm
Power (W)	29 W
Colour rendering (Ra)	Ra 80
Overall length [mm]	540
Operating voltage	24 V
Series	MACH LED PLUS.forty
Protection class (IP)	IP67
