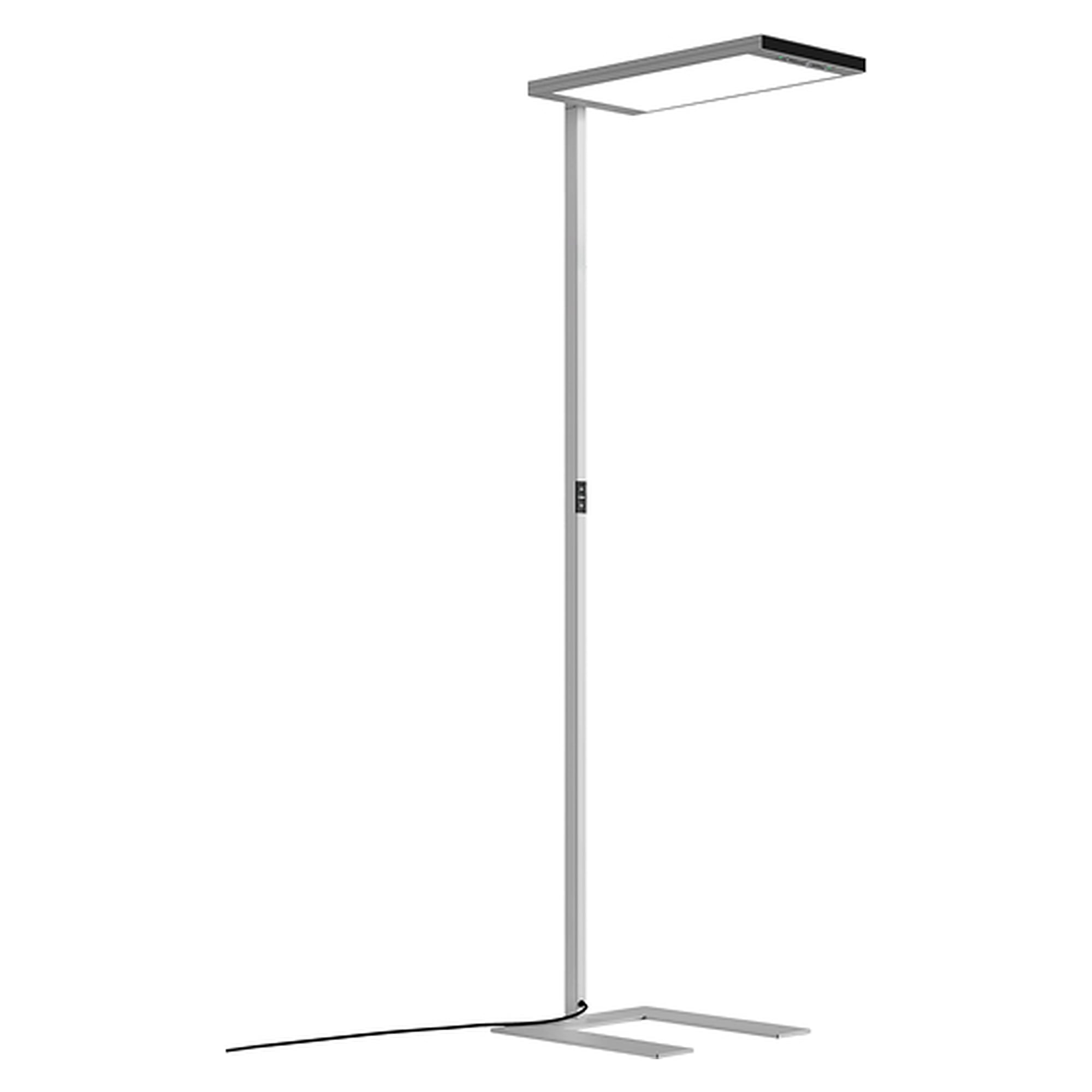

LED floor lamp LAVIGO DPS 14000/840/R/G2, 14,050 lm, sensor, white - Waldmann 121771000-00725995

Waldmann ✓ Original product Brand new Made in Germany

LAVIGO DPS 14000/840/R/G2 floor lamp with approx. 14,050 lm at 93 W and an integrated presence and daylight sensor (PIR). Direct/indirect with approx. 12 % direct share and UGR ≤ 16. White housing, for screen workstations. Waldmann grants a 20-year manufacturer's warranty on this luminaire.

Net
€1,134.37
excl. VAT
Item WAL-121771000-00725995
Manufacturer no. 121771000-00725995
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The LAVIGO DPS 14000/840/R/G2 floor lamp lights screen workstations without ceiling installation: approx. 14,050 lm at 93 W gives 151 lm/W, and the integrated PIR sensor adjusts the light to occupancy and daylight. The high luminous flux covers larger lighting calculation areas such as a double workstation.

Benefits

  • Approx. 14,050 lm at 93 W power consumption, 151 lm/W luminaire efficacy
  • Direct/indirect with approx. 12 % direct share, direct light evenly spread by edge light and light-guide technology
  • UGR ≤ 16 and max. luminance ≤ 3000 cd/m² (L65) for low-glare screen work
  • PIR sensor controls by occupancy and daylight, standby ≤ 0.5 W
  • CRI ≥ 80, chromaticity tolerance < 3 SDCM, flicker-free, white housing with flint grey decorative contrast
  • 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

  • Screen workstations in single and open-plan offices
  • Administration and clerical work
  • Practices and reception areas without suitable ceiling lighting
  • Rented premises where ceiling installation is not possible

Installation and accessories

  • Free-standing C-shaped base in white, weight approx. 19.7 kg
  • Mains lead approx. 3 m with CEE 7/VII plug
  • Detachable luminaire head for easier transport and relocation
  • TALK retrofit: wireless module EnOcean 868 MHz or Bluetooth LE 2.4 GHz, matching wireless USB stick

Technical data

Manufacturer part no.121771000-00725995
Order number00725995
EAN4013330097127
Connected load220-240 V, AC, 50 Hz, 60 Hz
Control gearElectronic ballast
Power consumptionapprox. 93 W
Standbyapprox. 0.5 W
Luminous fluxapprox. 14,050 lm
Luminaire efficacyapprox. 151 lm/W
Light colourNeutral white
Colour temperatureapprox. 4000 K
Color rendering indexCRI ≥ 80
Light distributionDirect/indirect, approx. 12 %
Glare controlPrism aperture
Light sourceLED
Life expectancy LEDL80B50 60,000 h
Chromaticity tolerance LED< 3 SDCM
Energy efficiency classC, D
Photobiological risk groupRG0/1
Luminance (L65)≤ 3000 cd/m²
UGR class (4H 8H, EN 12464-1)≤ 16
System of protection/ClassIP20, class I
TechnologyPresence and daylight sensor control (PIR)
OperationMulti-function switch
HousingSteel/plastic, Painted, White
Light source coverAcrylic (PMMA), satin
ArmSteel tube, Painted, Tubular section upright, White
Luminaire baseC-shaped, White
Mains leadapprox. 3 m, Mains plug, CEE 7/VII
FasteningFloor standing base
Decorative contrast side partsFlint grey
Weight without/incl. packaging19.7 kg net
Power factorapprox. 0.943
Special featuresDirect and indirect light adjustable separately, retrofittable with TALK module, flicker-free, Cradle to Cradle Certified, direct light with edge light and light-guide technology, detachable luminaire head
Manufacturer's warranty20 years (Waldmann general warranty terms)
Weight19.7 kg
ManufacturerWaldmann
Manufacturer Nr.121771000-00725995
HS-Code94052140
GPSR manufacturer informationWALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
Sales unit1 Stück
ColourWhite
FarbeWeiß
Luminous flux (lumen)14050 lm
Power (W)93 W
Colour rendering (Ra)Ra 80
Mounting typeBase / stand
Operating voltage220-240 V
SeriesLAVIGO
Protection class (IP)IP20
