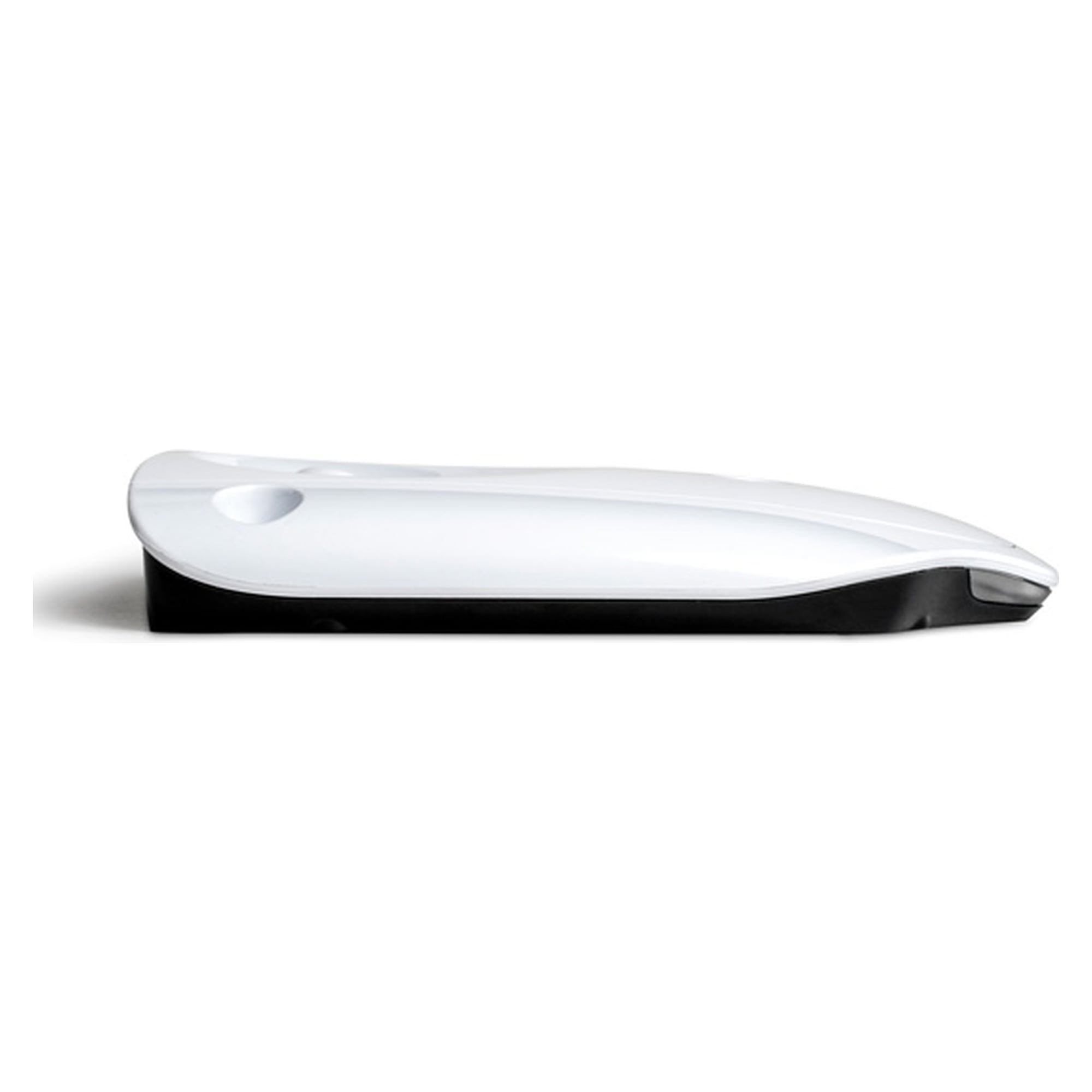

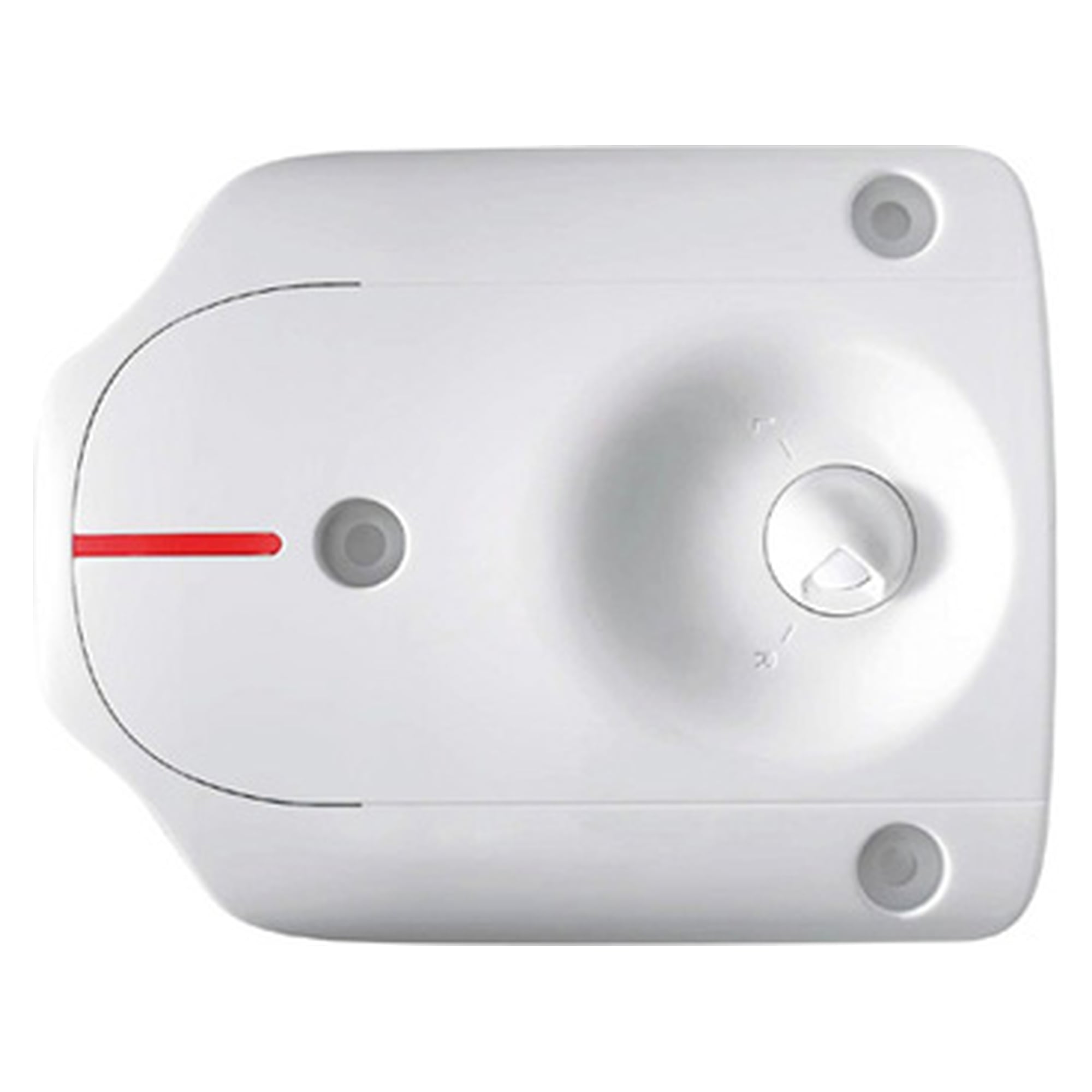

Desk sensor CHEKOV CHT BW, PIR, WiFi/Bluetooth, LED status display, white - Waldmann 338350010-00811023

Planning office space with shared desks requires real occupancy data rather than estimates. The CHEKOV CHT BW is screwed under the desktop, detects presence with a PIR sensor and reports it via WiFi or Bluetooth (MQTT) to the LIZ cloud. Its LED display tells employees right at the desk whether the place is free, occupied, blocked or reserved. It is powered via USB at 5 V DC and draws approx. 0.5 W.

Benefits

• PIR sensor records real workstation use for occupancy analysis
• LED status display for free, occupied, blocked and reserved right at the desk
• Data transmission via WiFi or Bluetooth (MQTT), configuration via NFC

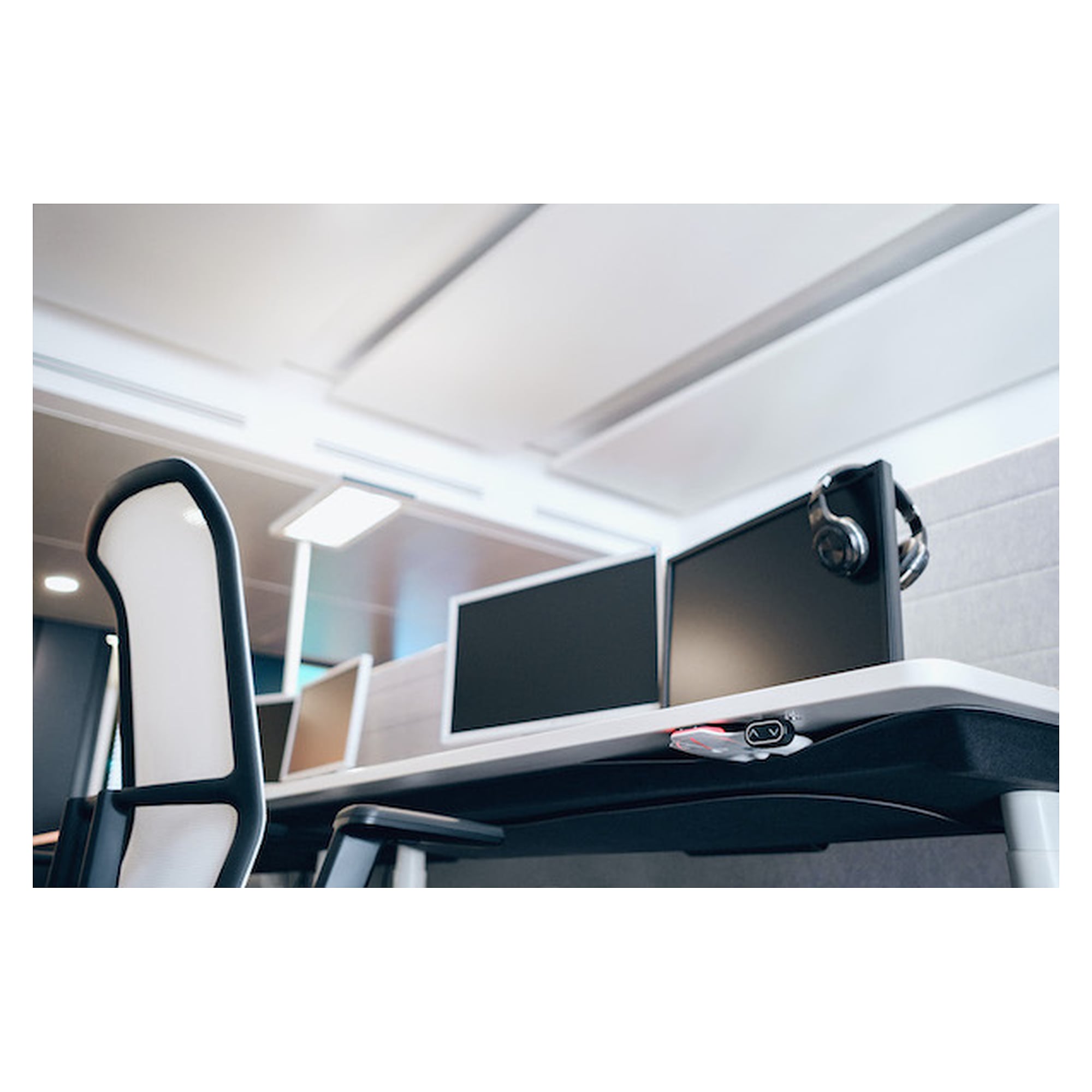

• Retrofittable: mounted under the desk, USB cable and fastening material included
• Low power consumption of approx. 0.5 W, powered via USB

Applications

• Offices with shared desk and desk sharing concepts
• Desk booking in combination with the LTX system
• Space and occupancy analysis for facility management
• Coworking and project areas

Installation and accessories

• Mounting under the desktop, ambient temperature 5-40 °C
• Matching single and dual USB plug-in power supplies available as accessories
