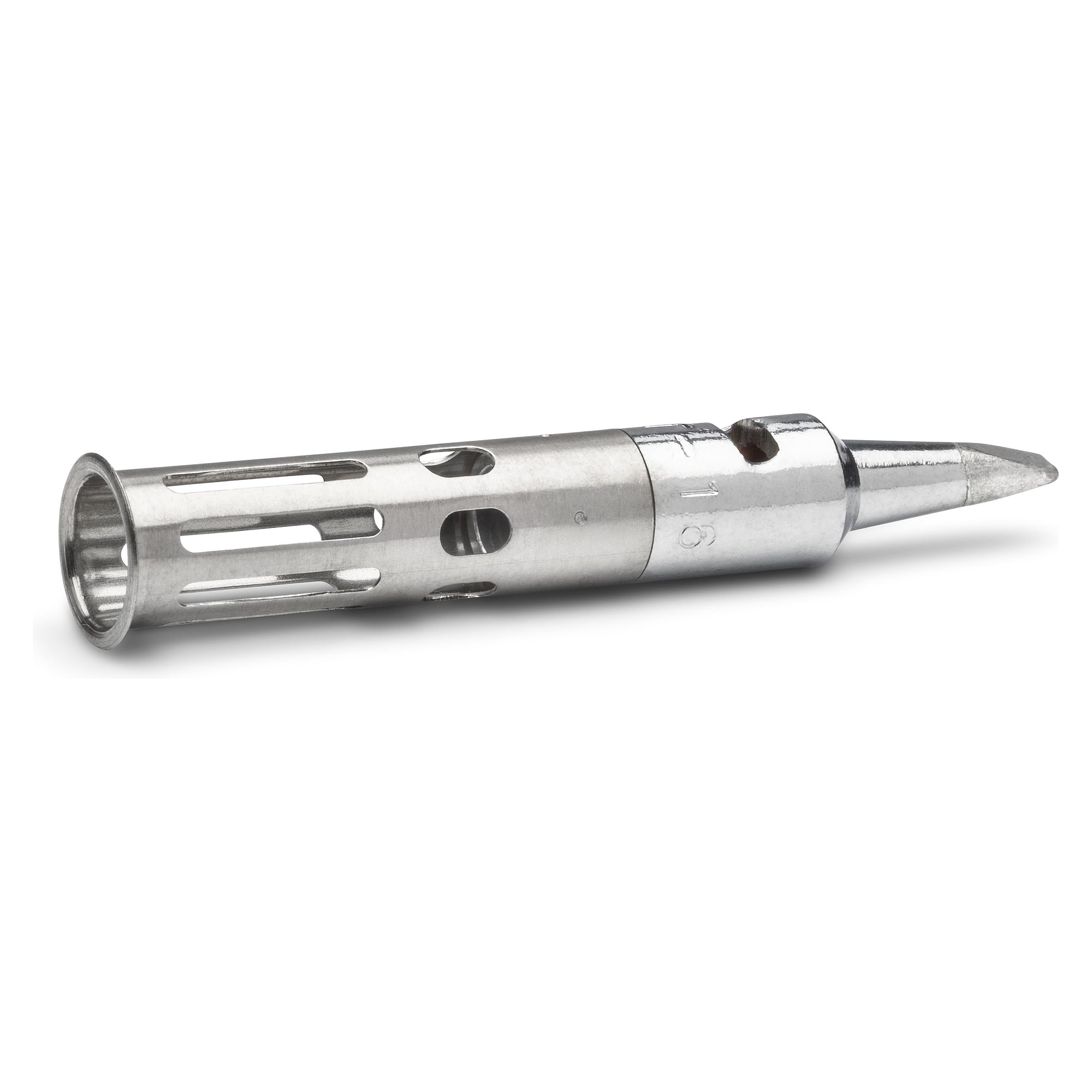

Soldering Tip 71-01-02 Chisel 2.0 mm for Pyropen Junior, pack of 10 - Weller T0051616699

Tip 71-01-02 is a genuine spare part for the butane-powered Weller Pyropen Junior. Its chisel geometry with 2.0 mm is made for joints that need more heat, such as stranded wires, cable lugs and solder tags. Service technicians and installers working without a power outlet can swap the tip on the spot to match the job.

Features

• Shape: chisel, 2.0 mm
• Catalyst: built into the tip, glows red briefly after ignition and then delivers flameless heat
• Temperature: set on the Pyropen Junior via the gas control ring, 250 to 450 °C in soldering mode
• Tip change: unscrew the sleeve, replace the tip, screw the sleeve back on

Specifications

• Type: 71-01-02
• Weller part number: T0051616699
• Tip shape: chisel
• Width/diameter: 2.0 mm
• Fits: Weller Pyropen Junior (WSTA2)

Other 71-01 tips

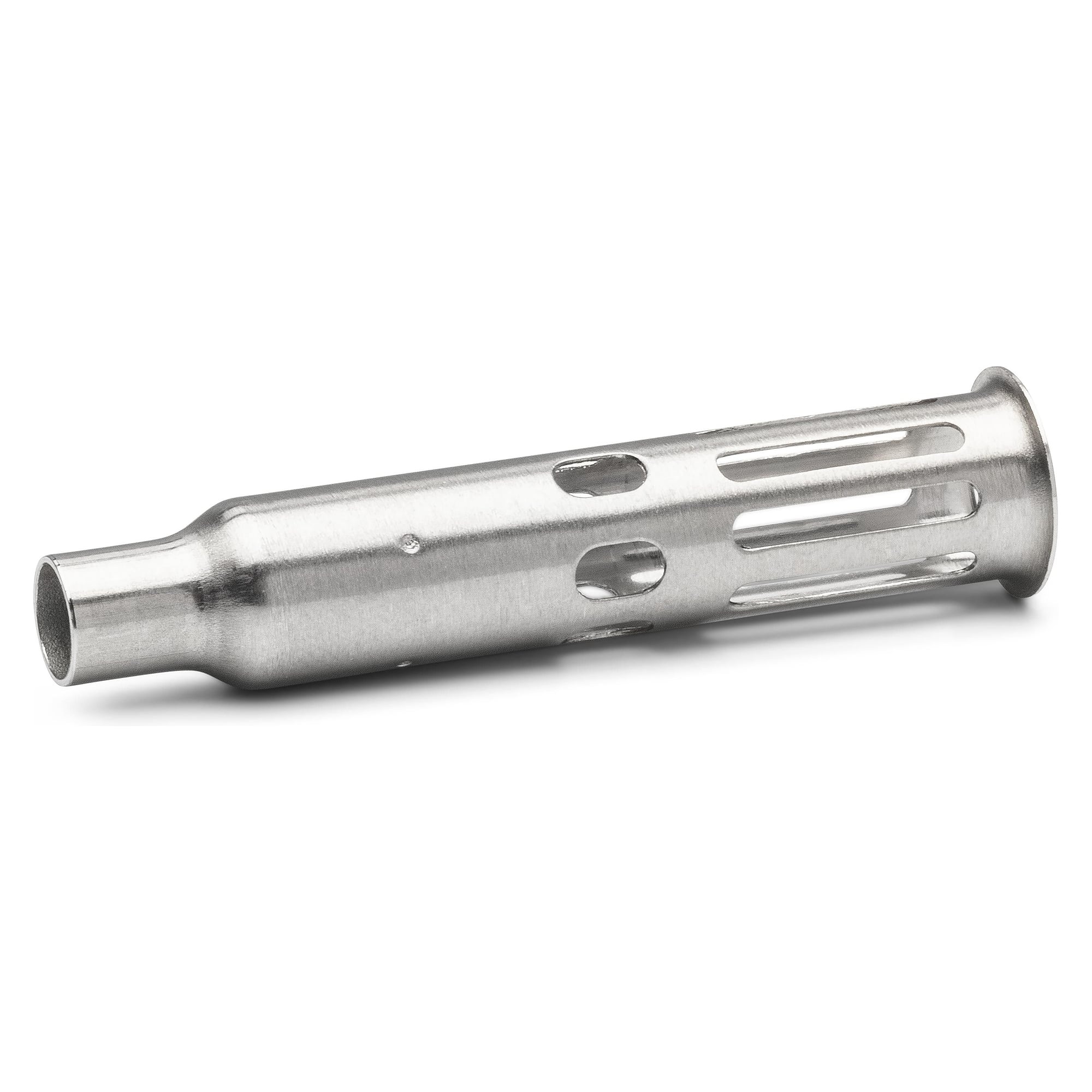

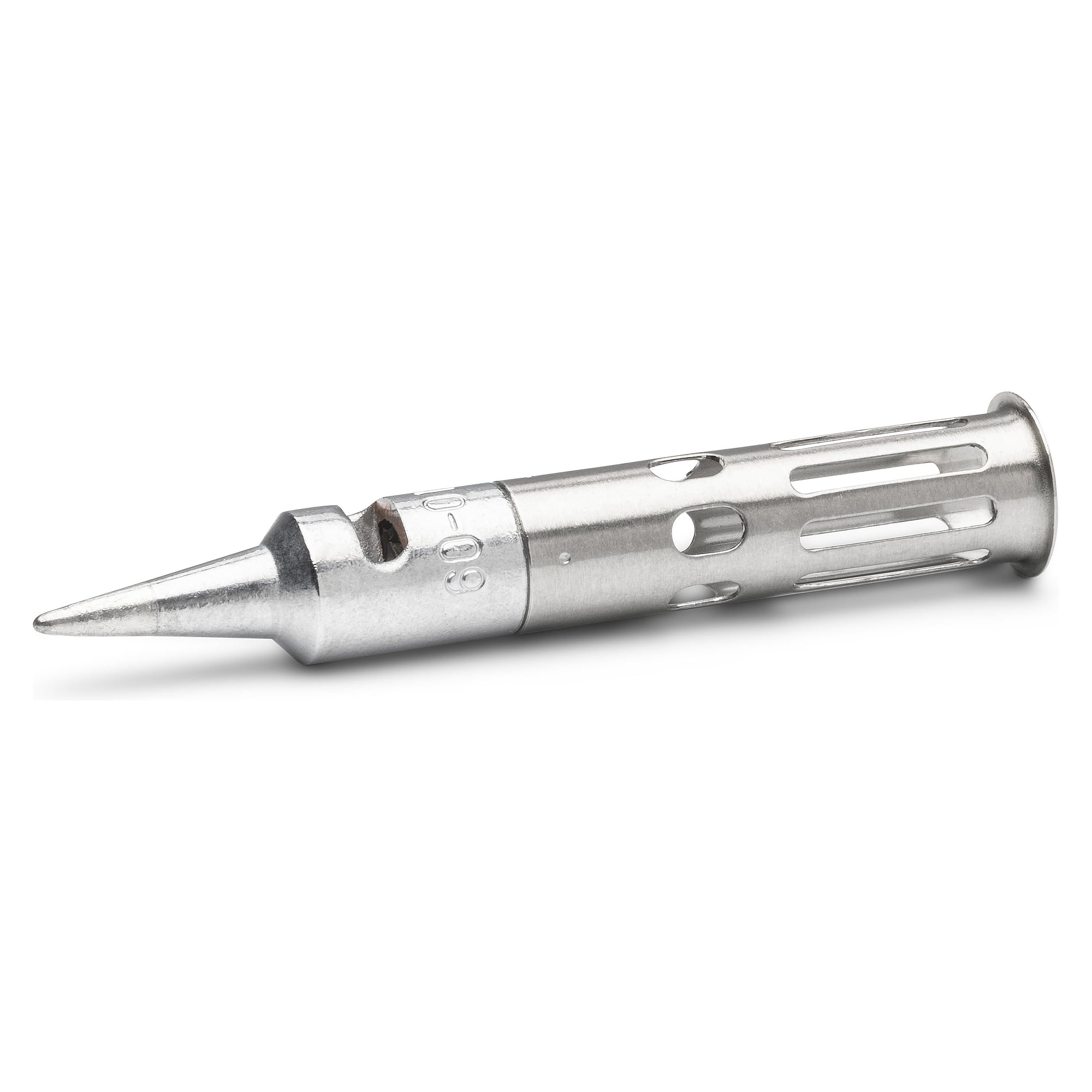

71-01-01 needle Ø 1.0 mm, 71-01-04 chisel 5.0 mm, 71-01-03 round Ø 2.0 mm. Hot air nozzles 71-01-50 and 71-01-52 are available for contactless heating.

Supplied as a pack of 10 pieces, the price applies to the whole pack.
