Nut Driver Insert Set Gripper with Ratchet 3/8" and Adapter 3-pcs. - Wiha 20783

Wiha ✓ Original product Brand new Made in United States

The Gripper replaces a full nut driver set with a single insert covering 7-19 mm in both metric and imperial sizes. Its 54 spring-loaded hardened steel pins conform to any external profile, including hooks and eye bolts. The 3-piece set includes a 3/8" Gripper insert, a reversible ratchet with push-button release, and an adapter for power tools. Torque capacity up to 80 Nm.

Net
€54.22
excl. VAT
Item WH-20783
Manufacturer no. 20783
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Standard nut driver sets fall short when it comes to uncommon fastener shapes like hook bolts or eye bolts. Wiha's Gripper solves this with 54 spring-loaded, hardened steel pins that adapt to any screw or nut with an external profile up to 19 mm, at screw heights up to 8 mm. The compact, offset design keeps fingers protected and allows torques up to 80 Nm to be applied reliably.

Benefits

  • Replaces a complete 7-19 mm nut driver set with one universal insert
  • 54 hardened steel pins conform to all external profiles, including exotic shapes
  • Torque up to 80 Nm transmitted without loss via direct drive connection
  • Quick and secure nut change via push-button detent retaining ball
  • Non-slip ergonomic handle; offset design protects fingers
  • Fine toothing on the ratchet allows work in confined spaces

Applications

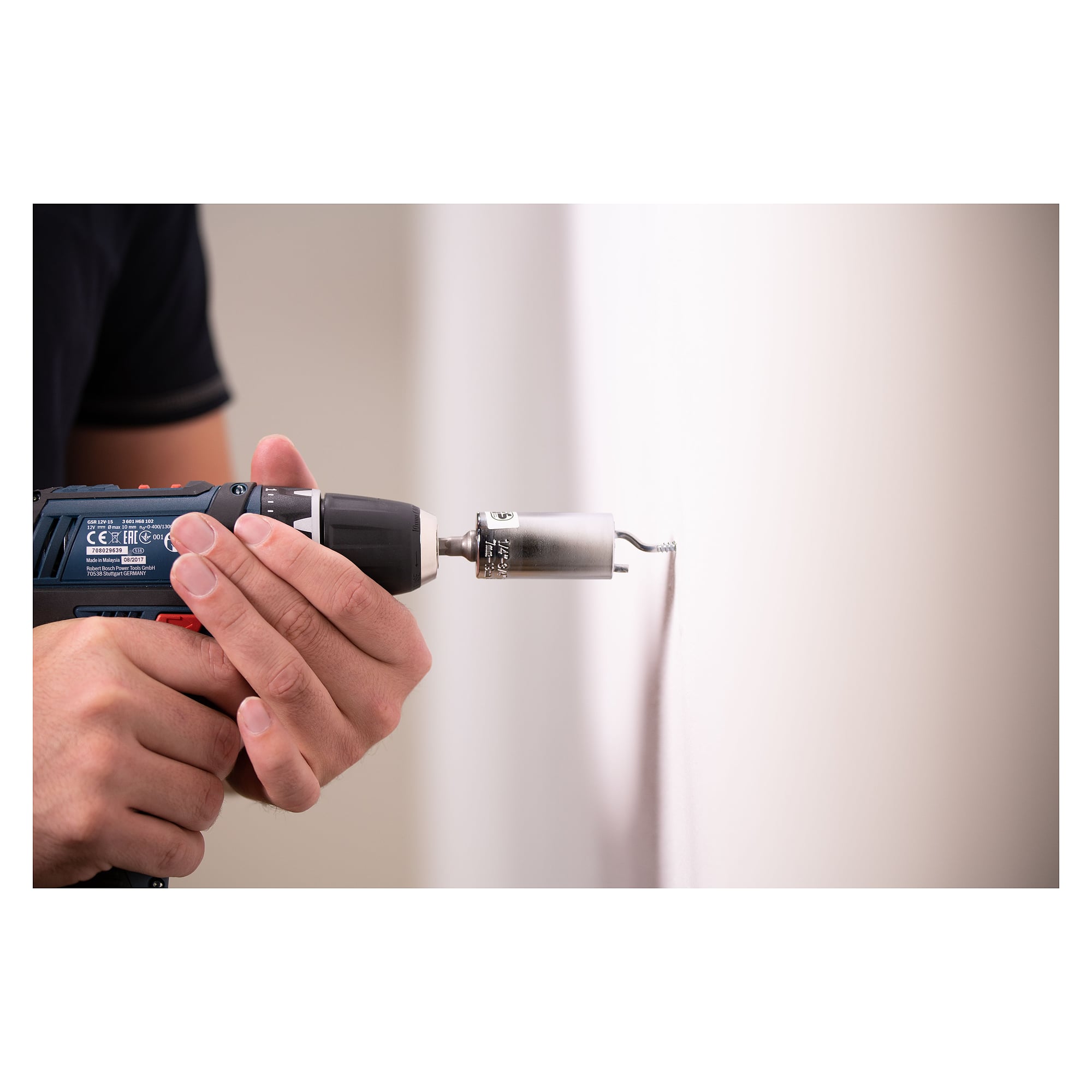

Suitable for all fasteners with external profiles up to 19 mm, in trade, industry and mobile use. Particularly useful with unusual fastener shapes and where a range of sizes must be covered quickly. Made in USA.

Technical data

DriveDIN 3120, style C 10, 3/8"
Working range7-19 mm (metric and imperial)
Max. screw height8 mm
Max. torque80 Nm
Dimensions240 x 208 x 72 mm
Housingalloyed steel, 54 hardened steel pins

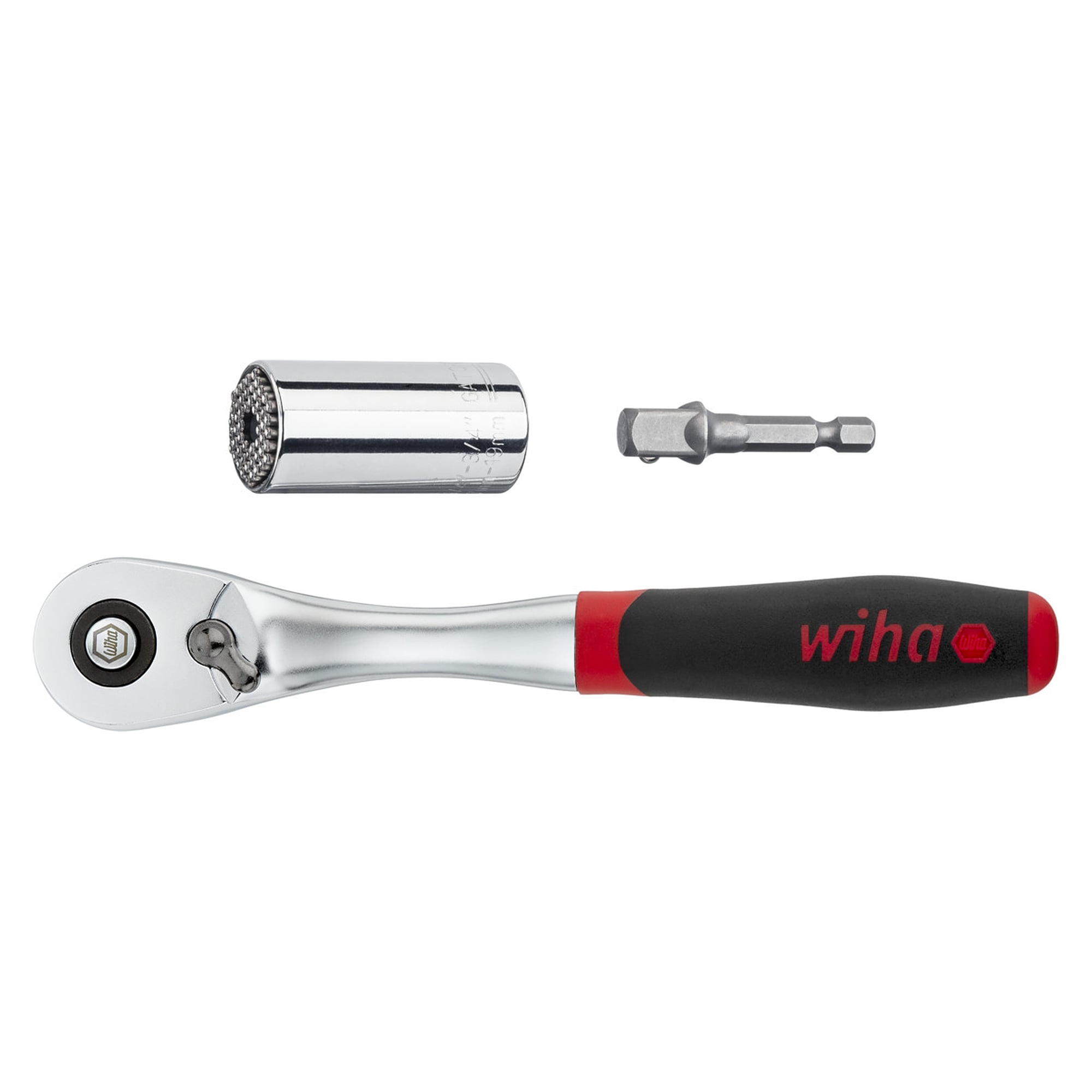

ContentsGripper 3/8" 53.5 mm (09400), reversible ratchet 175 mm (45625), adapter (20040)
Weight0.522 kg
ManufacturerWiha
Manufacturer Nr.20783
EAN4010995207830
HS-Code82042000
GPSR manufacturer informationWiha Werkzeuge GmbH Obertalstraße 3-7 DE-78136 Schonach www.wiha.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureUnited States
ESD versionTEC
NormDIN 3120

Downloads

Videos

Wiha Steckschlüsseleinsatz Gripper
