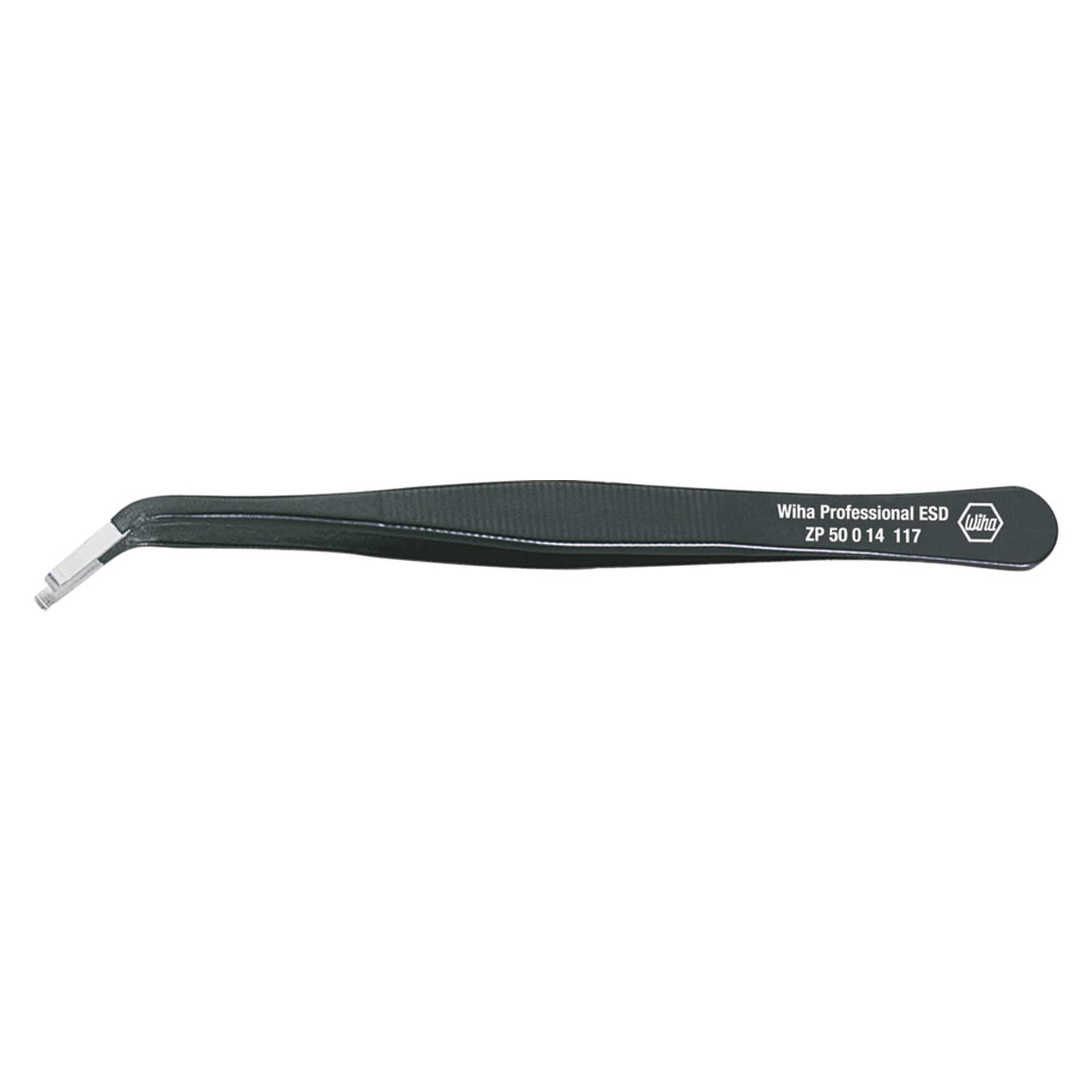

SMD Tweezers Professional ESD Type 59, 117 mm - Wiha 32344

The Wiha Professional ESD SMD Tweezers Type 59 are optimised for the precise pick-up of flat SMD components lying horizontally on PCBs. The 35° angled, approximately 2 mm wide tip with a shaped gripping end for Ø 0.8 mm reaches even the smallest components; ribbed handle surfaces provide additional control during fine work.

Benefits

• 35° angled tip, 2 mm wide with 0.8 mm gripping end - grips the smallest horizontal SMD components
• ESD-safe to IEC 61340-5-1 - surface resistance 10^6 to 10^9 ohms
• Smooth gripping surfaces and ribbed handles - precise control and secure grip
• Non-magnetic and acid resistant - suitable for cleanroom and series production
• Anti-glare black coating - clear view of the workpiece under optical aids

Technical data

• Type: 59
• Overall length: 117 mm
• Dimensions: 136 x 100 x 5 mm (L x W x D)
• Material: Specially alloyed rust-free chrome nickel stainless steel

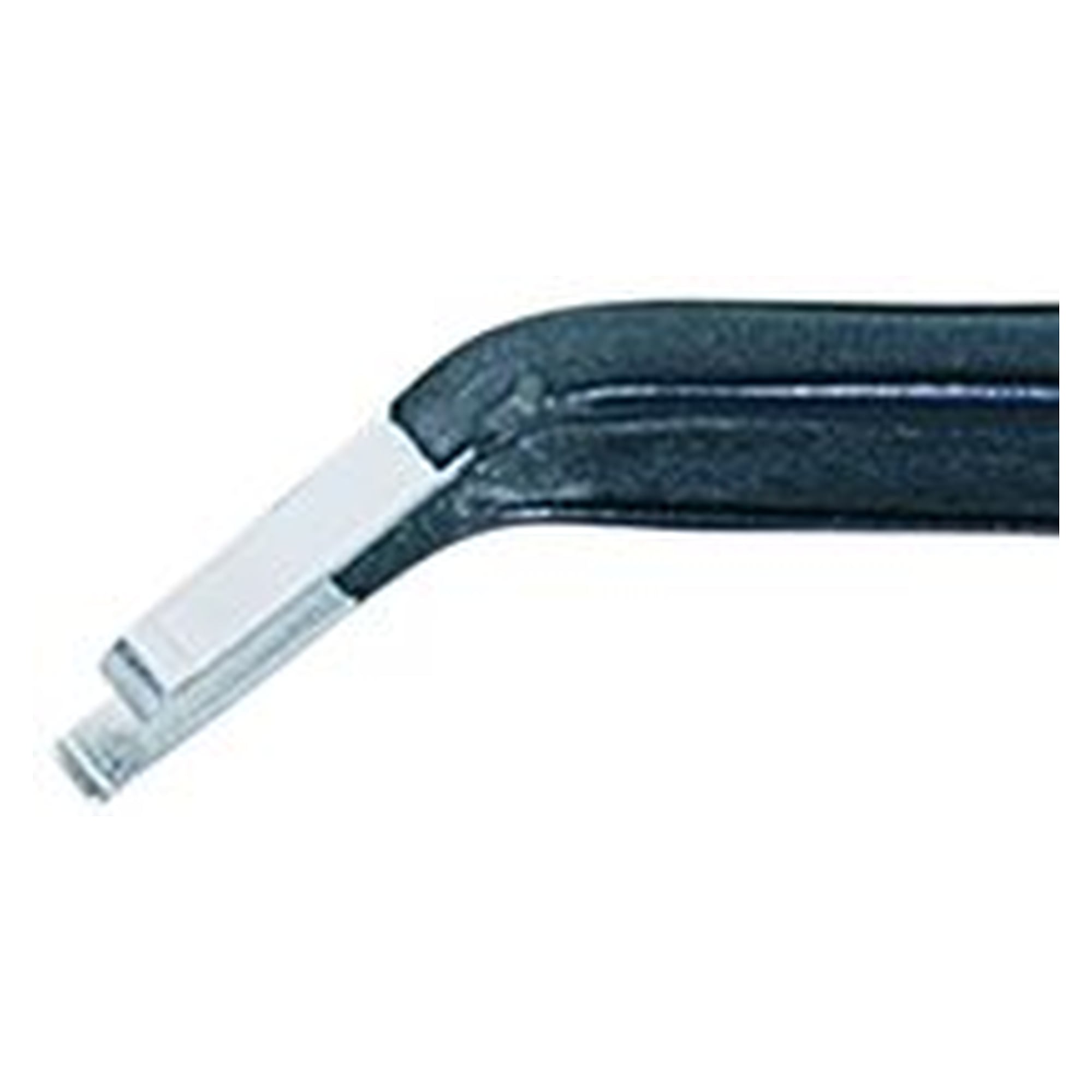

• Tip shape: 35° angled, approx. 2 mm wide, shaped gripping end for Ø 0.8 mm
• Standard: IEC 61340-5-1
• Country of origin: Germany

Applications

Assembly and rework of PCBs with very small horizontal SMD components, and quality assurance in electronics manufacturing.
