Torque screwdriver TorqueVario-S 0.1-0.6 Nm continuously adjustable - Wiha 36850

The Wiha TorqueVario-S in the 0.1-0.6 Nm variant is designed for mid-range torque requirements in electronics and precision mechanics. The full adjustment range is continuously settable using the included Torque-Setter adjusting tool. Release accuracy of ±6 % per DIN EN ISO 6789 guarantees reproducible, documentable tightening torques.

Benefits

• Continuously adjustable torque 0.1 - 0.6 Nm: suited to typical electronics and precision mechanics screws
• Click signal on release: audible and tactile feedback prevents over-tightening
• Release accuracy ±6 % (DIN EN ISO 6789): reproducible torque application
• Ergonomic multi-component handle: AGR-recommended, lightweight compact design
• Handle size matched to torque range: optimal force transmission

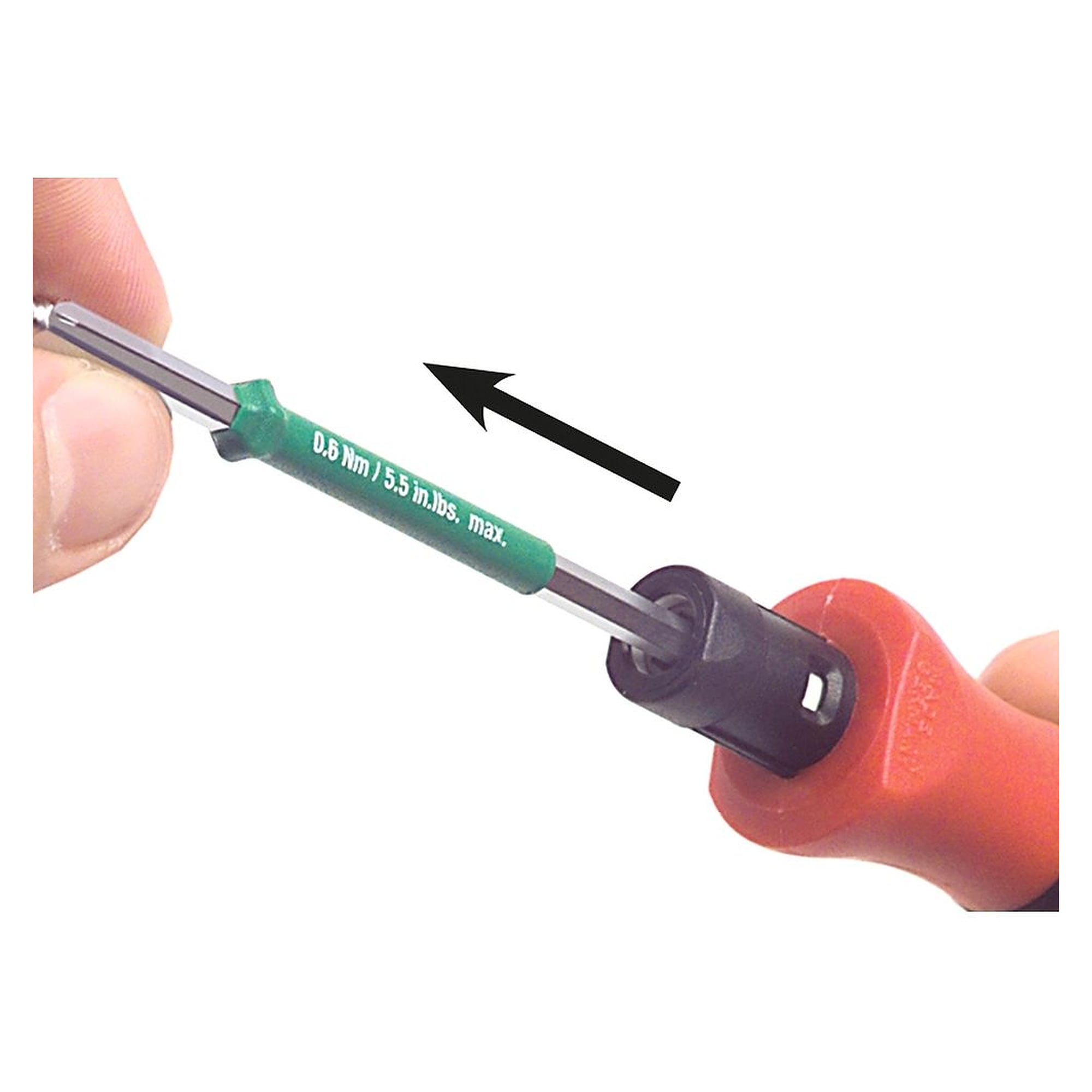

• Compatible with Series 2859 blades: easy to extend

Technical data

• Torque range: 0.1 - 0.6 Nm
• Tolerance: ±6 %
• Hexagon head: 4.0 mm
• Handle diameter: 23 mm, handle length: 127 mm
• Product dimensions: 195 x 35 x 35 mm (L x W x D)
• Standard: DIN EN ISO 6789
• Contents: torque handle, Torque-Setter adjusting tool, plastic box, works inspection protocol
• Note: bit holder and blades not included
• ESD: No

Applications

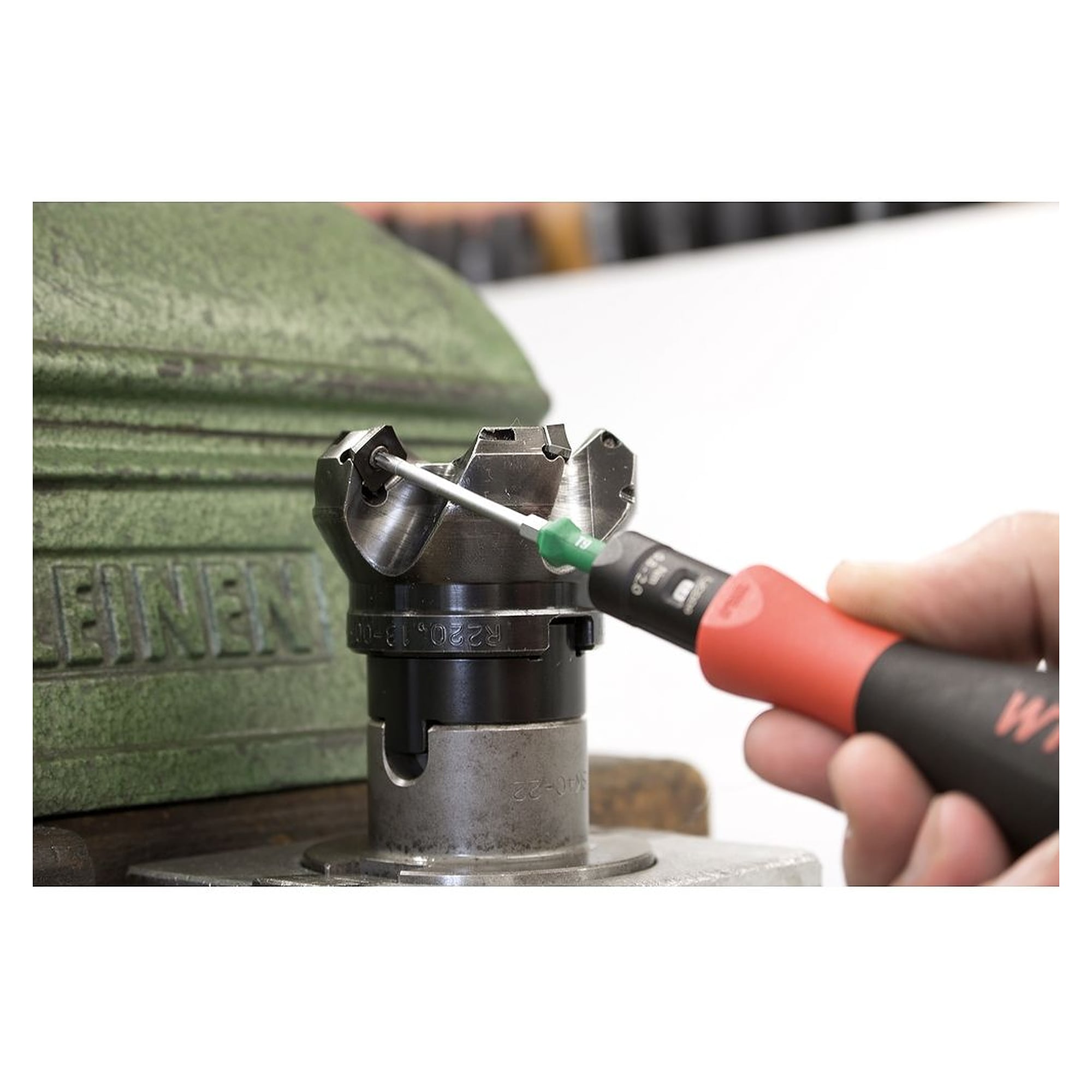

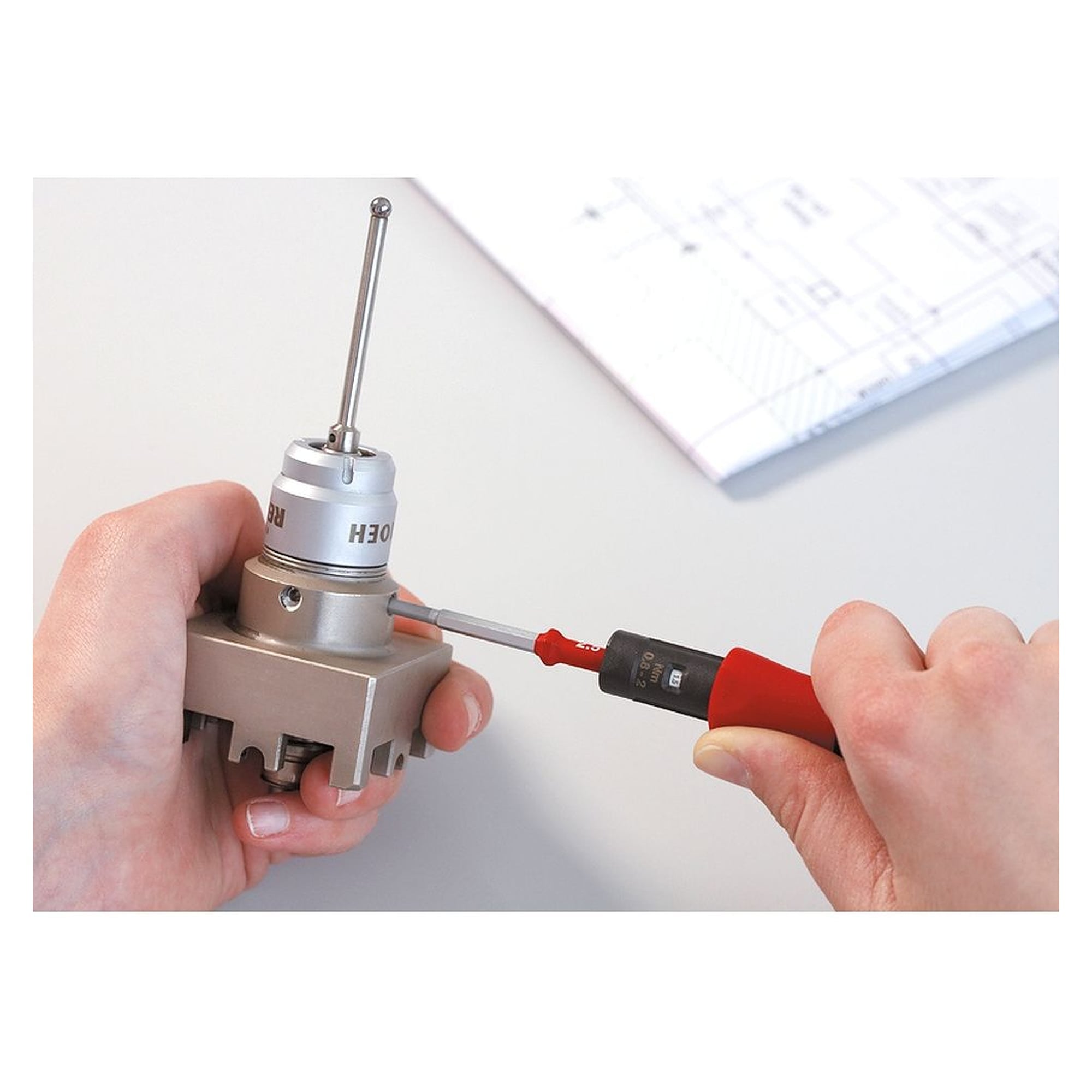

For accurate torque fastening in precision mechanics, electronics manufacturing and control cabinet assembly. For use with Wiha Torque 4 mm interchangeable blades (Series 2859). Made in Germany.
