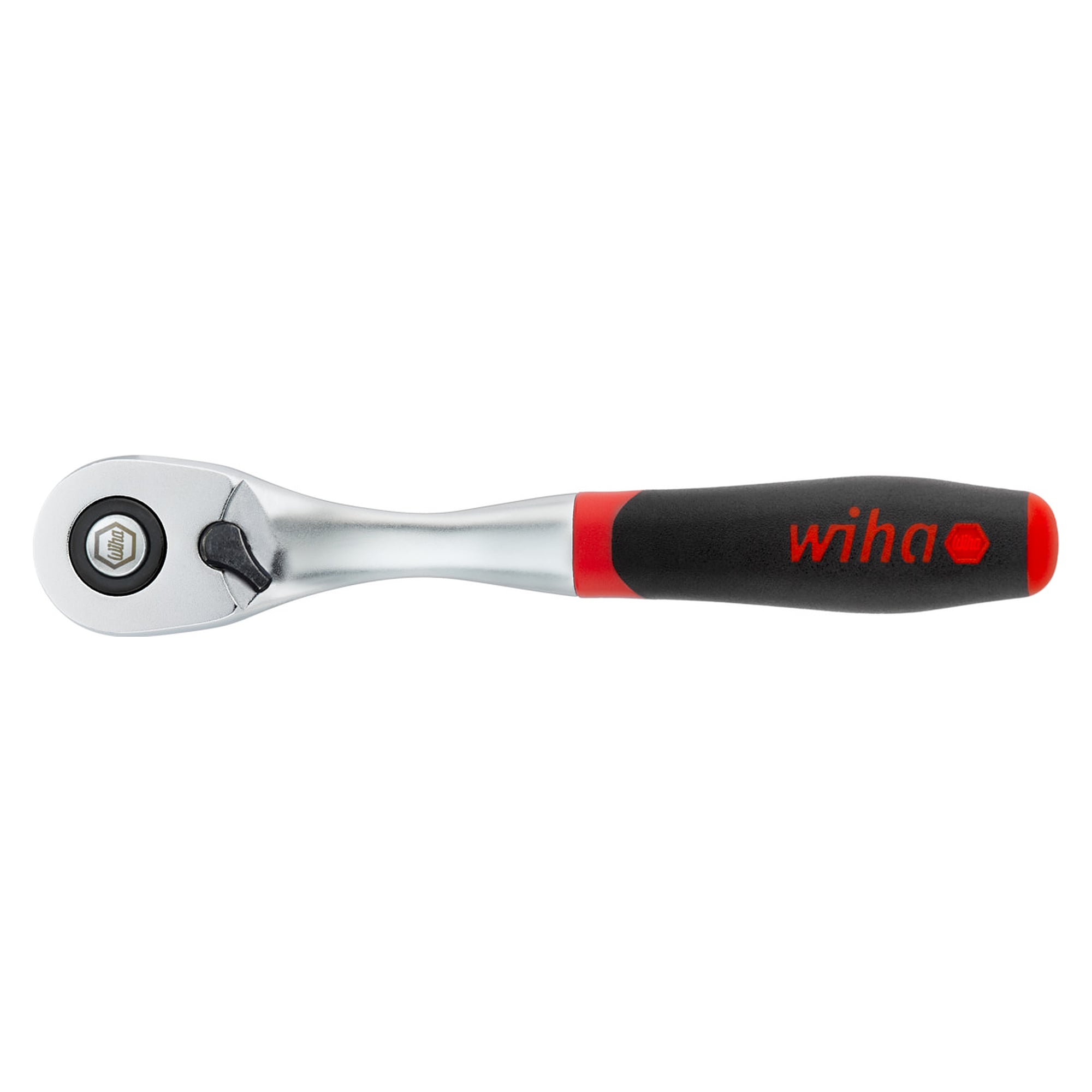

Reversible Ratchet 1/4" with Detent Ball and Push Button, 135 mm - Wiha 45626
The compact Wiha reversible ratchet 1/4" with 72-tooth fine serration and a 5° return angle handles delicate assembly work in confined spaces. The cropped design protects fingers, and the push-button detent ball allows tool-free socket changes. Chrome vanadium steel, rated to 93 Nm, per DIN 3122/ISO 331.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Wiha 1/4" reversible ratchet combines a compact ratchet head with a fine 72-tooth mechanism for precise work in restricted areas. The 5° return angle means minimal swing space is needed to tighten or loosen connections.
Benefits
- 72-tooth fine serration with 5° return angle for confined-space work
- Cropped design raises grip height and shields fingers from injury
- Non-slip two-component handle for ergonomic, comfortable operation

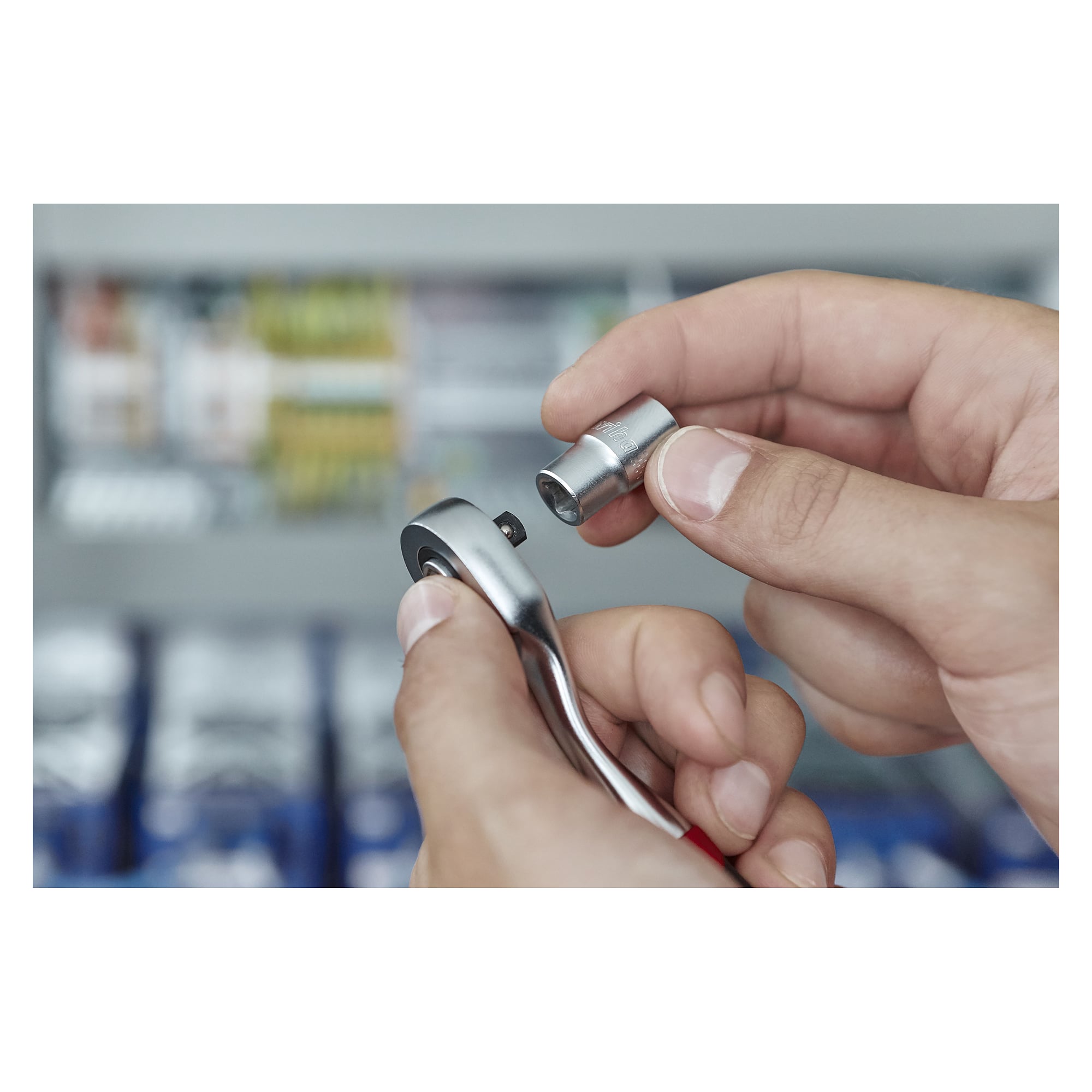

- Push-button detent ball for quick, tool-free socket or adapter changes
- Chrome vanadium steel, matt chromated, rated to 93 Nm
Applications

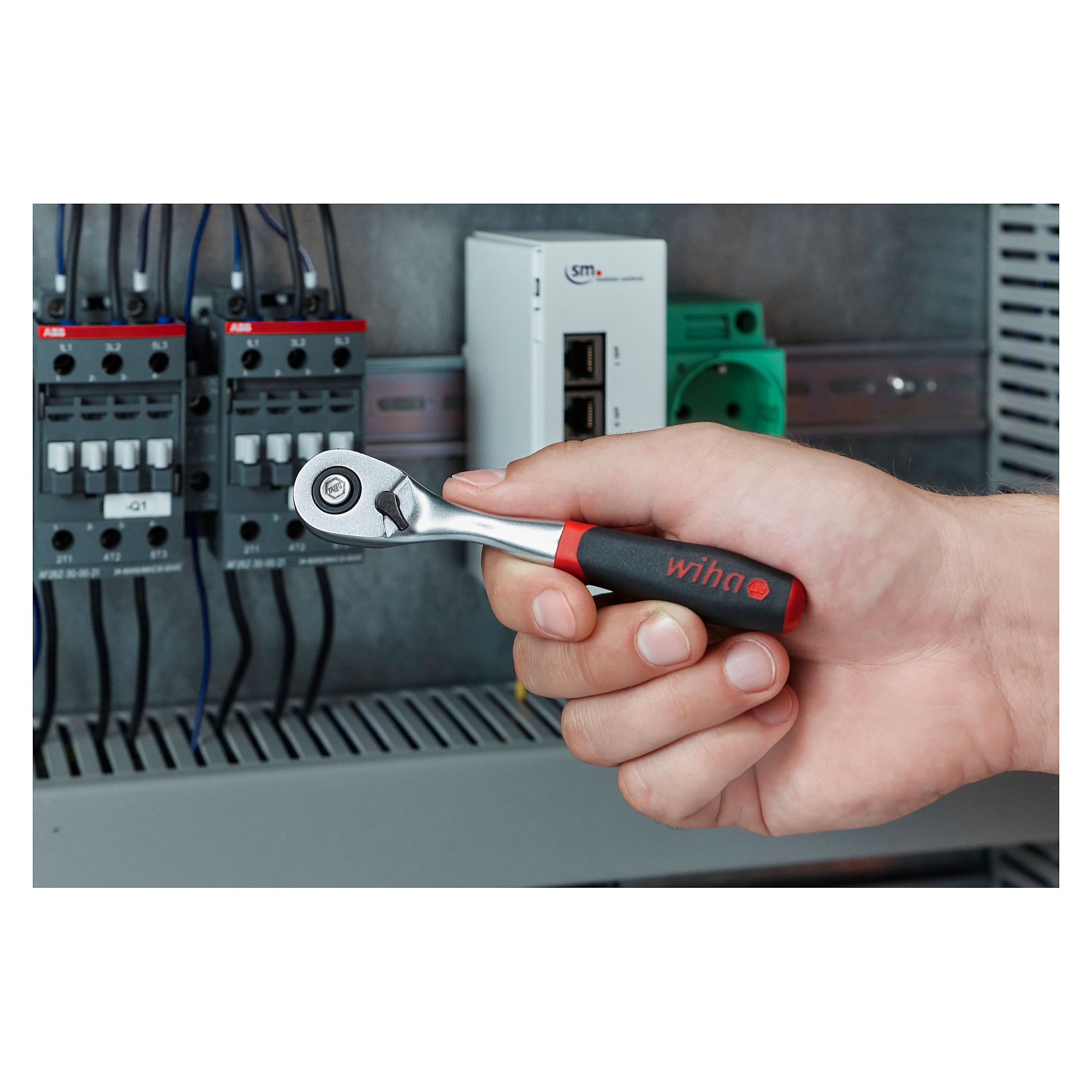

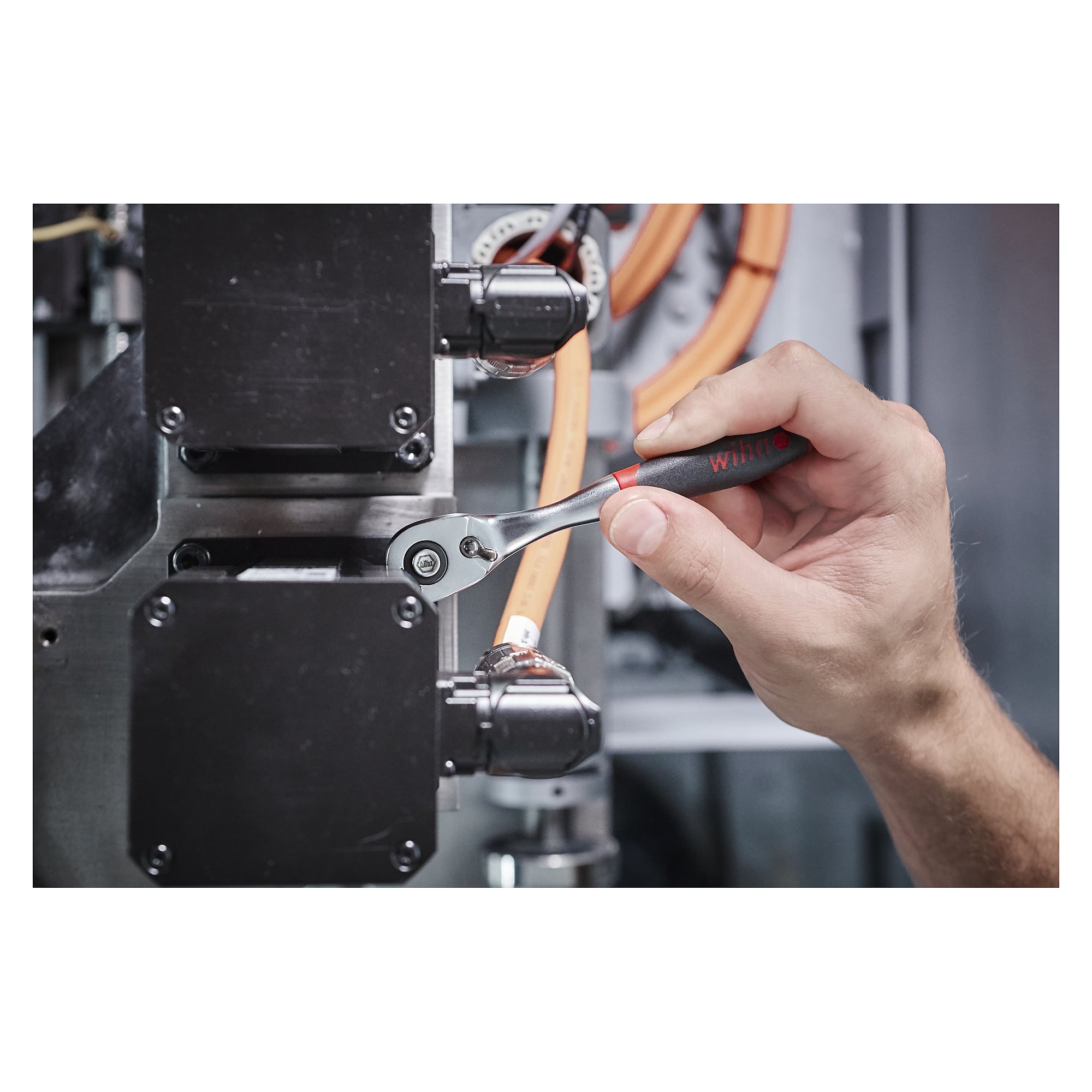

Ideal for delicate installation and assembly tasks. Clockwise/counter-clockwise switching via lever. Made in Taiwan (TWN). Per DIN 3122/ISO 331.
Technical data
| Drive | 1/4" |
|---|---|
| Overall length | 135 mm |
| Width | 24.5 mm, Height: 24 mm |
| Color | red/black, Surface: matt chromated |
| Max. torque | 93 Nm |
| Weight | 0.123 kg |
| Manufacturer | Wiha |
| EAN | 4010995456269 |
| HS-Code | 82041100 |
| GPSR manufacturer information | Wiha Werkzeuge GmbH Obertalstraße 3-7 DE-78136 Schonach www.wiha.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |
| Norm | DIN 3122 |
