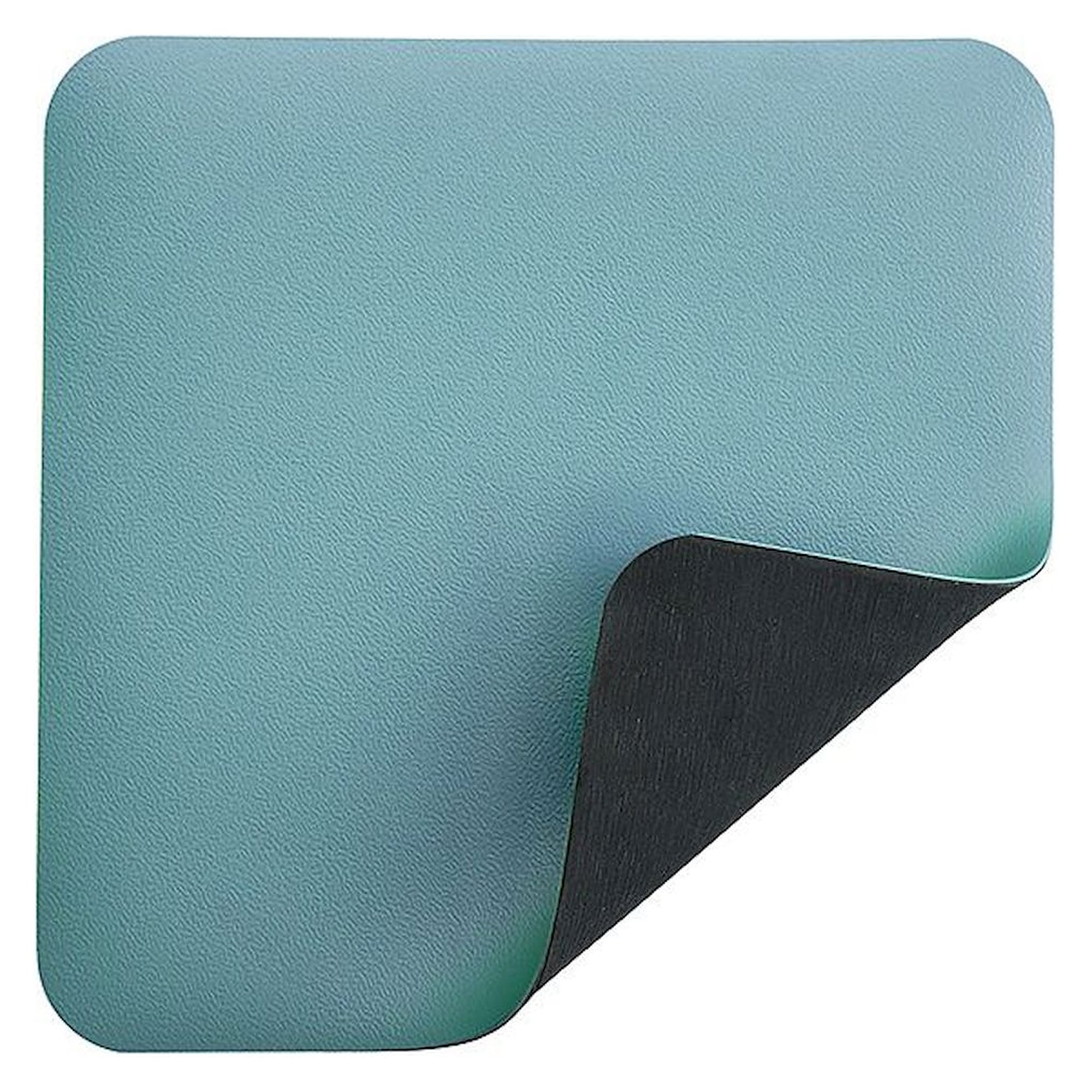

ESD table mat Ecostat, light blue, roll 10000x1220x2 mm - Warmbier WL19417

The Warmbier ESD table mat Ecostat reliably protects electrostatically sensitive components at any workstation within an EPA. The dissipative covering drains charges in a controlled way and prevents damage from electrostatic discharge.

Construction and properties

• Two-layer composite covering of wear-resistant synthetic rubber
• Volume conductive with a conductive backing
• Solder and heat resistant as well as abrasion resistant
• Halogen-free and permanently elastic

Technical data

• Material: synthetic rubber, two-layer composite covering
• Dimensions: 10000 x 1220 x 2 mm (roll material, 10 m)
• Colour: light blue
• Typical dissipation resistance: 10^6 to 10^7 ohm
• Model: 1402.665.R
• Without grounding cord and without grounding point

Application

Suitable as a table covering for soldering and assembly workstations, test stations and repair areas within the EPA. The roll material is cut to the required length and connected with a matching grounding kit.

Standards and compliance

The covering meets the requirements of DIN EN 61340-5-1 for ESD protection at the workplace.
