DPF-SK-100 ESD polyester film, self-adhesive, transparent, 1220 mm x 100 m - Warmbier 5235.DPF.SK100
Transparent polyester film, dissipative coating on one side and adhesive plus release liner on the other. It turns existing smooth insulative surfaces into dissipative ones without replacing them. Roll 1220 mm x 100 m, 0.1 mm thick, Rp-p 10^6 - 10^8 ohm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

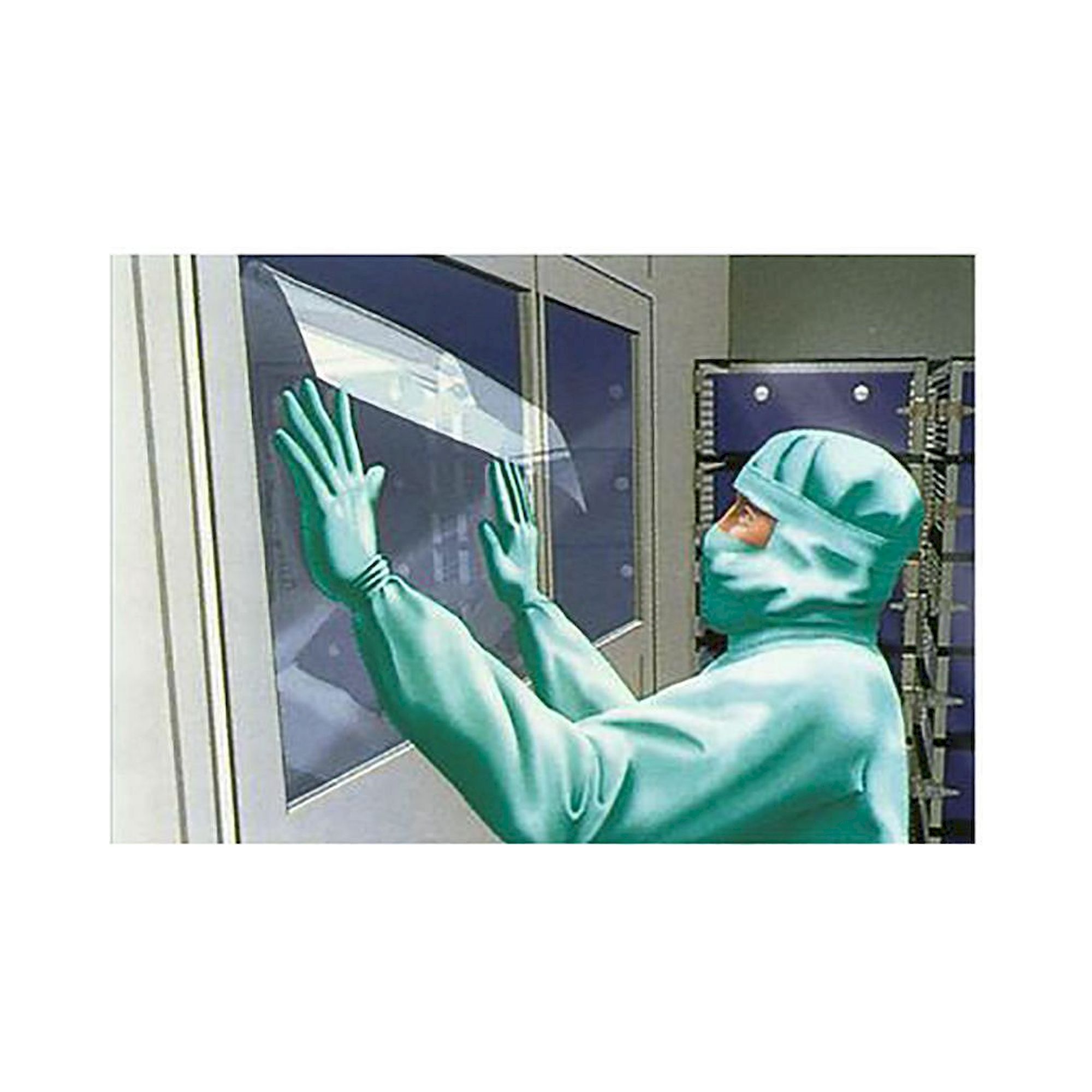

Worktops, covers and viewing panels inside an EPA are often made of insulative material that cannot simply be replaced. DPF-SK-100 is a transparent static dissipative, self-adhesive polyester film with a special coating on one side and a release film on the other, applied directly onto such flat surfaces. Typical point to point resistance is 10^6 to 10^8 ohm.
Benefits
- Retrofit solution: applied on flat, insulative surfaces already in place, so nothing has to be dismantled or replaced.
- Defined dissipation: typical point to point resistance Rp-p = 10^6 - 10^8 ohm.
- Transparent: labels, scales and markings underneath stay readable.
- Abrasion resistant: the coating stands up to daily handling at the workstation.
- Roll of 1220 mm x 100 m: cut to any length, custom sizes available on request.
Application
Typical uses are bench and shelf surfaces, covers on test and assembly fixtures, viewing panels, cabinet fronts and any insulative surface that has to stay inside the EPA and still be dissipative.
Technical data
| Manufacturer part number | 5235.DPF.SK100 |
|---|---|
| Manufacturer | Warmbier |
| Size | 1220 mm x 100 m |
| Thickness | 0.1 mm |
| Material | polyester, dissipative coating on one side |
| Reverse side | self-adhesive with release film |
| Colour | transparent |
| Typical point to point resistance | 10^6 - 10^8 ohm |
| Order unit | 1 roll of 122 sqm |
| EAN | 4052339010058 |
| Weight | 1.27 kg |
| Manufacturer Nr. | 5235.DPF.SK100 |
| GPSR manufacturer information | Wolfgang WARMBIER Untere Gießwiesen 21 DE-78247 Hilzingen www.warmbier.com |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
