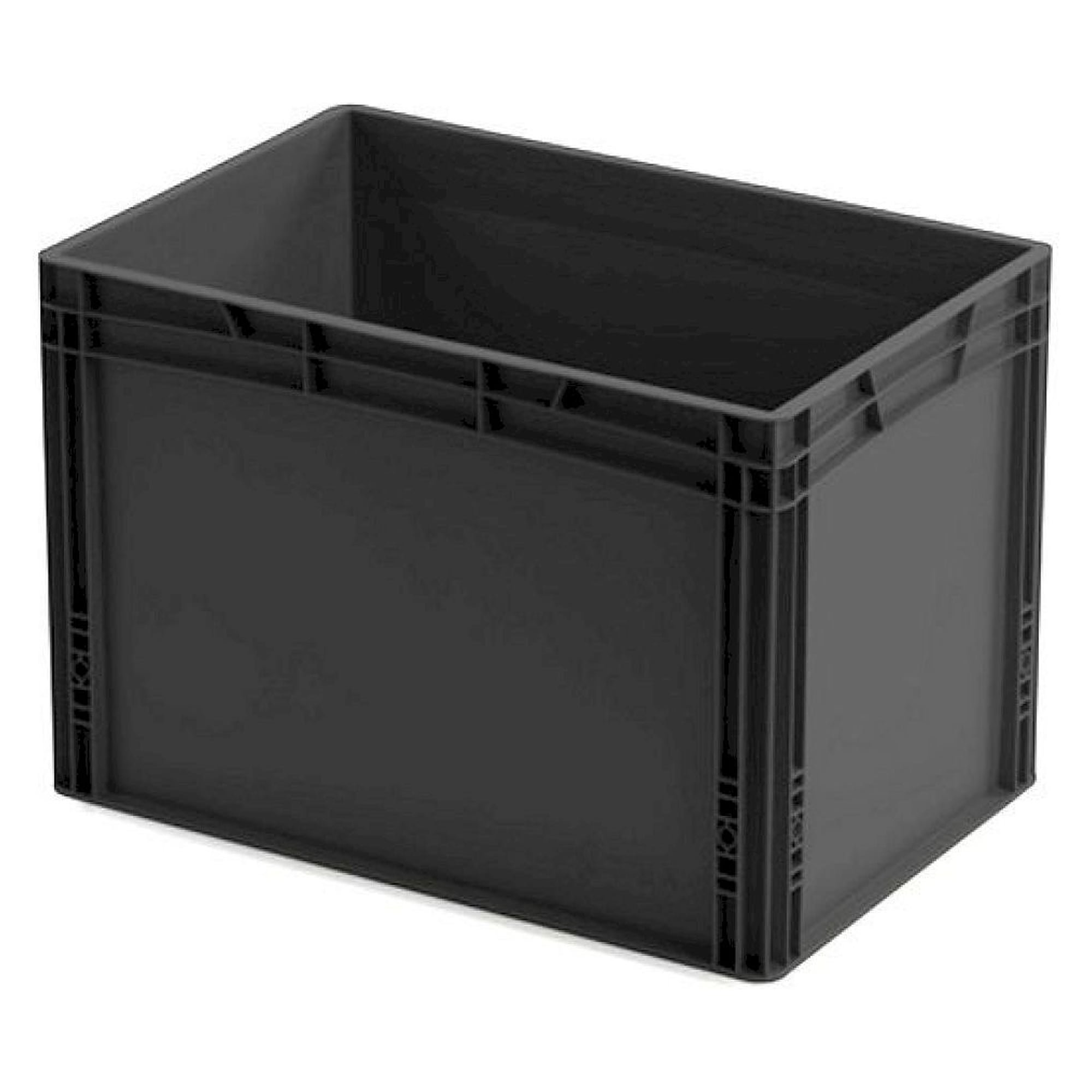

ESD tote box, conductive, black, 600 x 400 x 280 mm, polypropylene - Warmbier 5310.55

Inside an EPA a container must not turn into a charge source of its own. The 5310.55 tote box from Warmbier is moulded from polypropylene that carbon makes permanently volume conductive, with a typical bleeder resistance of 10^4 to 10^5 ohm. The conductivity belongs to the material itself rather than to a coating, so washing and abrasion do not take it away.

Advantages

• Polypropylene made permanently volume conductive by a carbon filler, typical bleeder resistance 10^4 to 10^5 ohm.
• Outer size 600 x 400 x 280 mm follows the pallet module grid and fits standard shelving.
• Usable internal size 555 x 355 x 275 mm.
• Stackable, which saves floor space in storage and on trolleys.
• Closed handle, so small parts cannot drop through the grip opening.
• ESD symbol moulded into the box, the rating stays visible during daily use.

Application

The box holds boards, housing parts and small material between process steps, carries them from assembly to test and on to packing, and stays in the rack as a fixed storage unit. Combined with conductive liners or foam inserts it keeps the parts on conductive material from the shelf to the ESD workbench.
