Manual PCB depaneling tool for boards up to 1.6 mm, 2.0 mm blade - Piergiacomi DP 20 N
The Piergiacomi DP 20 N hand depaneling tool separates PCBs up to 1.6 mm thick from the panel and leaves clean cut edges. 2.0 mm blade, max. 3 kg cutting force, for tabs up to 3 mm long, 147 mm long and 90 g light.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Breaking PCBs out of the panel risks frayed edges and mechanical stress on components and solder joints near the edge. The DP 20 N instead cuts the tabs with a 2.0 mm blade in a quick, economical and safe way and leaves well-finished cut surfaces. It is designed for boards up to 1.6 mm thick and tabs up to 3 mm long, with a maximum cutting force of 3 kg.
Benefits
- Clean cut surfaces instead of snapping the panel
- 2.0 mm blade for PCBs up to 1.6 mm thick
- For tabs up to 3 mm long and a tab distance of at least 11 mm
- Low cutting force of max. 3 kg
- Handy at 147 mm length and 90 g weight, grip model St
Applications
Singulating PCBs in small batches, sample building, repair and prototyping, where machine depaneling does not pay off. For ESD protected areas the manufacturer offers the DP 20 N D version.
Technical data
| Manufacturer | Piergiacomi |
|---|---|
| Manufacturer part no. | DP 20 N |
| Type | Hand depaneling tool |
| Blade thickness | 2.0 mm |
| Max. PCB thickness | 1.6 mm |
| Max. tab length | 3 mm |
| Min. tab distance | 11 mm |
| Max. cutting force | 3 kg |
| Length | 147 mm |
| Weight | 90 g |
| Grip | model St |
| ESD-safe | no, ESD version available as DP 20 N D |
| Manufacturer Nr. | DP 20 N |
| HS-Code | 82032000 |
| GPSR manufacturer information | PIERGIACOMI Sud SrL Via 81a Strada 3 IT-63076 Monteprandone (Ap) www.piergiacomi.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Italy |
Downloads
Accessories

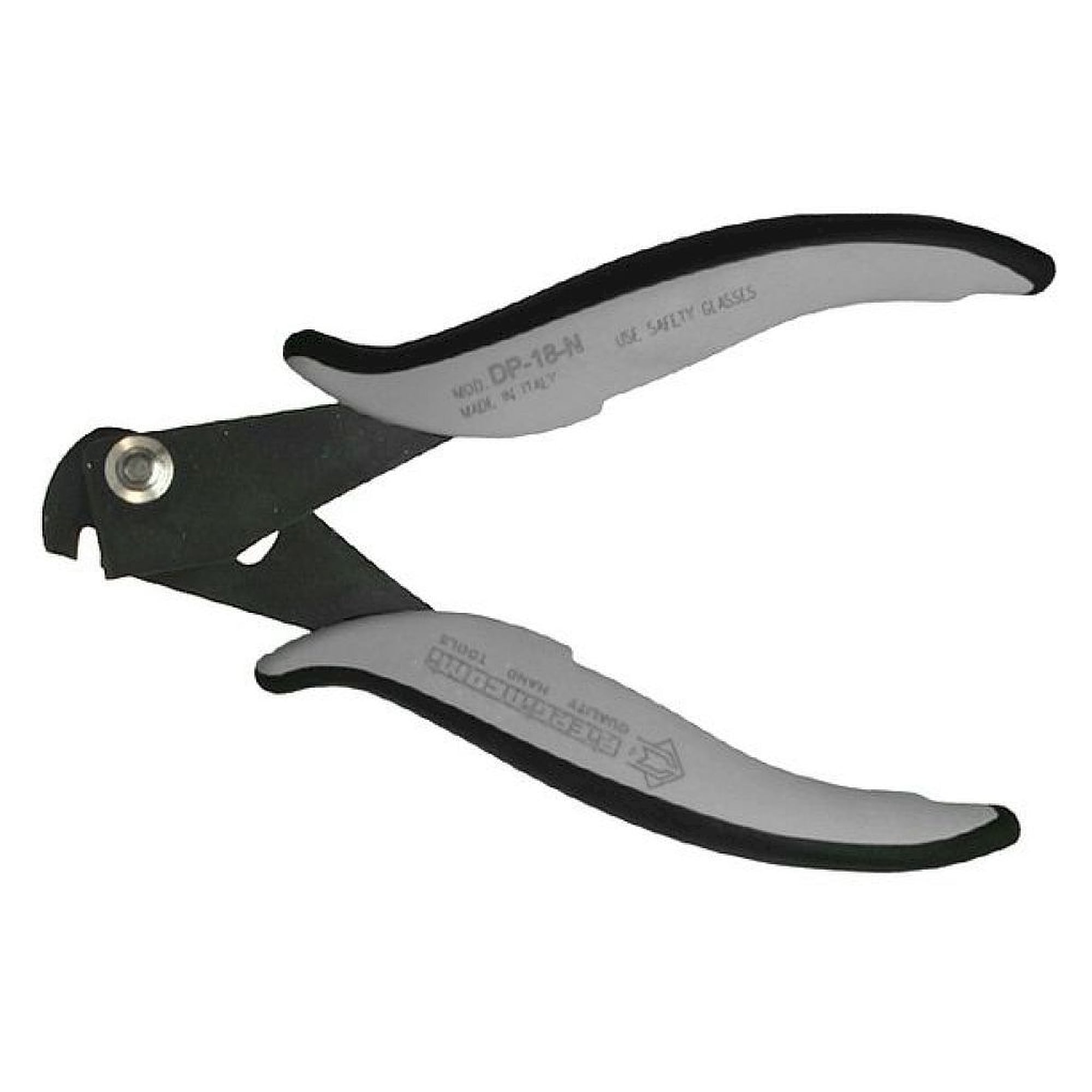

Piergiacomi DP 15 N D. ESD bar separator, manual, for PCB boards, 1.5 mm
