ESD push-on frame 400 x 300 mm, adds 44 mm height, black, incl. 8 U-clips - WEZ 1004349
Conductive push-on frame that extends an ESD container in 400 x 300 mm format by 44 mm of usable height. Eight U-clips for fixing are included. The container then takes taller loads without buying a new one.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When the load gets taller, a new container is not the only option. The black WEZ ESD push-on frame is placed on a 400 x 300 mm container and increases the usable height by 44 mm.
Benefits in use
- Plus 44 mm usable height: existing containers adapt to taller components.
- Format 400 x 300 mm: for Euro containers with this footprint.
- Conductive PPC: ESD compliant and suitable for use in the EPA.
- Includes 8 U-clips for fixing to the container.
Applications
Adapting ESD containers to taller assemblies, storage and transport in electronics production, order picking.
Technical data
| Manufacturer | WEZ |
|---|---|
| Model | 4304.728.992 |
| Length | 400 mm |
| Width | 300 mm |
| Height | 44 mm |
| Increase in usable height | 44 mm |
| Material | PPC (polypropylene), conductive |
| Colour | black |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| ESD compliant | yes |
| Weight | 0.1 kg |
| Manufacturer Nr. | 1004349 |
| HS-Code | 39231090 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Switzerland |
| ESD version | ESD (antistatic) |
Scope of delivery
1 push-on frame and 8 U-clips.
Downloads
Accessories

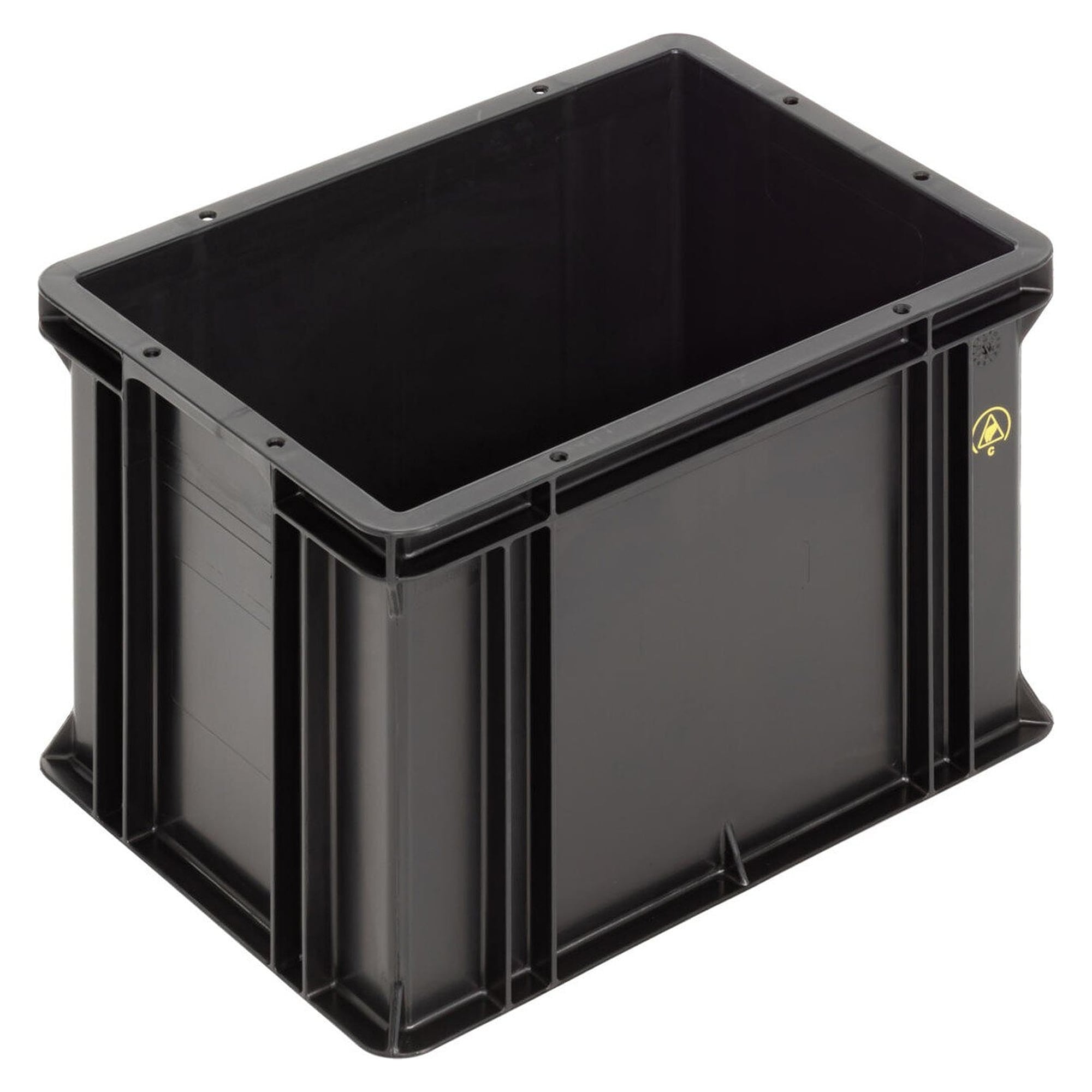

Conductive ESD stacking container BL, 400 x 300 x 278 mm, 25.7 l, closed, black - WEZ 1004402
Item WL34821
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
