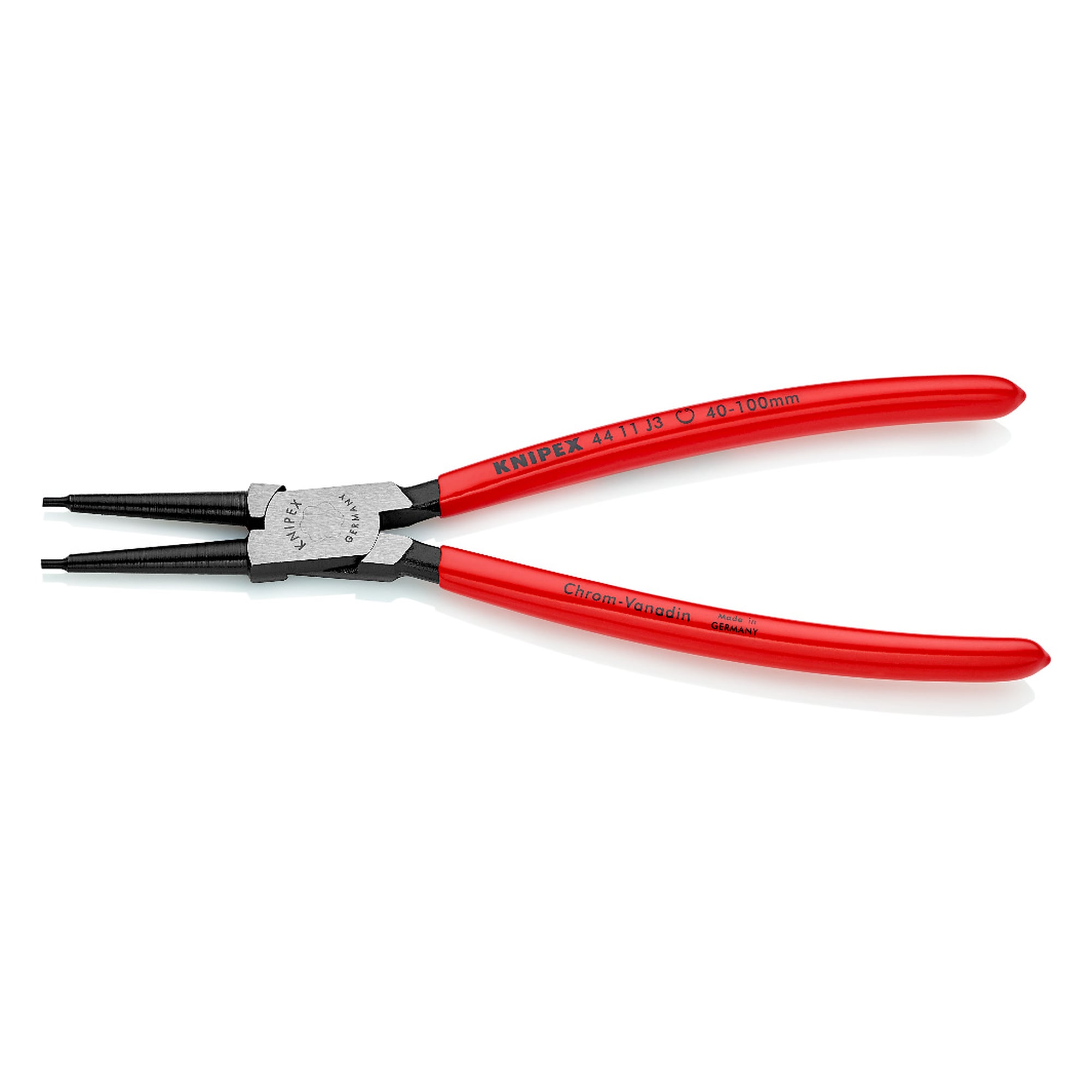

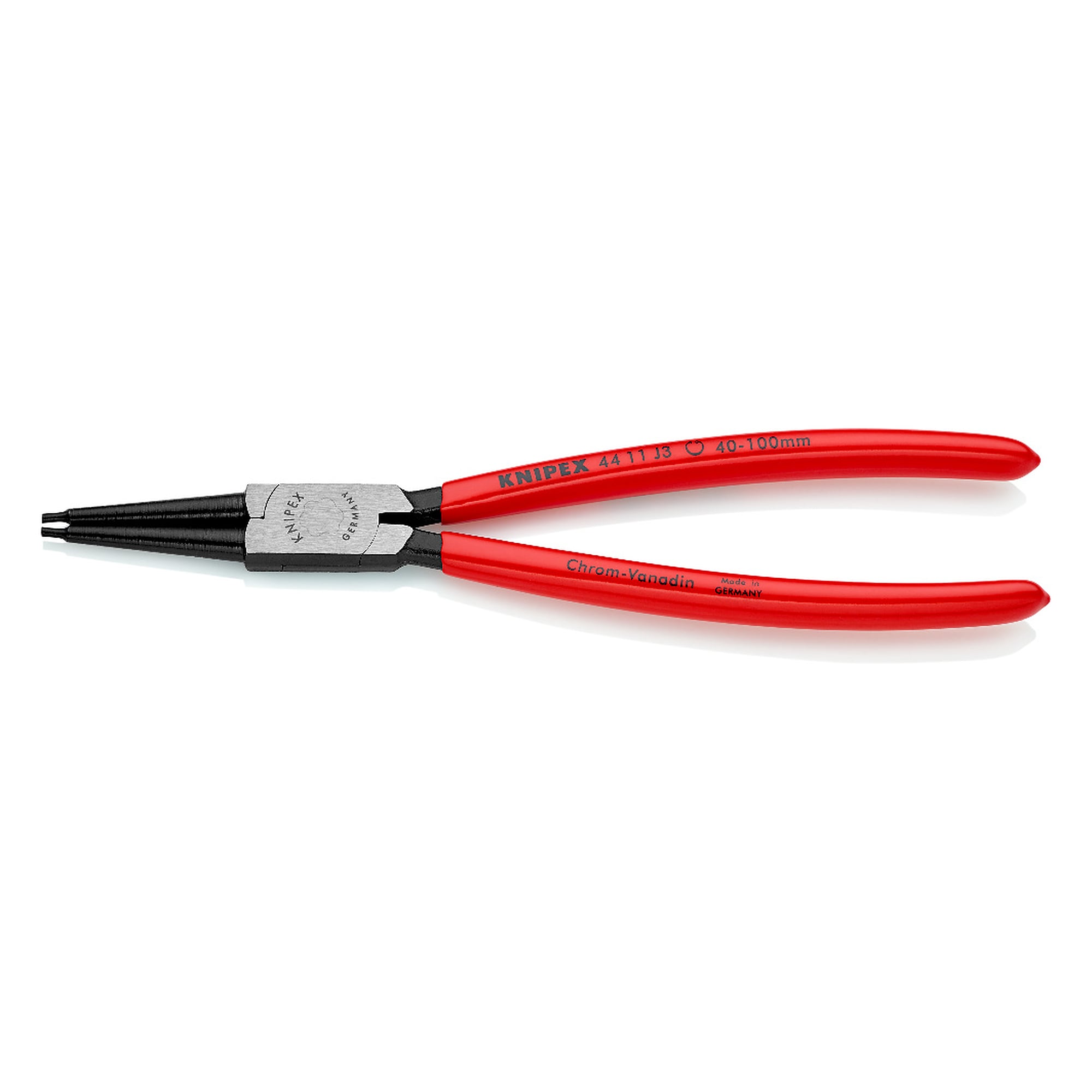

Circlip pliers for internal circlips in bore holes 40 - 100 mm dia., tips 2.3 mm dia., 225 mm - Knipex 44 11 J3

Internal retaining rings from 40 mm dia. upwards need a noticeable expanding force, and it has to reach the ring hole without slipping. The 44 11 J3 circlip pliers offer 225 mm of leg length and non-slip, solid tips of 2.3 mm dia. for that purpose and serve bore holes from 40 to 100 mm dia.

Benefits

• Capacity for bore hole diameters from 40 to 100 mm, the largest model in the 44 11 series.
• Non-slip, solid tips of 2.3 mm dia. matched to the sturdy rings of this size class.
• Solid forged style that transmits the high expanding force without springing open.
• Overall length 225 mm, the long legs deliver the required force with little effort at the hand.
• Made to DIN 5256 C, so the design of the tool follows a recognised standard.
• Polished head, black atramentized body and plastic coated handles for a secure grip.

Technical data

Areas of use

Machine and plant construction, gearbox and bearing overhaul, commercial vehicle and agricultural machinery workshops. Wherever internal retaining rings are fitted and removed in large bearing seats and housing bores up to 100 mm dia.

Standards and conformity

The pliers are made to DIN 5256 C, the standard for circlip pliers. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
