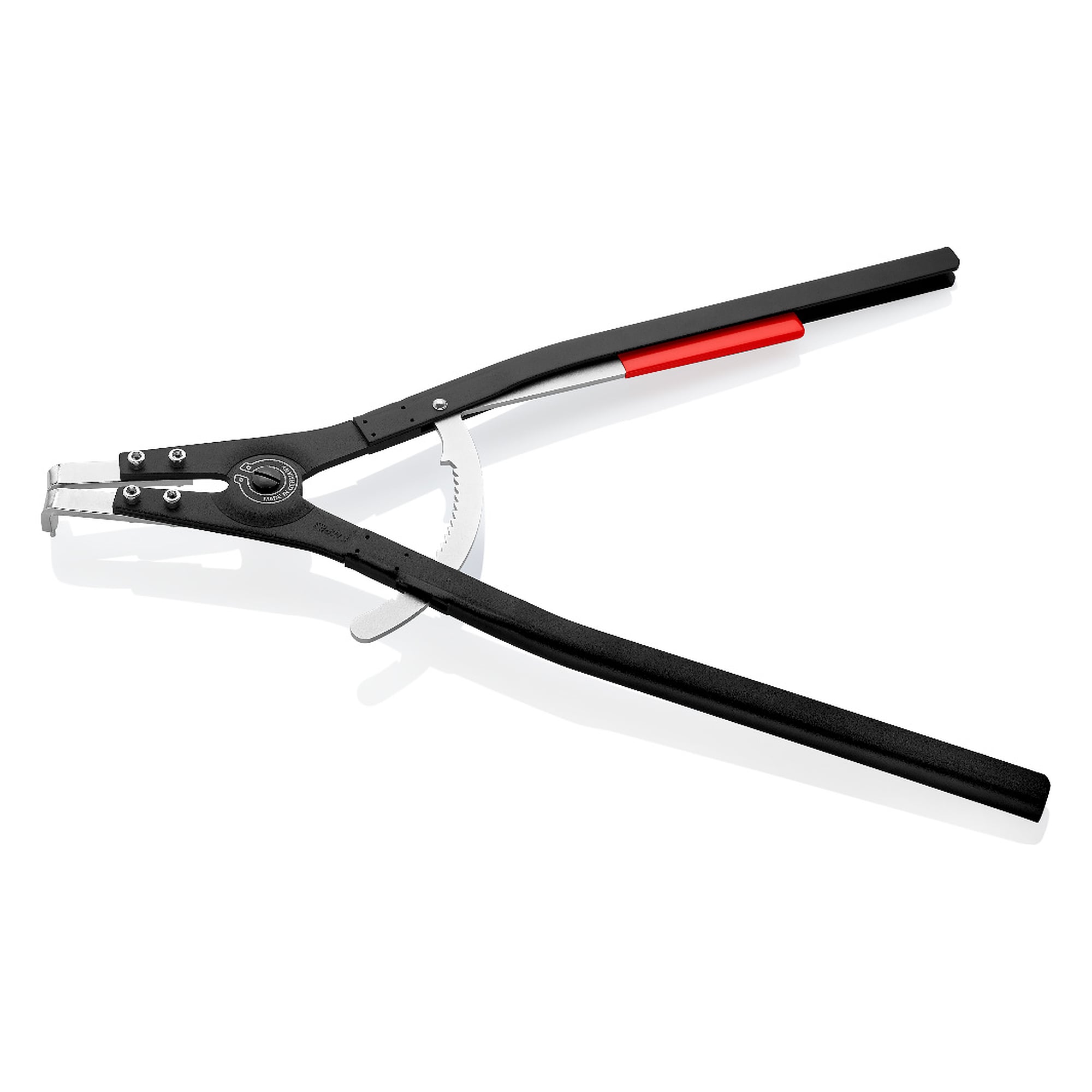

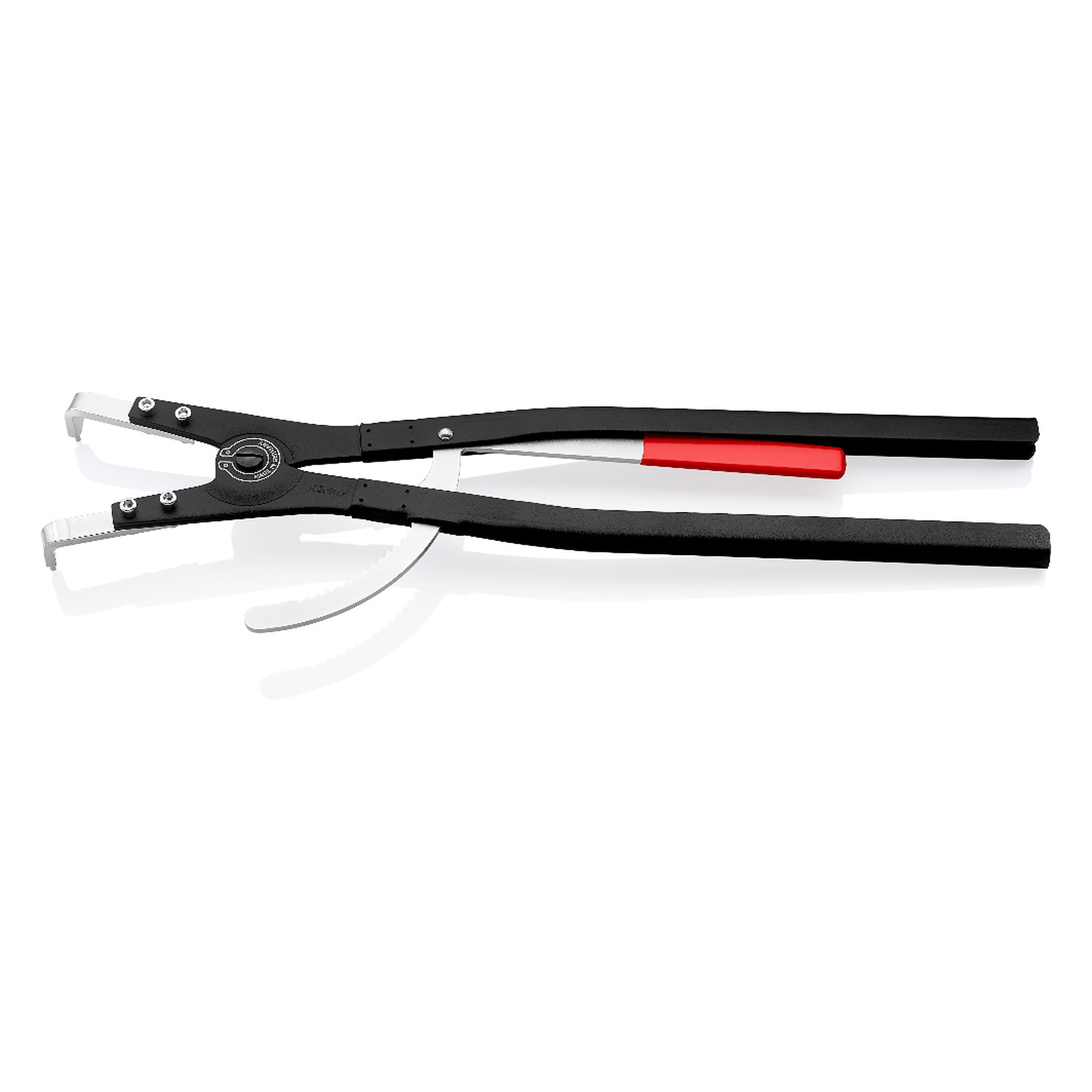

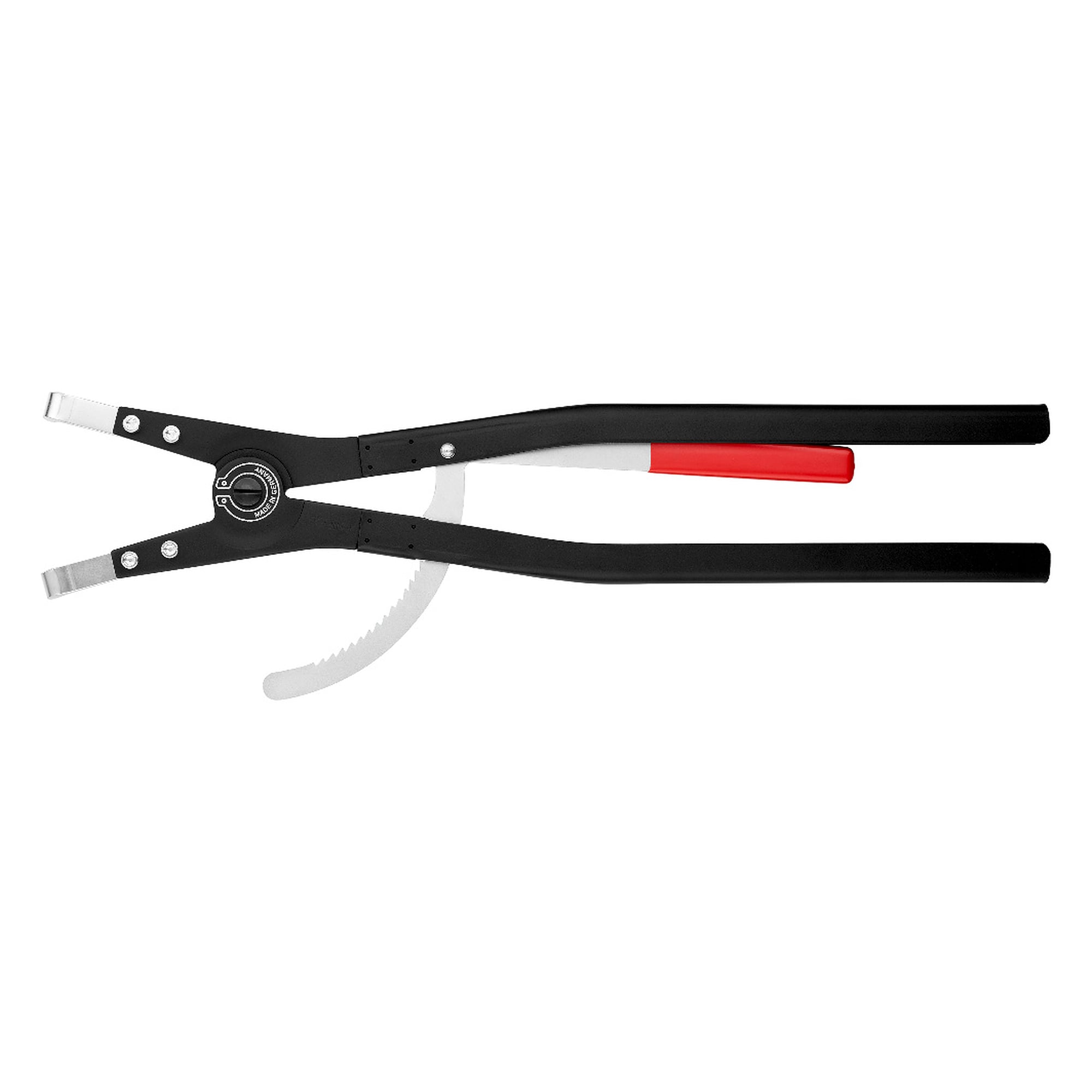

Circlip pliers for large external circlips on shafts 122 - 300 mm dia., locking device, 570 mm - Knipex 46 20 A51

Large circlips on shafts need a long lever and pliers that hold the spread position on their own. The 46 20 A51 circlip pliers are 570 mm long, work on shaft diameters of 122 - 300 mm dia. and keep the ring open through the releasable locking device until it sits in the groove.

Benefits

• Locking device that can be released holds the spread ring, leaving the second hand free for the shaft.
• Replaceable tips made of tempered steel with 3.5 mm, worn tips are exchanged instead of the whole tool.
• Capacity for shaft diameters of 122 - 300 mm dia. at 570 mm tool length, the long lever cuts the required hand force.
• Black powder-coated, which protects the large surface against corrosion.
• Built to DIN 5254 B and therefore matched to standardised circlips.
• Working weight of 1832 g, designed for heavy assemblies.

Areas of use

Large gearboxes, pump and plant construction, wind power, shipbuilding and heavy machinery. Wherever circlips for shafts of 122 - 300 mm dia. are fitted or removed.

Standards and conformity

The pliers are built to DIN 5254 B. According to the manufacturer the product contains substances of very high concern under REACH. The RoHS directive does not apply.
