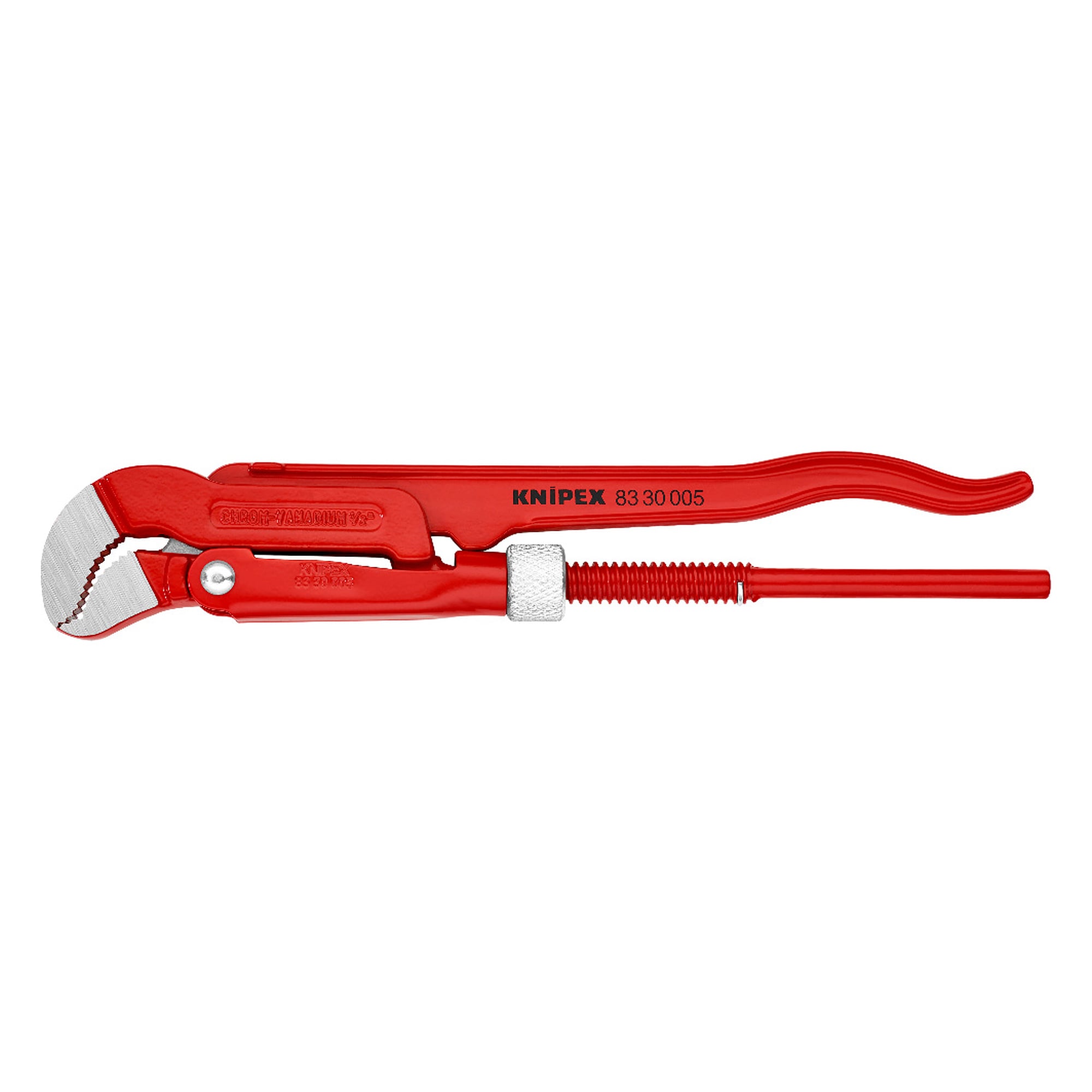

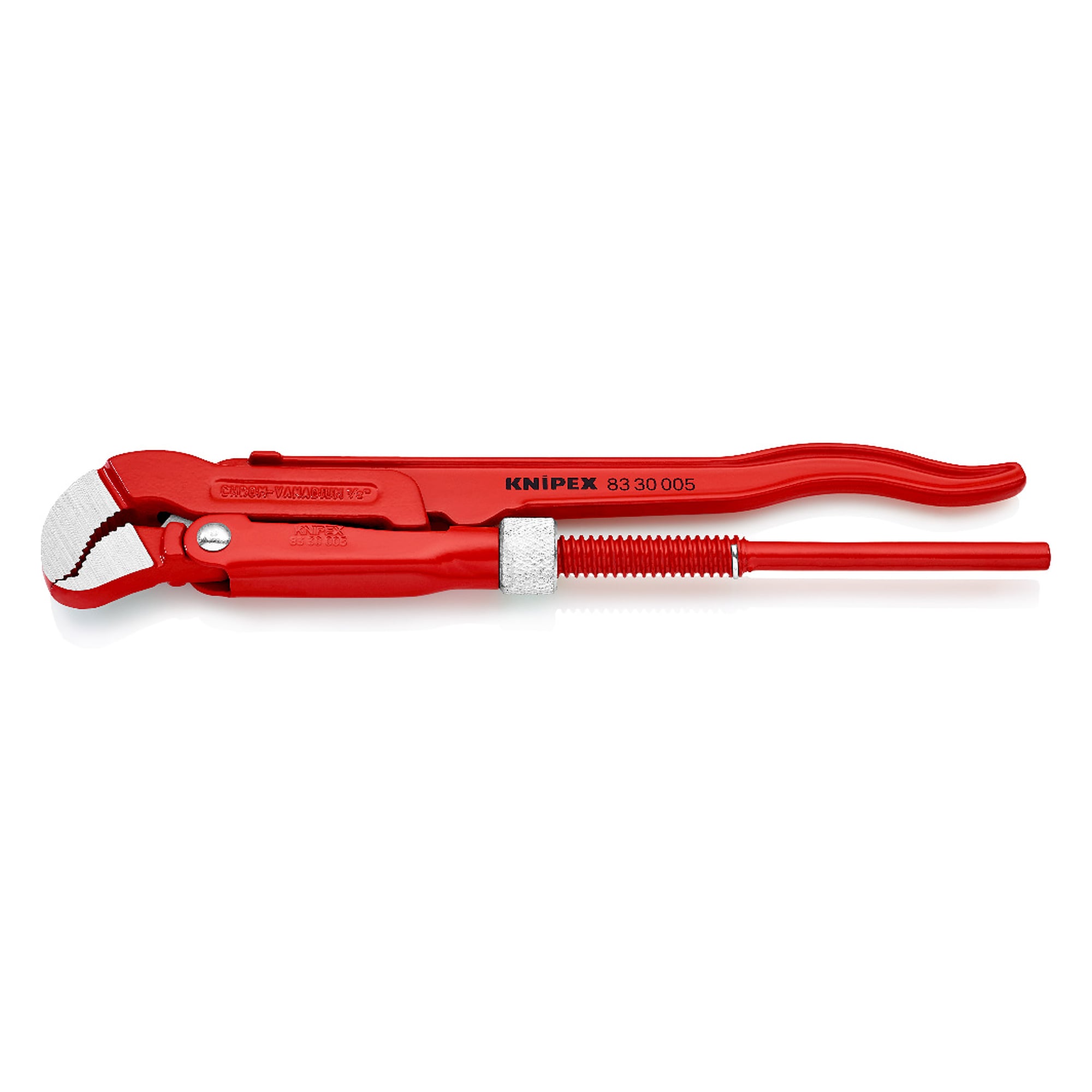

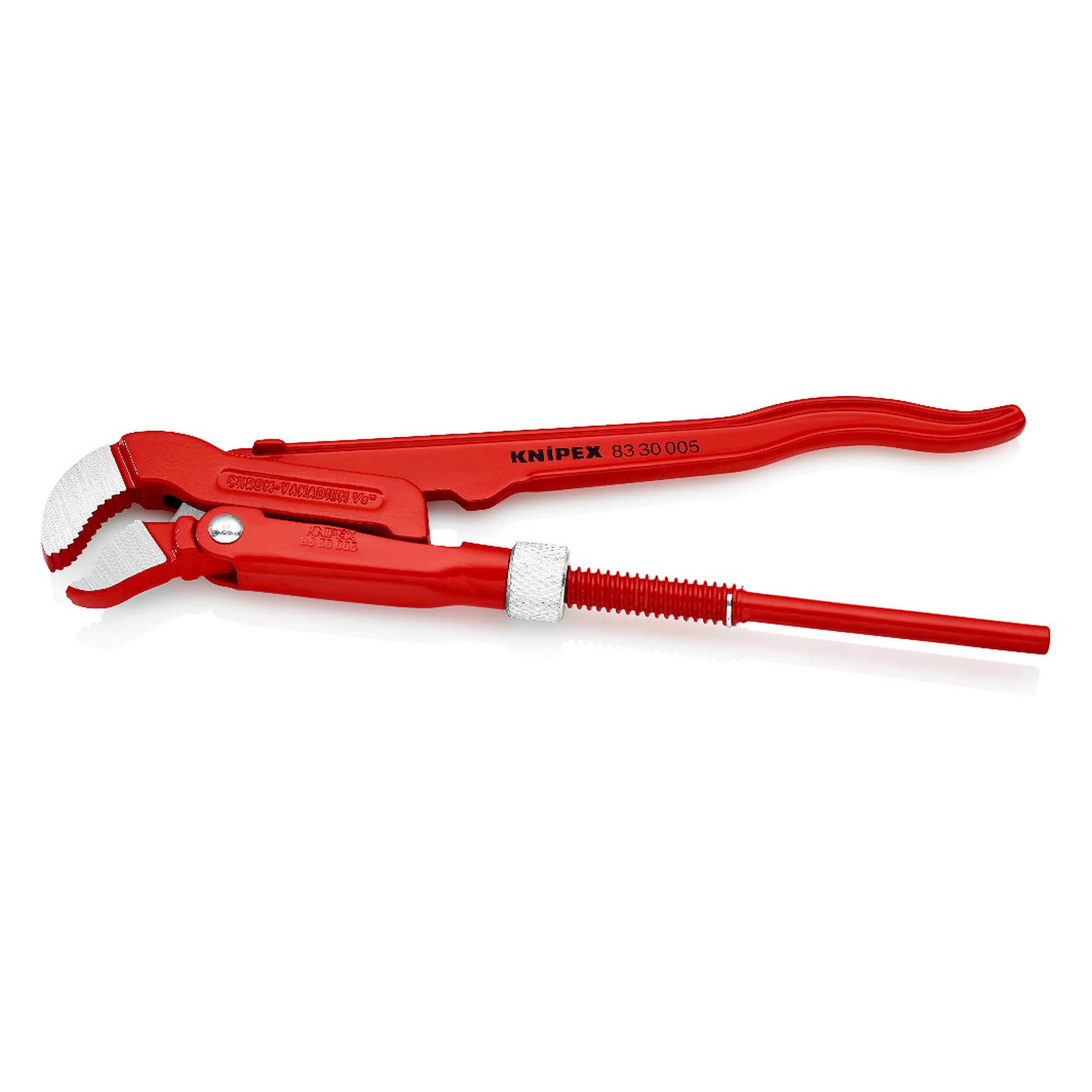

Pipe wrench S-type, slim jaw, 35 mm capacity, 245 mm long - Knipex 83 30 005

Between closely routed lines every millimetre of jaw width counts. The slim S-shaped jaw of this pipe wrench reaches into gaps that a wide jaw can no longer enter and takes hold of pipes up to Ø 35 mm at three points. Under load the 245 mm tool locks itself onto the work.

Advantages

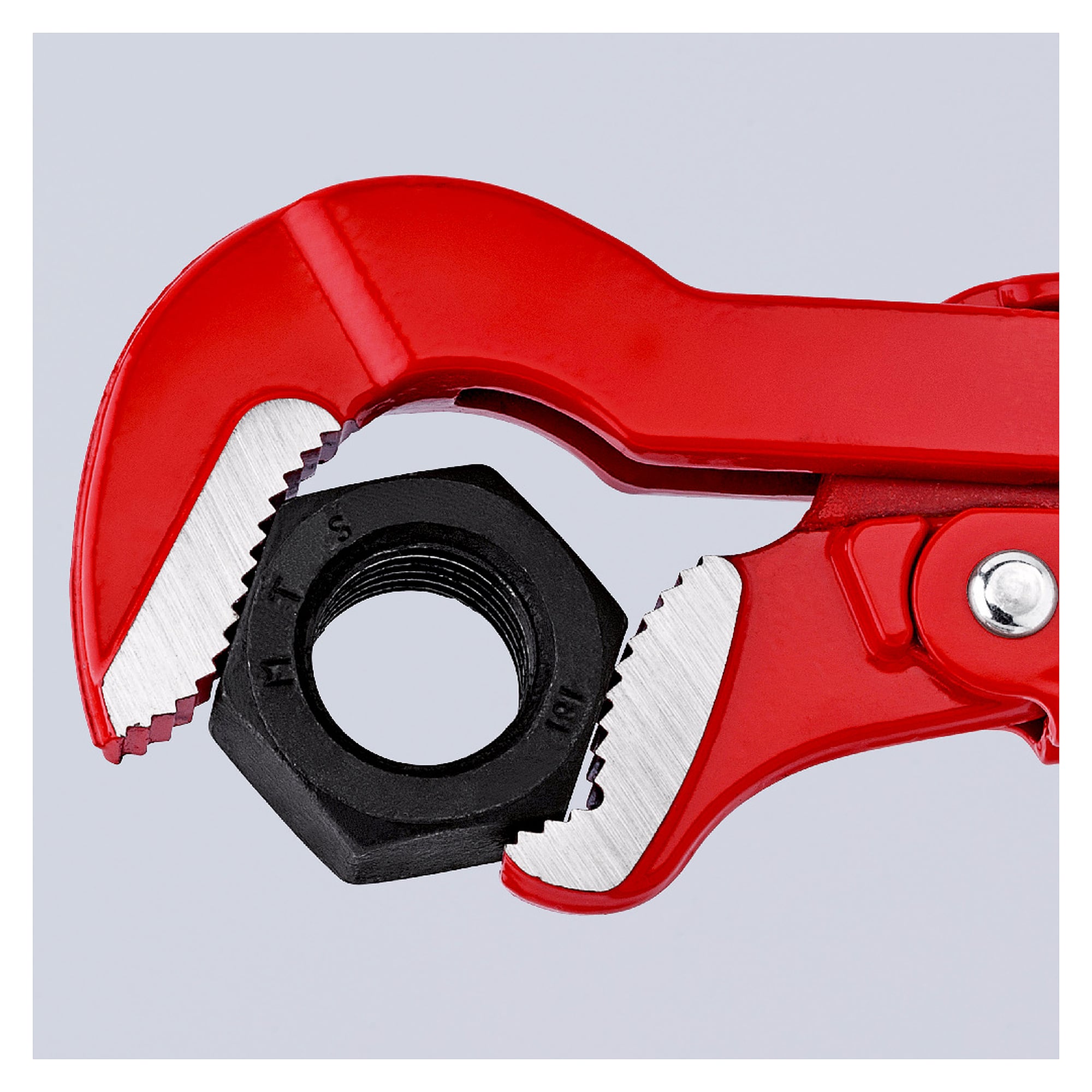

• Slim S-shaped jaw that still finds a purchase in a tight bundle of pipes
• Three-point contact on the pipe, the wrench locks itself under pull
• Teeth offset against the direction of rotation and additionally induction-hardened for a secure bite while tightening
• Gripping surfaces with specially hardened teeth, tooth hardness approx. 56 HRC, for a long service life
• Captive adjusting nut, jaw capacity set steplessly up to 35 mm
• I-beam handle design, high stiffness at 472 g of own weight
• Red powder-coated, jaws bright ground

Areas of application

Plumbing and heating installation, pipework and plant construction as well as maintenance. Wherever pipes, sockets and fittings up to 35 mm across flats have to be loosened, held or tightened.

Standards and compliance

The wrench conforms to DIN 5234. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this hand tool.
