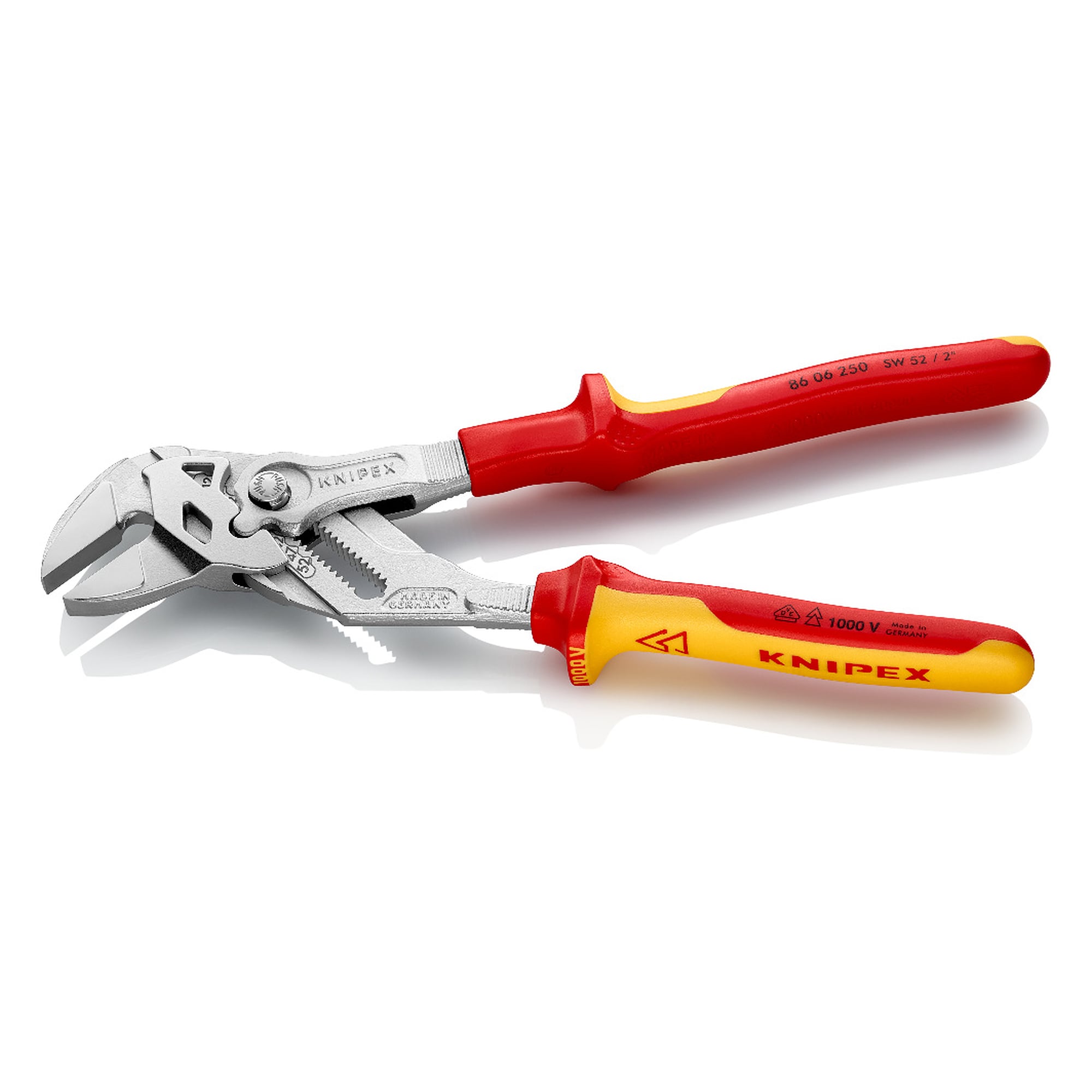

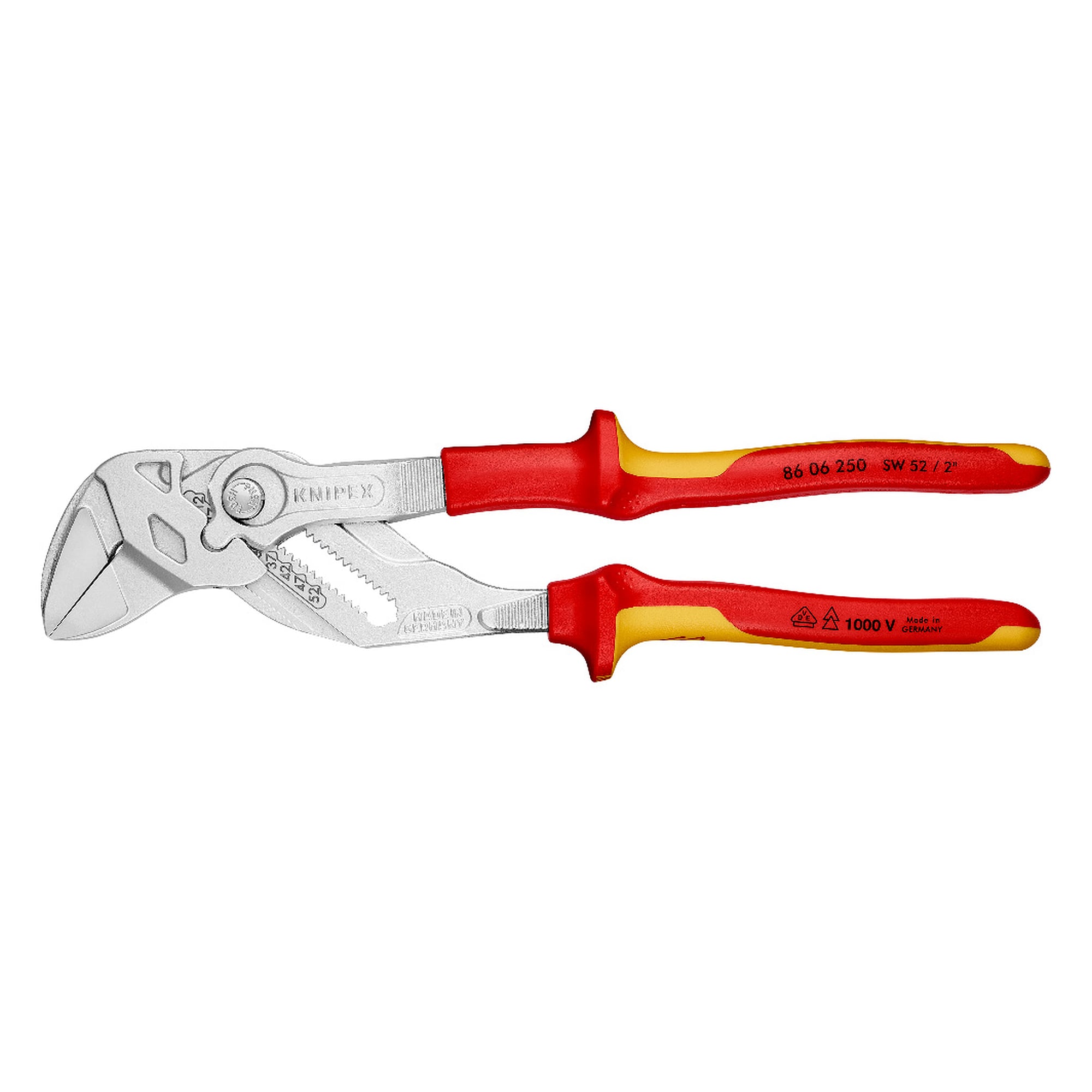

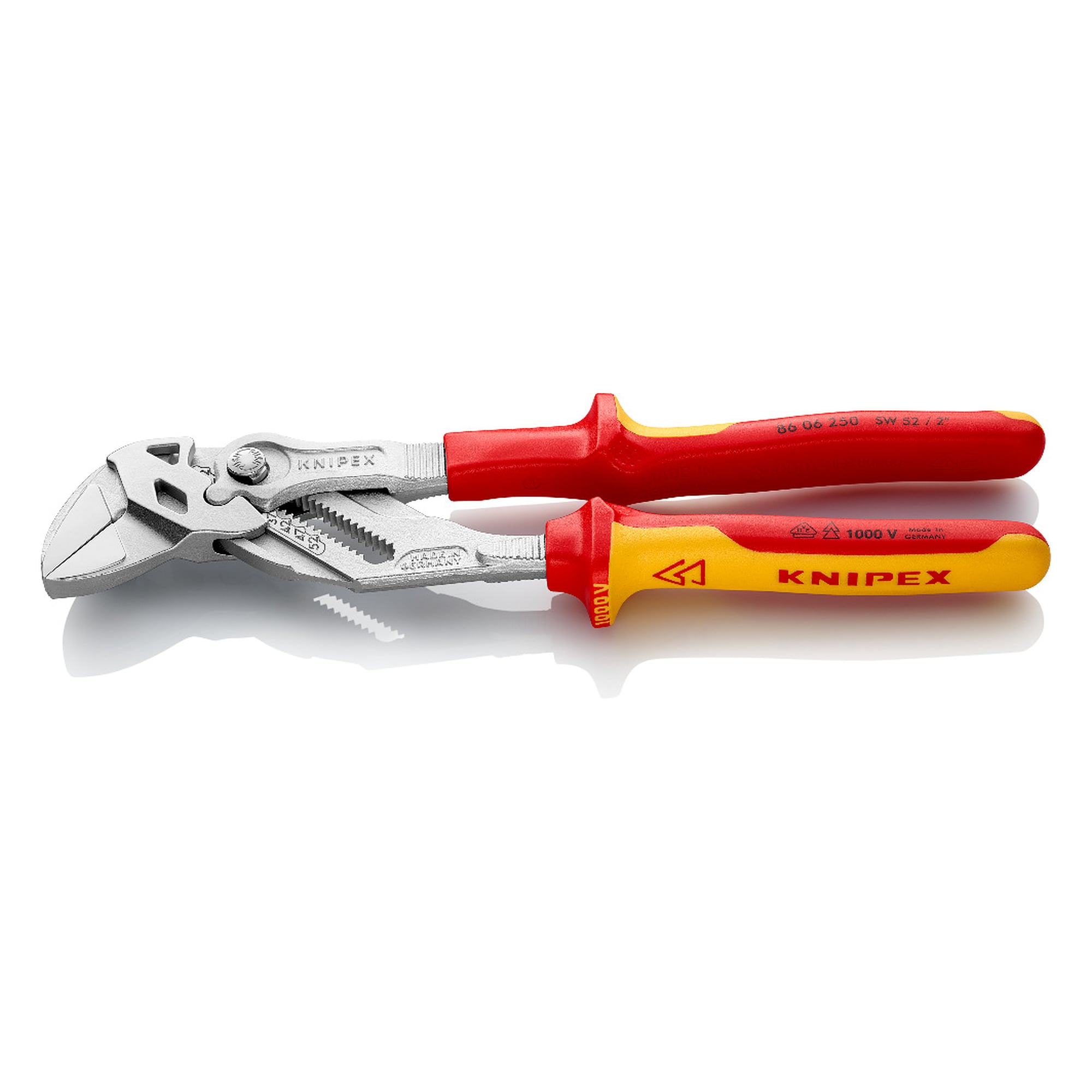

Pliers wrench insulated to IEC 60900, capacity up to 52 mm, 250 mm - Knipex 86 06 250

On live installations the right width across flats is often only clear at the component itself. The insulated 86 06 250 pliers wrench therefore carries laser-cut scales that allow the width of up to 52 mm to be set away from the workpiece. The grips are VDE tested to DIN EN 60900 and IEC 60900.

Benefits

• Insulated multi-component grips, VDE tested to DIN EN 60900 and IEC 60900.
• Laser-cut scales let the width across flats be set away from the workpiece to be gripped, an advantage when working on electrical installations.
• Replaces a complete set of metric and imperial spanners, with 19 adjustment positions.
• Smooth jaws for damage free installation of plated fittings, working directly on chrome.
• Stepless gripping of all widths across flats up to 52 mm or 2 inch thanks to parallel guided jaws.
• The travel between the gripping jaws allows quick tightening and release of bolted connections following the ratchet principle.

Areas of use

Electrical installation and maintenance on switchgear, grid connections and charging infrastructure, plus the usual screwed connections in plant and machine building. Wherever work is done on live parts and many different widths across flats still occur.

Standards and conformity

The insulated grips are tested to DIN EN 60900 and IEC 60900, so the pliers wrench is approved for work on live parts. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
