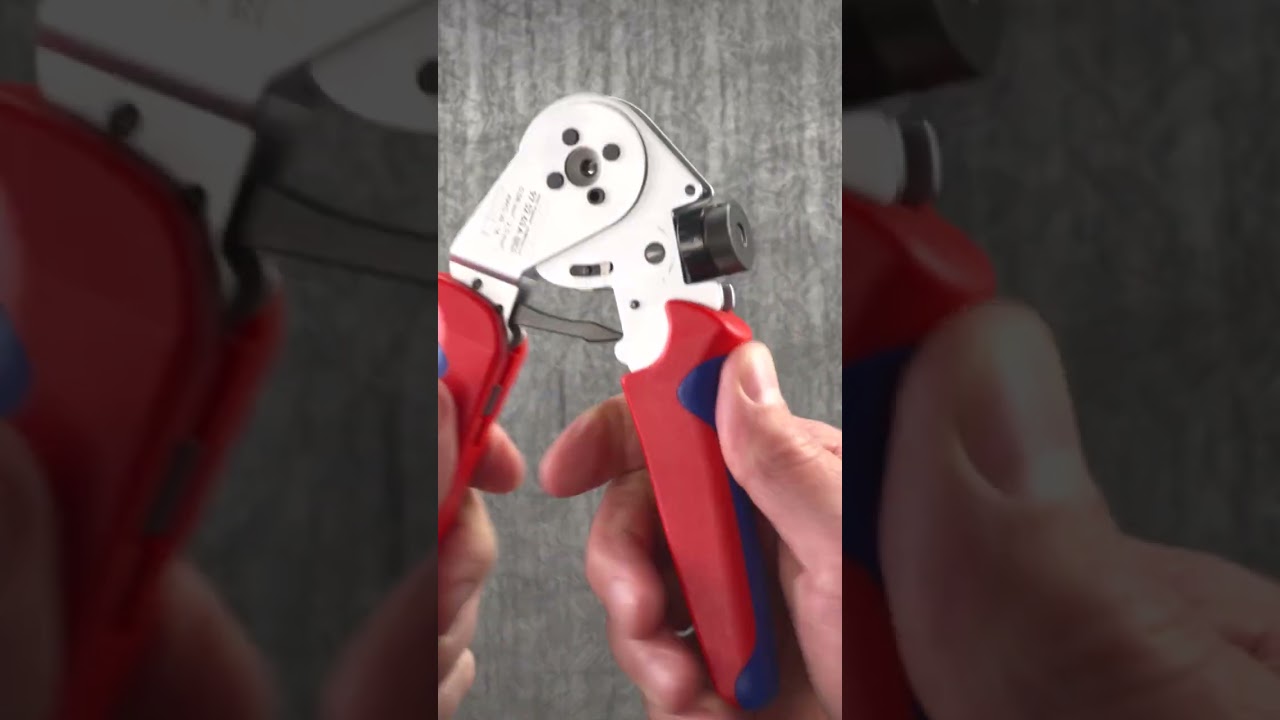

Four-mandrel crimping pliers for turned pin and socket contacts from 0.08 to 2.5 mm². The mandrel feed is set with an adjusting wheel in steps of 0.01 mm, the four mandrels close synchronously and the trigger lock complies with IEC 60352. Length 180 mm, chrome-plated, supplied in a plastic case.
Four-mandrel crimping pliers for turned contacts, adjusting wheel in 0.01 mm steps, 0.08 to 2.5 mm², 180 mm - Knipex 97 52 63
KNIPEX
Original product
Net price (excl. VAT)
€559.91
Item
WL62021
Manufacturer no.
97 52 63
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.97 52 63
ConditionNew
Article
WL62021
Frequently Bought Together
Turned contacts call for an exact crimping dimension, because a few hundredths of a millimetre decide retention force and contact resistance. The four-mandrel crimping pliers 97 52 63 let the mandrel feed be set with an adjusting wheel in steps of 0.01 mm and cover the range from 0.08 to 2.5 mm².
Advantages
- Mandrel feed adjustable with the adjusting wheel in steps of 0.01 mm, for fine adaptation to different conductor cross-sections.
- Reliable crimping thanks to the synchronised feed of the four mandrels, the contact is compressed evenly.
- Process-secure and consistently high crimp quality thanks to the IEC 60352 compliant trigger lock, which can be unlocked.
- Checking of the basic setting with the enclosed test pin, plus a recalibration function.
- The range of applications can be extended with contact holders from various contact manufacturers, available separately.
- High operating comfort from the handy 180 mm design, supplied in a plastic case with foam insert.
Technical data
| Application | turned pin and socket contacts |
|---|---|
| Capacity | 0.08 - 2.5 mm² |
| Overall length | 180 mm |
| Mandrel feed | by adjusting wheel, in steps of 0.01 mm |
| Mandrel movement | synchronised, four mandrels |
| Trigger lock | according to IEC 60352, unlockable |
| Calibration | recalibration function, test pin included |
| Contact holder | exchangeable, available separately |
| Finish | chrome-plated |
| Supplied in | plastic case with foam insert |
Areas of use
Connector assembly in automation, measuring and test equipment, aerospace and rail technology as well as control cabinet building. Wherever turned contacts from various manufacturers are crimped repeatably.
Standards and conformity
The trigger lock of the pliers complies with IEC 60352 for solderless connections. No REACH or RoHS statement is available for this version.
| Manufacturer Nr. | 97 52 63 |
|---|---|
| Manufacturer | Knipex |
| Weight | 0.100000 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
