Crimping pliers with front loading for wire ferrules to DIN 46228 parts 1 + 4 from 0.5 to 6 mm², which is AWG 20 to 10. The ferrule is fed in from the front, so work in hard to reach places stays possible. At 13 mm thick and 209 g, the 180 mm pliers fit into narrow and deep control cabinets.

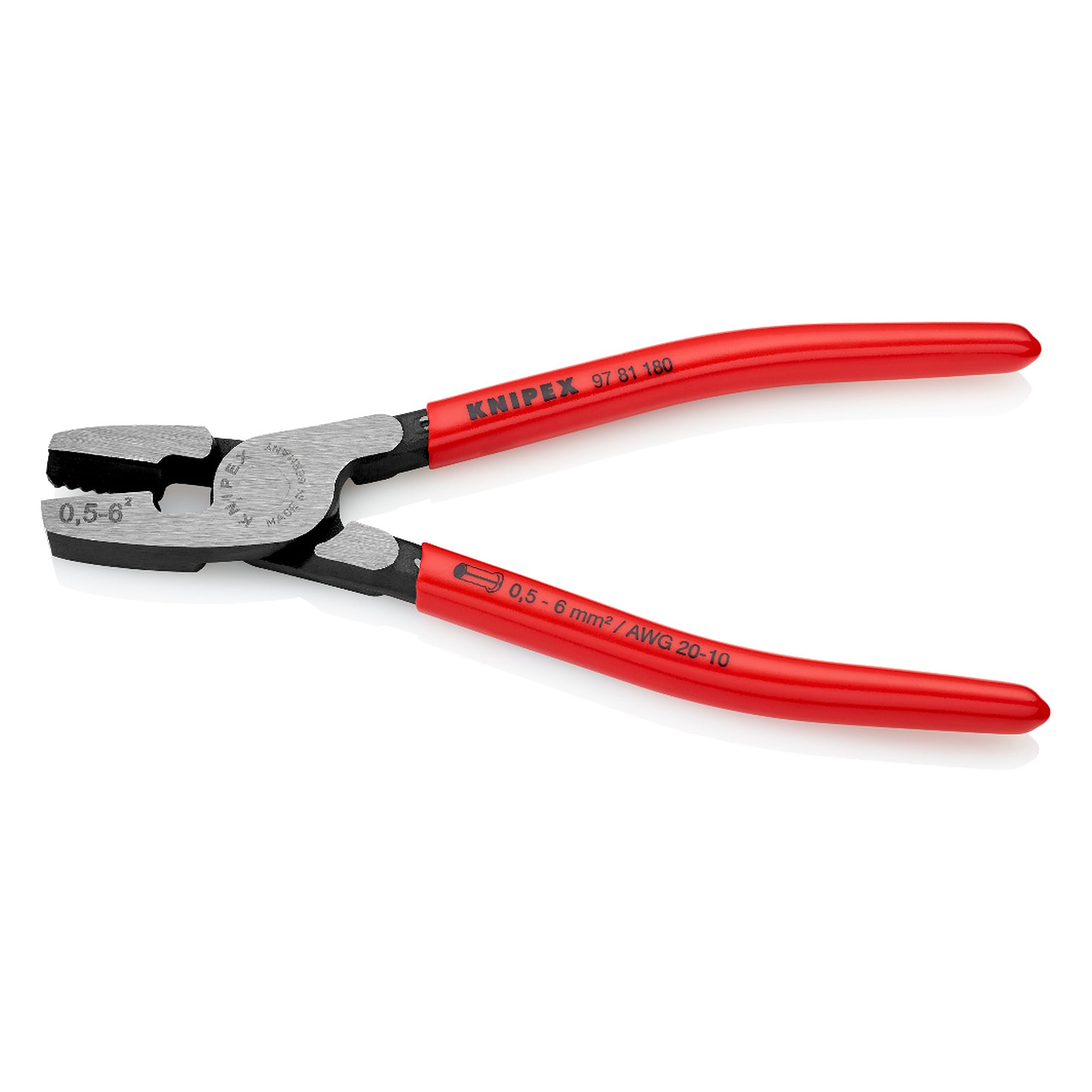

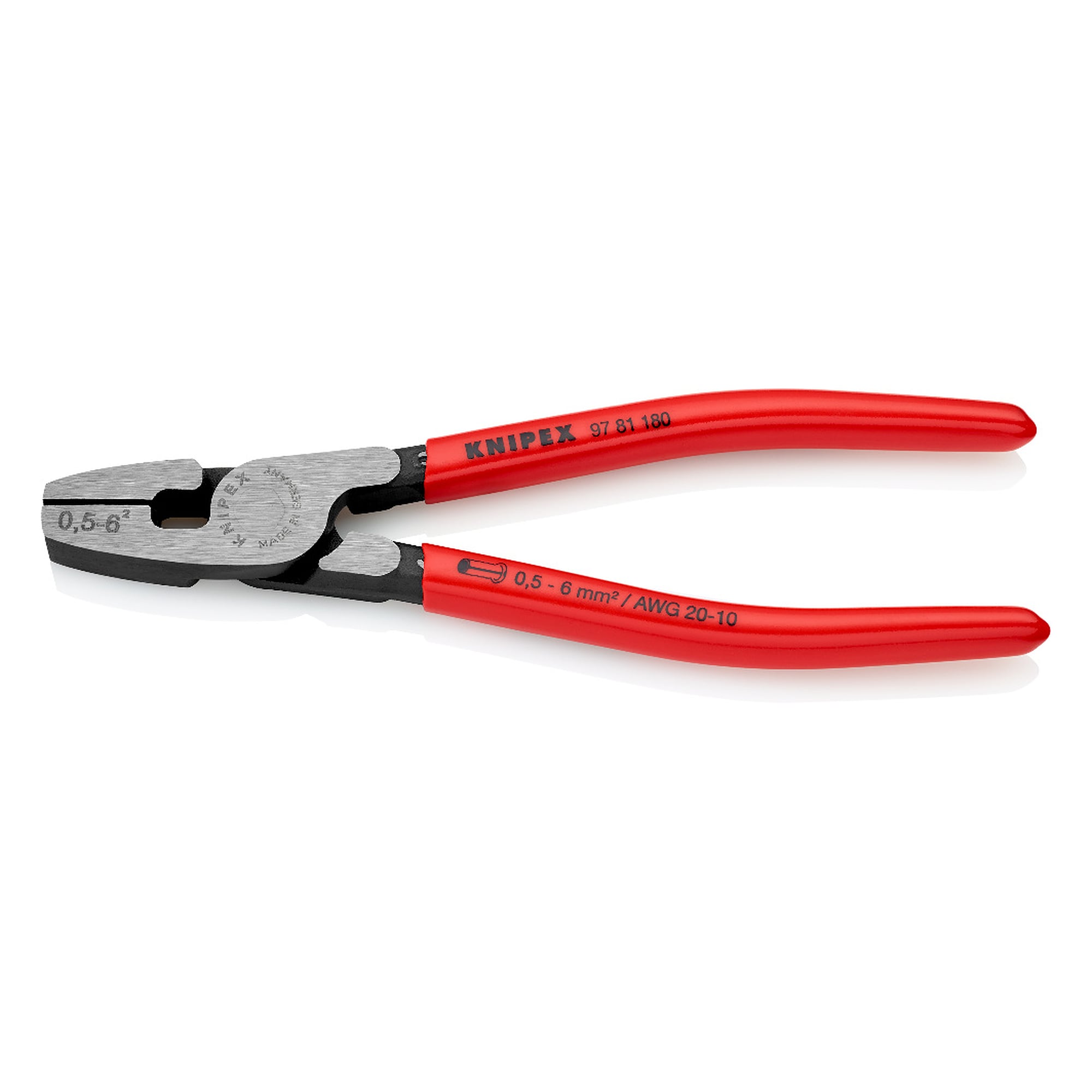

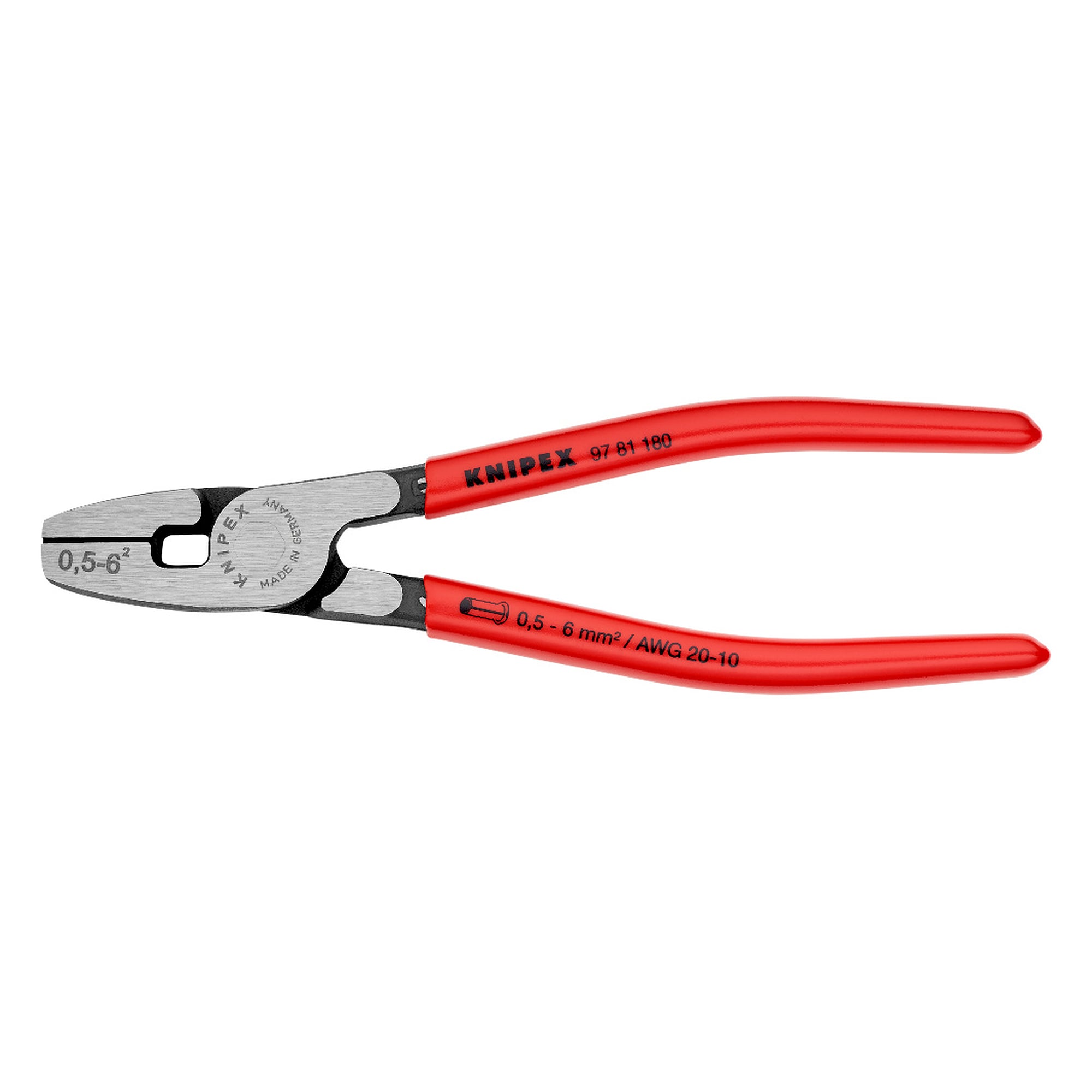

Crimping pliers for wire ferrules with front loading, 0.5 - 6.0 mm², 13 mm slim, 180 mm - Knipex 97 81 180
KNIPEX
Original product
Net price (excl. VAT)
€44.43
Item
WL62043
Manufacturer no.
97 81 180
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.97 81 180
EAN4003773019794
ConditionNew
Article
WL62043
Frequently Bought Together

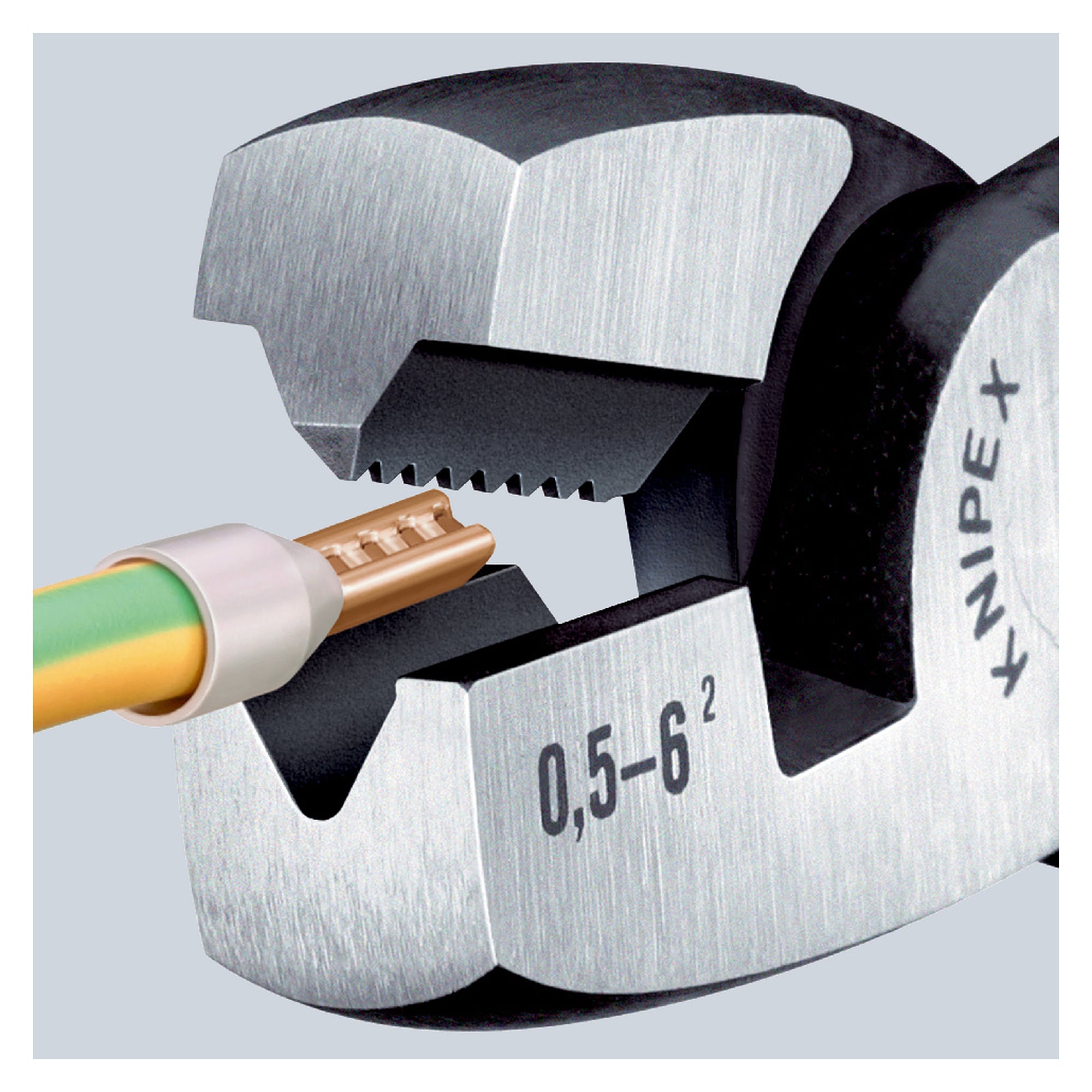

Deep inside a control cabinet there is often no room to bring a plier head in from the side. The 97 81 180 crimping pliers take the ferrule in from the front and crimp sleeves to DIN 46228 parts 1 + 4 from 0.5 to 6 mm² at a build height of only 13 mm.
Benefits
- Front loading, ideal for work in confined areas such as narrow and deep control cabinets.
- Flat design, 13 mm high and 50 mm wide, so the tool reaches between densely packed terminal rows.
- A single die covers 0.5 - 6.0 mm², which is AWG 20 - 10, with no changing between profiles.
- Crimping to DIN 46228 parts 1 + 4 for a reliable connection between sleeve and conductor.
- Plastic coated handles, 209 g total weight at 180 mm length.
- Polished head stays clean and is easy to wipe down.
Technical data
| EAN | 4003773019794 |
|---|---|
| Head | polished |
| Handles | plastic coated |
| Weight | 209 g |
| Dimensions | 180 x 50 x 13 mm |
| Application | wire ferrules |
| Capacity in square millimetres | 0.5 - 6.0 mm² |
| Number of dies | 1 |
| AWG | 20 - 10 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Control cabinet and switchgear building and maintenance, wherever wired terminal rows are extended or retrofitted. Also for repairs in distribution boards and enclosures where a conventional crimping tool no longer fits.
Standards and conformity
The ferrules crimped follow DIN 46228 parts 1 + 4. According to the manufacturer the pliers contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN 46228 |
|---|---|
| Manufacturer Nr. | 97 81 180 |
| Manufacturer | Knipex |
| EAN | 4003773019794 |
| Weight | 0.209000 |
| Height | 13 mm |
| Width | 50 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 180.000000 |
