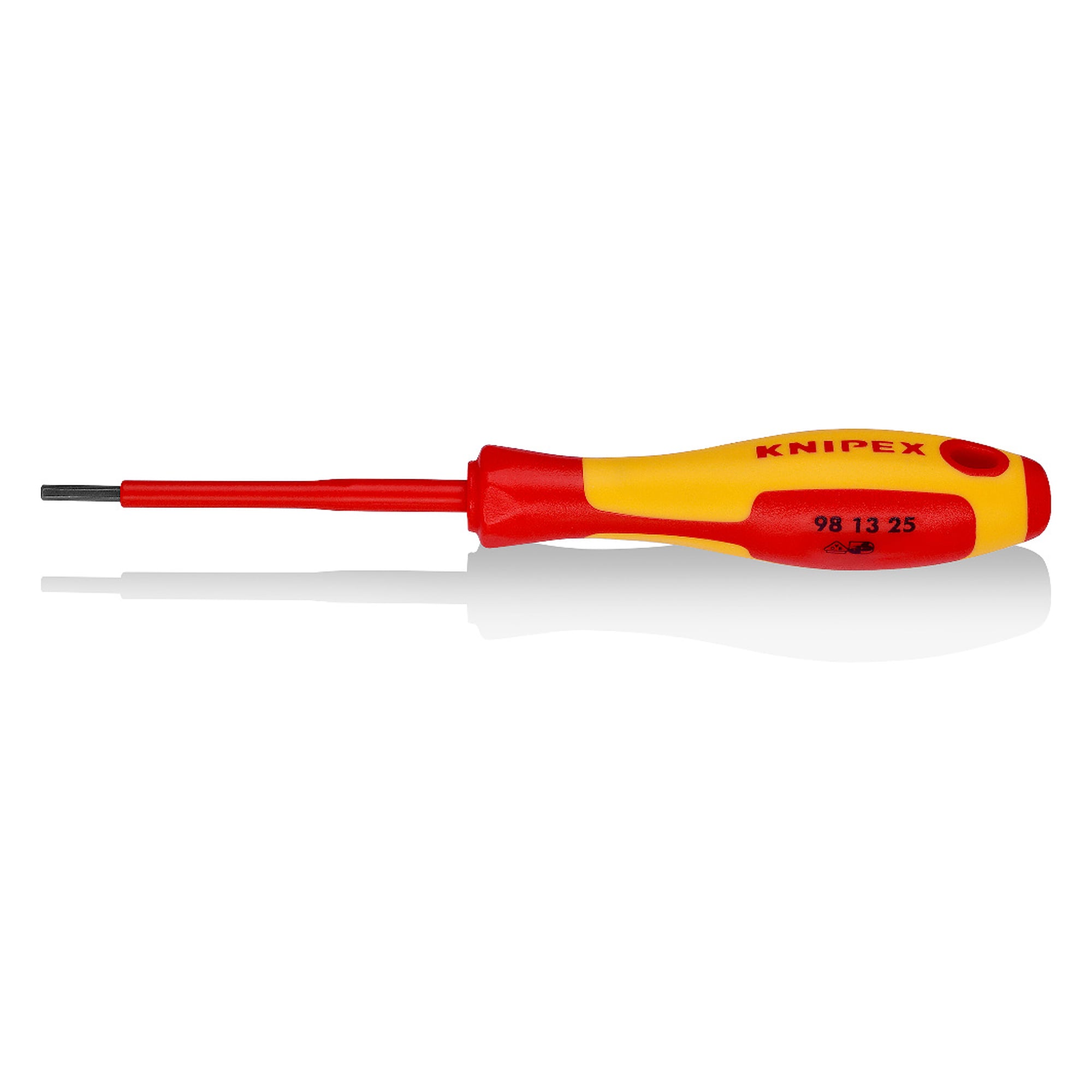

Screwdriver for hexagon socket screws, insulated to IEC 60900, 2,5 mm across flats, 177 mm - Knipex 98 13 25

Hexagon socket screws in terminals and equipment mountings tolerate no play, otherwise the key rounds out the socket. The insulated 98 13 25 screwdriver engages 2.5 mm across flats with a burnished blade of 75.0 mm and is tested for live working up to 1000 V.

Benefits

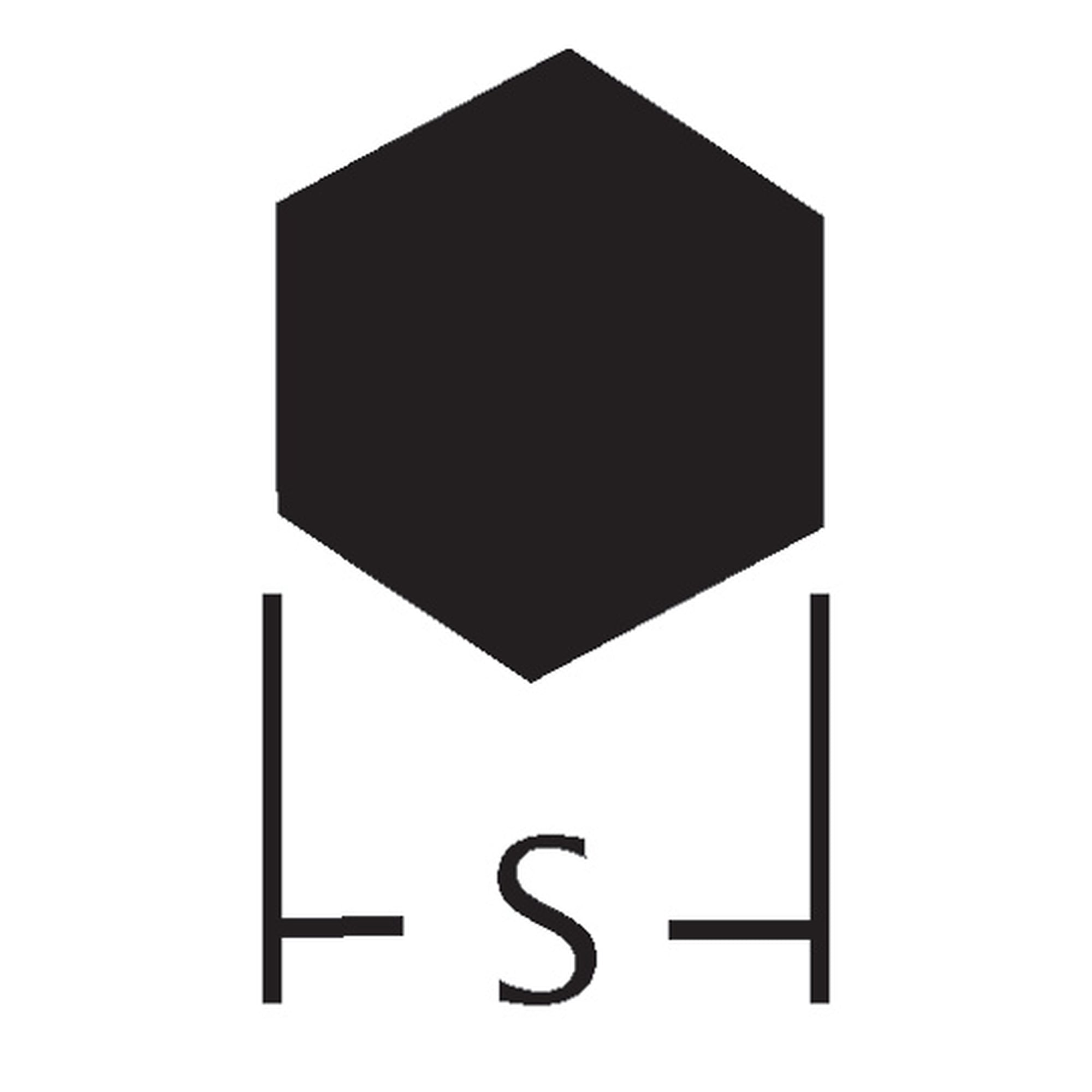

• Burnished hexagon blade with 2.5 mm across flats for a positive fit in the screw head.
• Blade length 75.0 mm, of which 15.0 mm are uninsulated, so deep seated screws can be engaged as well.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents rolling, the screwdriver stays put on sloping surfaces.
• Handle length 102 mm, 177 mm overall, weight 32 g.
• Insulation with multi-component sheaths, VDE tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.

Technical data

Areas of use

Electrical installation, control cabinet building and maintenance on machinery and plant. Typical tasks are terminal blocks, busbar holders and equipment mountings with a 2.5 mm hexagon socket worked on close to live parts.

Standards and conformity

The tool is built to DIN EN 60900 and IEC 60900 and is VDE tested, which releases it for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
