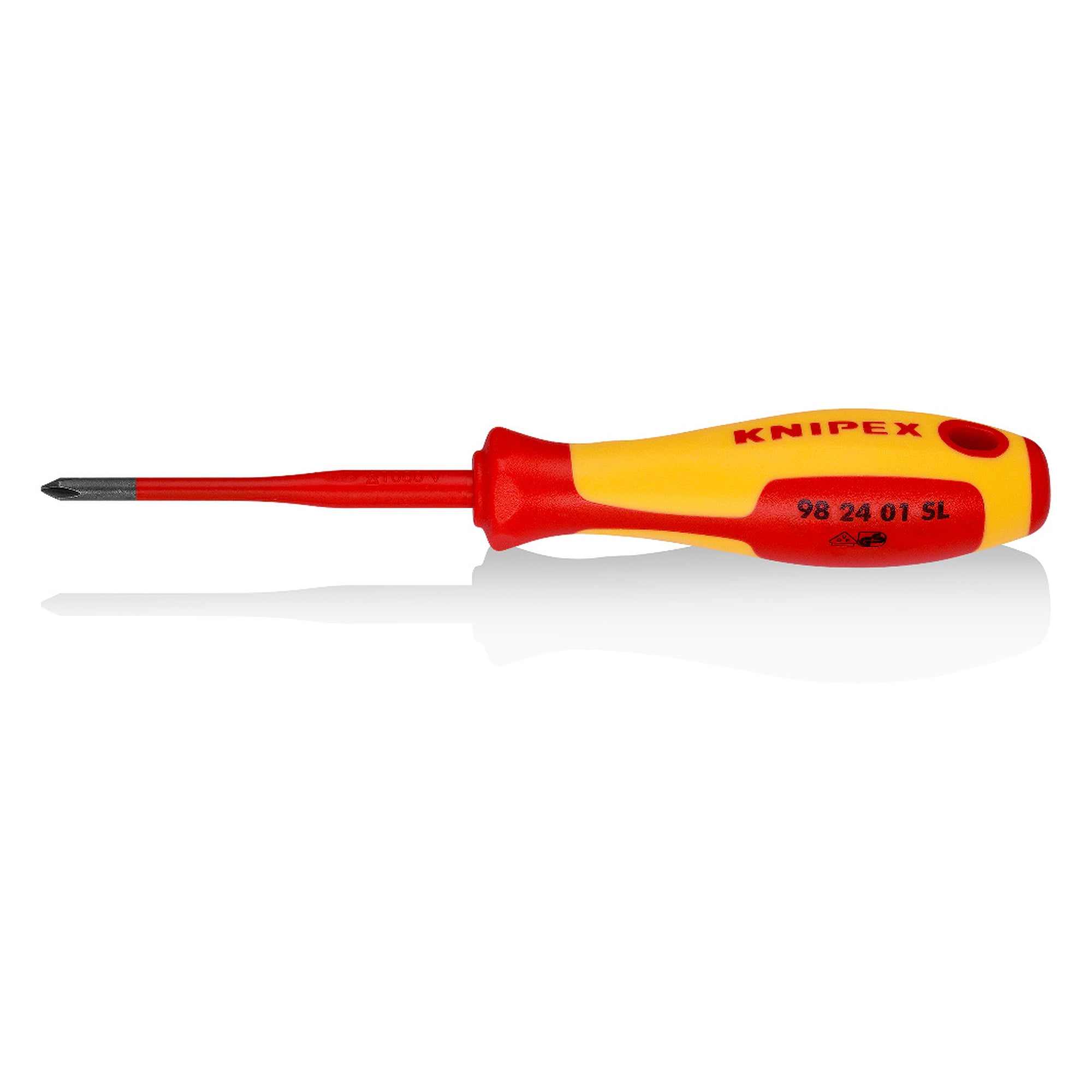

Screwdriver slim for Phillips cross recessed screws PH1, insulated 1000 V, 187 mm - Knipex 98 24 01 SL

Cross recessed screws in circuit breakers and terminal blocks often sit deep inside the housing. The 98 24 01 SL in size PH1 answers with an extra slim front shaft and an 80 mm blade at an overall length of 187 mm.

Benefits

• Phillips cross recess drive in size PH1 with black oxide finished tip.
• Reduced extra slim shaft in the front area for recessed spring and screw elements.
• Insulation to DIN EN 60900 and IEC 60900, VDE tested for work on live parts up to 1000 V.
• Blade length 80 mm with 15 mm uninsulated at the tip, handle length 107 mm.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents the tool from rolling away on sloped surfaces.

Technical data

Applications

Circuit breakers, terminal blocks and device connections with deep-seated cross recessed screws, cabinet building and electrical service.

Standards and compliance

The insulation complies with DIN EN 60900 and IEC 60900 and is VDE tested, so the tool is approved for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
