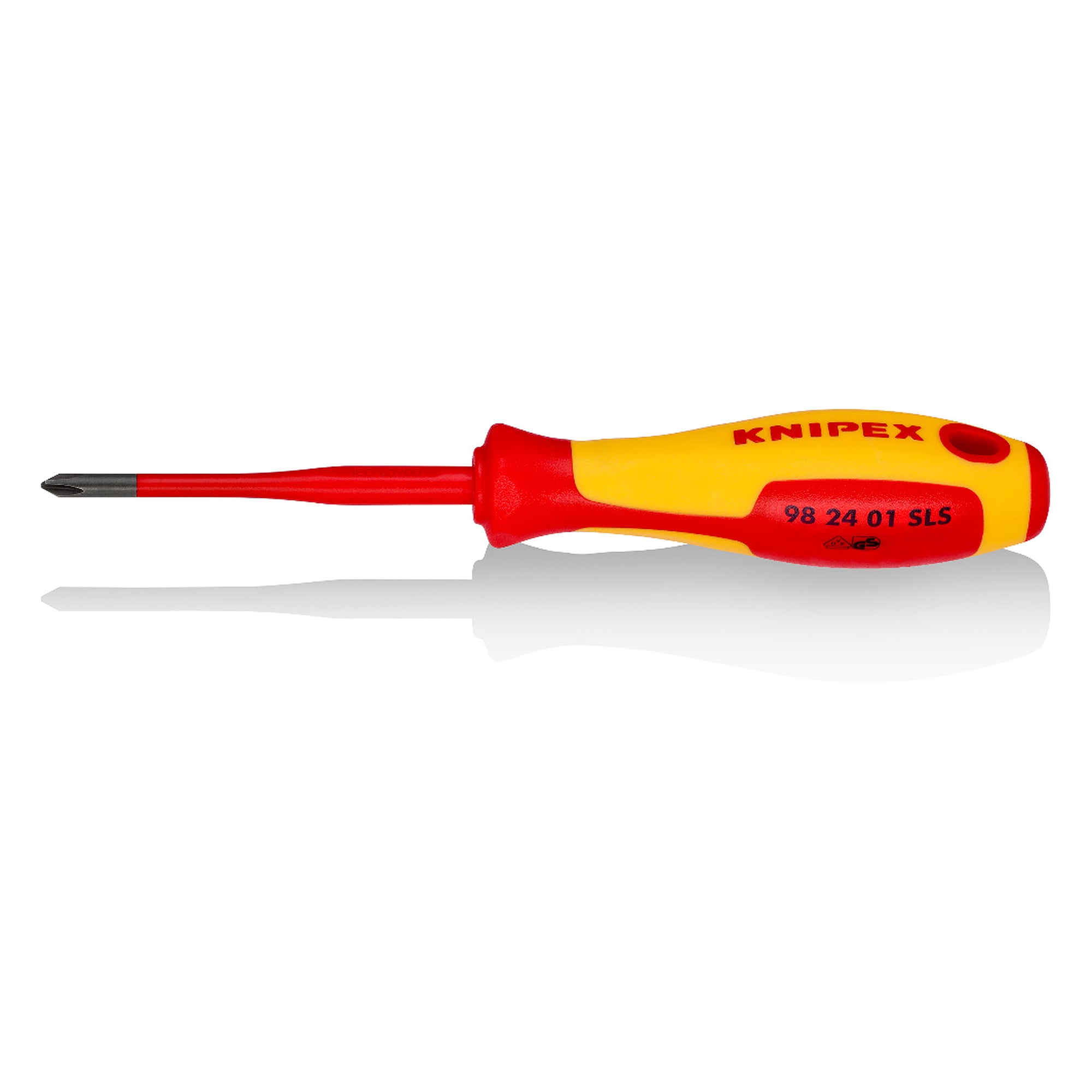

Screwdriver slim PlusMinus Phillips PH/S 1, insulated 1000 V, 187 mm - Knipex 98 24 01 SLS

PlusMinus profile screws on circuit breakers accept both slotted and cross recessed blades, yet neither grips fully. The 98 24 01 SLS carries a driving tip in size PH/S 1 made for exactly this profile plus an extra slim front shaft for recessed screw elements.

Benefits

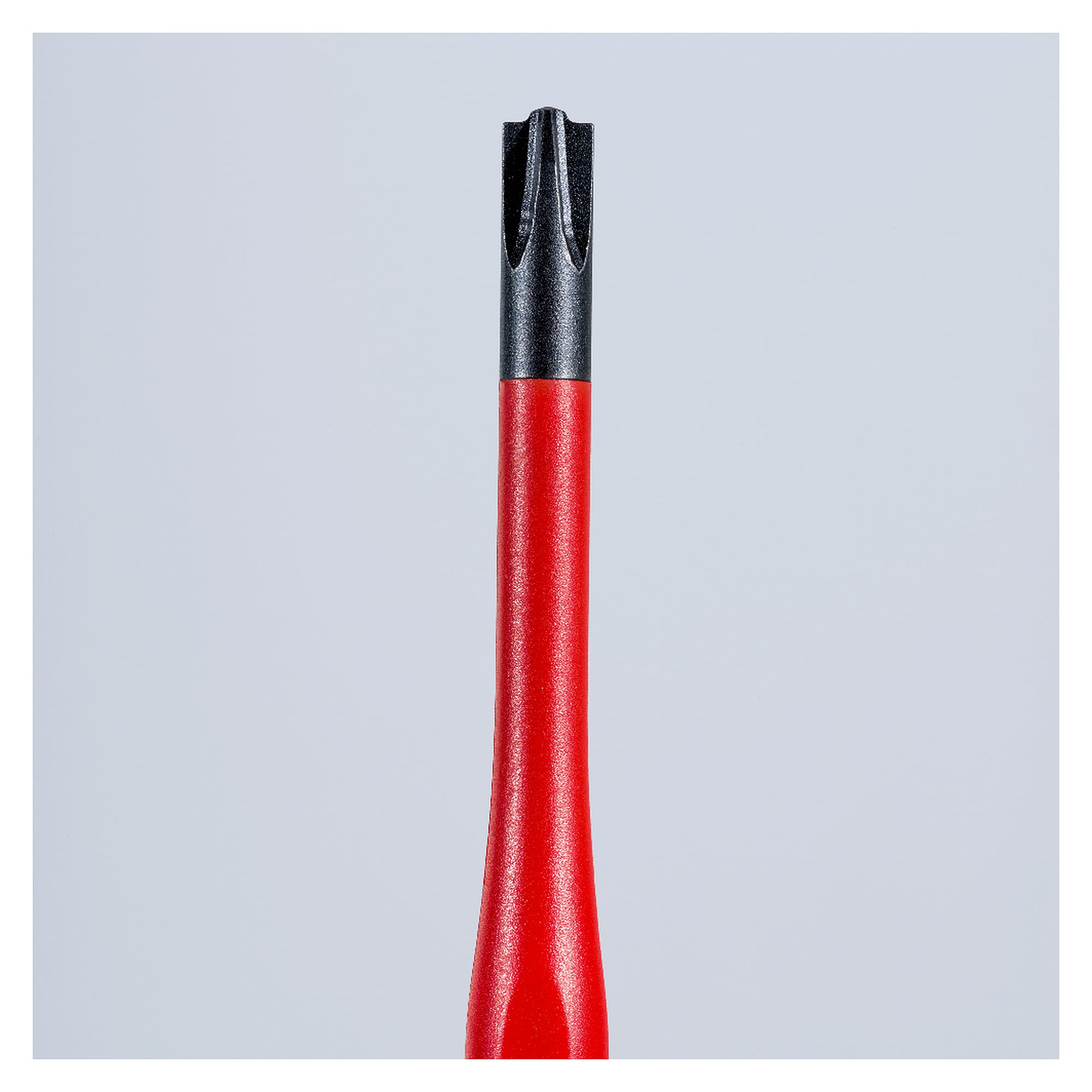

• Driving tip for PlusMinus profile screws in size PH/S 1, as used on electrical installation components.
• Reduced extra slim shaft in the front area for recessed spring and screw elements.
• Insulation to DIN EN 60900 and IEC 60900, VDE tested for work on live parts up to 1000 V.
• Blade length 80 mm with 15 mm uninsulated at the tip, handle length 107 mm.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents the tool from rolling away on sloped surfaces.

Technical data

Applications

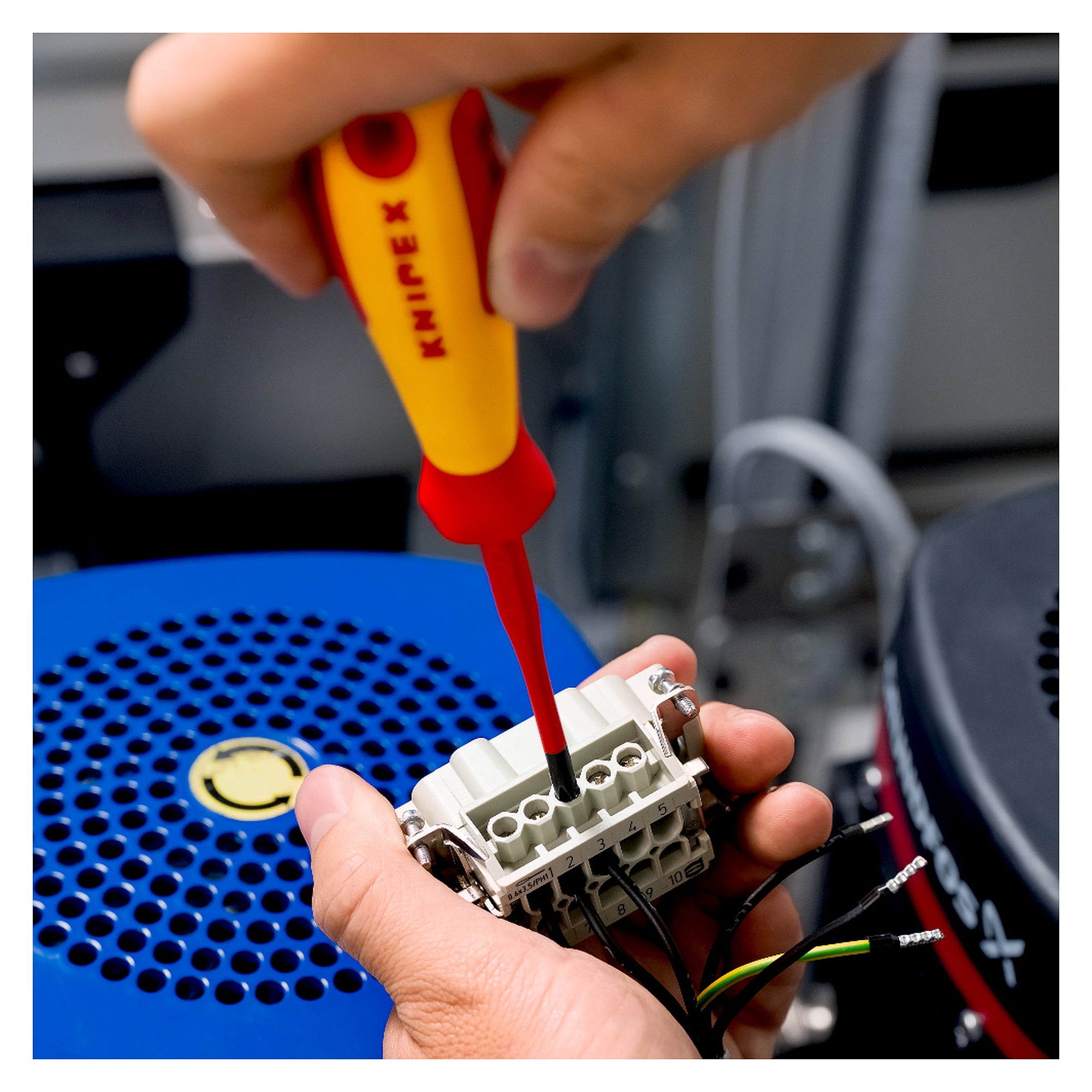

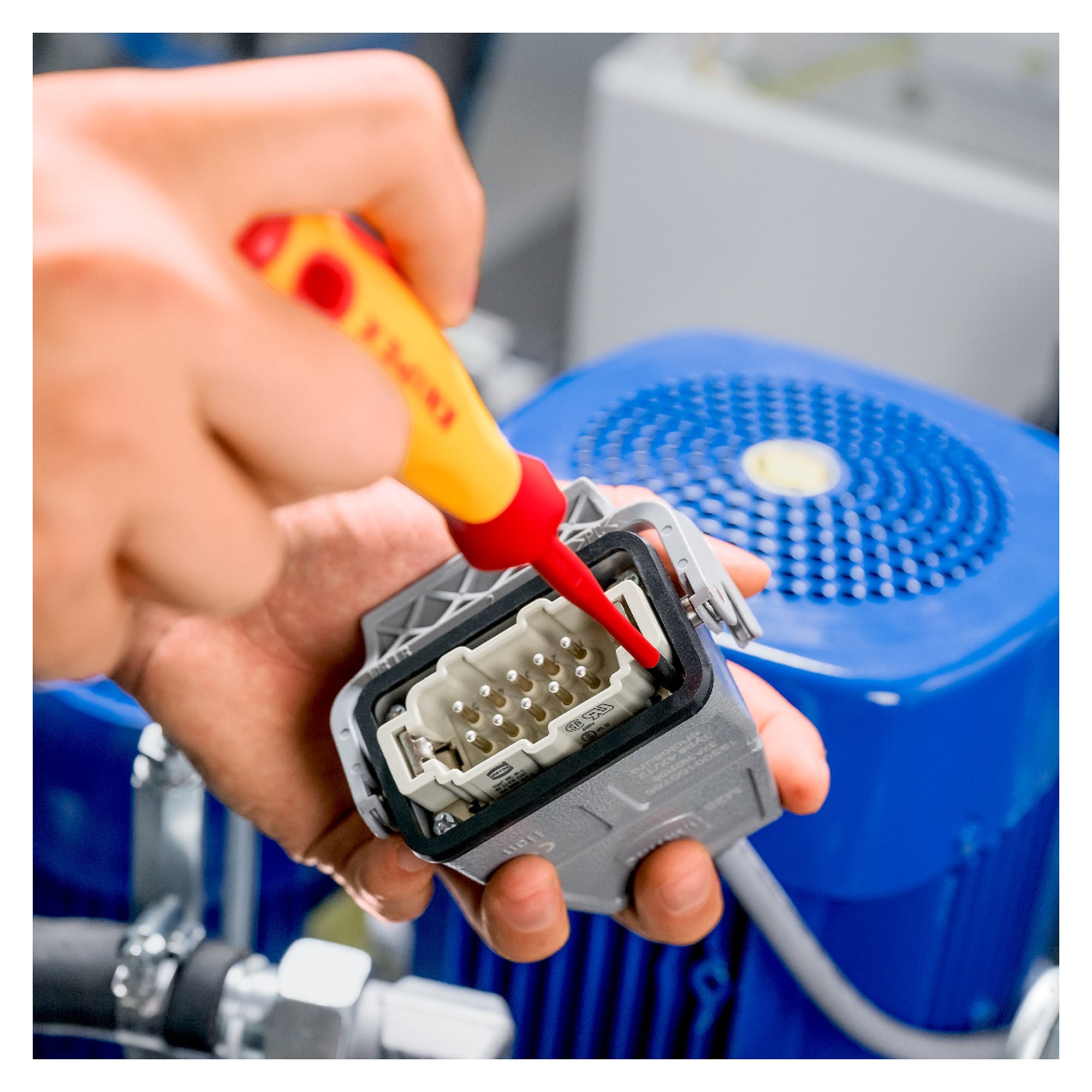

Electrical installation components such as circuit breakers, residual current devices and terminal blocks with PlusMinus profile screws, distribution board assembly and service.

Standards and compliance

The insulation complies with DIN EN 60900 and IEC 60900 and is VDE tested, so the tool is approved for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
