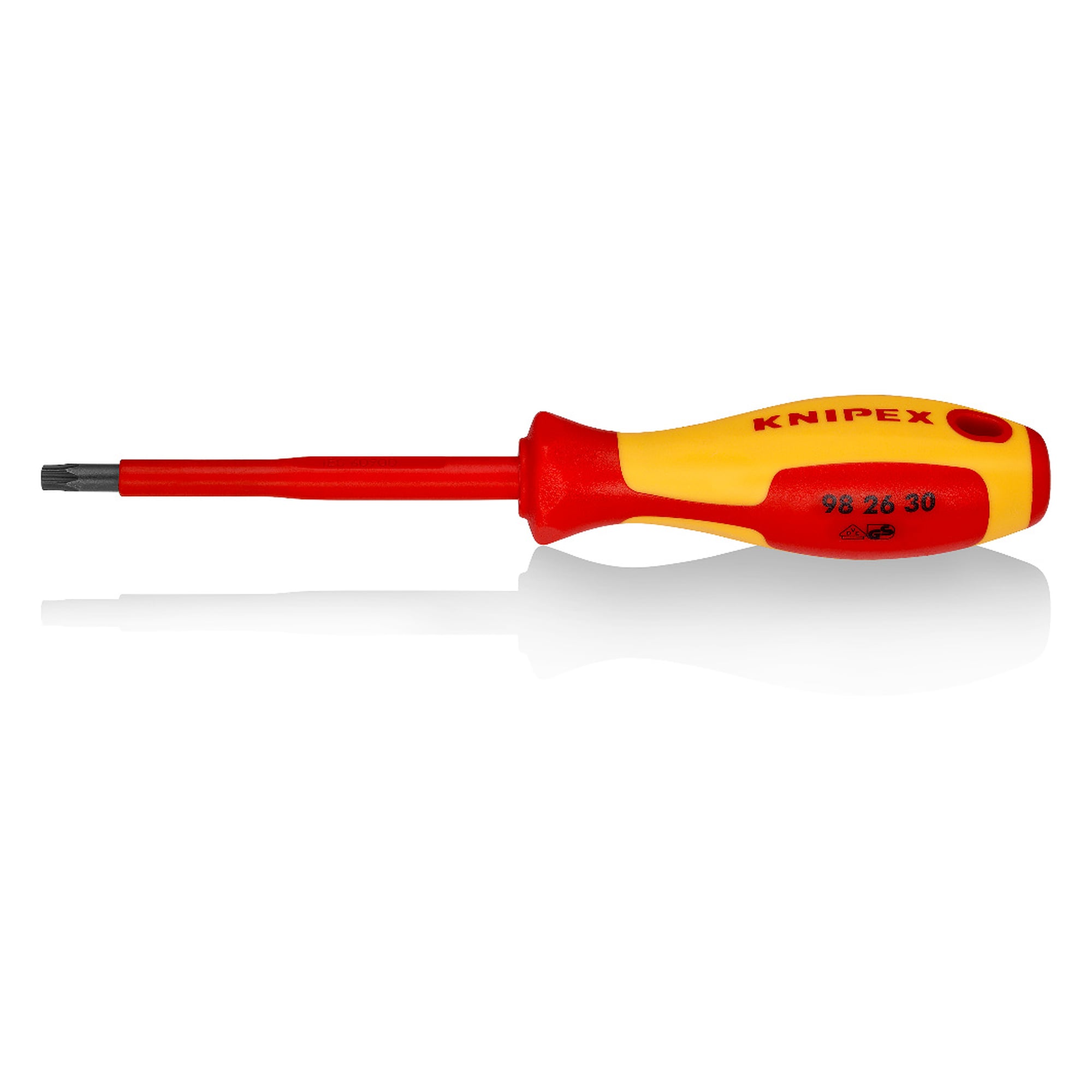

Screwdriver for Torx screws TX30, black oxide finish, VDE insulated 1000 V, 210 mm - Knipex 98 26 30

Torx screws often sit right next to live parts in drives, terminal boxes and charging columns. The 98 26 30 screwdriver releases and tightens Torx® screws in size TX30 with a 100 mm blade and is VDE tested to DIN EN 60900 and IEC 60900, so it is approved for live working up to 1000 V.

Benefits

• Insulating multi-component handle, VDE tested to DIN EN 60900 and IEC 60900 for work on live parts up to 1000 V.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents rolling, so the tool stays put on sloped surfaces.
• Black oxide finished tip in size TX30, the six flanks of the Torx profile transfer the torque without camming out.
• Blade 100 mm, handle 112 mm, overall length 210 mm at only 94 g.
• The insulation runs to within 18 mm of the tip and leaves only a short section of blade bare.

Technical data

Areas of use

Control cabinet building, drive and inverter technology, photovoltaics and charging infrastructure, machine maintenance. Wherever Torx screws in size TX30 are worked on close to live parts.

Standards and conformity

The screwdriver is built to DIN EN 60900 and IEC 60900 and is VDE tested. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
