Microscope Stand with Transmitted and Ring Light, 48 LEDs, clamping diameter up to 66 mm - Starlight MSL3-66 PW

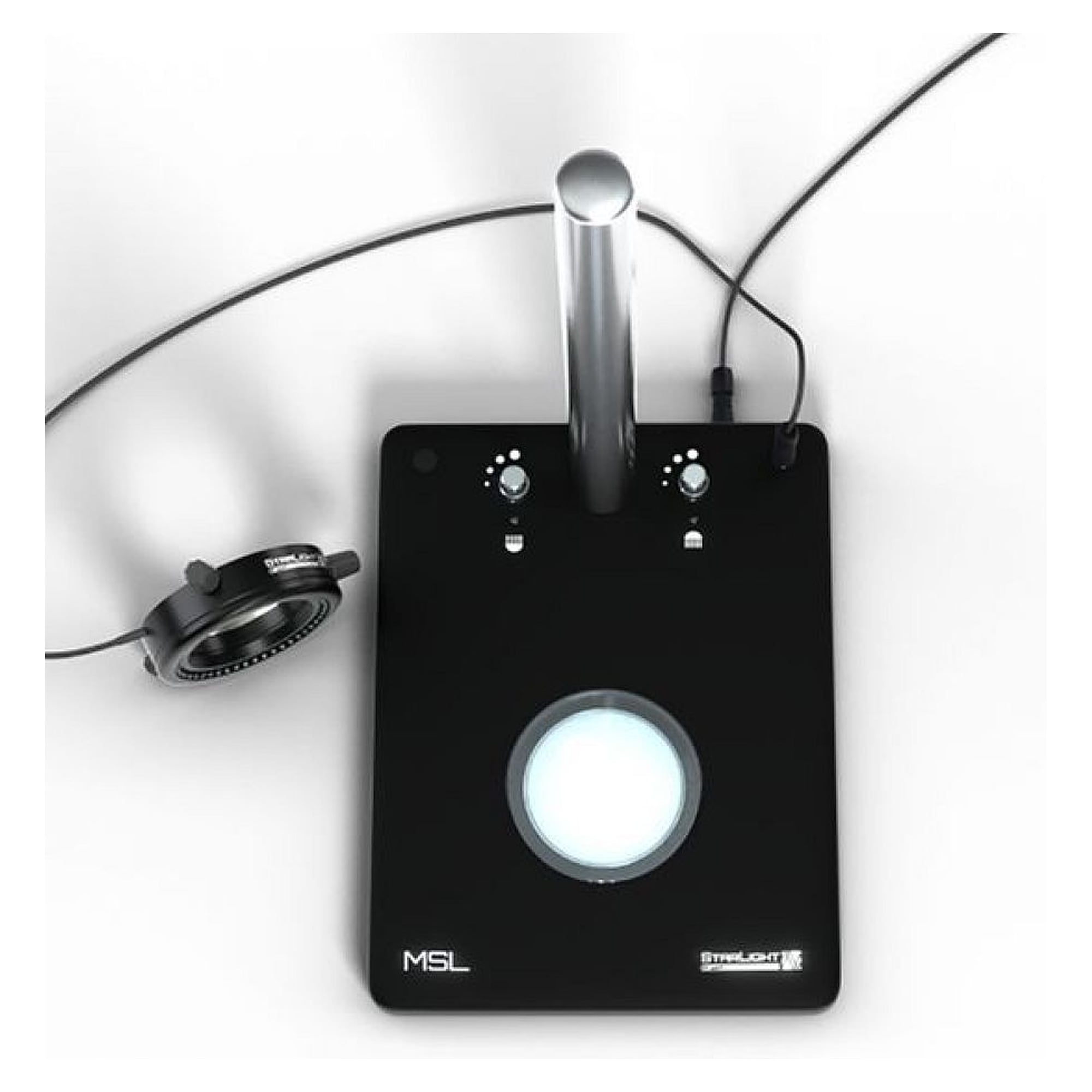

MSL3-66 PW microscope stand combining a transmitted-light base and a ring light with 48 LEDs and 0 - 100% brightness control with memory function. The 300 mm x 230 mm base plate and 370 mm column provide a stable workstation for a clamping diameter up to 66 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The MSL3-66 PW microscope stand pairs a reflected-light ring light with a transmitted-light plate to form a complete illumination stand for microscopy. The fine 0 - 100% brightness control with memory function keeps a chosen setting permanently available.
Benefits
- Combined transmitted and ring light for reflected and back-lit tasks
- 48 LEDs with 200 lm and 5700 K for bright, neutral illumination
- Fine 0 - 100% brightness control with memory function
- Transmitted-light colour rendering index ≥ 80 for natural colours
- Stable base plate 300 mm x 230 mm x 35 mm and 32 mm h9 column
Applications
The stand suits microscopy, optical inspection, assembly and rework, plus laboratory and quality control where reflected and transmitted light are needed at the same time.
Technical data
| Model | MSL3-66 PW |
|---|---|
| Clamping diameter | up to 66 mm |
| Number of LEDs | 48 |
| Luminous flux | 200 lm |
| Colour temperature | 5700 K |
| Power consumption | 12 W |
| Transmitted-light CRI | ≥ 80 |
| Lit area diameter | approx. 70 mm |

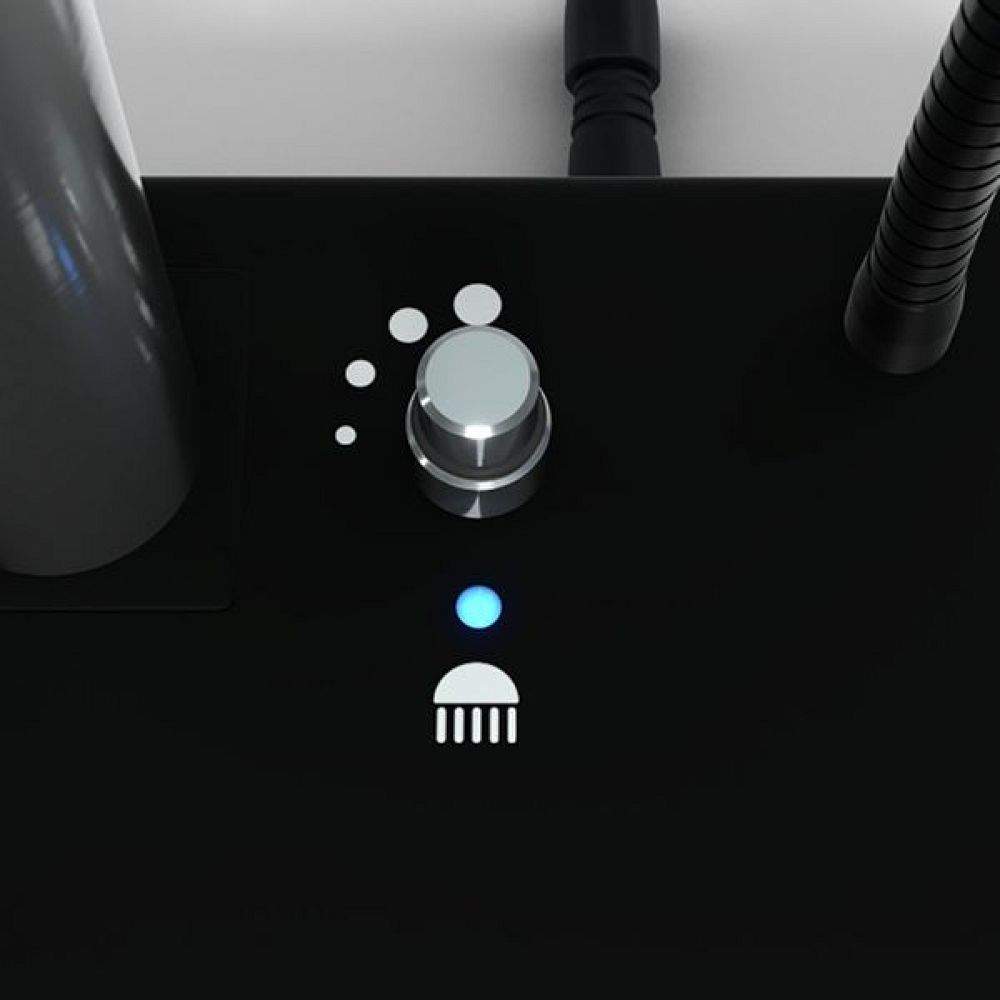

| Brightness control | 0 - 100% with memory function |
| Ring light height | 25.5 mm |
| Ring light outer diameter | 99 mm |
| Ring light inner diameter | 66 mm |
| Ring light internal thread | M67 x 0.75 |
| Column diameter | 32 mm h9 |
| Column height | 370 mm |
| Base plate (L x W x H) | 300 mm x 230 mm x 35 mm |
| Column to working field distance | 150 mm - 161 mm |
| Optimal working distance | 80 mm |
| Working distance | 50 mm - 150 mm |
| Material | anodised aluminium / stainless steel |
| Manufacturer part no. | 100-011603 |
| ESD safe | no |
| Weight | 0.1 kg |
| Manufacturer | Starlight |
| Manufacturer Nr. | 100-011603 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
Downloads
Datasheet
