Monochromatic LED ring light (red 620 nm) with 56 LEDs for high-contrast inspection. Mounts directly on the objective up to a 81 mm clamping diameter with a 50-140 mm working distance.
LED Ring Light red 620 nm, inner Ø 81 mm, 56 LEDs - Starlight RL5-81-R
STARLIGHT
Original product
Net price (excl. VAT)
€479.00
Item
STL-100-010158
Manufacturer no.
100-010158
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-010158
ConditionNew
Article
STL-100-010158
Frequently Bought Together
-
This Item:
€479.00
-
LED Ring Light red (620 nm), 56 LEDs, clamp Ø max. 88 mm - Starlight RL5-88 R
€479.00
-
LED Segment Ring Light pure white 6000 K, working distance 150-500 mm, outer Ø 130 mm - Starlight RL12-10s-S40 PW
€809.00
Total price

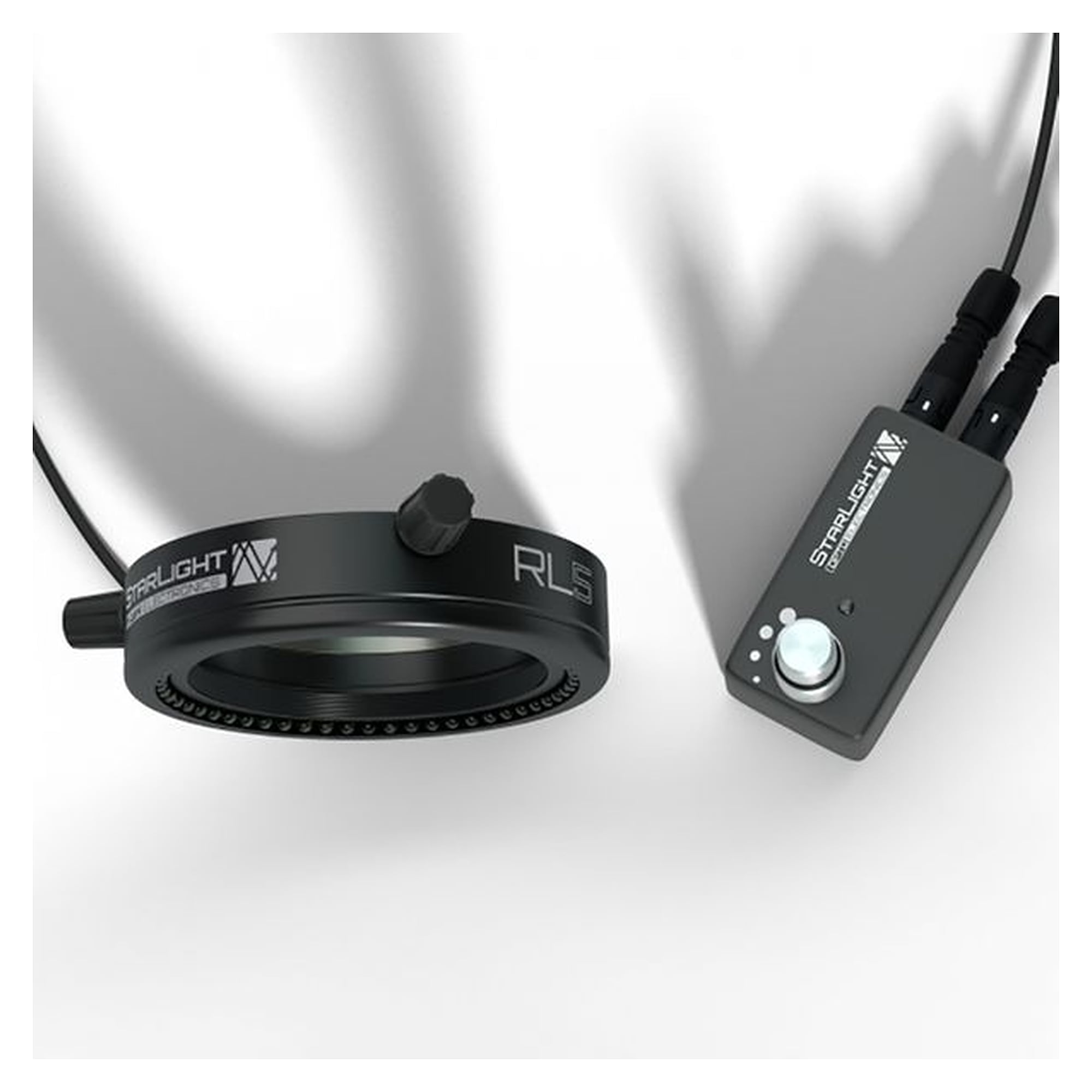

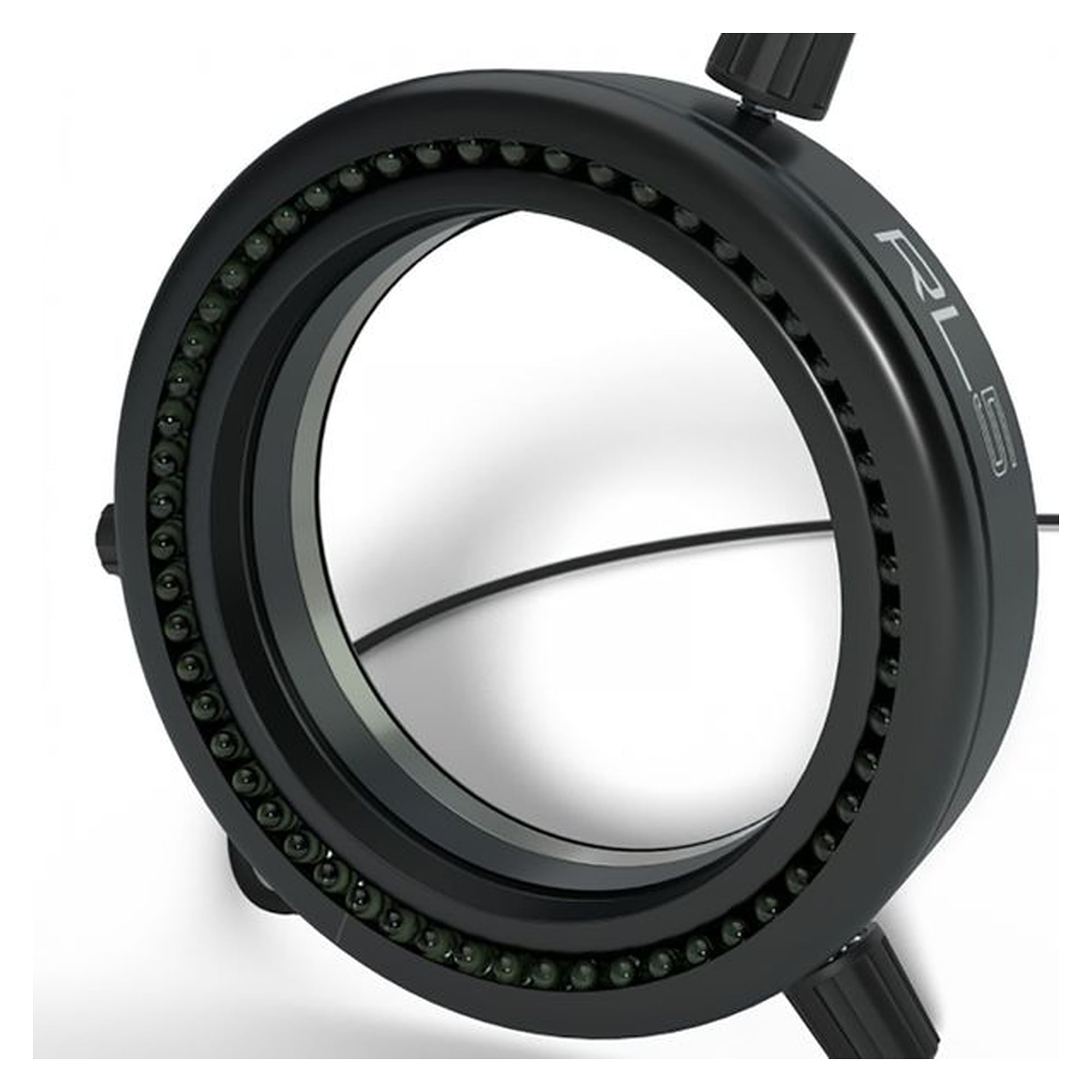

The Starlight RL5-81-R is a monochromatic LED ring light (red 620 nm) for high-contrast viewing of surfaces and components. 56 LEDs provide shadow-free illumination around the objective for clamping diameters up to 81 mm.
Benefits
- Homogeneous, shadow-free illumination from 56 LEDs around the objective
- Monochromatic light (red 620 nm) for high contrast during inspection
- Mounts directly on the objective via M82 x 0.75 internal thread, clamping diameter up to 81 mm
- Wide 50-140 mm working distance for flexible positioning
- Rugged anodised aluminium housing, only 25.5 mm high
- Low power consumption of 8 W
Technical data
| Property | Value |
|---|---|
| Luminaire type | LED ring light |
| Light colour | red |
| Number of LEDs | 56 |
| Inner diameter | 81 mm |
| Outer diameter | 110 mm |
| Clamping diameter | max. 81 mm |
| Internal thread | M82 x 0.75 |
| Working distance | 50-140 mm |
| Optimal working distance | 75 mm |
| Power consumption | 8 W |
| Height | 25.5 mm |
| Cable length (light head) | 0.85 m |
| Cable length (power supply) | 1.4 m |
| Material | anodised aluminium |
| Colour | black |
| Manufacturer | STARLIGHT |
| Manufacturer part no. | 100-010158 |
| ESD safe | no |
Applications
Ideal for high-contrast surface and component inspection in microscopy, inspection, electronics rework and quality control.
| Manufacturer Nr. | 100-010158 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| Colour | Red |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
