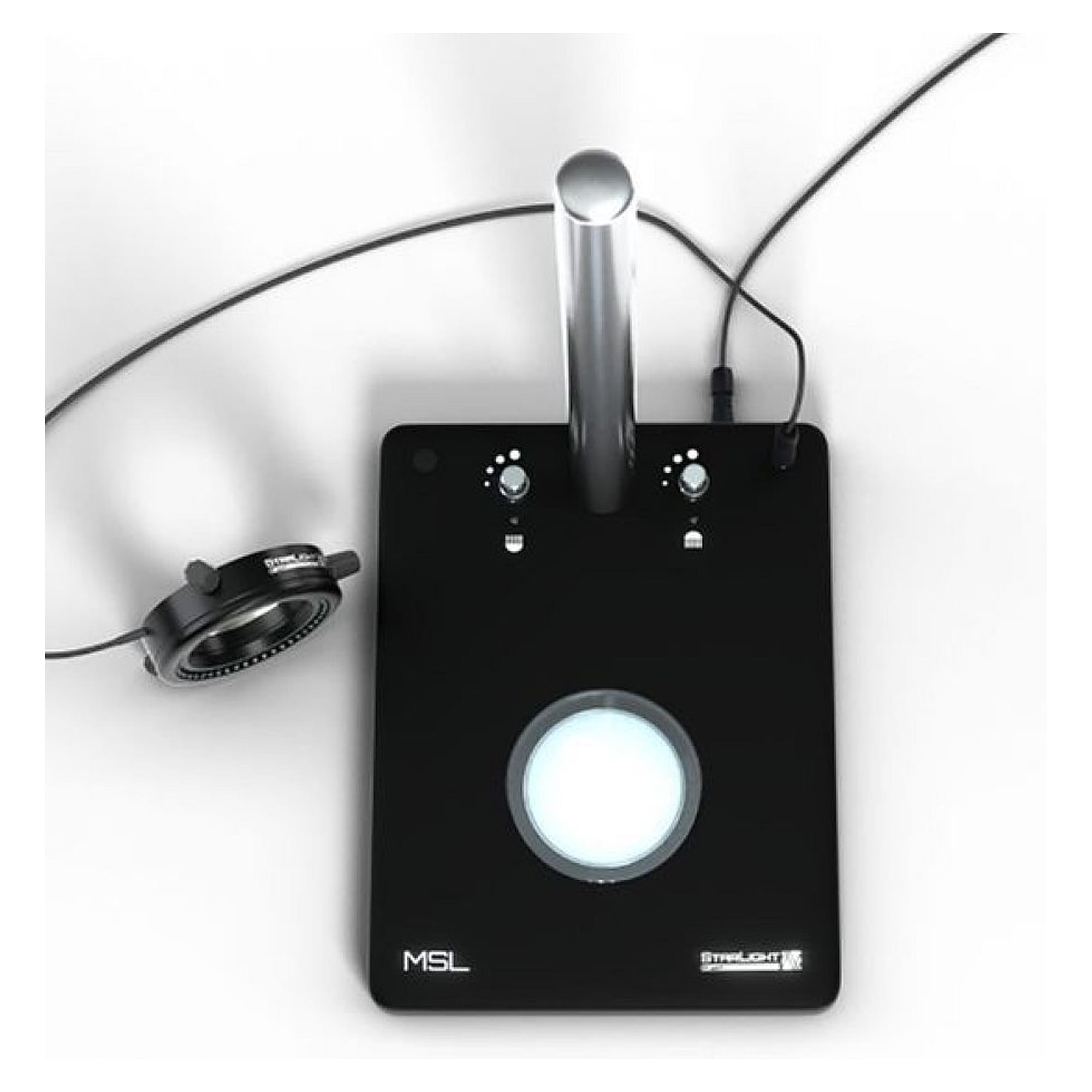

Microscope Stand with Transmitted and Ring Light (NW), clamping diameter up to 66 mm - Starlight MSL3-66 NW
Microscope stand combining transmitted and ring light (NW) with a clamping diameter up to 66 mm. The 48-LED ring light delivers 200 lm at 5700 K, and brightness is finely adjustable from 0 - 100% with a memory function. Sturdy build in anodised aluminium and stainless steel with a stable base plate.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The MSL3-66 NW microscope stand unites transmitted and ring light in one compact unit and accepts samples with a clamping diameter up to 66 mm. The built-in 48-LED ring light produces 200 lm at 5700 K for even, low-shadow illumination of the work field.
Benefits
- Combined transmitted and ring light for high-contrast reflected and transmitted viewing
- Clamping diameter up to 66 mm for flexible sample mounting
- 48 LEDs with 200 lm and 5700 K for bright, even light

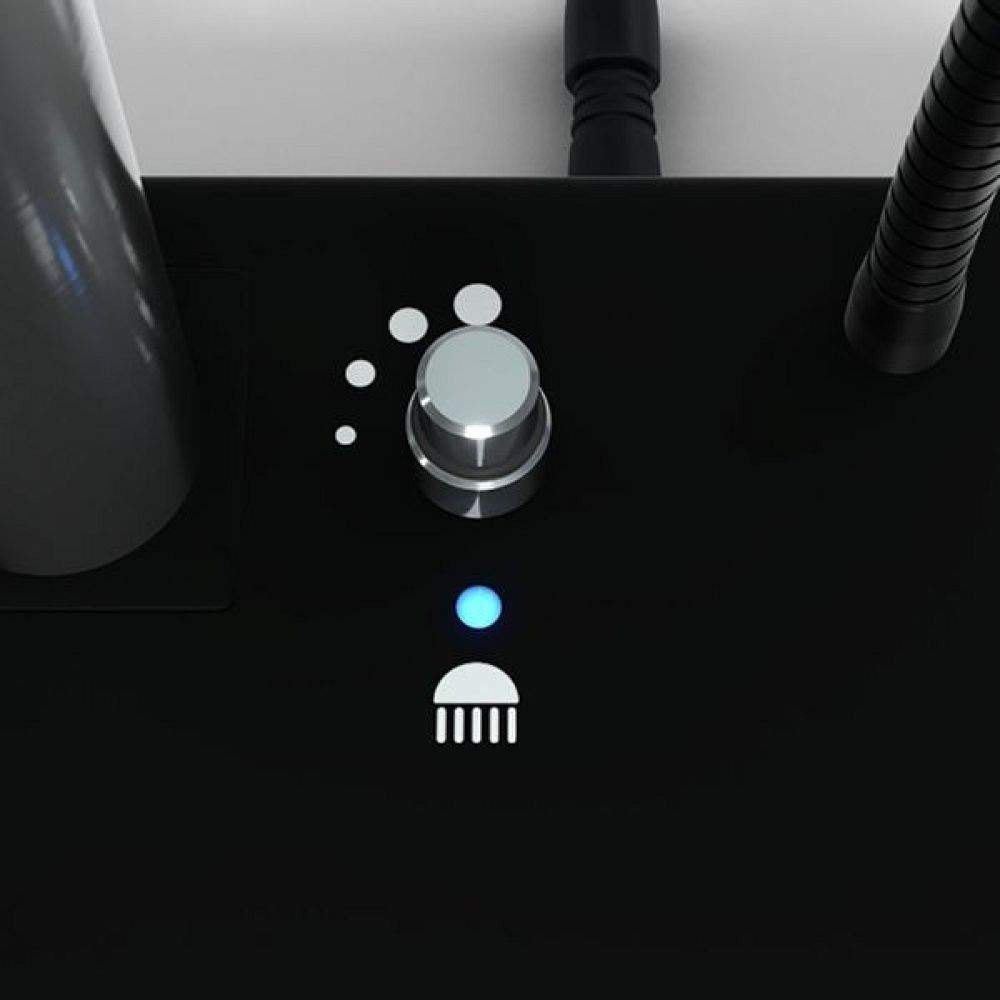

- Brightness finely adjustable 0 - 100% with memory function
- Colour rendering index (transmitted) ≥ 80 for true-to-life colours
- Rugged housing in anodised aluminium and stainless steel
Applications
Ideal for microscopy, quality control, electronics rework, laboratory and assembly, where samples are assessed in reflected and transmitted light at once.
Technical data
| Model | MSL3-66 NW |
|---|---|
| Illumination | transmitted and ring light |
| Clamping diameter | up to 66 mm |
| Colour rendering index (transmitted) | ≥ 80 |
| Lit area diameter | approx. 70 mm |
| Brightness control | fine 0 - 100% with memory function |
| Ring light height | 25.5 mm |
| Ring light outer diameter | 99 mm |
| Ring light inner diameter | 66 mm |
| Ring light internal thread | M67 x 0.75 |
| Column diameter | 32 mm h9 |
| Column height | 370 mm |
| Base plate dimensions (L x W x H) | 300 mm x 230 mm x 35 mm |
| Column to work field distance | 150 mm - 161 mm |
| Working distance | 50 mm - 150 mm |
| Optimal working distance | 80 mm |
| Number of LEDs | 48 |
| Luminous flux | 200 lm |
| Colour temperature | 5700 K |
| Power consumption | 12 W |
| Material | anodised aluminium / stainless steel |
| Manufacturer part no. | 100-011758 |
| ESD safe | No |
| Weight | 0.1 kg |
| Manufacturer | Starlight |
| Manufacturer Nr. | 100-011758 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
