LED ring light with UV (385 nm) and IR emitters for fluorescence and special inspection. Working distance 120 mm, clamping diameter up to 40 mm, 8 LEDs at the lens.
UV and IR LED ring light, UV 385 nm, working distance 120 mm, max. clamping diameter 40 mm - Starlight RL40-120 UV385
STARLIGHT Original product
Net price (excl. VAT)
€535.92
Item STL-100-012293
Manufacturer no. 100-012293
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.100-012293
ConditionNew
Article
STL-100-012293
Frequently Bought Together
- This Item: €535.92
- Reducing Ring for Ring Lights, 88 mm to 82 mm - Starlight 100-010721 €27.28
- LED Ring Light 12 power LEDs, warm white, spot optics, working distance 45-260 mm - Starlight RL12-25s WW €674.96
Total price

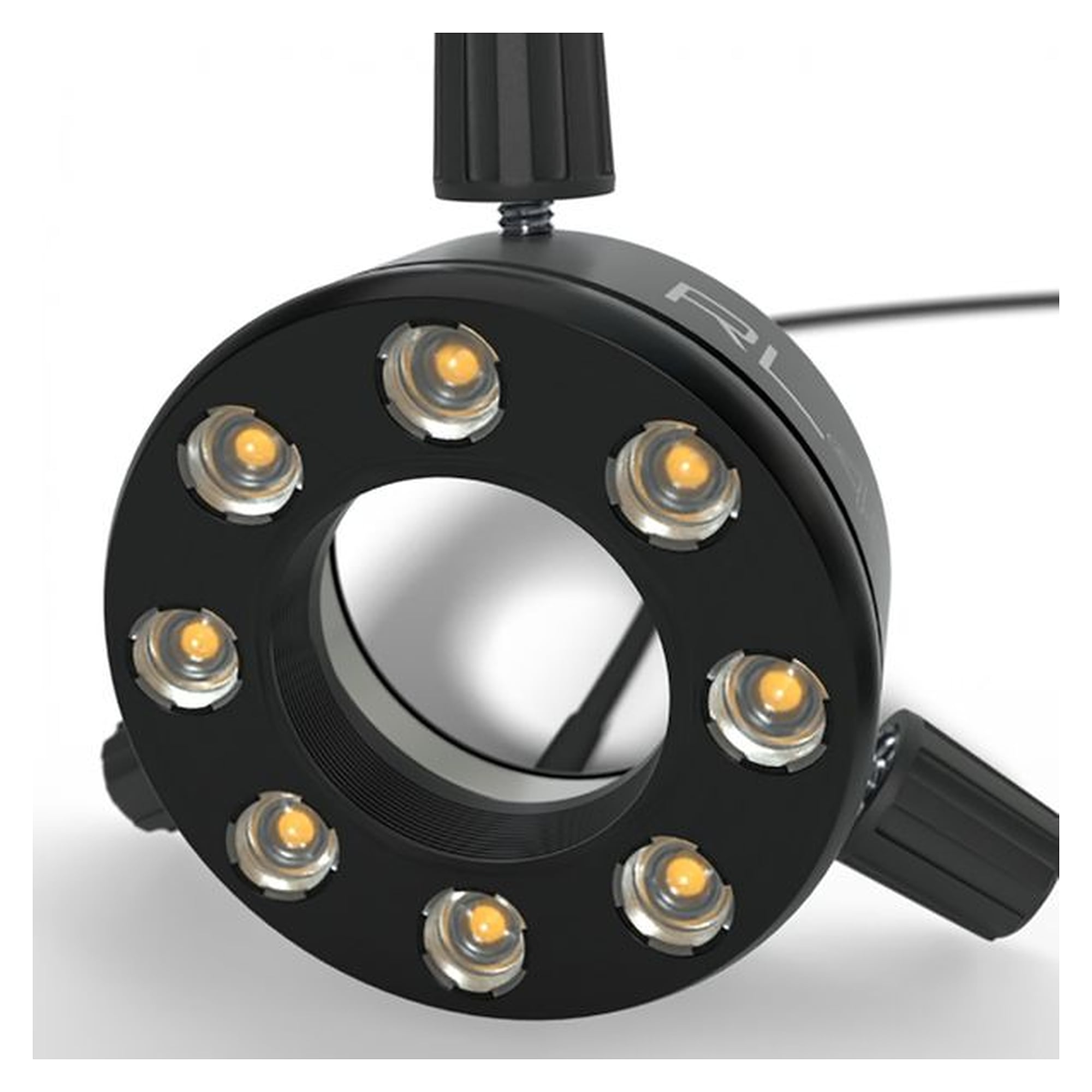

The RL40-120 UV385 UV-and-IR ring light combines UV excitation at 385 nm with IR emitters and mounts directly onto the lens. At a working distance of 120 mm it suits fluorescence testing and demanding special inspection.
Benefits
- UV excitation at 385 nm for fluorescence testing and defect detection
- Additional IR emitters for extended inspection tasks
- Optimal working distance of 120 mm directly at the lens
- Fits lenses up to a clamping diameter of 40 mm
- Robust housing of anodised aluminium, only 25.1 mm high
Technical data
| Model | RL40-120 UV385 |
| Light colour | IR, UV |
| UV wavelength | 385 nm |
| Working distance (optimal) | 120 mm |
| Max. clamping diameter | 40 mm |
| Inner diameter | 30 mm |
| Outer diameter | 58 mm |
| Inner thread | M30.5 x 0.5 |
| Number of LEDs | 8 |
| Power consumption | 6 W |
| Height | 25.1 mm |
| Material | anodised aluminium |
| Cable length | 1.4 m |
| Manufacturer part no. | 100-012293 |
| ESD safe | No |
Applications
Used in fluorescence testing, crack detection, leak detection, electronics and material inspection as well as laboratory and quality control.
| Manufacturer Nr. | 100-012293 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
