The warm white (3500 K) LED segment ring light delivers low-shadow, even illumination for microscopy and inspection. Being a segment ring light, it allows directional lighting that emphasises contours and surfaces. It mounts directly on the lens via the M82 x 0.75 internal thread and covers a clamping diameter up to 88 mm.

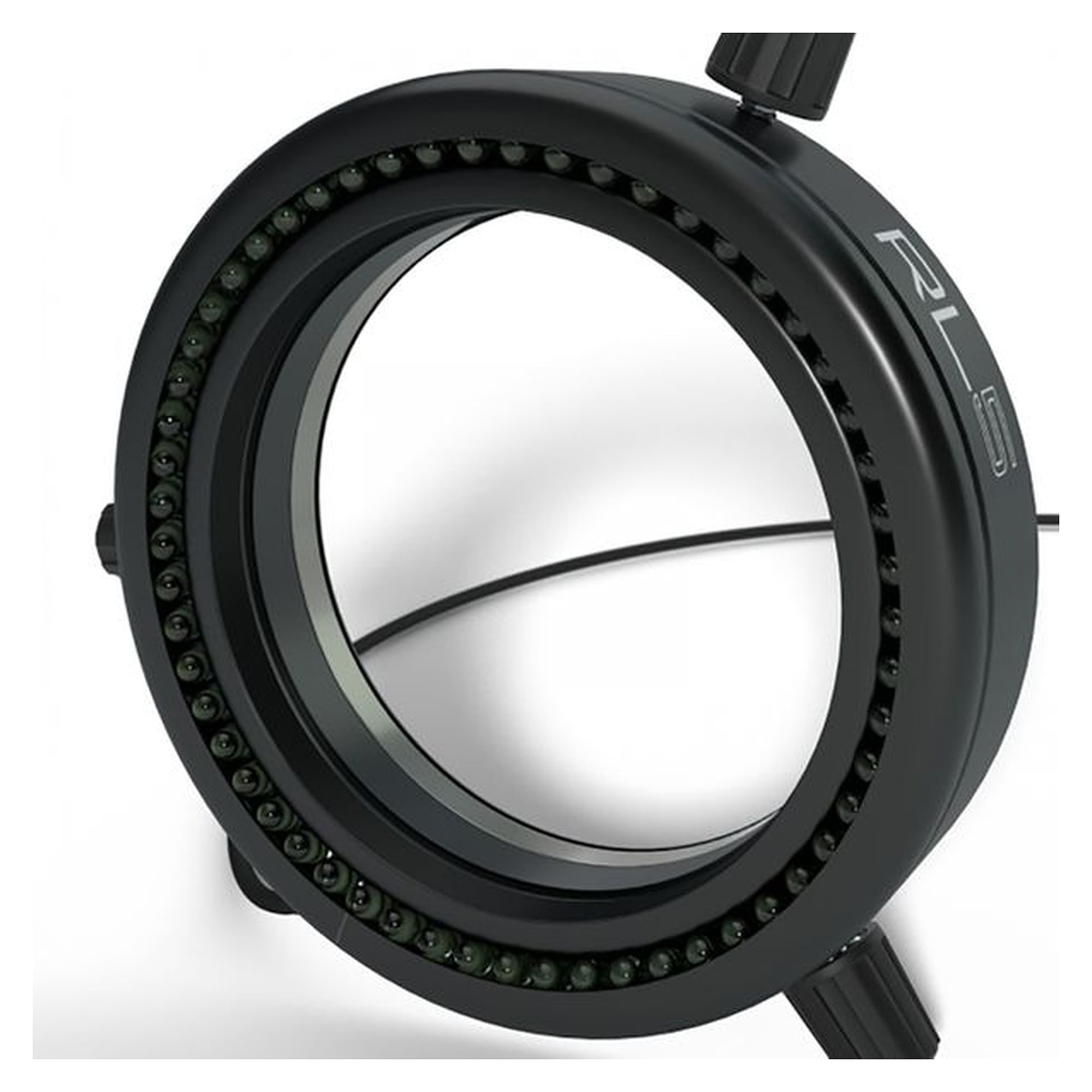

LED Segment Ring Light warm white 3500 K, 56 LEDs, max. clamping diameter 88 mm - Starlight Segment-Ringlicht RL5-88-S40 WW
STARLIGHT
Original product
Net price (excl. VAT)
€559.00
Item
STL-100-011982
Manufacturer no.
100-011982
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-011982
ConditionNew
Article
STL-100-011982
Frequently Bought Together
-
This Item:
€559.00
-
Polarizing Filter Set for RL81 Series Ring Lights - Starlight 100-012335
€203.00
-
LED Ring Light red (620 nm), 56 LEDs, clamp Ø max. 88 mm - Starlight RL5-88 R
€479.00
Total price
The Starlight Segment-Ringlicht RL5-88-S40 WW LED segment ring light provides even, low-shadow illumination for microscopy and inspection in the warm white (3500 K) light colour. As a segment ring light it enables directional lighting that brings out contours, edges and surface structures clearly.
Benefits
- Light colour warm white (3500 K) for high-contrast, colour-true inspection
- 56 LEDs for even, low-shadow illumination
- Internal thread M82 x 0.75 for direct lens mounting, clamping diameter up to 88 mm
- Anodised aluminium housing, only 25.5 mm high and rugged
- Low power consumption of 8 W
Technical data
| Model | Segment-Ringlicht RL5-88-S40 WW |
| Light colour | warm white |
| Wavelength / colour temperature | 3500 K |
| Number of LEDs | 56 |
| Max. clamping diameter | 88 mm |
| Working distance | 50 mm - 140 mm |
| Optimum working distance | 75 mm |
| Inner diameter | 81 mm |
| Outer diameter | 110 mm |
| Internal thread | M82 x 0.75 |
| Height | 25.5 mm |
| Power consumption | 8 W |
| Material | anodised aluminium |
| Cable lead length | 0.85 m |
| Cable length | 1.4 m |
| Manufacturer part no. | 100-011982 |
| ESD safe | no |
Applications
Typical applications include stereo microscopy, optical incoming and final inspection, electronics manufacturing and rework, laboratory work as well as assembly and quality-control workstations.
| Manufacturer Nr. | 100-011982 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| Colour | White |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
