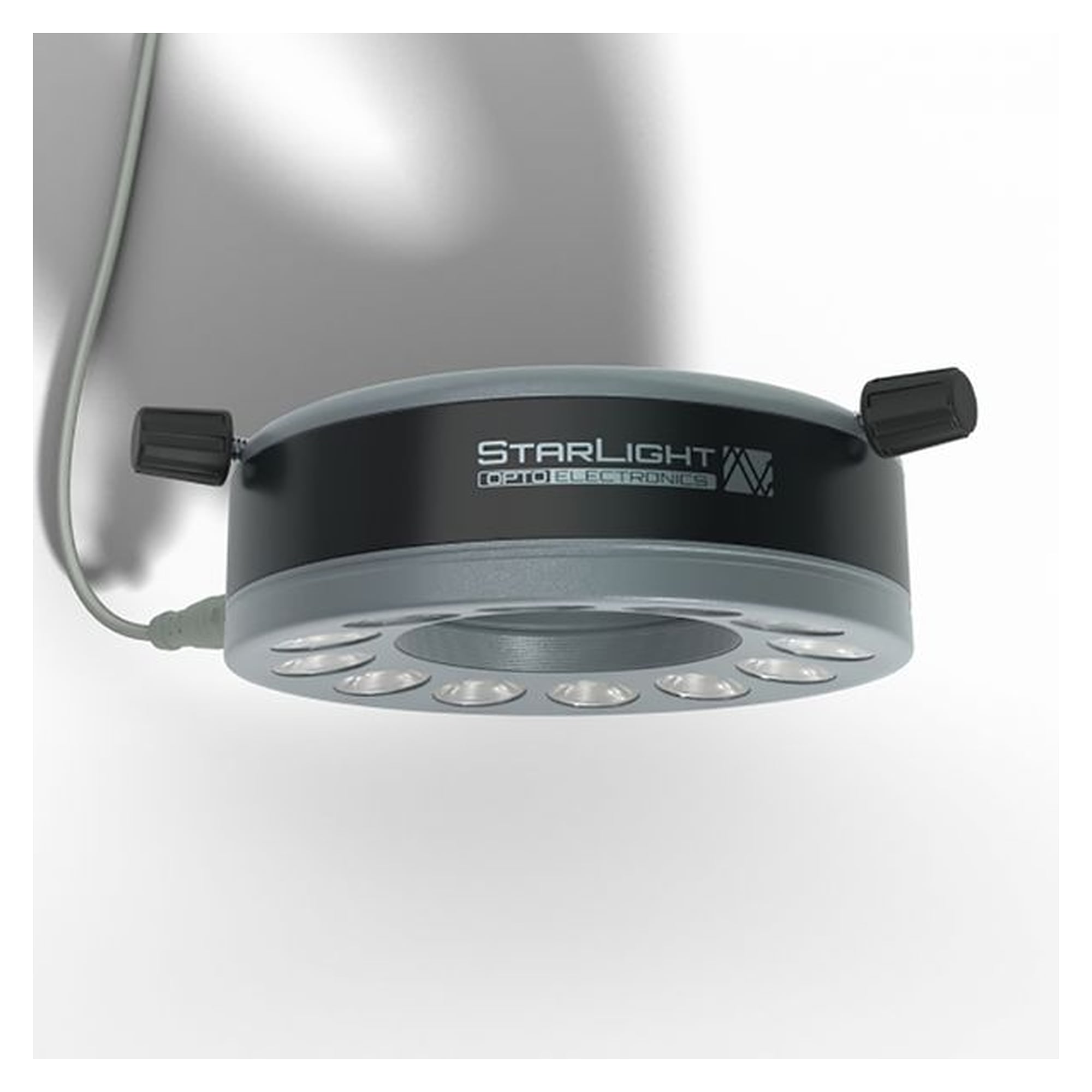

LED ring light RL12 with 12 LEDs in UV (405 nm) light colour and a working distance from 45 mm to 260 mm (optimum 100 mm). It illuminates the object area around the optics with low shadowing. M67 x 0.75 internal thread and 15 W power draw at 24V.
LED Ring Light 24V UV (405 nm), working distance 45 mm - 260 mm - Starlight RL12-25-24V UV405
STARLIGHT
Original product
Net price (excl. VAT)
€1,109.00
Item
STL-100-010777
Manufacturer no.
100-010777
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-010777
ConditionNew
Article
STL-100-010777
Frequently Bought Together
-
This Item:
€1,109.00
-
LED Segment Ring Light natural white 5600 K, working distance 15-50 mm, outer Ø 28 mm - Starlight RL2-25-S40 NW
€459.00
-
LED Ring Light IR (880 nm), 16 LEDs, working distance 18-150 mm - Starlight RL1-40 IR880
€349.00
Total price
The RL12 LED ring light uses 12 LEDs in UV (405 nm) to provide low-shadow ring illumination of the working area, covering a working distance from 45 mm to 260 mm (optimum 100 mm).
Benefits
- 12 LEDs in UV (405 nm) light colour for even ring illumination
- Wide working distance from 45 mm to 260 mm, optimum at 100 mm
- M67 x 0.75 internal thread for direct mounting on common optics
- Compact 42 mm height at only 15 W power draw
- Anodised aluminium housing for rugged continuous operation
Technical data
| Model | RL12-25-24V UV405 |
| Manufacturer | Starlight |
| Manufacturer part no. | 100-010777 |
| Light colour | UV (405 nm) |
| Number of LEDs | 12 |
| Operating voltage | 24V |
| Power consumption | 15 W |
| Working distance | 45 mm - 260 mm |
| Optimum working distance | 100 mm |
| Inner diameter | 66 mm |
| Outer diameter | 130 mm |
| Height | 42 mm |
| Internal thread | M67 x 0.75 |
| Material | Anodised aluminium |
| ESD safe | no |
Applications
Ideal for fluorescence and material testing, inspection and applications in microscopy and quality control that call for UV excitation.
| Manufacturer Nr. | 100-010777 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
