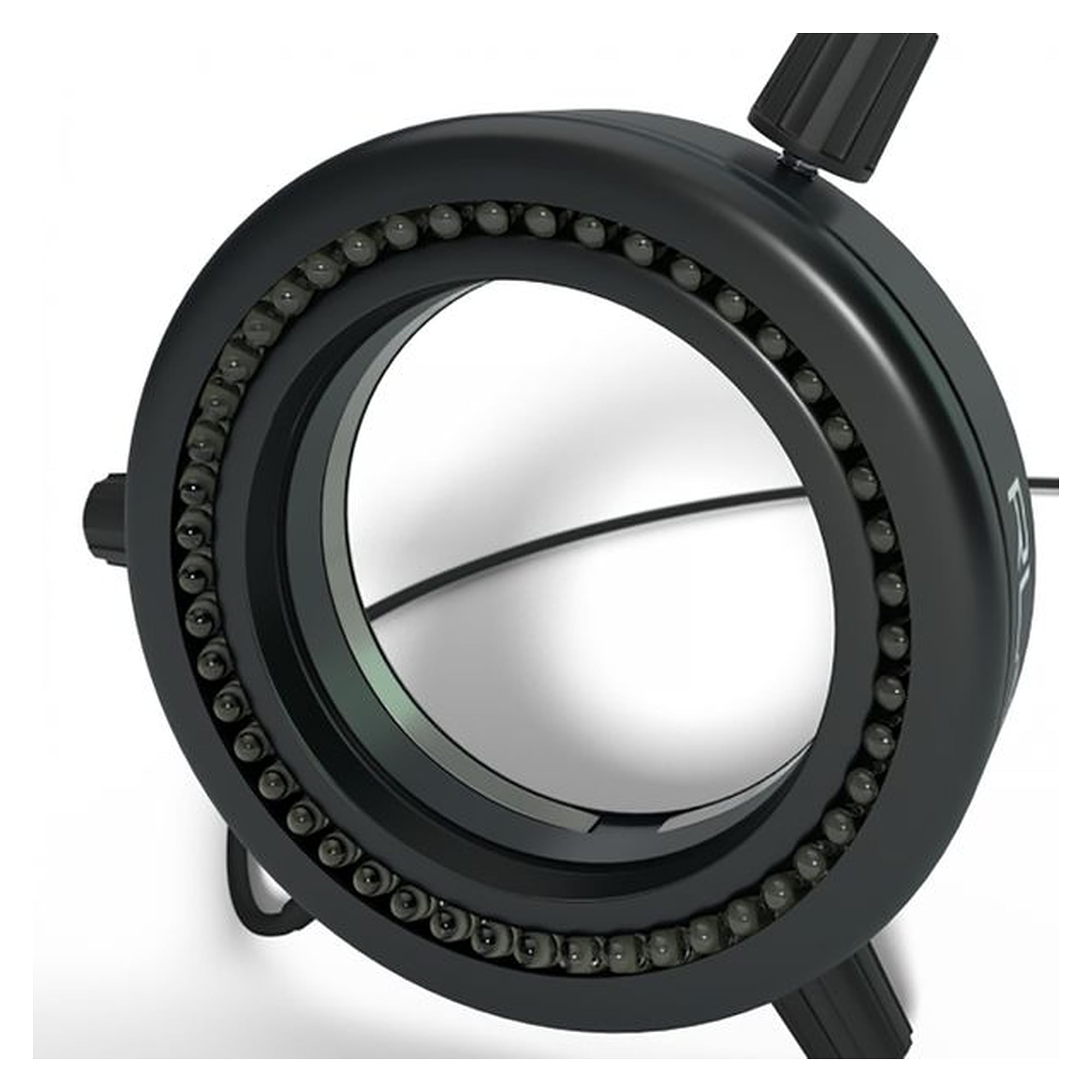

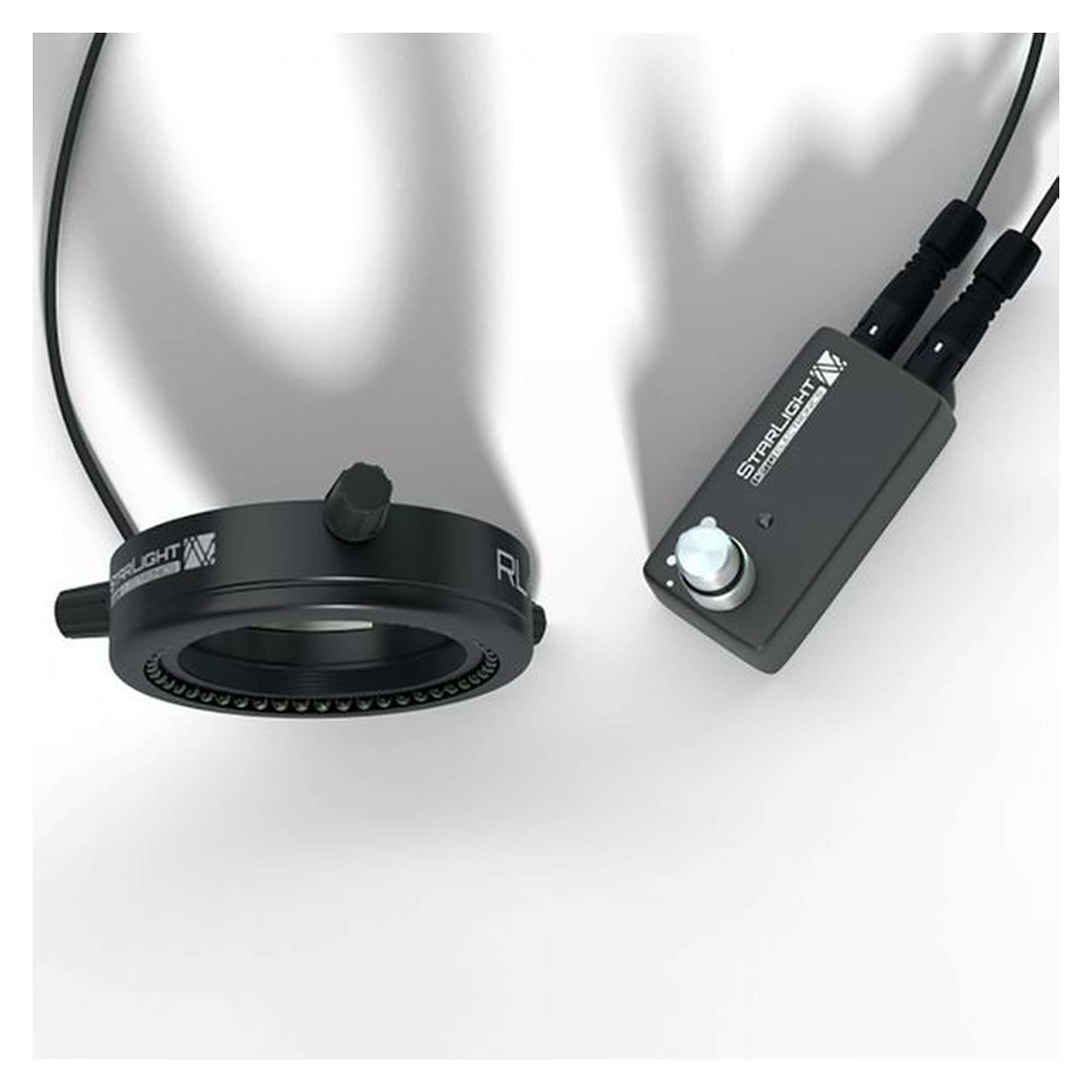

LED Ring Light amber (590 nm), 48 LEDs, clamp Ø max. 74 mm, internal thread M67 x 0,75 - Starlight RL4-74 A
LED ring light in amber (590 nm) with 48 LEDs that mounts directly on the lens via the M67 x 0,75 internal thread (clamp Ø max. 74 mm). The optimal working distance is 80 mm, with a usable range of 50 mm-150 mm. Rugged anodized aluminium housing, power consumption 7 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The RL4-74 A LED ring light illuminates the object in amber (590 nm) directly along the lens axis and mounts firmly to the microscope via the M67 x 0,75 internal thread.
Benefits
- 48 LEDs for even ring light in amber (590 nm)
- Direct mounting via M67 x 0,75 internal thread, clamp Ø max. 74 mm
- Optimal working distance 80 mm, usable from 50mm - 150mm
- Rugged anodized aluminium housing, outer Ø 99 mm
- Power consumption 7 W
Applications
Ideal for stereo microscopy, optical inspection, assembly, electronics rework and quality control, where ring illumination in amber (590 nm) renders contours and surfaces clearly.
Technical data
| Model | RL4-74 A |
|---|---|
| Manufacturer | Starlight |
| Manufacturer part no. | 100-010680 |
| Light colour | amber (590 nm) |
| Number of LEDs | 48 |
| Clamp diameter max. | 74 mm |
| Inner diameter | 66 mm |
| Outer diameter | 99 mm |
| Internal thread | M67 x 0,75 |
| Optimal working distance | 80 mm |
| Working distance | 50mm - 150mm |
| Height | 25,5 mm |
| Material | anodized aluminium |
| Power consumption | 7 W |
| Cable length | 1.4 m |
| Lead length | 0.85 m |
| ESD safe | no |
| Weight | 0.100000 |
| Manufacturer Nr. | 100-010680 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
| Power (W) | 7 W |
