LED ring light with 56 LEDs and UV (405 nm) light colour for low-shadow microscope illumination. Mounts directly on the objective up to a clamp diameter of 88 mm, rugged aluminium housing.

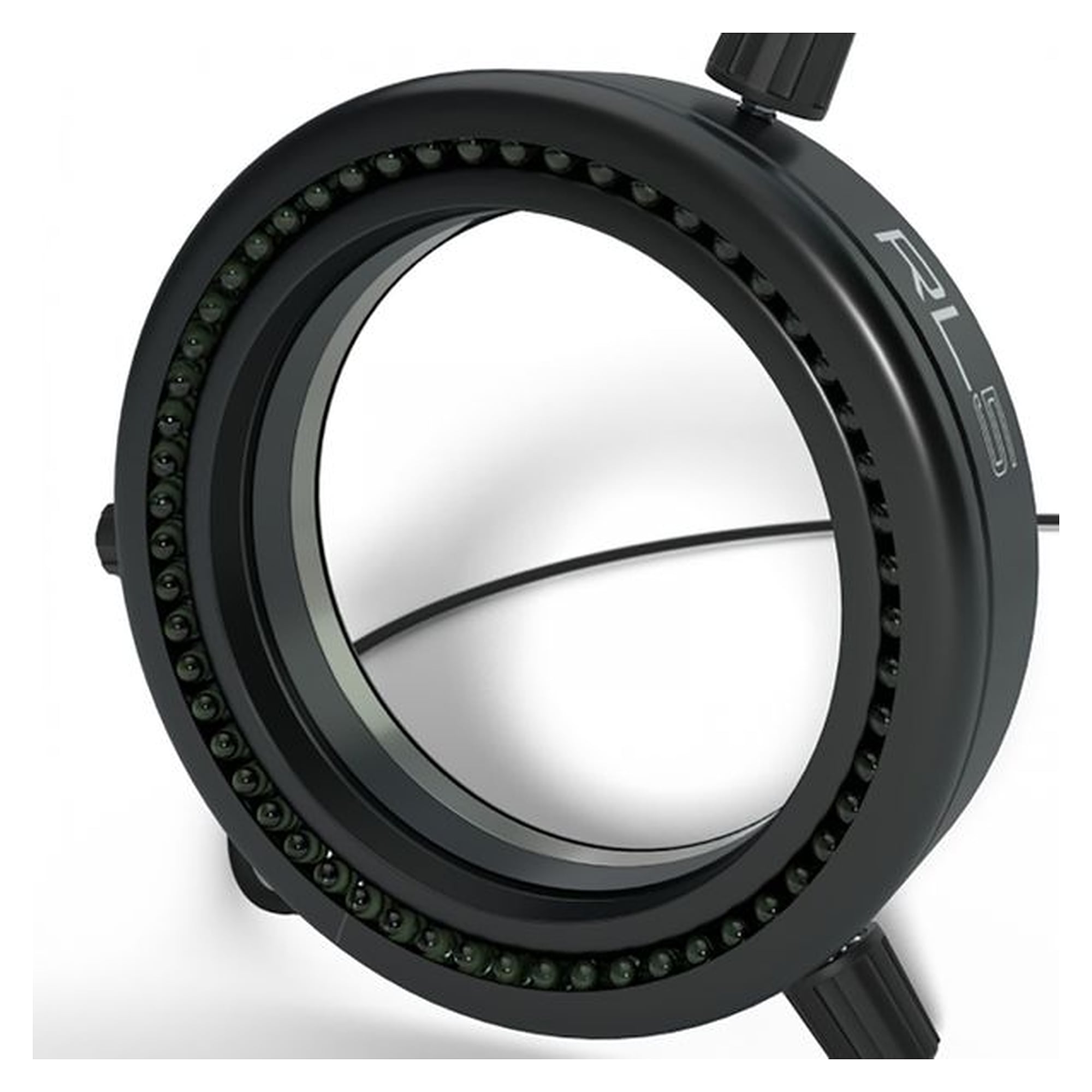

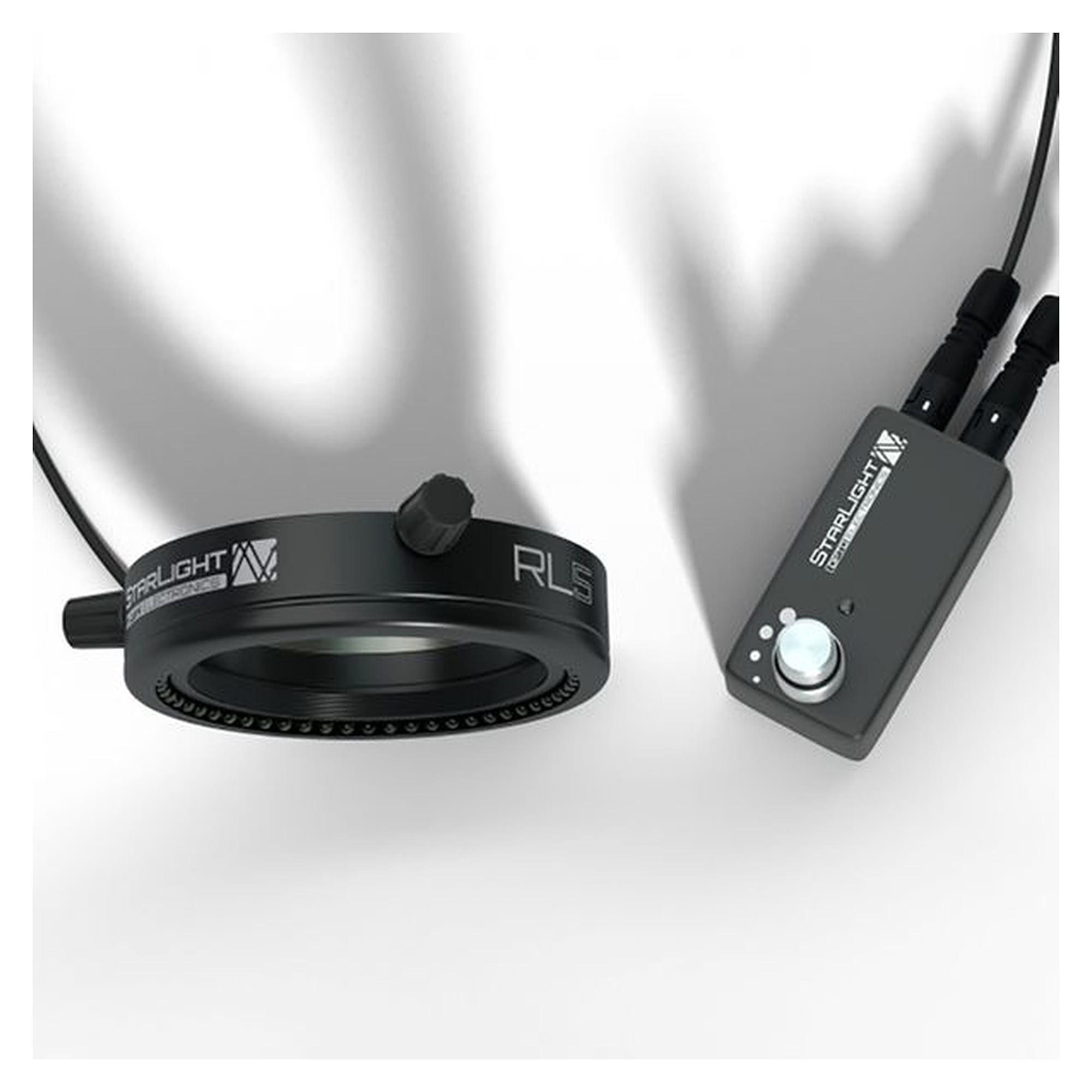

LED Ring Light UV (405 nm), 56 LEDs, clamp Ø max. 88 mm - Starlight RL5-88 UV405
STARLIGHT Original product
Net price (excl. VAT)
€451.44
Item STL-100-010172
Manufacturer no. 100-010172
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.100-010172
ConditionNew
Article
STL-100-010172
Frequently Bought Together
The RL5-88 UV405 LED ring light provides low-shadow incident illumination for stereo microscopes and inspection tasks. With 56 LEDs and a clamp diameter of up to 88 mm it mounts directly onto the objective.
Benefits
- Even, low-shadow illumination from 56 LEDs
- UV (405 nm) light colour for high-contrast viewing
- Direct objective mounting up to clamp Ø 88 mm (M82 x 0.75 internal thread)
- Rugged anodised aluminium housing
- Flexible working distance 50-140 mm (75 mm optimal)
Technical data
| Model | RL5-88 UV405 |
| Light colour | UV |
| Wavelength | 405 nm |
| Number of LEDs | 56 |
| Inner diameter | 81 mm |
| Outer diameter | 110 mm |
| Max. clamp diameter | 88 mm |
| Internal thread | M82 x 0.75 |
| Working distance | 50-140 mm |
| Optimal working distance | 75 mm |
| Height | 25.5 mm |
| Material | anodised aluminium |
| Cable length | 1.4 m |
| Power consumption | 8 W |
| Manufacturer part no. | 100-010172 |
| ESD safe | no |
Applications
Ideal for microscopy, incoming goods and quality control, electronics rework as well as assembly and laboratory workstations.
| Manufacturer Nr. | 100-010172 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
