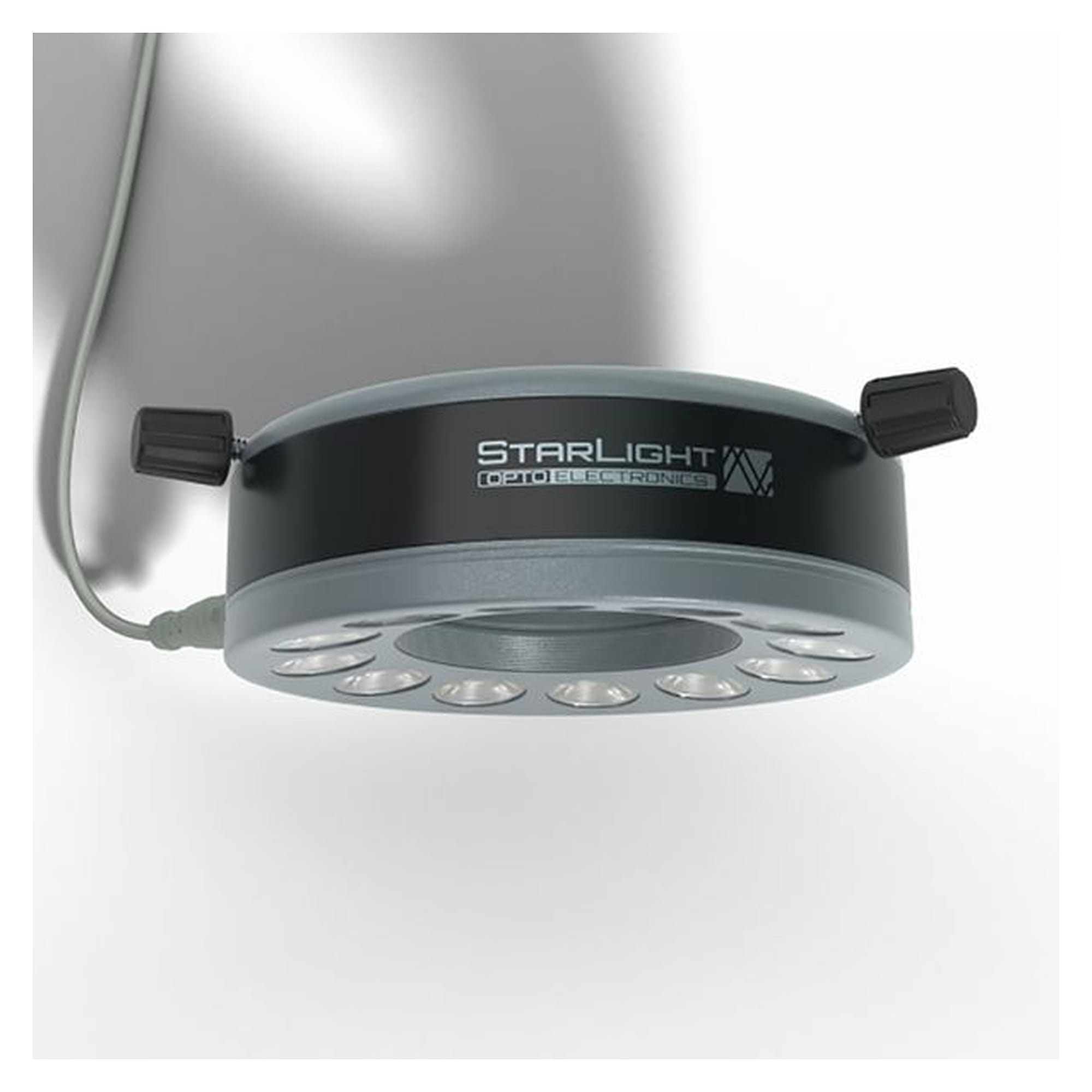

LED Ring Light 24V green (528 nm), 12 LEDs, long working distance 150-500 mm, inner Ø 66 mm - Starlight RL12-10s-24V G
24 V LED ring light with green light colour (528 nm) and a long working distance of 150 to 500 mm. With 12 LEDs and a 66 mm inner diameter it is ideal for high-contrast inspection from a greater distance.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The RL12-10s-24V G LED ring light illuminates test objects with green light (528 nm) and, thanks to its long working distance of 150-500 mm, is especially suited to inspection from a distance. 12 LEDs deliver even illumination.
Benefits
- Long working distance 150-500 mm (270 mm optimal)
- Green light colour (528 nm) for high-contrast viewing
- 12 LEDs for even, low-shadow illumination
- Direct objective mounting up to inner Ø 66 mm (M67 x 0.75 internal thread)
- Rugged anodised aluminium housing
Applications
For microscopy and inspection from a greater distance, quality control, electronics testing as well as assembly and laboratory workstations.
Technical data
| Model | RL12-10s-24V G |
|---|---|
| Light colour | green |
| Wavelength | 528 nm |
| Operating voltage | 24 V |
| Number of LEDs | 12 |
| Inner diameter | 66 mm |
| Outer diameter | 130 mm |
| Internal thread | M67 x 0.75 |
| Working distance | 150-500 mm |
| Optimal working distance | 270 mm |
| Height | 42 mm |
| Material | anodised aluminium |
| Colour | black / titanium |
| Cable length | 1.4 m |
| Power consumption | 15 W |
| Manufacturer part no. | 100-010239 |
| ESD safe | no |
| Weight | 0.1 kg |
| Manufacturer | Starlight |
| Manufacturer Nr. | 100-010239 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
| Power (W) | 15 W |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
