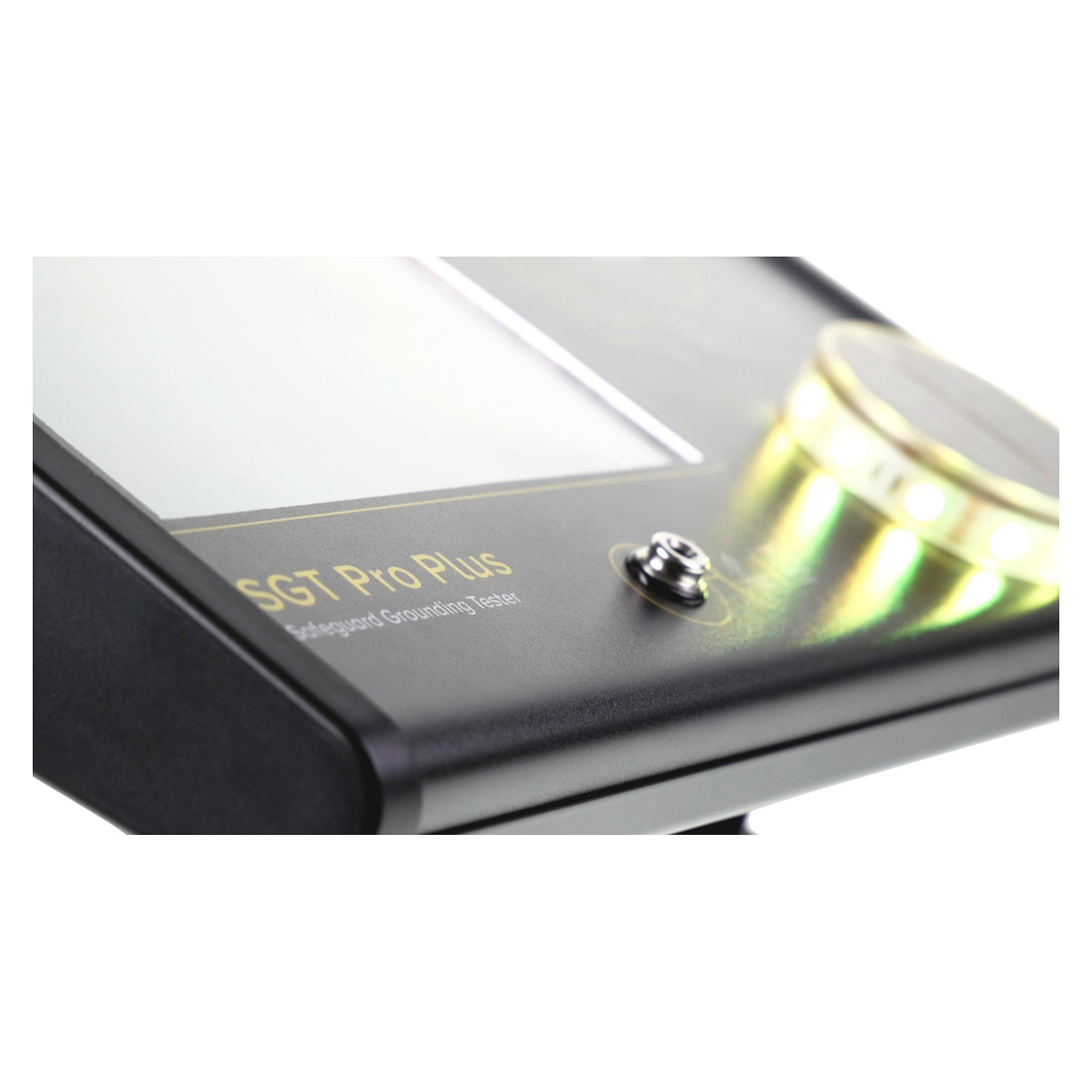

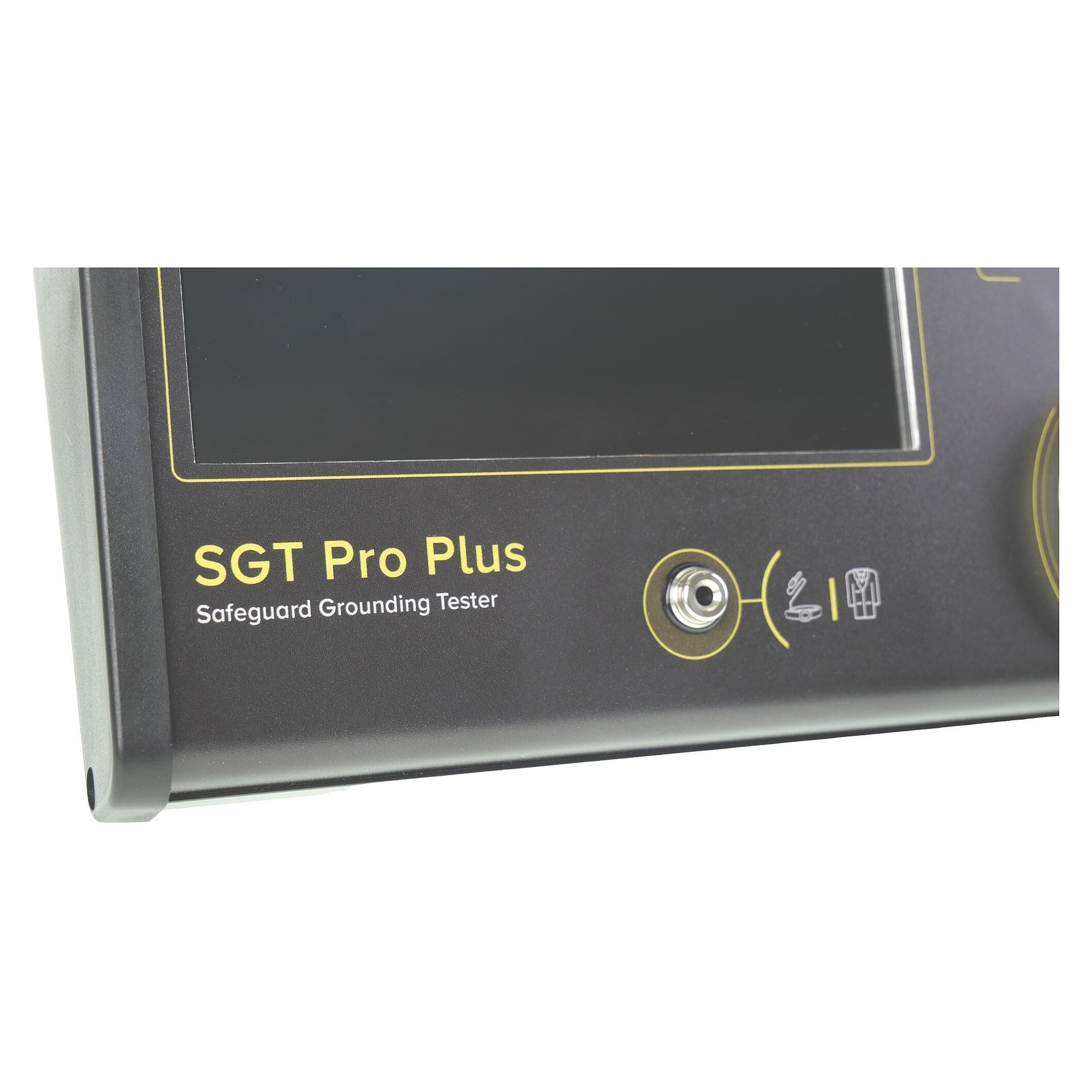

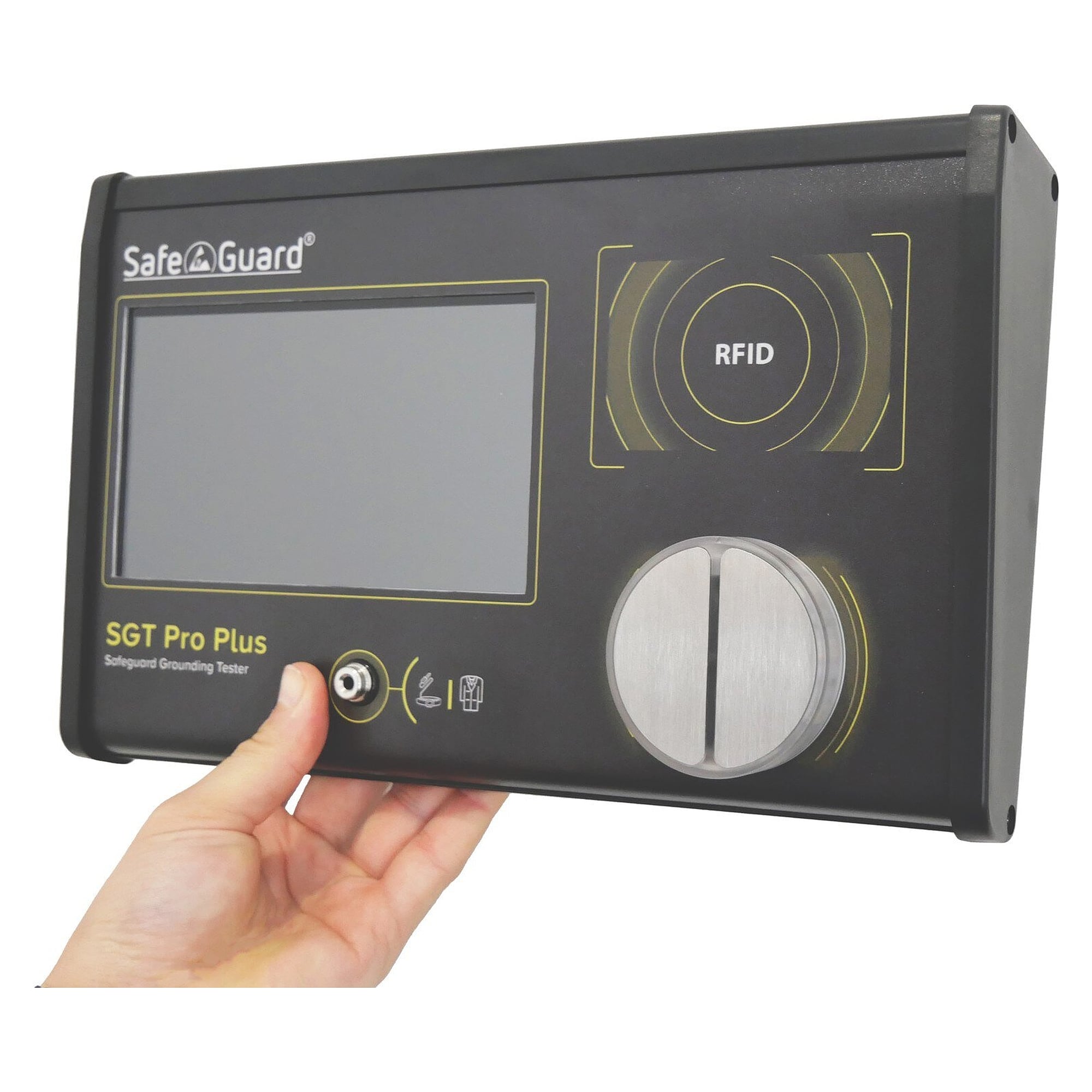

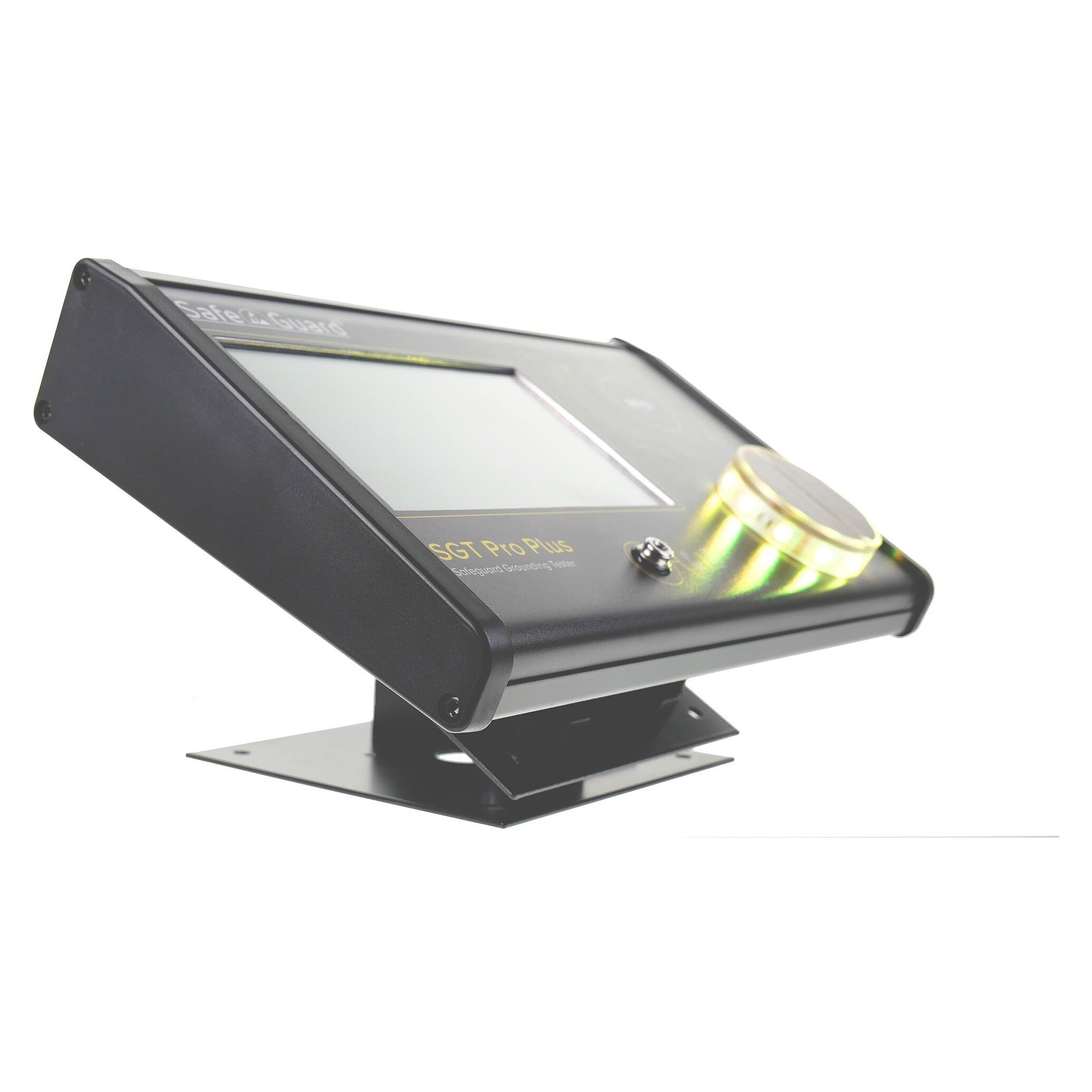

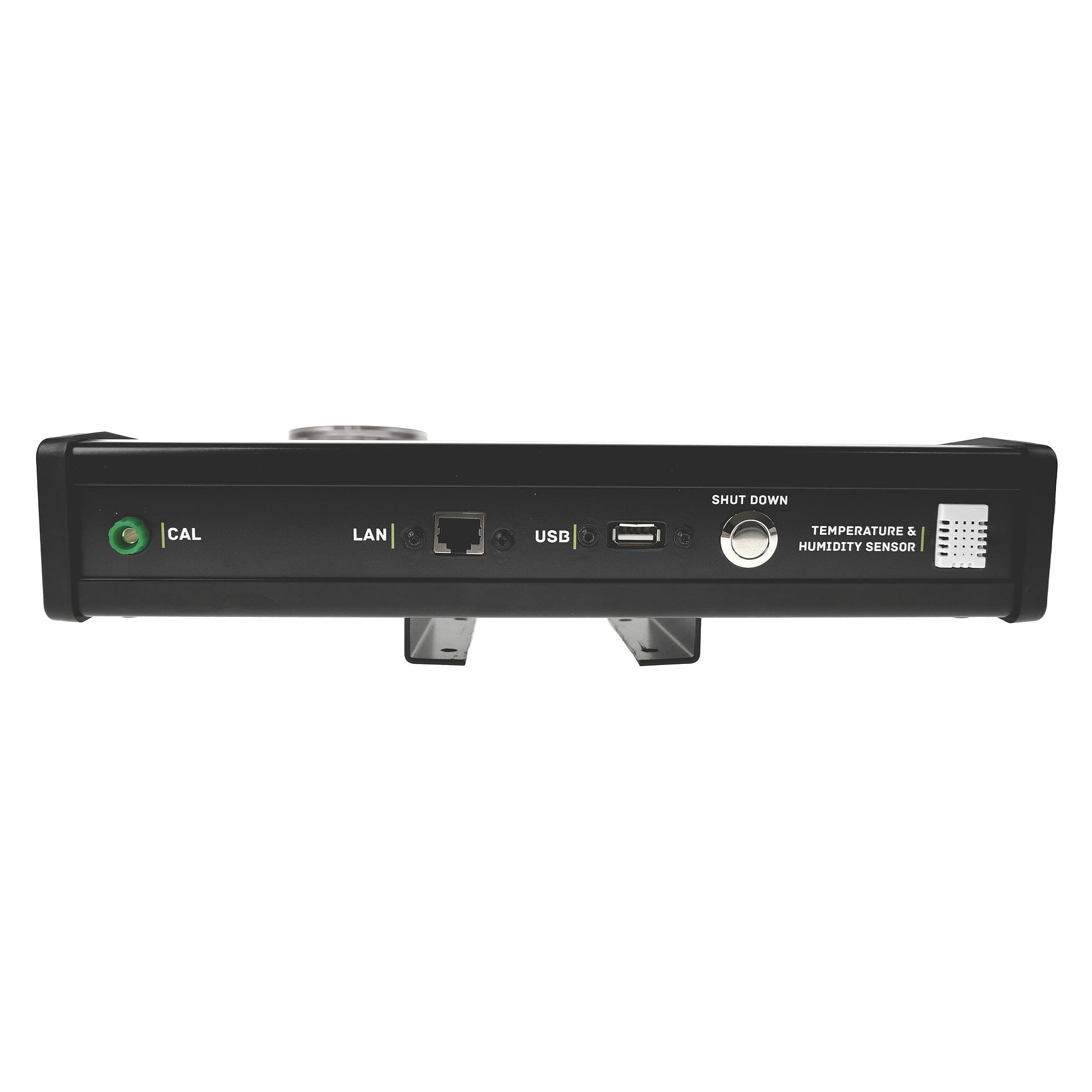

ESD grounding tester SGT Pro Plus with LCD display and double foot electrode, RFID - Safeguard SafeGuard-SGT-ProPlus

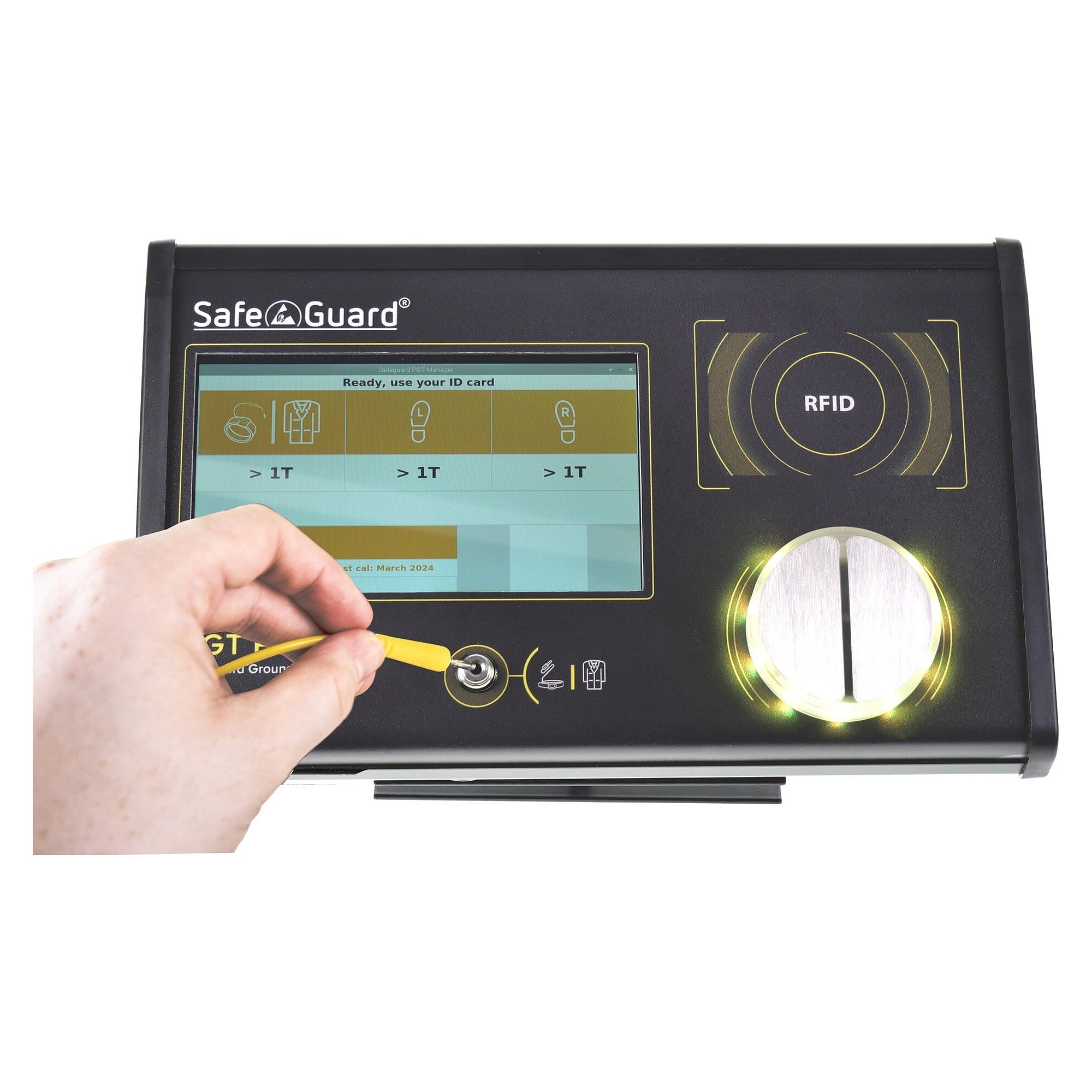

At the EPA entrance every second per person counts. The SGT Pro Plus tests the left and right foot separately against the hand at 100 V and retrieves the correct test mode straight from the employee's RFID card. Results via LCD, LED and tone, a gate is released via relay.

Key benefits

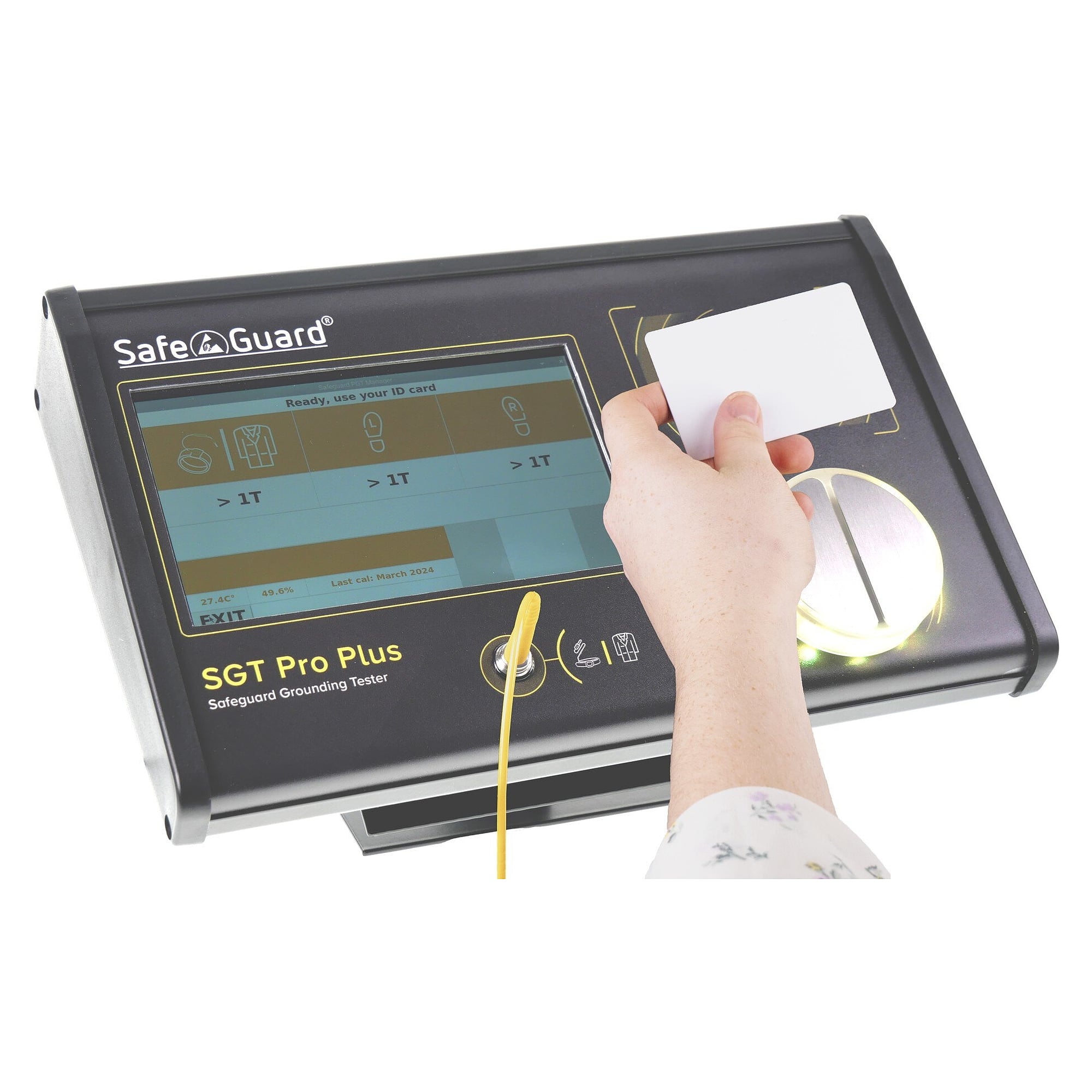

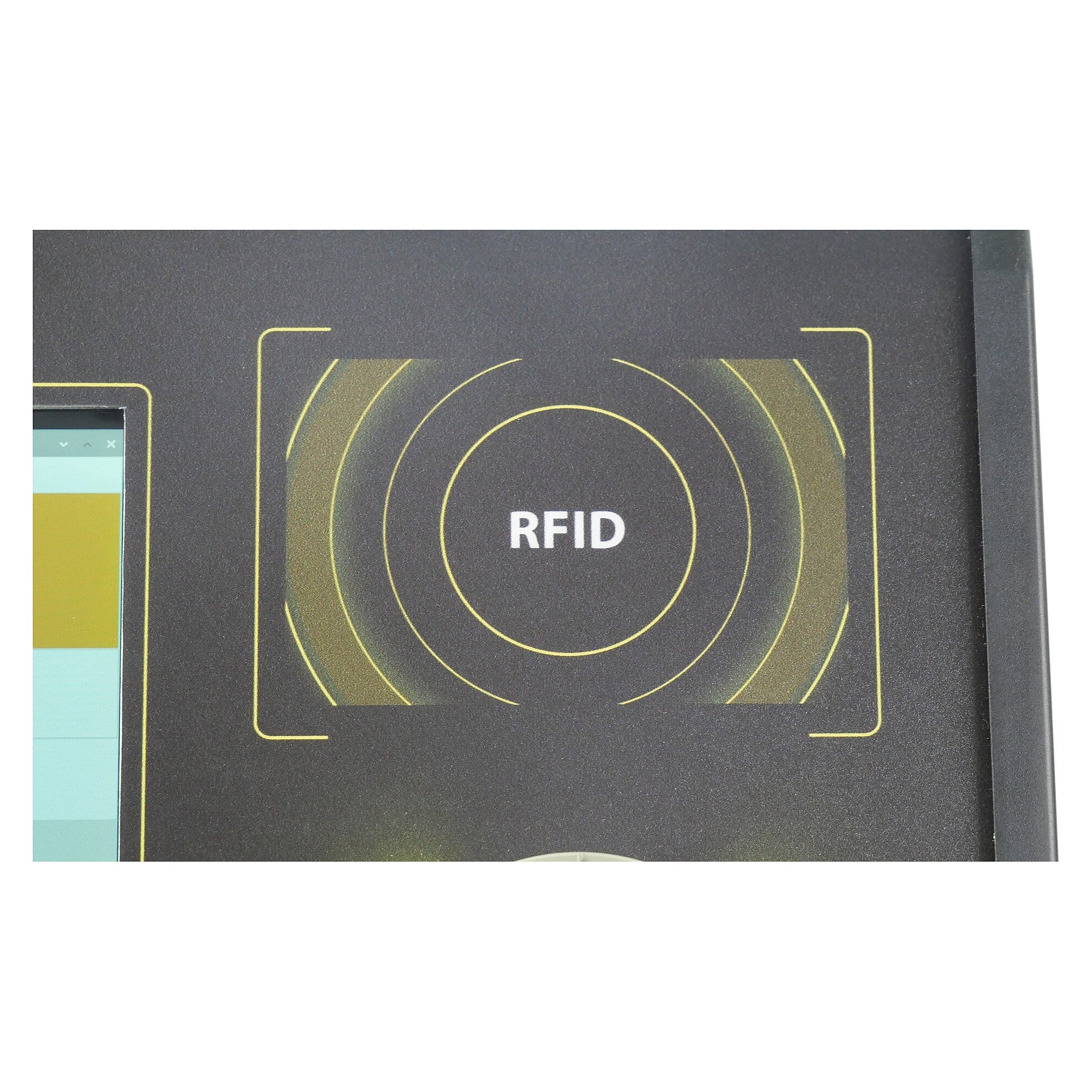

• RFID reader: test mode is assigned per card, four modes including VIP test.
• Both feet separately: the double foot electrode measures right and left against the hand at the same time.
• Network ready: configuration via LAN with RJ45, Linux Raspbian operating system.
• Access control: pass and fault relays 0.5 A / 60 V for turnstile or swing gate.
• Defined limits: footwear 100 kohms to 100 Mohms, wrist strap/garment 750 kohms to 35 Mohms.

Applications

Entrance control of EPAs in electronics manufacturing, laboratories and repair, also with high staff throughput at shift change.

Standards and compliance

Complies with IEC 61340-5-1 and ANSI/ESD S20.20 as well as Directive 2001/95/EC on general product safety.
