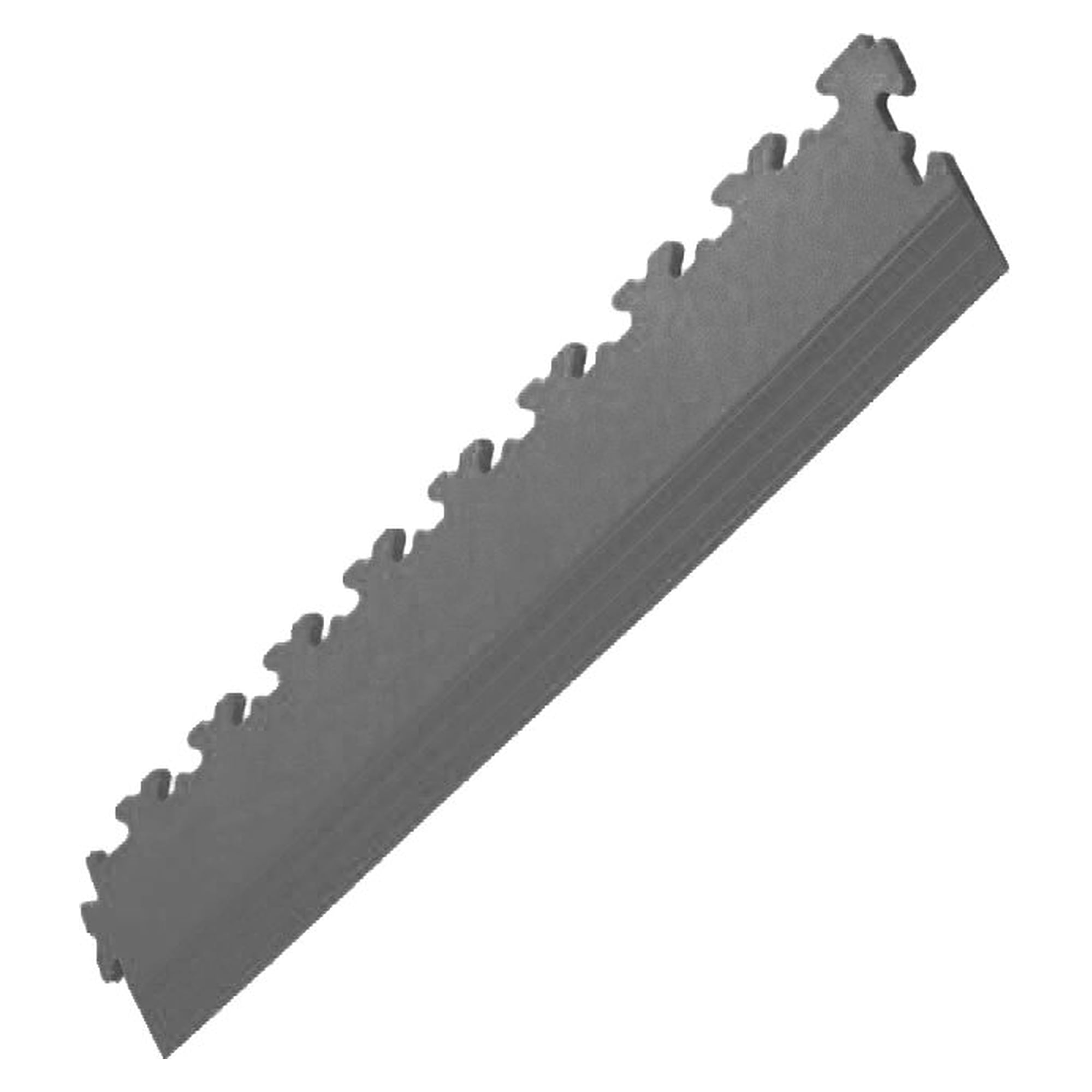

PVC floor ramp X-LOG, 7 mm, graphite, 500 x 90 mm - Ecotile X57.231/1

The floor ramp finishes an area of Ecotile X500/7 tiles towards the subfloor and takes away the 7 mm edge that feet and castors would otherwise catch on. One piece is 500 mm long and covers a complete tile edge. The 90 mm wide slope connects directly to the tile via the X-LOG joint.

Advantages

• No trip edge: 7 mm height run out as a slope over 90 mm width
• 500 mm length per tile edge, suitable for X500/7 tiles (497 x 497 mm, 7.6 mm thick), joins the tile with an almost gap-free fit
• Installed like the floor itself: X-LOG click connection (X-Lock), the ramp locks into the edge joint of the tile
• REACH compliant PVC, fire rating Bfl-s1, made in the UK to ISO 9001
• Colour graphite, for an unobtrusive edge finish

Applications

• Doorways and passages between rooms
• Transitions from the tiled area to adjacent floor coverings
• Access for trolleys and pallet trucks at the edge of the floor area
• Open edges around workstations and machine footprints without trip hazards

The ramp itself is not rated as ESD compliant.
