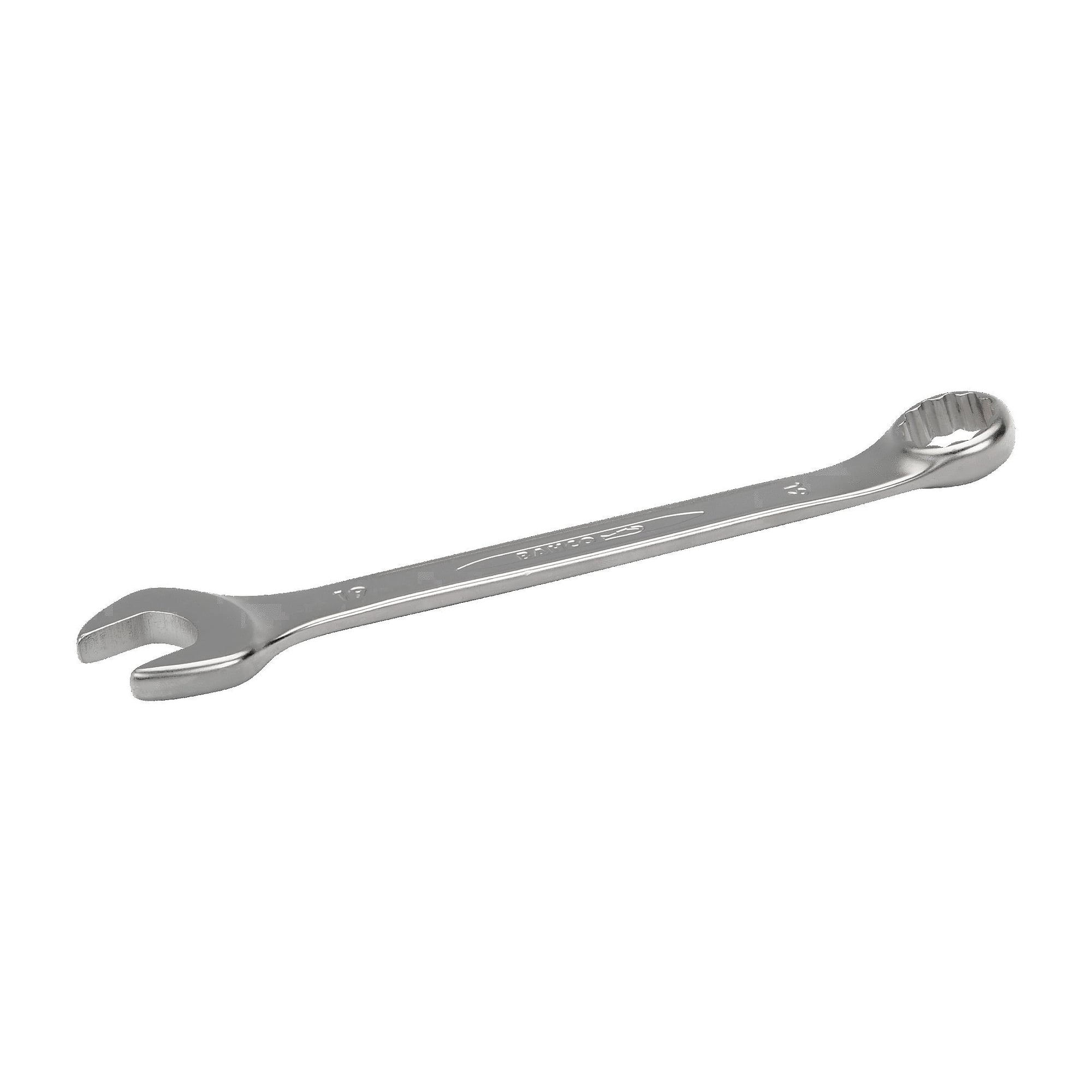

Flat combination wrench 28 mm, 12-point Dynamic-Drive profile, chrome-plated - Bahco 111M-28

Fasteners with a width across flats of 28 mm can be approached from two sides with this wrench. The open end sits at 15 degrees to the shaft and, together with the thin head, allows repositioning in a 30 degree pattern, while the ring end offset by 15 degrees keeps fingers clear of the assembly. Both ends use the 12-point Dynamic-Drive profile, which places the load on the flanks of the fastener and spares the corners. Overall dimension as declared by the manufacturer 310 mm.

What defines this wrench

• 12-point Dynamic-Drive profile grips the flanks of the fastener, which extends the life of bolts and nuts and still holds heads that are already worn.
• Jaw at 15 degrees and a thin head reach fasteners with little space around them, and repositioning works in a 30 degree pattern.
• Ring end offset by 15 degrees creates clearance between hand and workpiece on flat surfaces.
• U-shaped shaft spreads the load in the palm and presses less than a round section when the bolt is pulled tight.
• Large size marking 28 mm on both sides saves searching in a set or in a roll holder.
• Chrome-plated micro-matt surface on a high-performance steel alloy stays controllable with oily hands and wipes clean.

Technical data

Applications

Machine and plant construction, maintenance, vehicle and conveyor technology, assembly of pipe fittings, flanges and bearing blocks.

Scope of delivery

One combination wrench Bahco 111M-28 as a single tool, sales unit 1 piece, content unit 1 piece.

Standards and conformity

The wrench follows ISO 691, ISO 7738, ISO 3318, ISO 1711-1 and DIN 3113. The manufacturer property table declares it as not ESD-safe, so the grip area is not dissipative to IEC 61340-5-1. The wrench also carries no VDE insulation to IEC 60900 and is not intended for live working.
