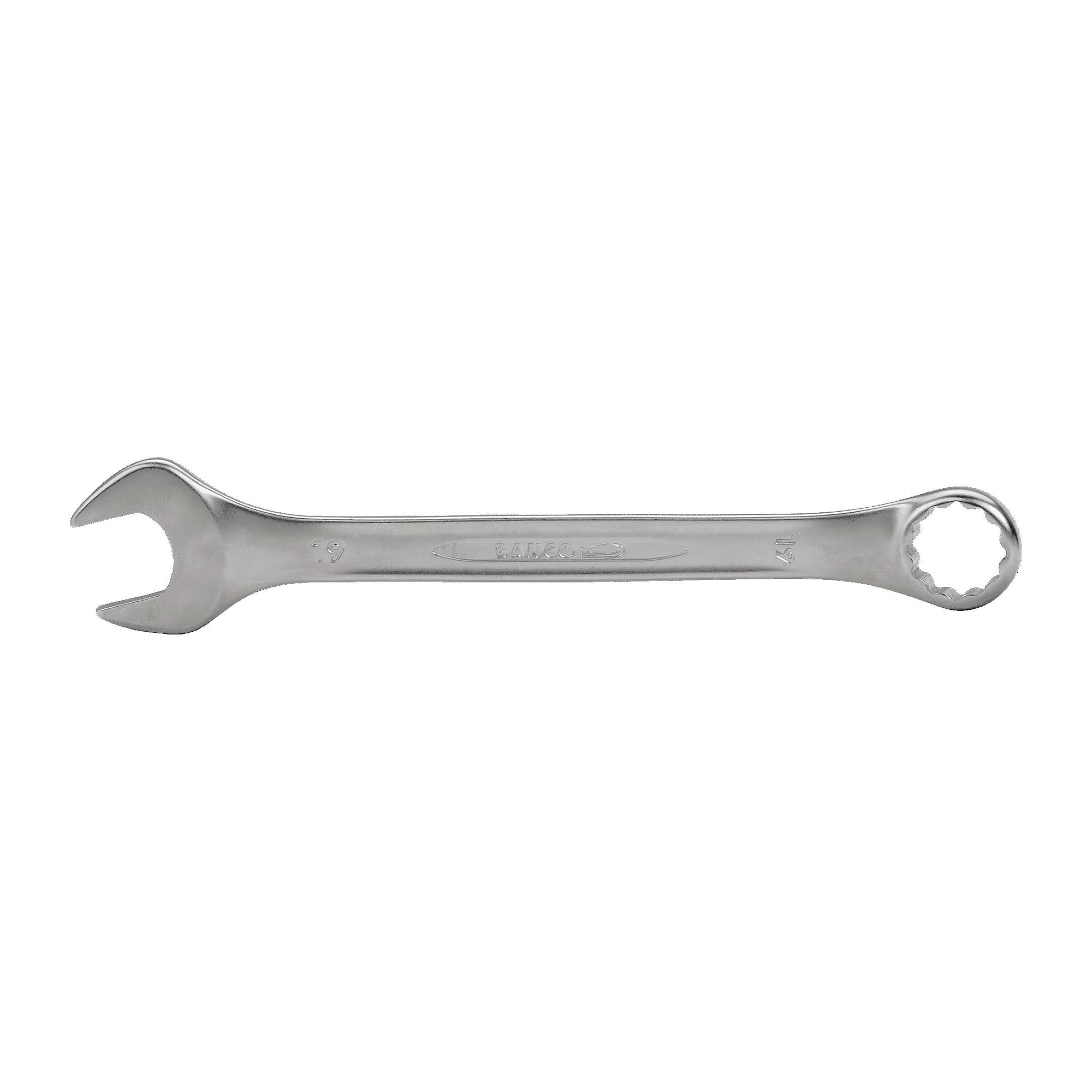

Combination wrench 16 mm, slim head and twelve-point ring, chrome-plated - Bahco 111M-16

Between a flange and a housing wall there is rarely much room, and then head height decides the job. At 9 mm the 111M-16 stays flat enough for such spots without giving up leverage, since it measures 195 mm.

Benefits in use

• 16 mm across flats at both ends, open jaw and twelve-point ring, one tool instead of two.
• Twelve-point ring with Dynamic-Drive profile bears on the flats of the nut and protects its corners.
• Jaw angled at 15° and ring offset by 15°, so the wrench can be repositioned in tight angles.
• Slim head 9 mm high on a U-shaped shaft, 195 mm long at 114 g.
• Chrome-plated micro-matt finish on high-performance steel alloy, easy to keep clean.
• Large size marking embossed on both sides, the spanner size stays readable in poor light.

Technical data

Applications

Assembly and maintenance on machines, plant frames, pipe fittings, conveyors and vehicles, wherever 16 mm across flats is called for and access stays tight.

Scope of delivery

1 combination wrench Bahco 111M-16, 16 mm across flats, in an SB blister pack.

Standards and compliance

The wrench follows ISO 691, ISO 7738, ISO 3318, ISO 1711-1 and DIN 3113. The manufacturer's property table lists neither ESD capability to IEC 61340-5-1 nor VDE testing to IEC 60900. Work on ESD-sensitive assemblies or on live parts calls for tools certified for that purpose.
