Microscope stand M without illumination, 360 mm column, 190 mm travel, 76 mm carrier - Zeiss 435424-9100-000
Table stand for stereo microscopes with a 76 mm mount such as the Stemi 305 and Stemi 508. The 360 mm column with focus drive and 190 mm travel makes room for larger test objects, the work surface measures 255 x 215 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When assemblies are taller than a circuit board, the standard stand becomes too low. Stand M offers a 360 mm column with 190 mm travel and a large 255 x 215 mm work surface, while the user chooses the illumination to suit the task.
Benefits in use
- 360 mm column with focus drive, 190 mm travel.
- Stemi carrier d=76 mm, 5 kg load capacity, adjustable friction.
- Large 255 x 215 mm work surface on a 340 x 300 mm base.
- Central 40 mm through hole and d=84 mm stage interface.
- 2x M8 thread for adapting accessories such as lights.
Applications
Inspection stations for larger assemblies, assembly under the microscope, quality control and lab work.
Compatibility
Stemi 305, Stemi 508 and other microscopes with a 76 mm mount.
Technical data
| Manufacturer | ZEISS |
|---|---|
| Type | Incident light stand without illumination |

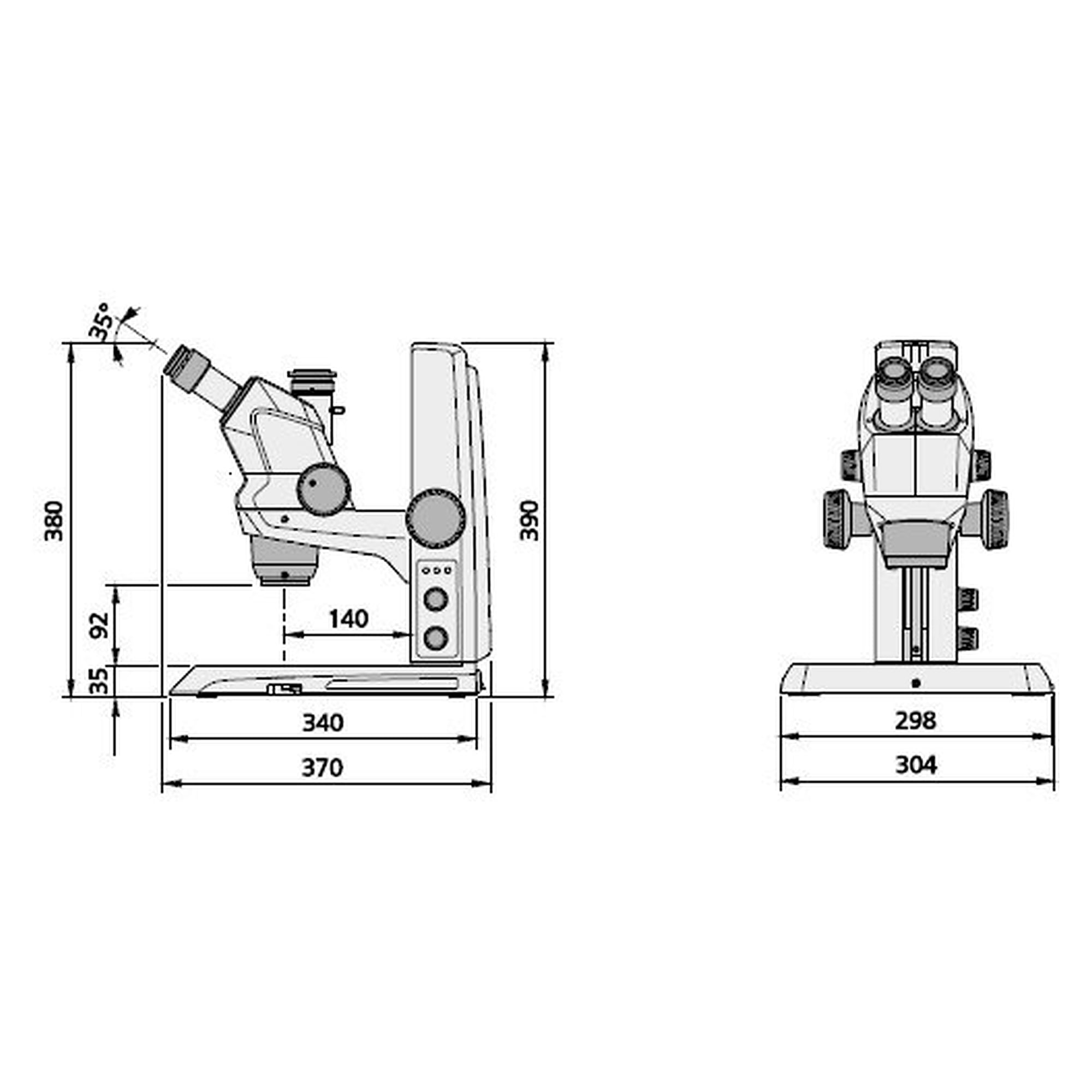

| Stand base (D x W x H) | 340 x 300 x 35 mm |
| Work surface (W x D) | 255 x 215 mm |
| Column | 360 mm with focus drive, travel 190 mm |
| Stemi carrier | d=76 mm, load capacity 5 kg, adjustable friction |
| Interfaces | d=84 mm for stages, 2x M8 thread for accessories, 40 mm through hole |
| Colour | black, white |
| ESD-safe | no |
| Sales unit | 1 piece |
| Weight | 1.34 kg |
| Manufacturer Nr. | 435424-9100-000 |
| HS-Code | 90089000 |
| GPSR manufacturer information | Carl Zeiss Micromaging GmbH, Königsallee 7-9, DE-37081 Göttingen, www.zeiss.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
Stand M, black/white plastic plate D=84 x 5 mm, dust cover. Illumination not included.
