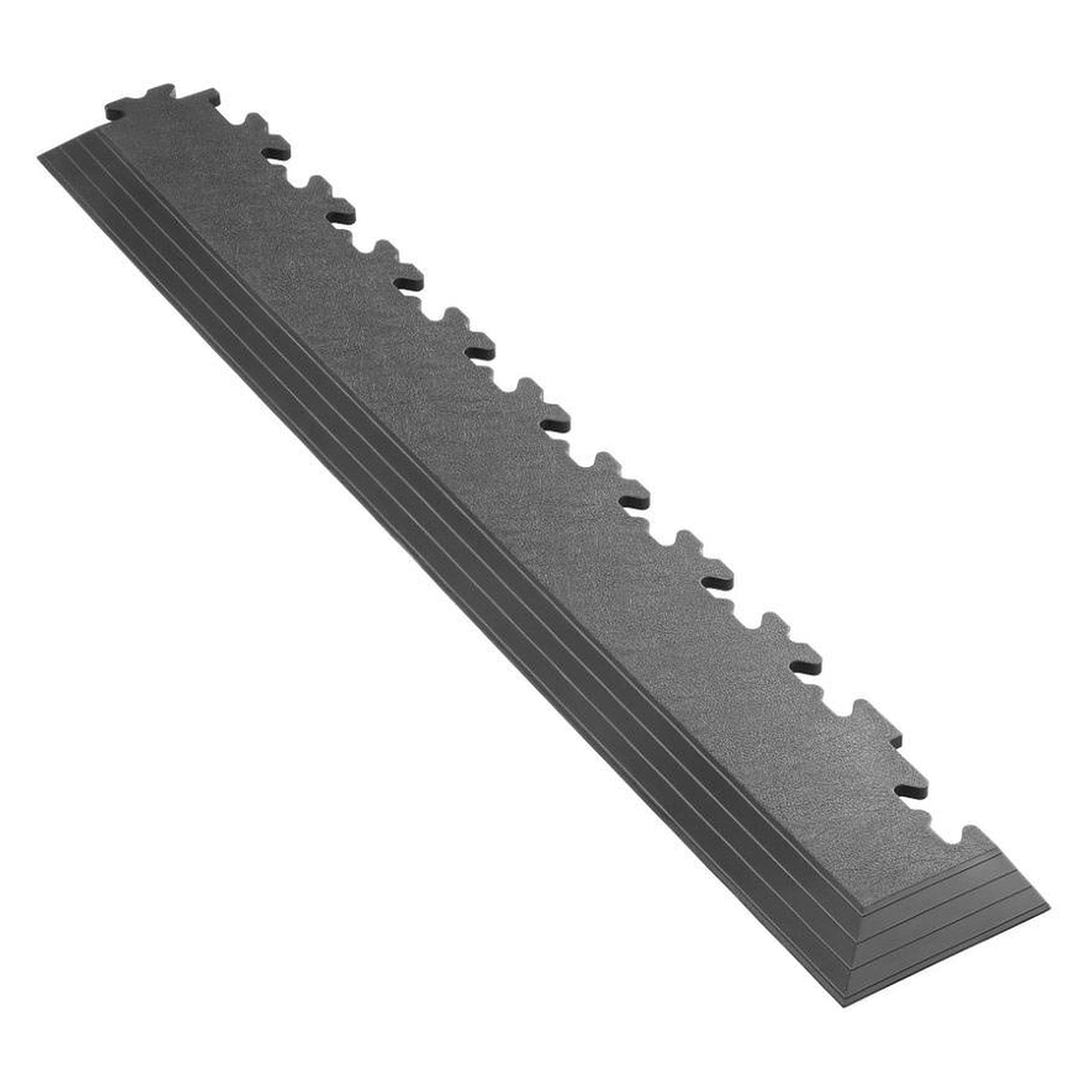

PVC corner ramp X-LOG, 5 mm, grey, 590 x 90 mm - Ecotile X55.220/1

At the outer corner of a 5 mm tiled floor, two ramp edges meet. This Ecotile corner ramp, 590 x 90 mm and 5 mm high, closes that point and connects to both adjoining floor ramps through the X-LOG joint.

Advantages

• 90 mm width, the same ramp width as the X-LOG floor ramps of 500 x 90 mm
• One outer corner takes 1 corner ramp and 2 X-LOG floor ramps
• 5 mm height, matched to the thickness of 5 mm X-LOG tiles
• Fire rating Bfl-s1, REACH compliant PVC, made in the UK under ISO 9001
• Colour grey (RAL 7015) for a discreet edge finish

Applications

Outer corner finish on floors laid with 5 mm Ecotile X-LOG tiles, for example around free-standing tiled areas in production, stores and laboratories or at the corners of passages. The 5 mm X-LOG floor ramps of 500 x 90 mm cover the edges between the corners. The corner ramp itself is not rated as ESD compliant.
