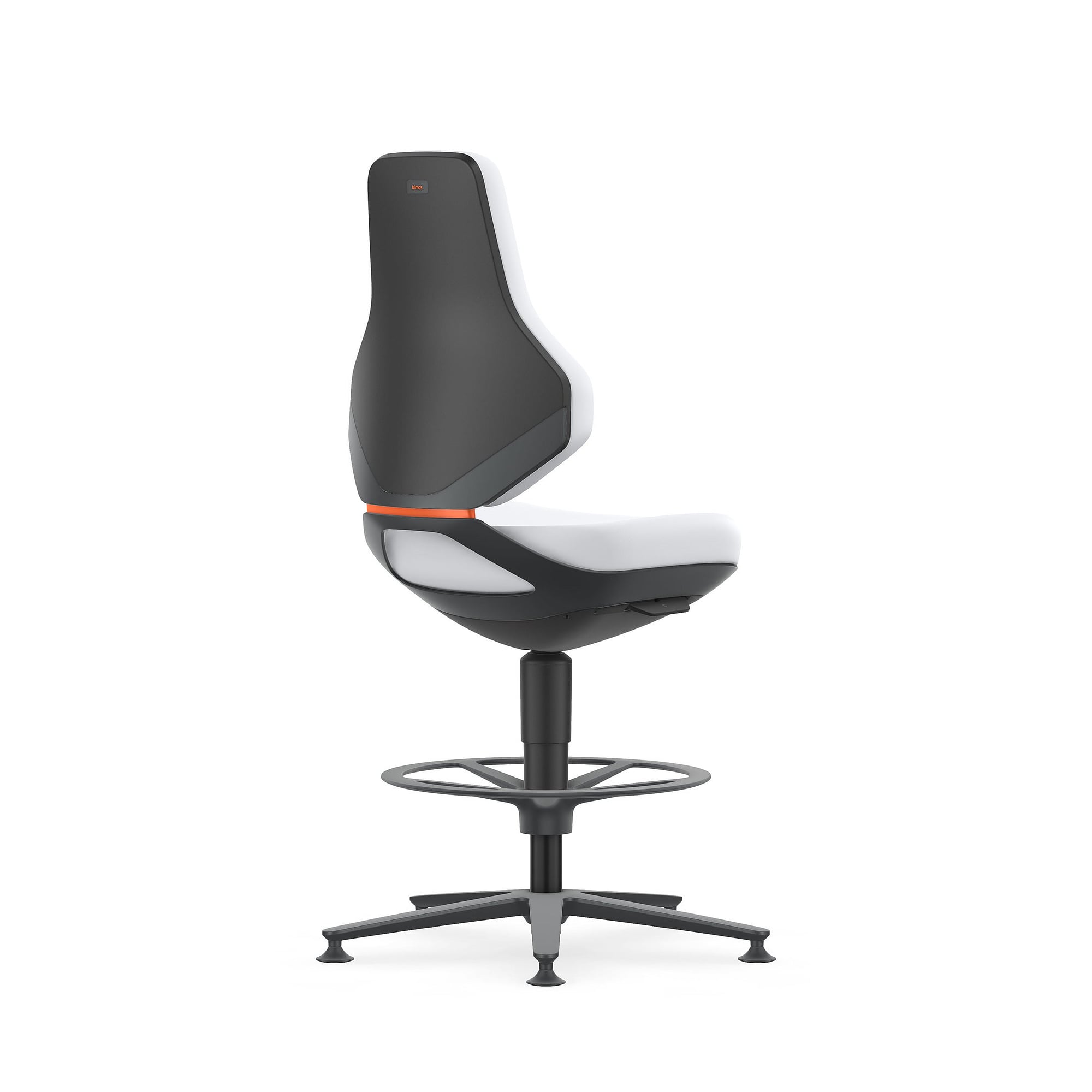

Task swivel chair TEXON 3 with glides and foot ring, Skintec offwhite, seat height 570-810 mm - Bimos 9171-4007

At workbenches laid out for standing work the seat range of many swivel chairs simply ends too low. The TEXON 3 from Bimos covers 570 to 810 mm of seat height and comes with a height-adjustable foot ring that supports the legs in the upper half of that range. Auto-Motion technology keeps the 570 mm backrest in contact at every angle and locks in three settings.

Key benefits

• Auto-Motion technology follows the upper body as the operator leans forward or back and keeps the backrest in contact. A fixed position is available in one of three lockable settings.
• Seat height runs from 570 to 810 mm, which reaches workbenches at standing height. The foot ring is height-adjustable and takes the weight of the legs.
• The flex-back at the lower end of the 570 mm backrest opens up extra movement to the rear without giving up lumbar support.
• Seat and backrest cushions are part of the interchangeable upholstery system and swap out with one click, no tools required. A damaged cushion no longer means a new chair.
• The extra thick seat cushion in Skintec offwhite carries through long shifts. The anthracite aluminium base rests on five glides and stays put.
• Weight adjustment sets the counter-pressure of the mechanism automatically. There is no handwheel to turn before the first use.
• A joint-free design and closed surfaces keep dust and solder residue out of stitching. The Skintec upholstery is simply wiped down.

Technical data

Applications

Workbench and assembly stations at raised working height, quality assurance and visual inspection, laboratory and pilot plant areas, order picking and goods receiving.

Accessories and compatibility

The 4D armrests Bimos 9179 adjust in height, width and depth and are intended for the TEXON range. If the chair needs to move, the soft seat-stop castor set Bimos 23022 with five castors brakes as the user sits down. Pre-assembly with a protective cover is listed by Bimos under 904.

Scope of delivery

One TEXON 3 task swivel chair in the upholstery version described per sales unit, with aluminium base, glides and height-adjustable foot ring. Armrests are not included.

Manufacturer

This version is not ESD-compatible. For workstations inside an EPA to DIN EN 61340-5-1 the ESD variant of the TEXON range applies. The manufacturer under GPSR is Bimos GmbH & Co. KG in DE-72469 Meßstetten-Tieringen.
