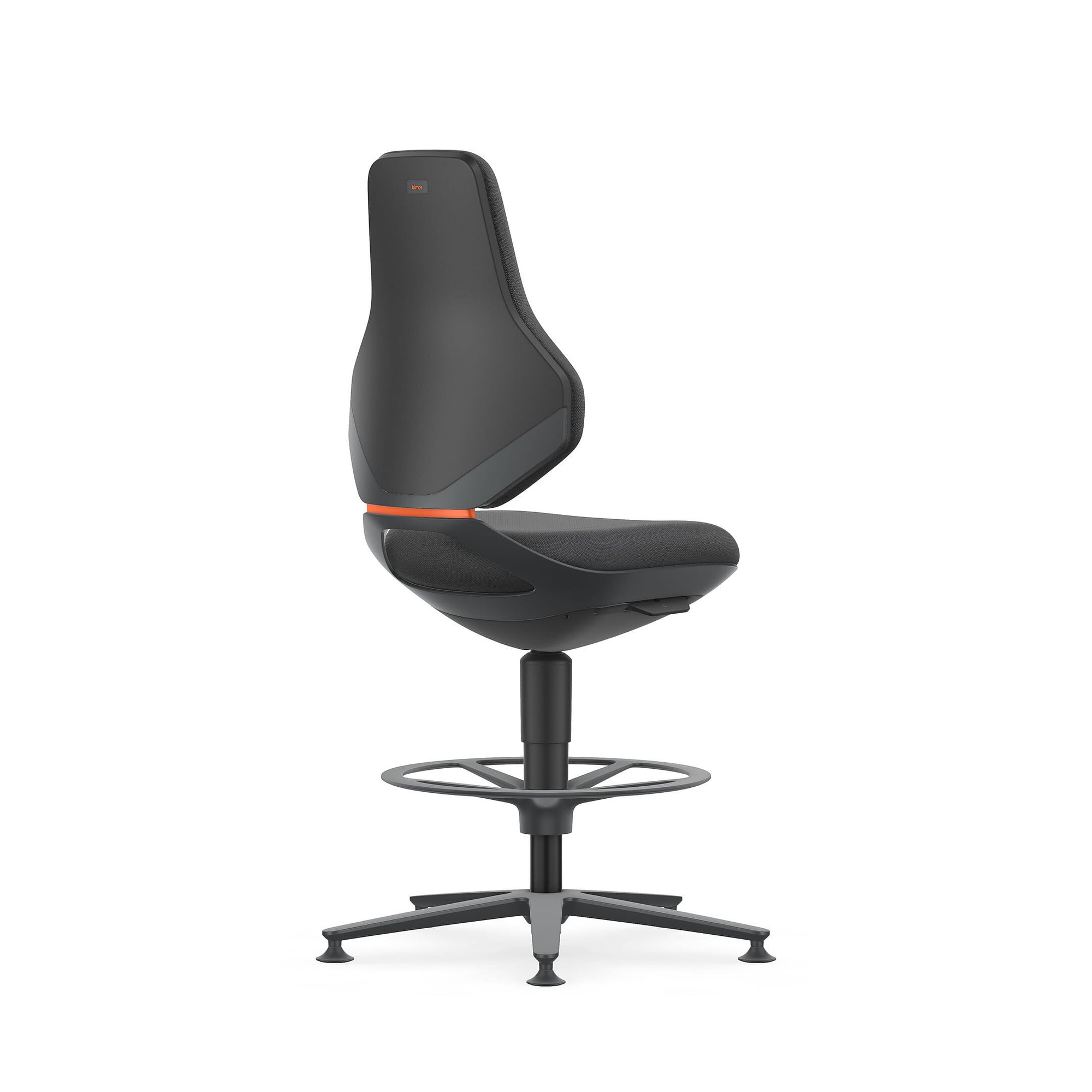

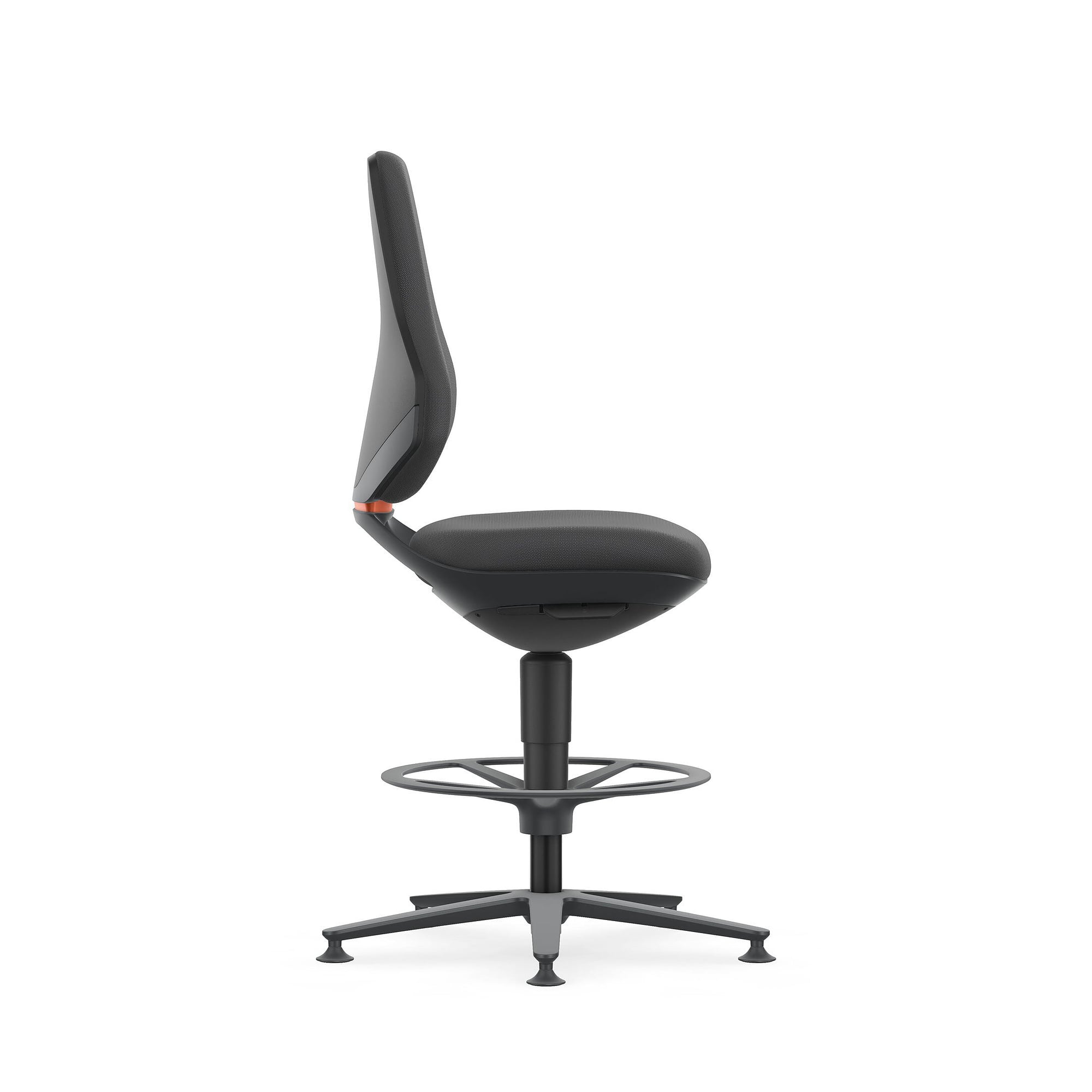

ESD task swivel chair TEXON 3, glides and foot ring, Supertec black, 570-810 mm - Bimos 9171E-CP01

At raised assembly and inspection benches the seat height decides whether the operator looks straight at the board. The TEXON 3 covers 570 to 810 mm, stands on glides and carries a height-adjustable foot ring, so the legs stay supported even in the upper range. The discharge path runs through every component and into the cover.

Key benefits

• Seat height of 570 to 810 mm together with the height-adjustable foot ring, which lets working height and leg support be set independently.
• Auto-Motion follows the movement of the upper body and keeps back contact. For close detail work the mechanism locks in three positions.
• Flex-Back in the lower part of the 570 mm backrest adds travel to the rear without giving up lumbar support.
• Overall discharge across all components to DIN EN 61340-5-1, cover and glides included, so the chair leaves no gap inside an EPA.
• Interchangeable upholstery system: seat and backrest pads come off with one click and without tools, which shortens downtime for repair or a colour change.
• Closed surfaces without joints and an aluminium base in anthracite keep cleaning effort low. The Supertec fabric is densely woven and takes both dry and damp cleaning.

Technical data

Applications

Electronics manufacturing and rework inside an EPA, test and measurement benches, assembly lines with a raised work surface and laboratories where dissipative seating is mandatory.

Compatibility and accessories

The height-adjustable foot ring is already fitted. The 4D ESD armrests Bimos 9179E can be retrofitted and adjust in height, width and depth. If castors are needed instead of glides, use the ESD start-stop castor set Bimos 32379. One chair is supplied per sales unit.

Standards and compliance

Dissipative to DIN EN 61340-5-1, the manufacturer data sheet lists the chair as ESD compliant. The supplier text quotes the transposed number DIN EN 63140-5-1, the applicable ESD standard is DIN EN 61340-5-1. No figures for weight, load capacity or country of origin are available.
