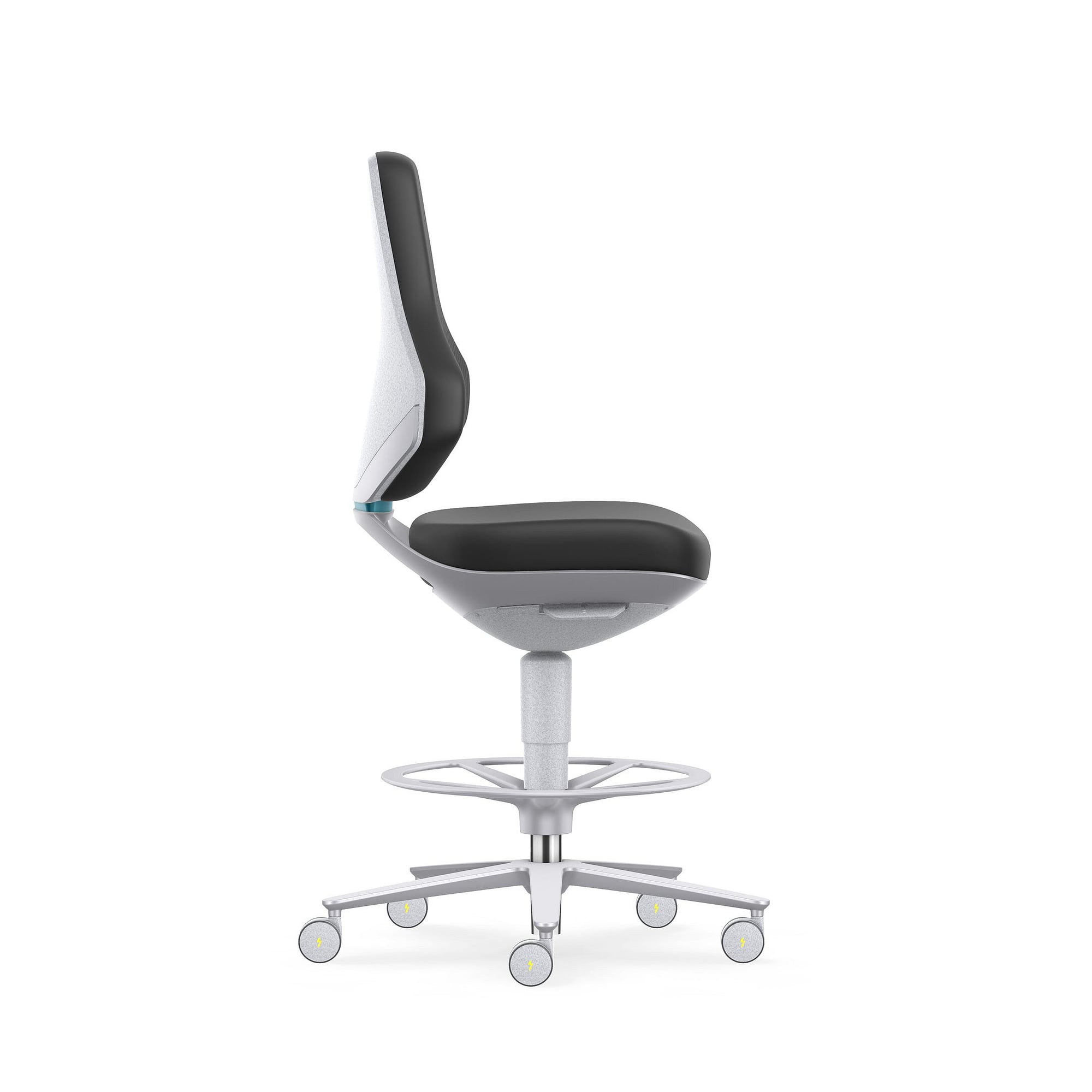

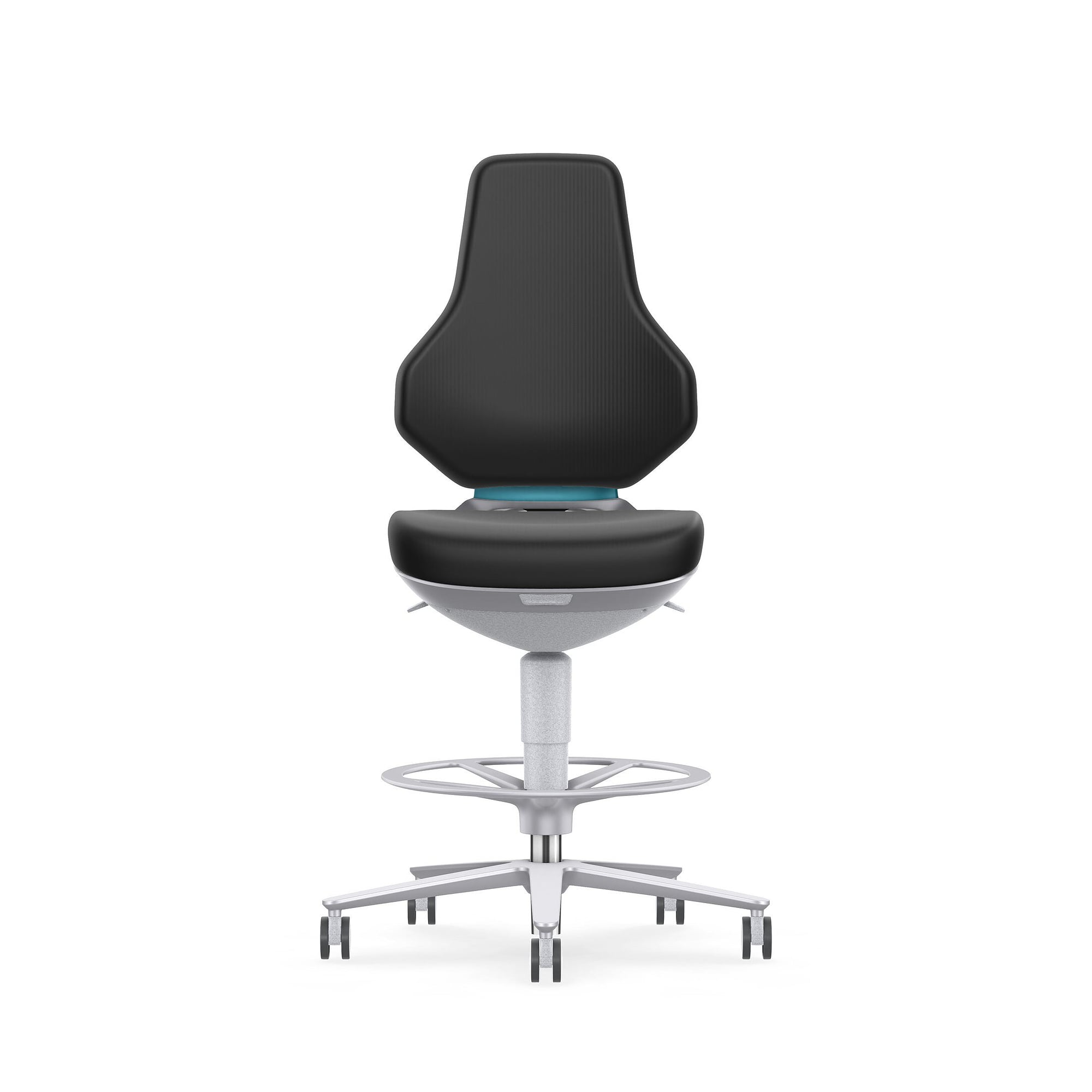

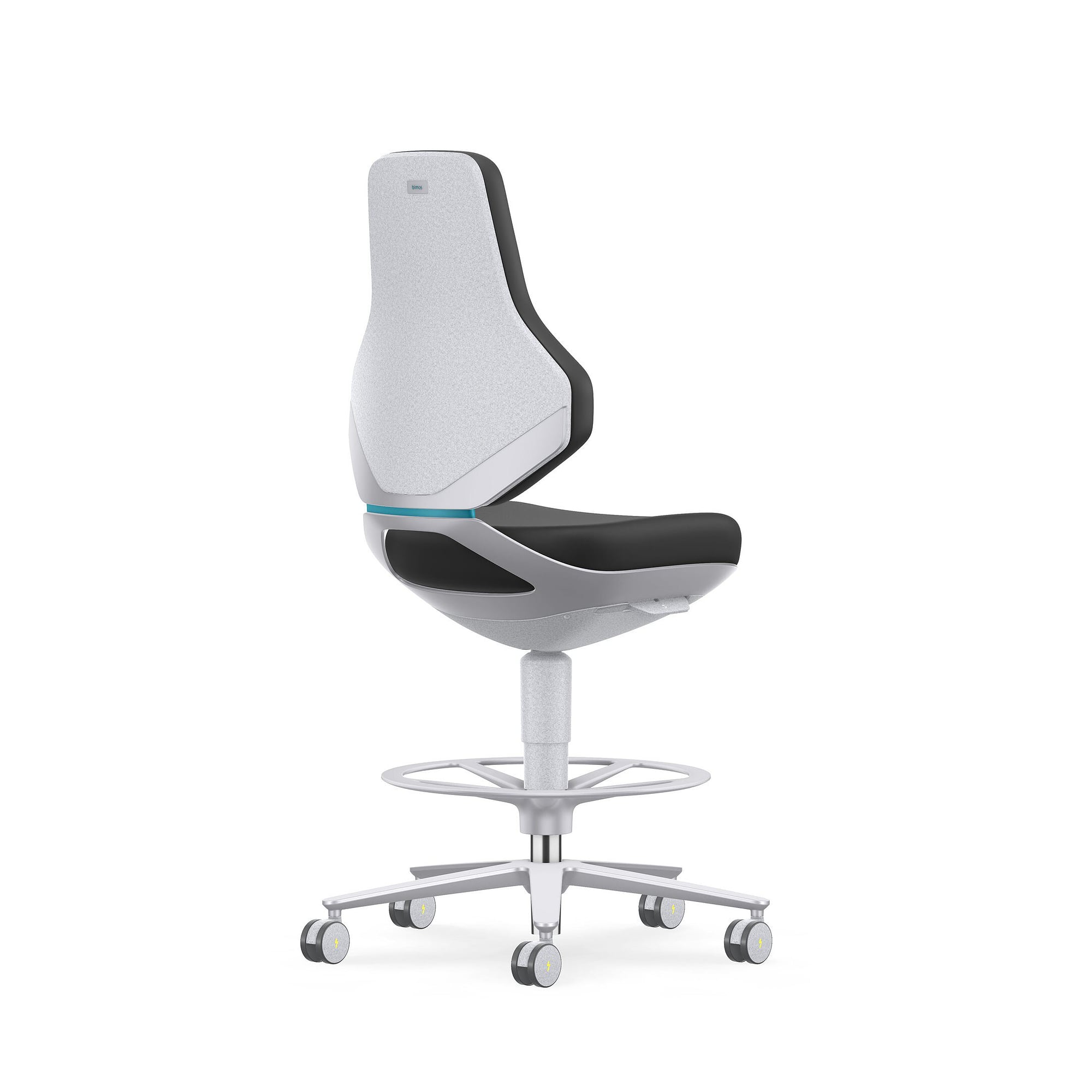

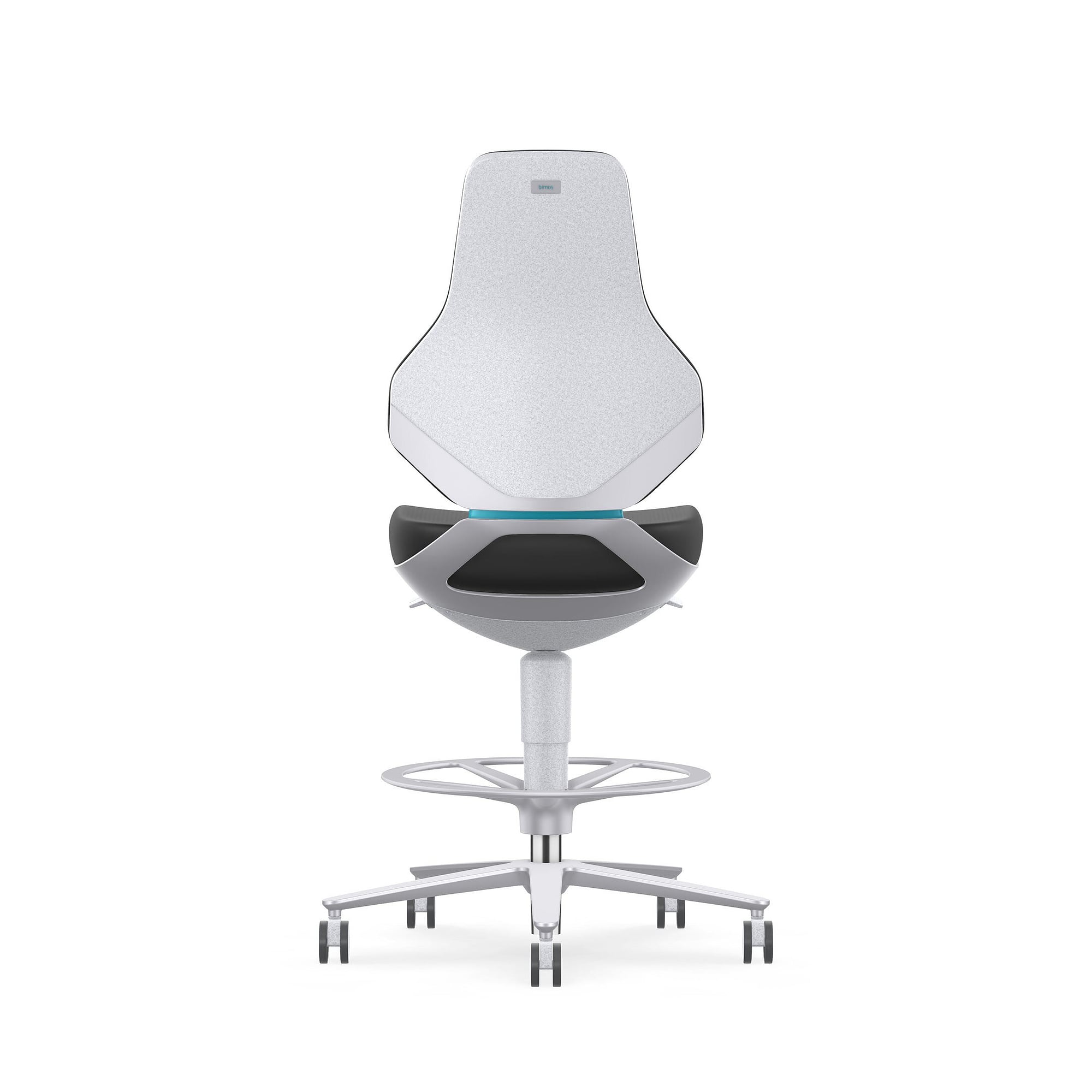

Cleanroom ESD swivel work chair TEXON 4 with castors and foot ring, Skintec black, ISO class 3 - Bimos 9175R-4000

In cleanroom production a chair must neither shed particles nor hold charge. The cleanroom version of the TEXON 4 covers bench work and raised assembly stations with a seat height of 570 to 810 mm and meets air cleanliness class 3 to DIN EN ISO 14644-1.

Benefits in daily use

• Seat height adjustable from 570 to 810 mm, plus a height-adjustable foot ring for the raised workstation
• Auto-Motion technology for active dynamic sitting, lockable in three positions
• Flex-Back on the lower backrest opens up rearward movement, backrest height 570 mm
• Extra thick seat cushion, seat and backrest pads exchangeable with one click and without tools
• Castors matched to the cleanroom floor on a five-arm aluminium base
• Five-arm aluminium base in silver grey
• Smooth closed surfaces to hygienic design, air cleanliness class 3 to DIN EN ISO 14644-1
• Continuous dissipation across all components to DIN EN 61340-5-1, from the upholstery to the castors

Technical data

Applications

Assembly and inspection in cleanrooms of semiconductor, medical and optics production, laboratory workstations with cleanliness requirements and ESD protected areas with raised benches.

Scope of delivery and accessories

The scope of delivery is one swivel work chair with silver grey aluminium base, castors and height-adjustable foot ring, sales unit 1 piece. Bimos offers the 9179R 4D armrests for the cleanroom version, adjustable in height, width and depth.

Standards and compliance

According to the manufacturer the cleanroom version meets air cleanliness class 3 to DIN EN ISO 14644-1. Dissipation runs across all components of the chair to DIN EN 61340-5-1. The manufacturer is Bimos, a brand of the Interstuhl group.
