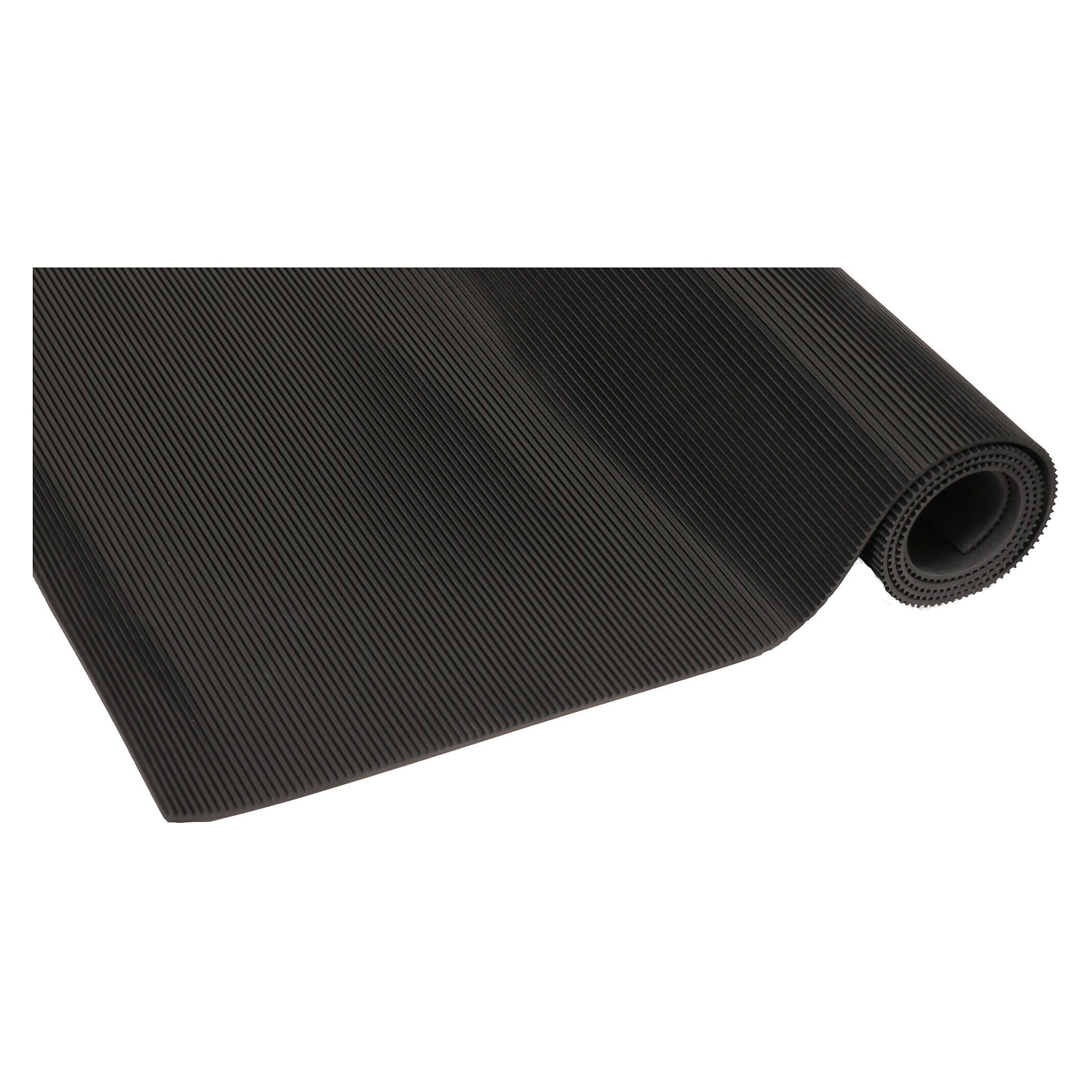

ESD shelf covering with grooved profile, roll 10 m x 1220 mm x 3 mm, black, synthetic rubber - Safeguard WL87233

Sheet metal or wooden shelves leave a gap in the grounding system of an EPA. The Safeguard shelf covering closes it with a typical surface resistance of 10⁶ to 10⁷ Ohm over 10 m x 1220 mm.

Key benefits

• Typical surface resistance Rpp 10⁶ to 10⁷ Ohm, ESD certified to IEC 61340-5-1

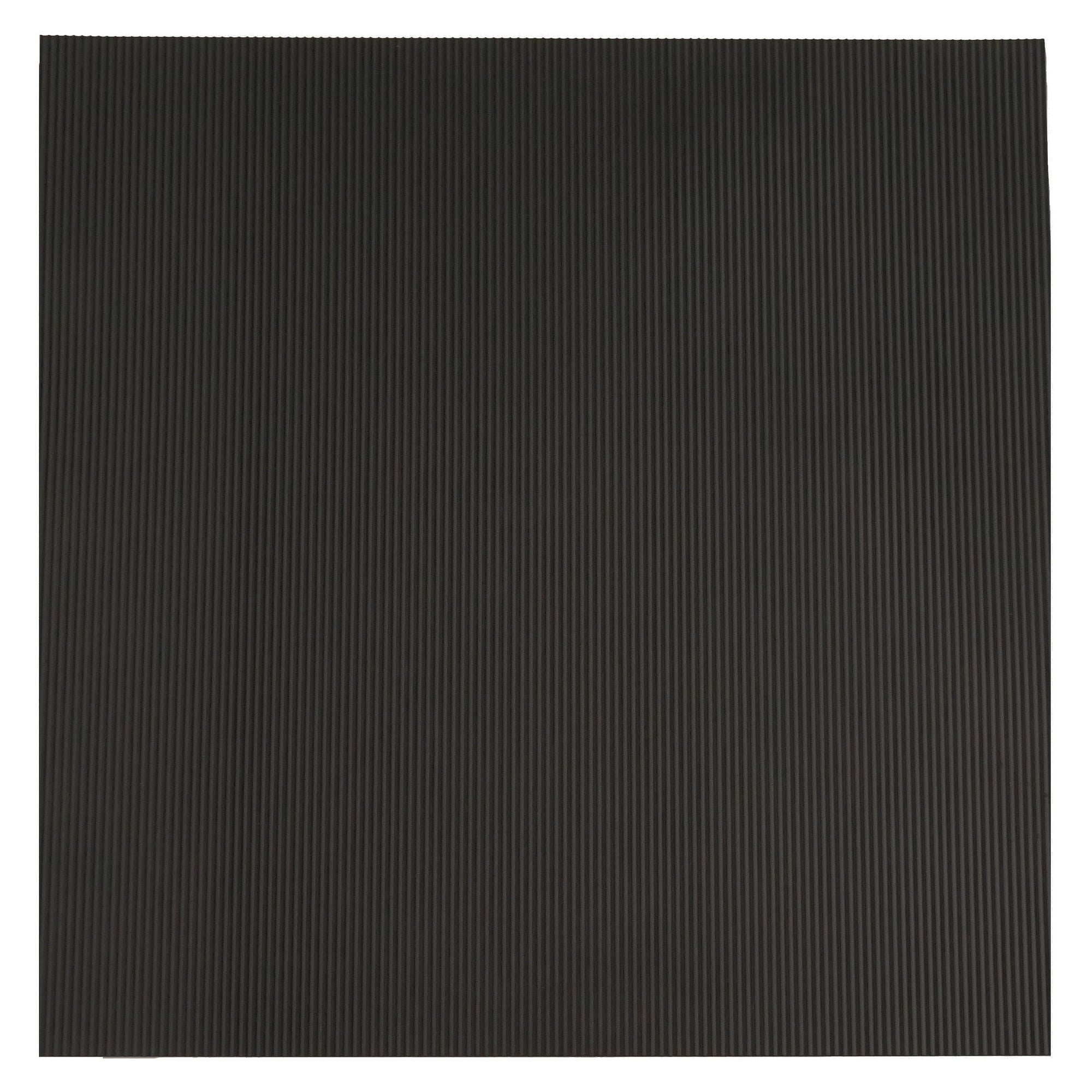

• Grooved profile keeps containers and parts from sliding
• 3 mm synthetic rubber, elastic and impact absorbing
• Reduces noise and protects material when bins are put down
• PVC-free and phthalate-free
• Roll of 10 m x 1220 mm, cut to any shelf depth

Applications

Shelves in ESD stores, shelf boards at assembly stations, trays in trolleys and cabinets inside the EPA.

Standards and compliance

ESD certified to IEC 61340-5-1.
