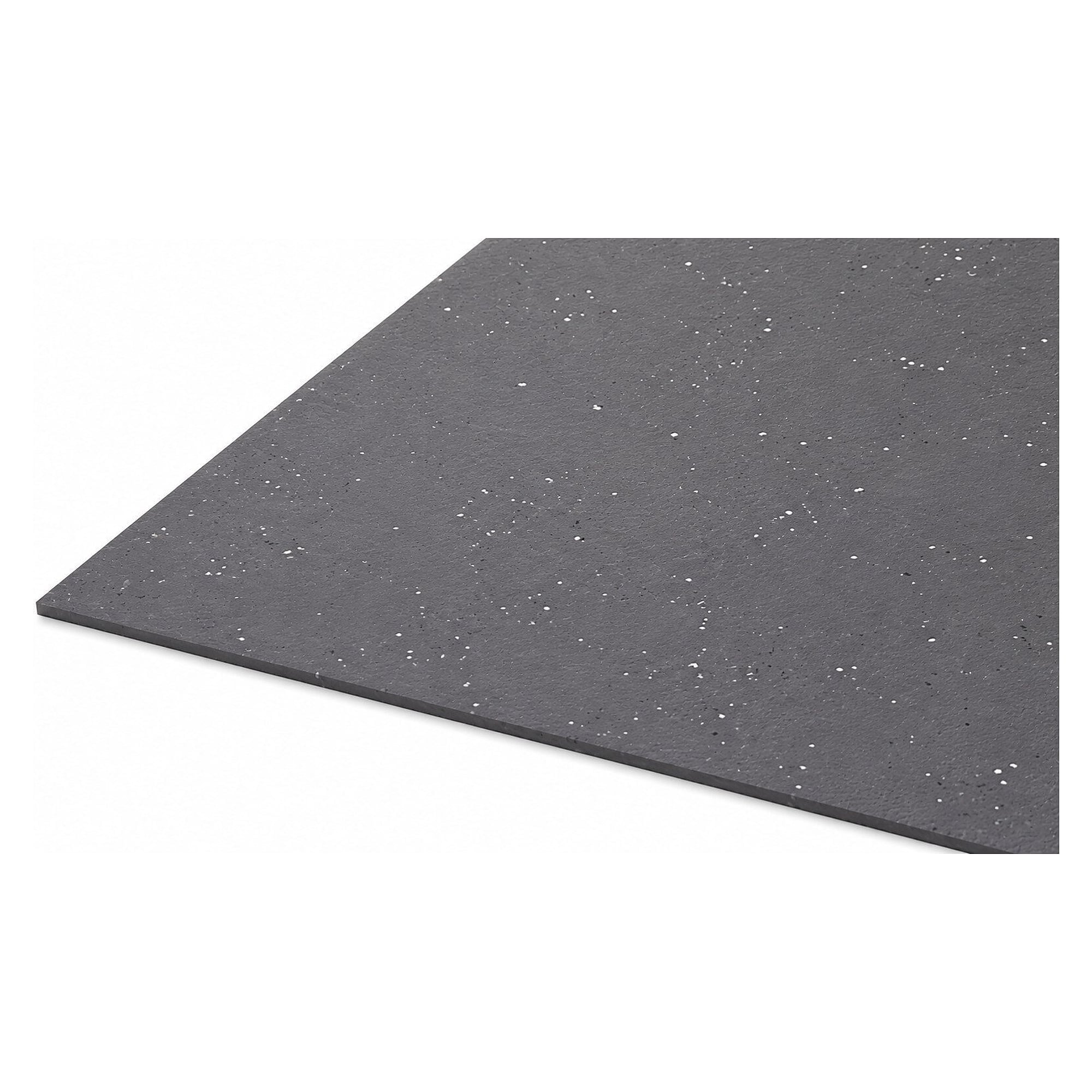

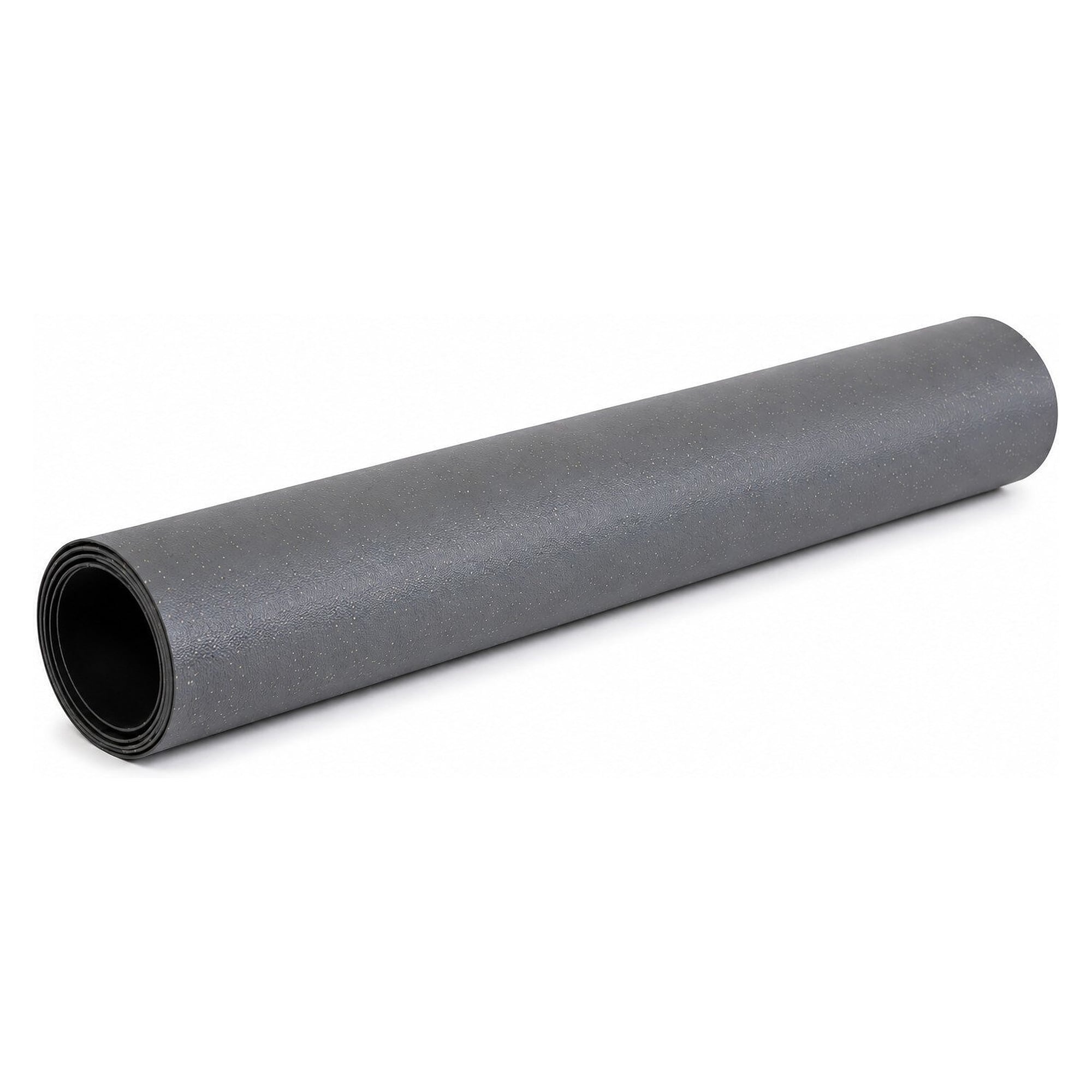

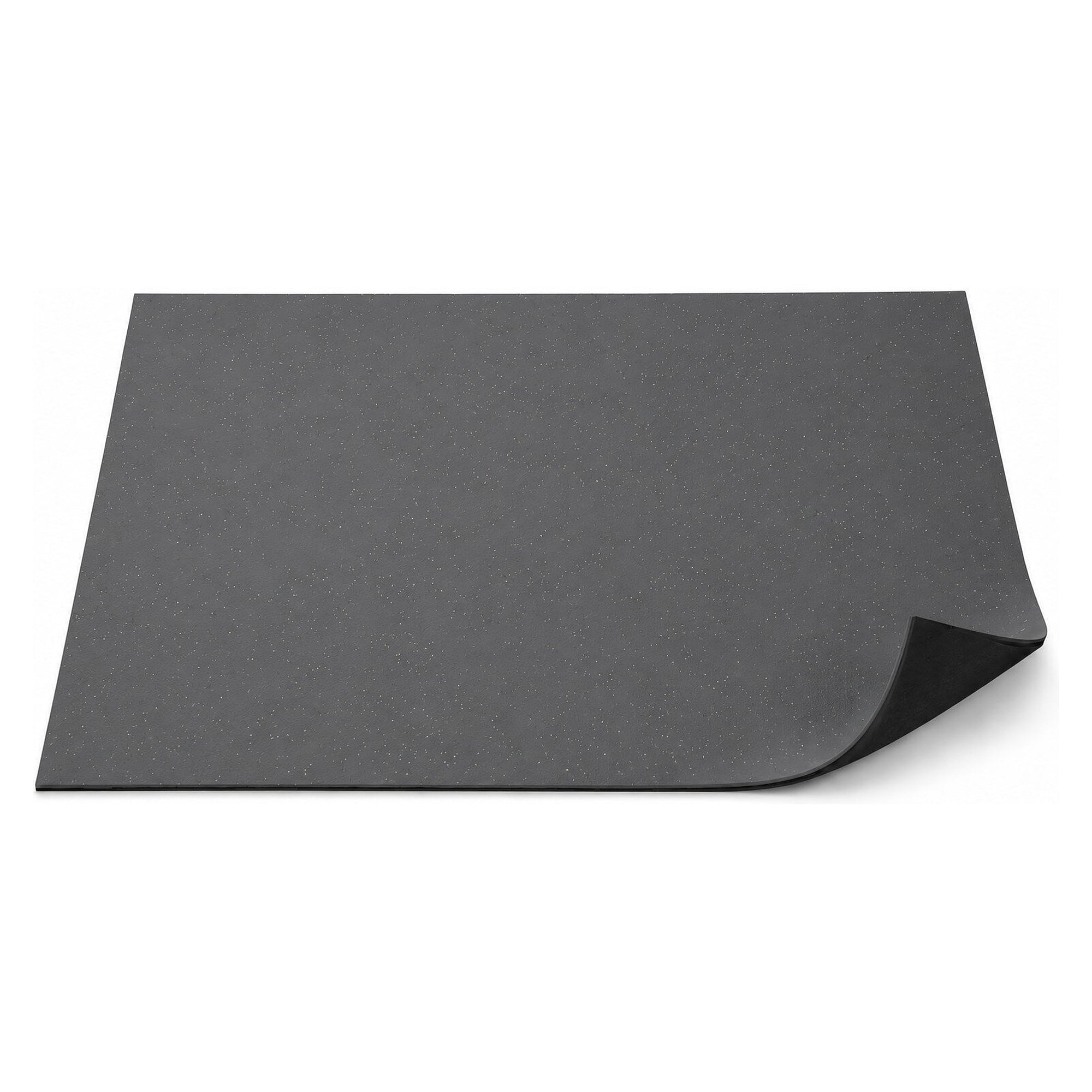

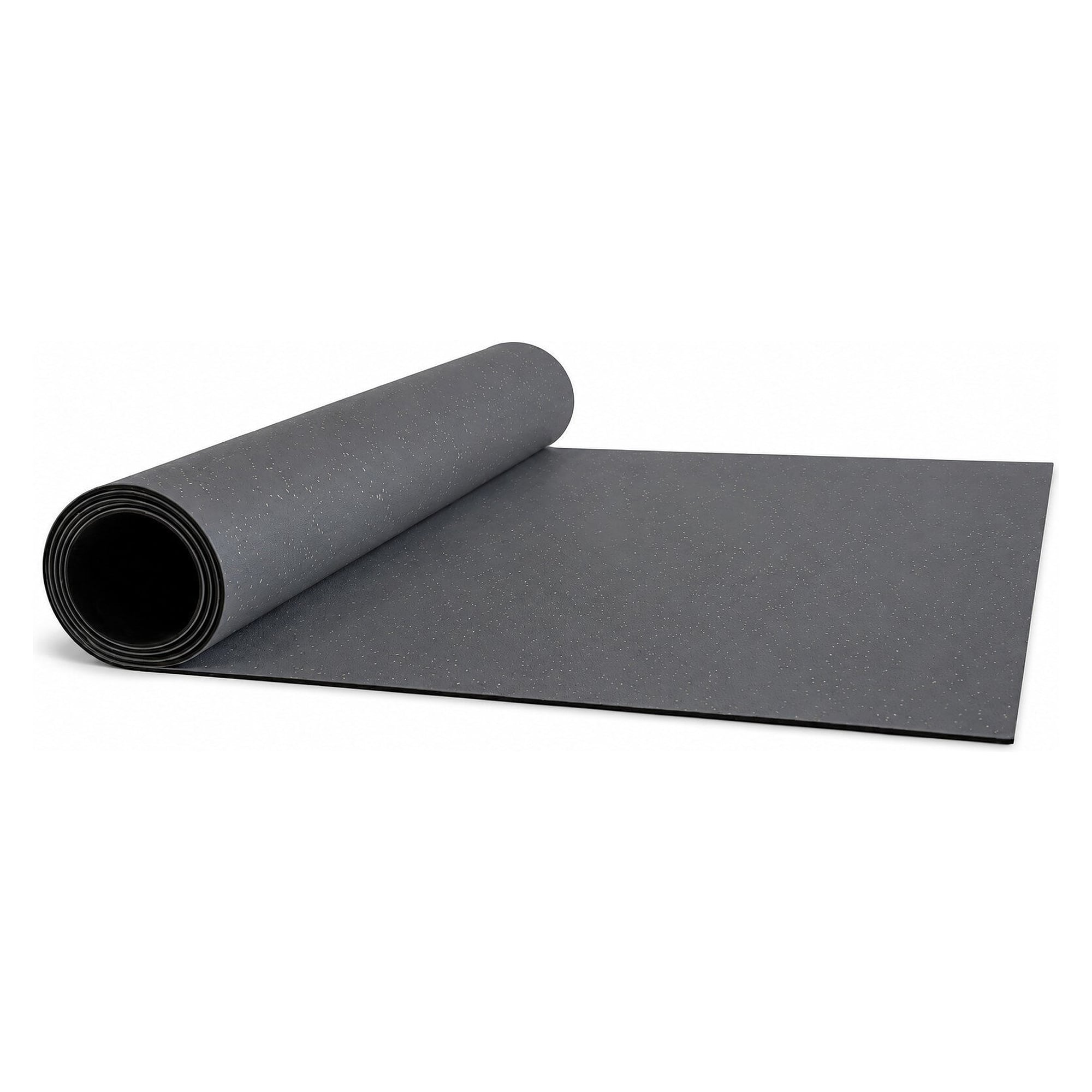

ESD floor covering SafeGrip, roll 1500 mm x 10 m, 3.5 mm, dark grey - Safeguard WL87668

In an EPA the floor is part of the grounding system, personnel charge drains through it and ESD footwear. The Safeguard SafeGrip achieves a typical surface resistance of 10⁶ to 9 x 10⁷ Ohm and is fully bonded to the subfloor.

Key benefits

• Typical surface resistance Rpp 10⁶ to 9 x 10⁷ Ohm, ESD certified to IEC 61340-5-1
• 3.5 mm synthetic rubber for heavily used areas in production, assembly and storage
• 3.5 mm thickness for high loads, for example pallet trucks and trolleys
• Abrasion resistant smooth surface, easy to clean
• Roll of 1.5 m x 10 m, few joints on large areas
• Installed by bonding with conductive ESD adhesive

Applications

Production and assembly halls, ESD stores, test bays and laboratories, walkways inside the EPA.

Standards and compliance

ESD certified to IEC 61340-5-1.
