ESD floor mat set with snap and ground cord, grey, 3 x 1.2 m - Safeguard Bodenmattenset 3 x 1,2 m
Complete ESD floor mat set measuring 3 x 1.2 m with snap stud, ground plug and 4.5 m ground cord. The 3.5 mm slip resistant mat (R10) grounds people wearing ESD footwear at the workstation and is ready to use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
A dissipative standing area in front of the bench is part of every ESD protected area. This set covers a 3 x 1.2 m spot: a 3.5 mm floor mat with 10⁶ to 10⁷ ohm surface resistance plus the matching grounding hardware.
- Typical surface resistance Rpp 10⁶ to 10⁷ ohm, ESD certified to IEC 61340-5-1
- 3.5 mm thick, made from SafeGrip Flame floor covering for heavy use areas
- Slip resistant to R10, smooth surface that is easy to clean
- Fire retardant and heat insulating

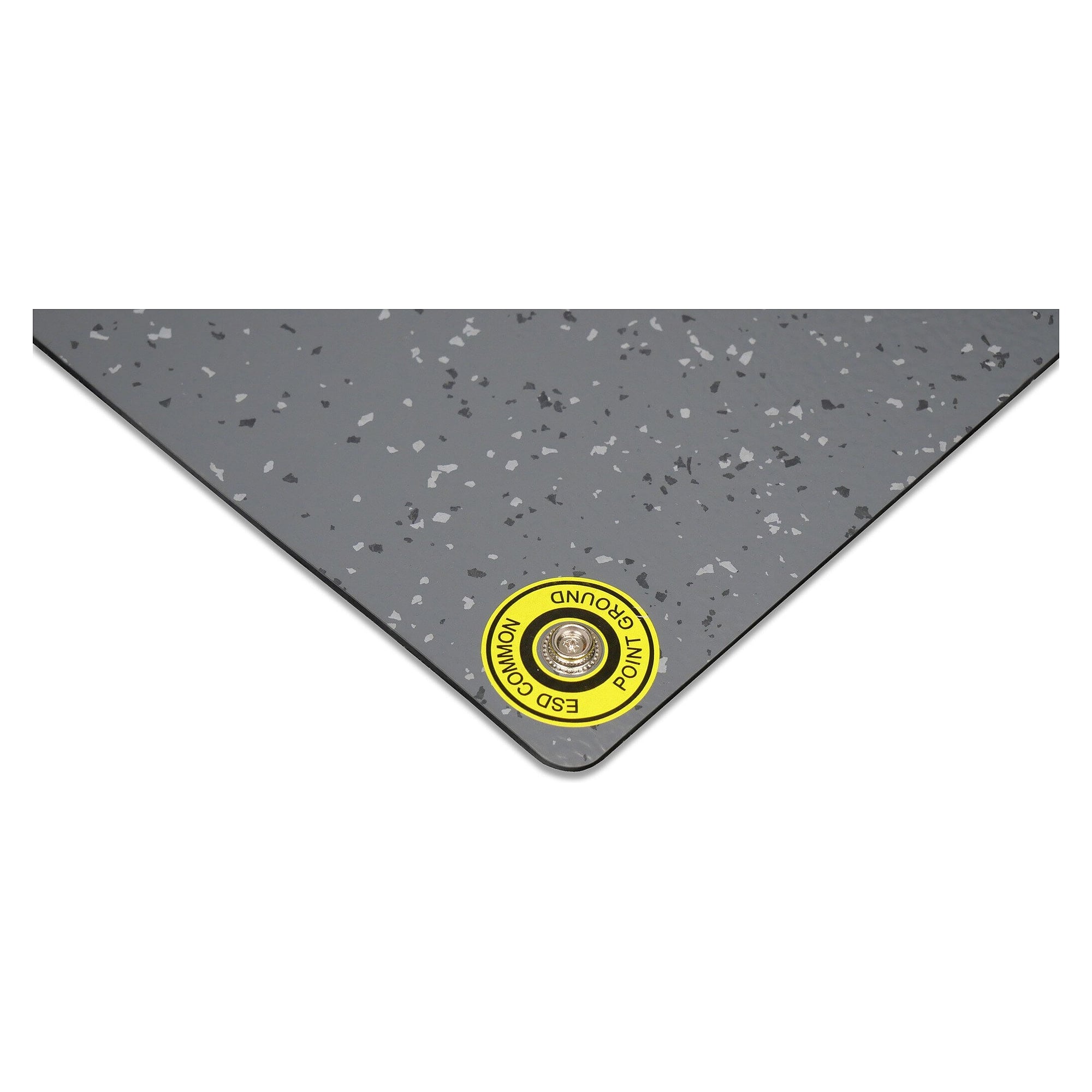

- Grounding via screw-on snap stud, ground plug with 2x 10 mm snap and 4.5 m ground cord
Applications

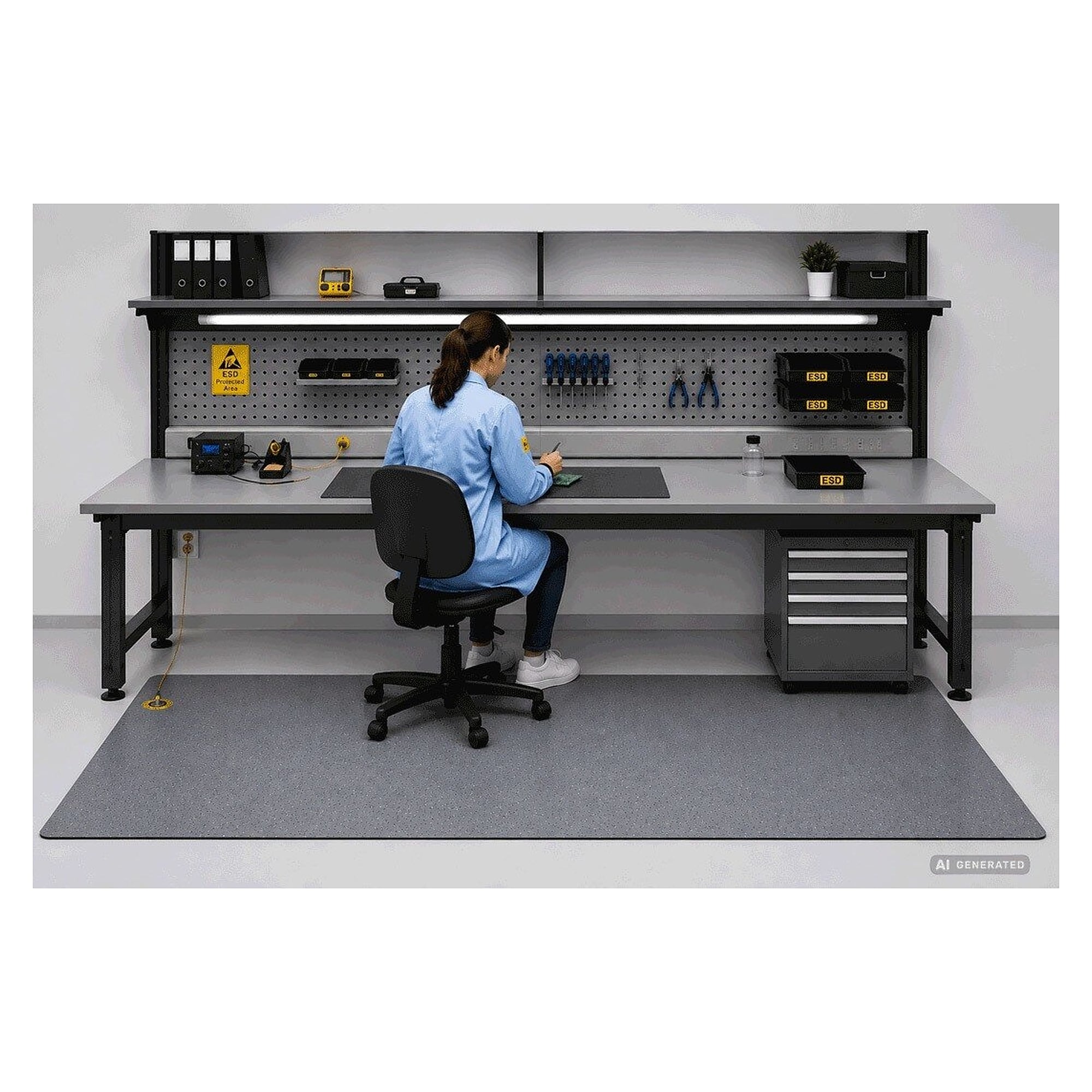

Standing and seated workstations in electronics production, repair, test and laboratories where people are grounded via footwear and floor.
Technical data
| Covering type | Floor mat |
|---|---|
| Length | 3000 mm |
| Width | 1200 mm |
| Thickness | 3.5 mm |
| Colour | grey (coal dust grey) |
| Surface | smooth |
| Typical surface resistance (Rpp) | 10⁶ to 10⁷ ohm |
| ESD certification to IEC 61340-5-1 | yes |
| Slip resistance | R10 |
| Properties | fire retardant, smooth, slip resistant, heat insulating |
| Cleaning | use suitable ESD cleaners |
| Sales unit | 1 set |
| Weight | 0.1 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | BODENMATTENSET SAFEGUARD; 3 X 1,2M |
| HS-Code | 40082190 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |

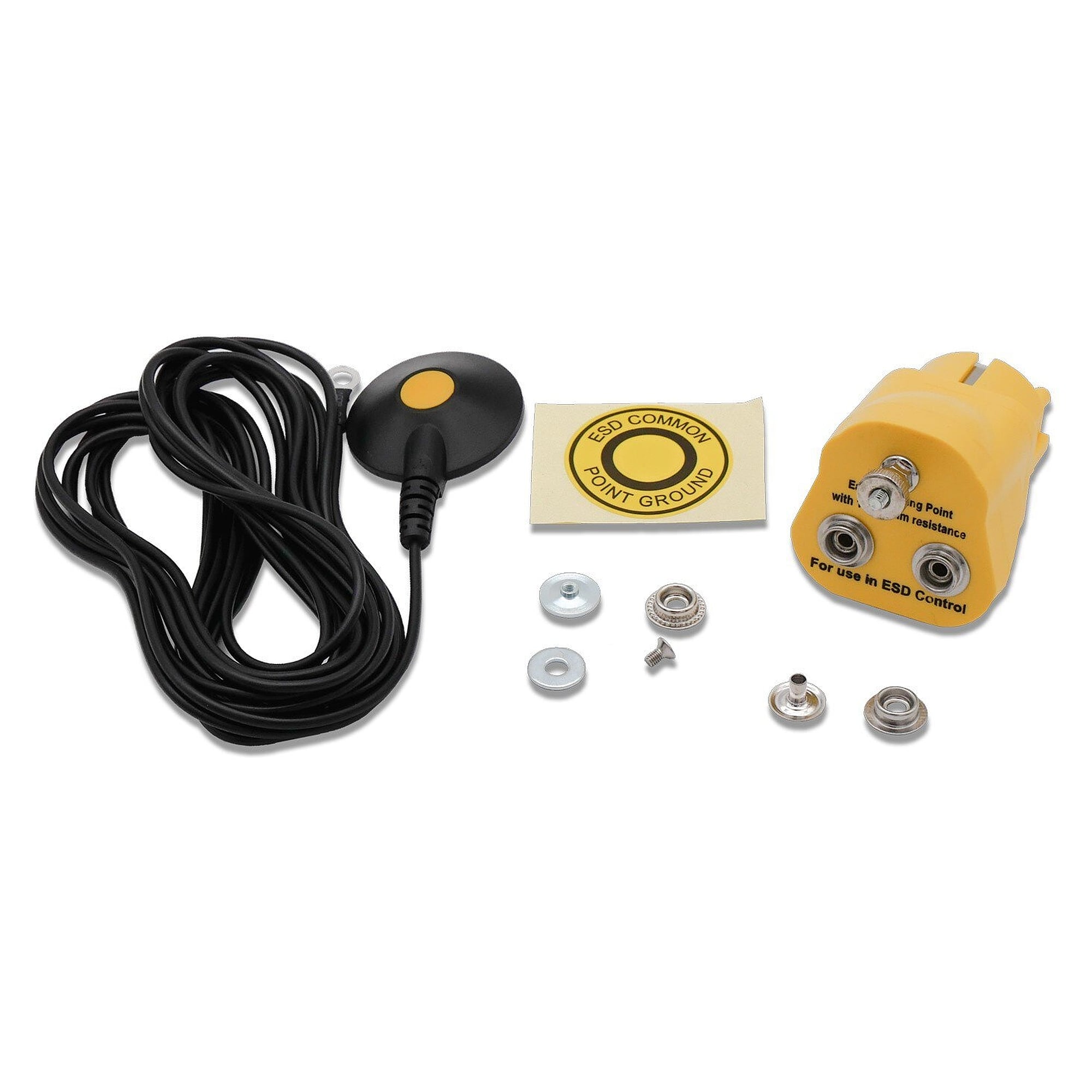

Scope of delivery
- ESD floor mat 3 x 1.2 m made from SafeGrip Flame
- ESD snap stud, screw-on
- ESD ground plug with 2x 10 mm snap
- ESD ground cord 4.5 m
