ESD Table Mat Set XS Pro Blue 600 x 400 mm, 5-Piece with Wrist Strap and Coiled Cord - Safeguard WL93307
Complete ESD workstation set with table mat 600 x 400 mm in blue, wrist strap, 2 megohm coiled cord, earthing cable and earthing plug. The mat dissipates in a controlled way at 10⁶ to 10⁷ ohms surface resistance and withstands heat and solder. One order equips compact soldering, repair and test stations for ESD-safe work.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
An ESD workstation needs more than a mat: the operator and the bench must be earthed too. This 5-piece XS Pro set provides the table mat in 600 x 400 mm, personal earthing and the cables to the earth connection.
Key benefits
- 5 matched parts, mat, personal earthing and earth connection in one order
- Two-layer mat, dissipative and conductive, surface resistance 10⁶ to 10⁷ ohms to EN 61340-2-3
- Heat and solder resistant, glow wire test to IEC 60335-1 up to 750 °C
- Resistant to chemicals, oil and grease, permanently elastic and lies flat
- Anti-reflective surface and abrasion below 200 mm³ to ISO 4649
Applications
Setting up new or upgrading existing workstations in the EPA, for compact soldering, repair and test stations in electronics production, service and laboratories.
Standards and compliance
Resistance measured to EN 61340-2-3, RoHS compliant.
Technical data
| Length | 400 mm |
|---|---|
| Width | 600 mm |
| Thickness | 2 mm |
| Colour | blue |
| Material | Natural rubber and synthetic rubber |
| Construction | two-layer, dissipative and conductive |
| Typical surface resistance Rpp (EN 61340-2-3) | 10⁶ to 10⁷ ohms |
| Typical volume resistance RV (EN 61340-2-3) | 10⁶ ohms |
| Hardness (ISO 7619) | Shore A 75 |
| Residual indentation (EN ISO 24343-1) | < 0.20 mm |
| Abrasion (ISO 4649, method A, 5 N) | < 200 mm³ |
| Flexibility (EN ISO 24344, method A, 20 mm mandrel) | passed |
| Needle flame test (IEC 60695-11) | up to 30 s |
| Dynamic coefficient of friction (EN 13893) | > 0.30 |
| Stain resistance (EN ISO 26987) | resistant, depending on concentration and contact time |
| Oil and grease resistance (ASTM D471) | limited change in volume and mass |
| RoHS compliant | yes |
| Corners | rounded |
| Connection | 2x 10 mm press stud |
| Earthing cable included | yes |
| Cleaning | with a suitable ESD cleaner |
| Sales unit | 1 set |
| Weight | 1 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | WL93307 |
| HS-Code | 40169997 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
Scope of delivery

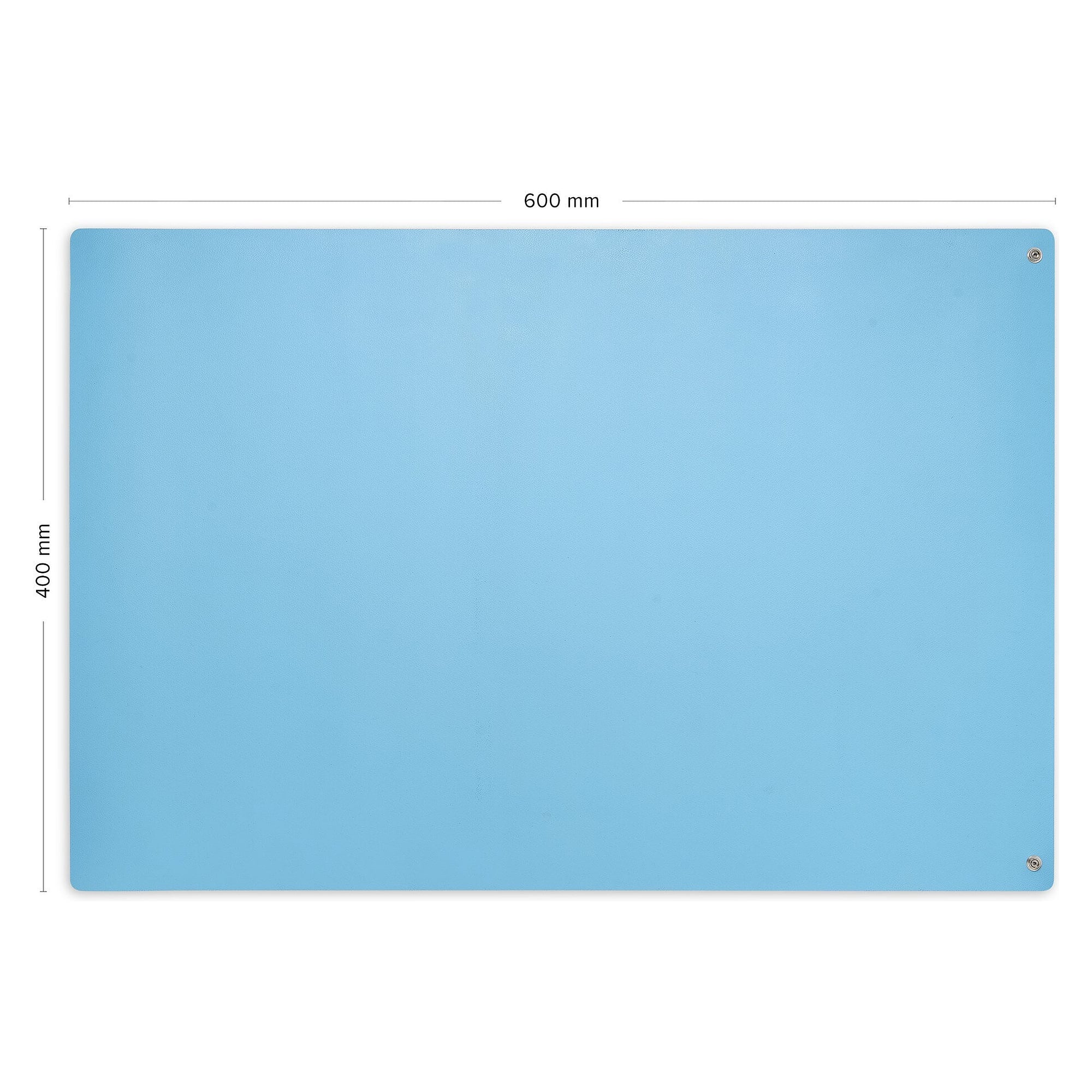

- ESD table mat blue 600 x 400 x 2 mm with 2x 10 mm press stud

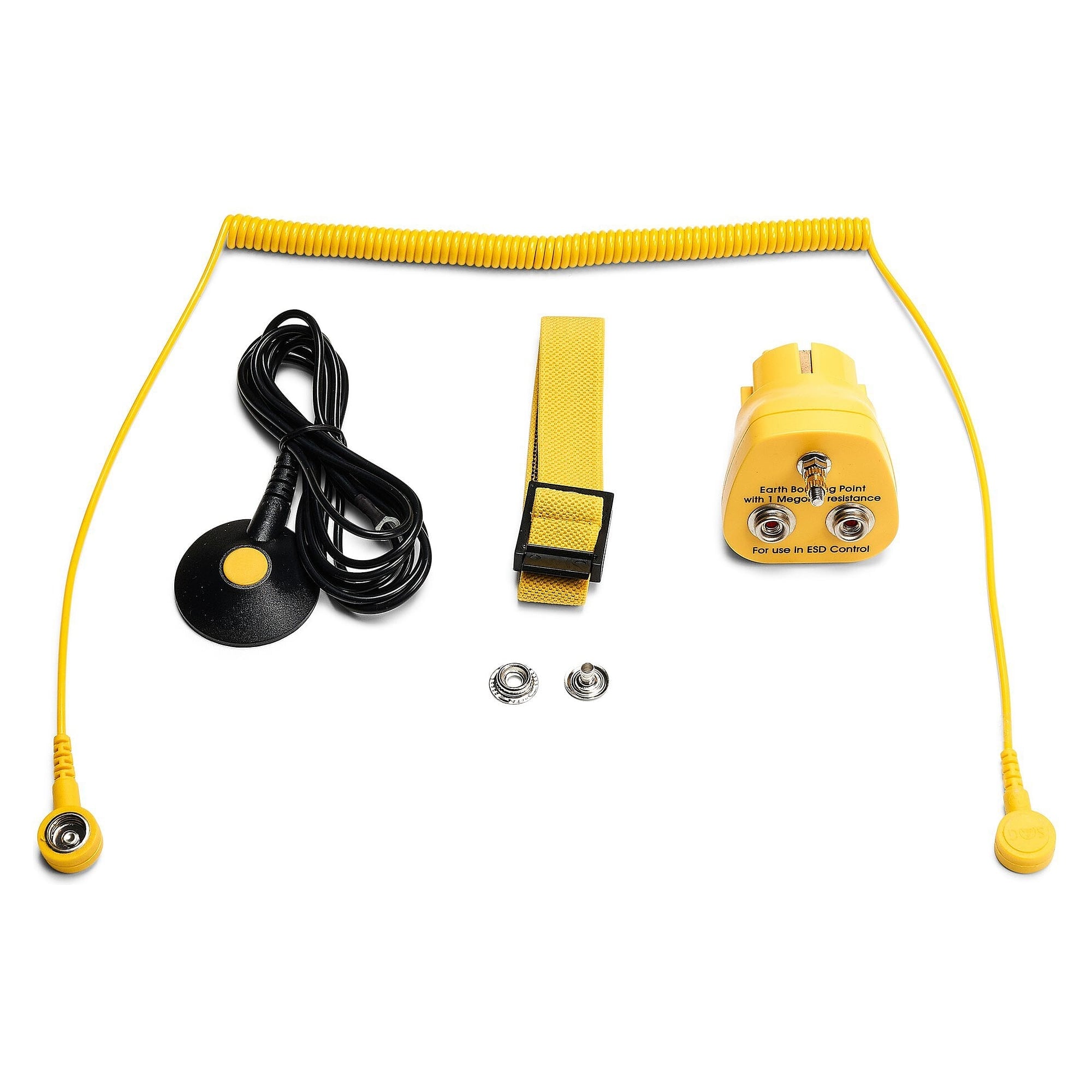

- ESD wrist strap with 10 mm press stud
- ESD coiled cord 2 megohms, 3.6 m, 10/10 mm press stud
- Earthing cable 1.8 m, 10 mm press stud to 4 mm eyelet
- Earthing plug with 2x 10 mm press stud
